Self-locking Quick Release - V2 Version - Left and Right Dual Card Slots - Improved Lock Rod - Free 3D Print Model

Search models, users, collections, and posts

嗨阿毛

Tools>Hand Tools

IP Report

Print Profile(4)

All

P1S

A1 mini

P1P

X1E

H2D

X1 Carbon

H2D Pro

H2S

P2S

H2C

X2D

A2L

Dongcheng 20V electric drill quick-change ball head, bolt size M4

Designer

16 min

1 plate

Worx WG380S quick-release ball head, M3*30 bolt

Designer

19 min

1 plate

Version V2 - enhanced with two types of left and right locking mechanisms and improved lever strength to 10.9

Designer

1.3 h

1 plate

Universal ball joint, bolt size M4

Designer

14 min

1 plate

Open in Bambu Studio

Boost

Released

Description

Content has been automatically translated.

Show original

V2 Version

Optimizations:

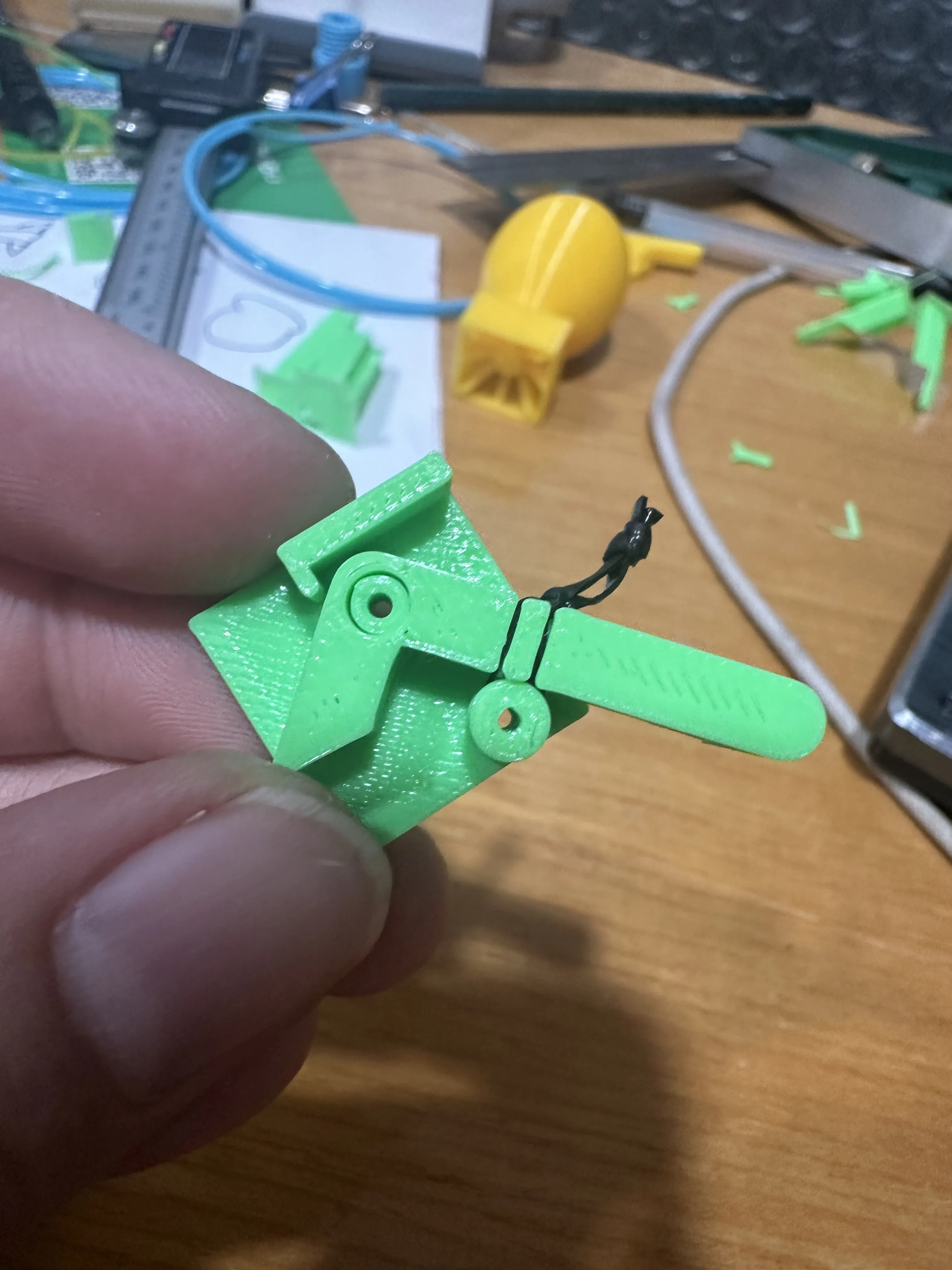

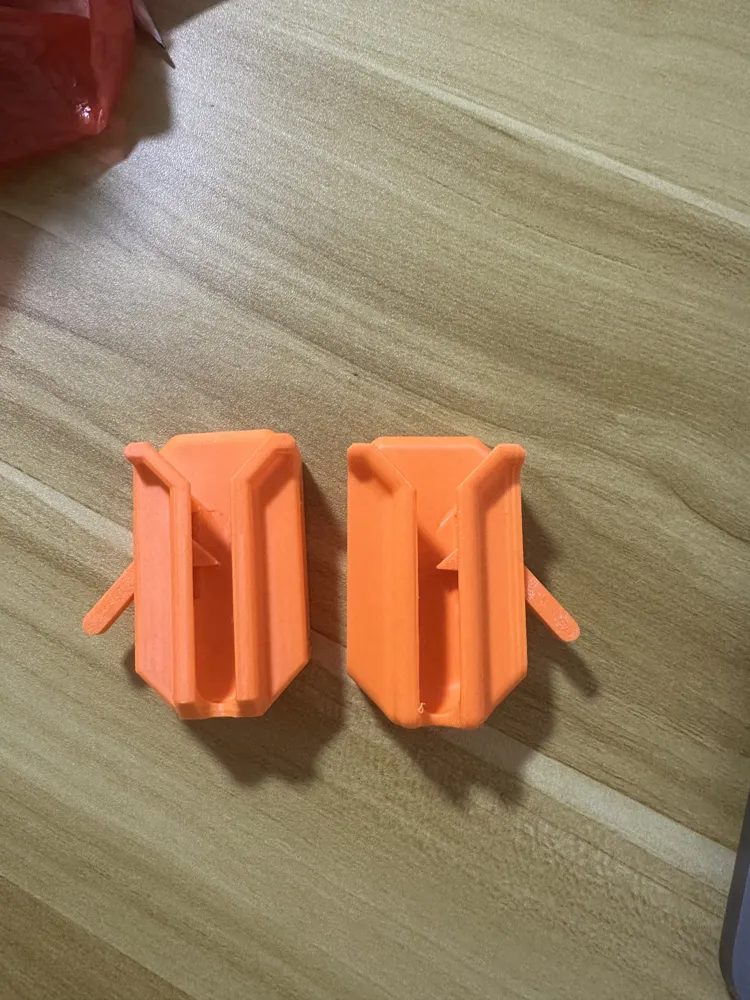

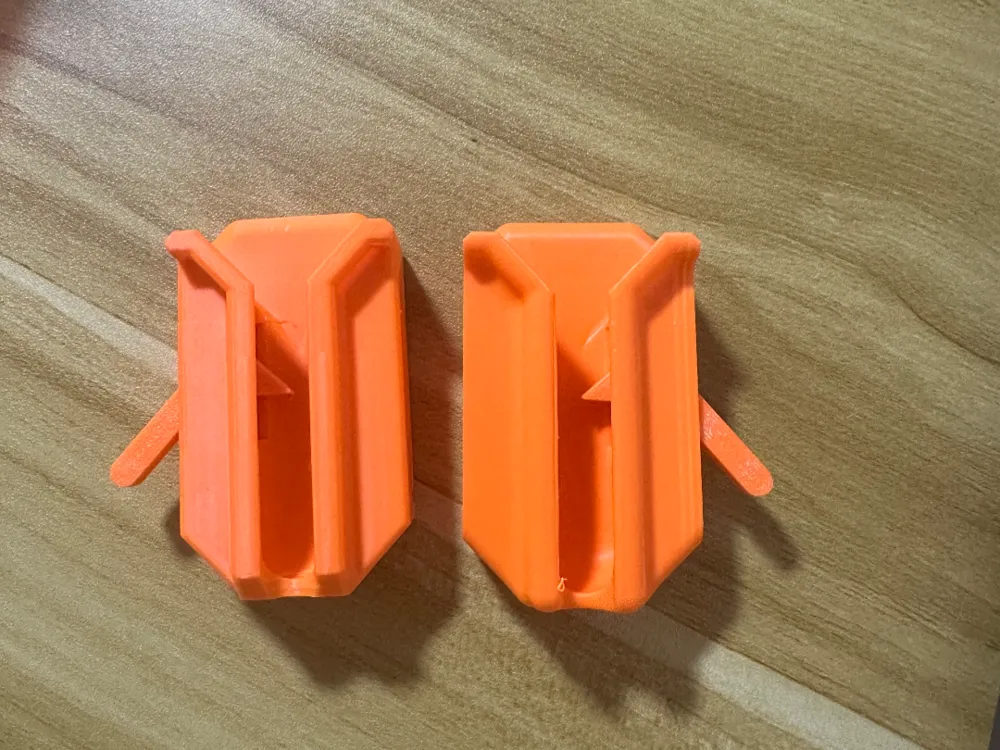

1. The buckle can be installed on either the left or right side; when in use, you can choose to install the buckle on the left or right according to your habits

2. The buckle's toggle lever has been changed from the original slot to two round holes, increasing the strength of the toggle lever

3. This version is the Green Forest quick-release ball head version, suitable for quick-release rods with a diameter of 7.4mm or less

4. Optimized the shape, reducing filament usage

II. Installation Sequence:

1. First, install the handle and the square self-locking structure; you need to prepare one rubber band yourself

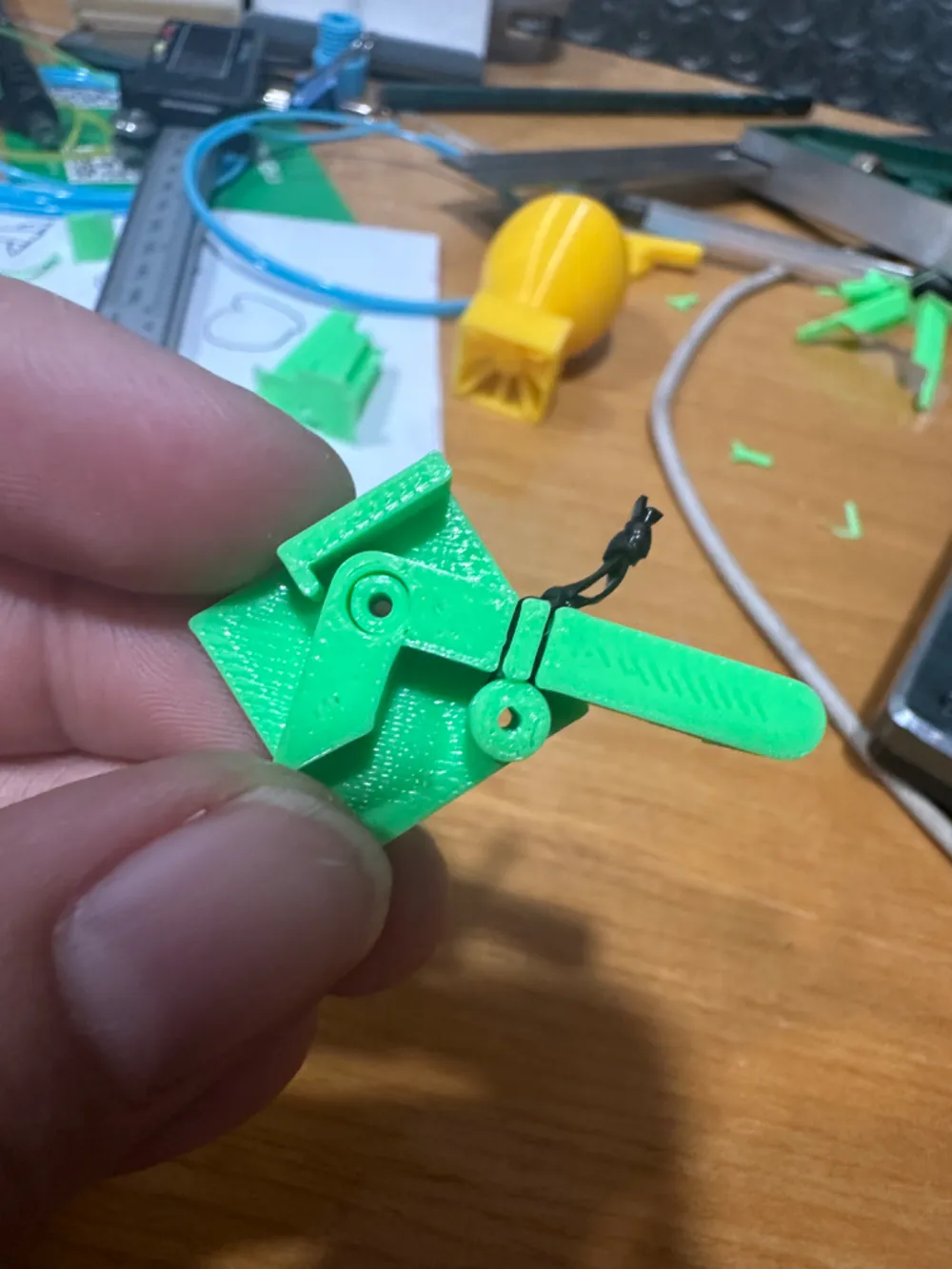

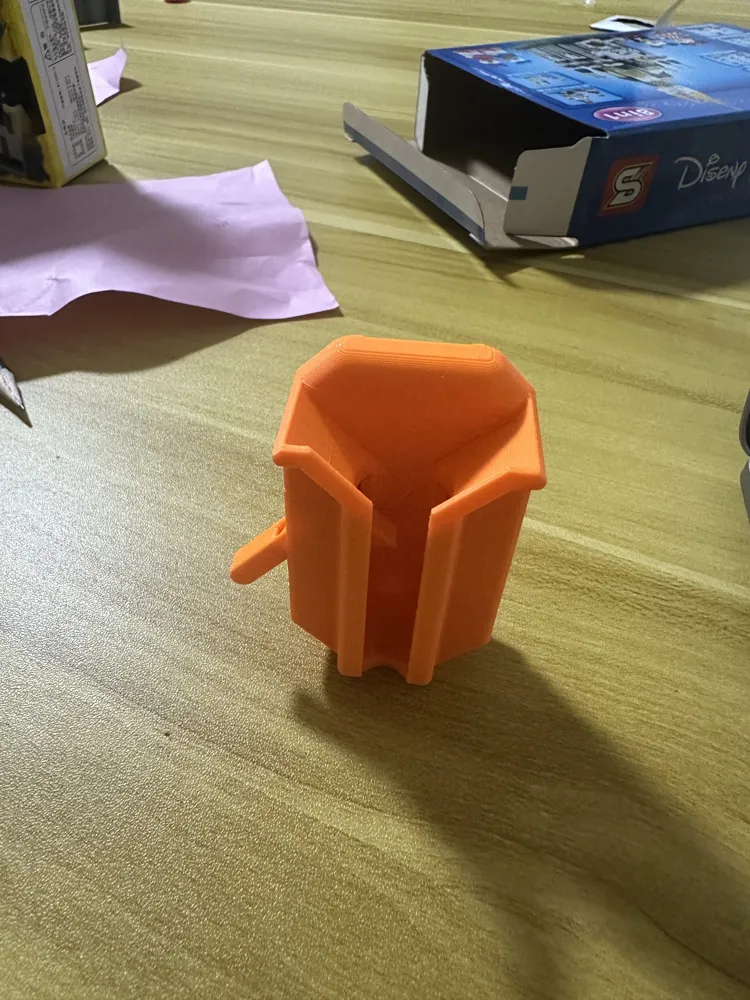

2. Insert the self-locking structure into the quick-release as shown in the diagram. (There are square holes on both left and right sides, you can insert it according to your habits, no need to install both)

Quick Clip
