DIY XTOOL M1 Rotary

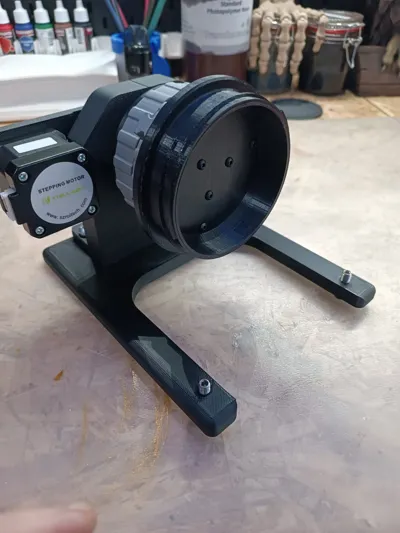

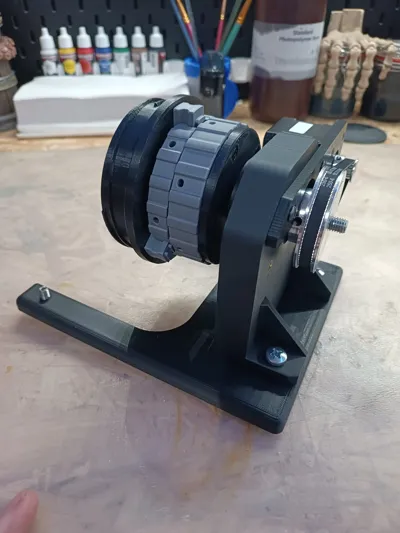

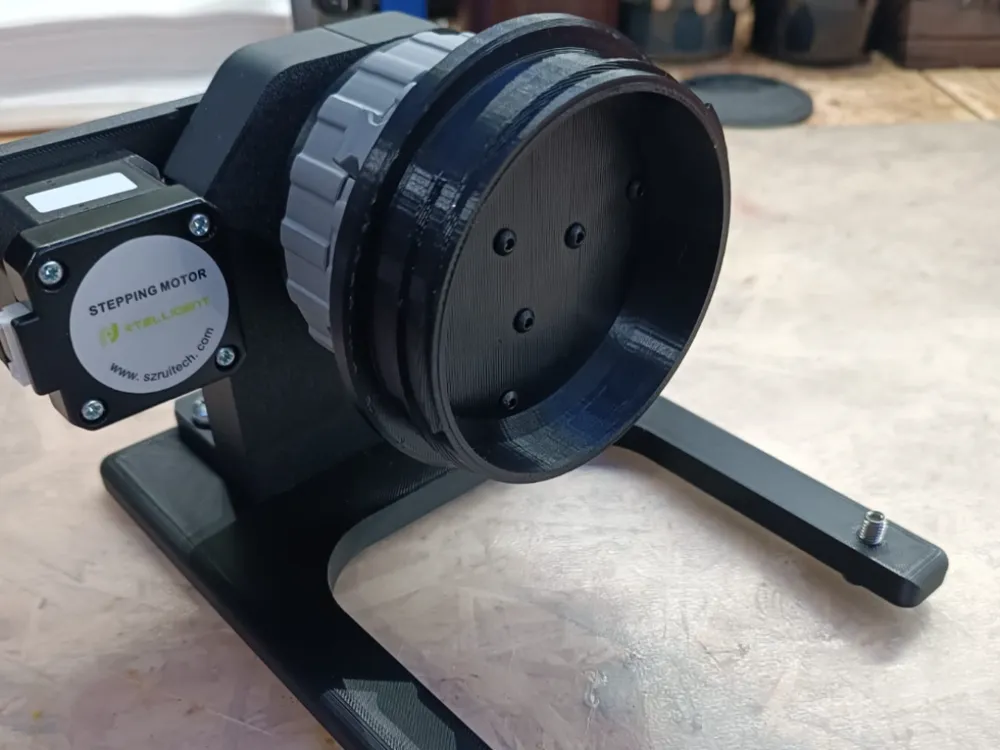

Hello, here I have built a rotary for the XTOOL M1 (remix)

The chuck comes from Andy1957.

The original model from Piwi (3.C.L) https://makerworld.com/de/models/933120-diy-laser-rotary-with-chuck#profileId-897408, I have obtained permission to publish it.

I printed some parts from PLA+, some from XPETG, others from TPU 95A.

Parts list:

Rotary

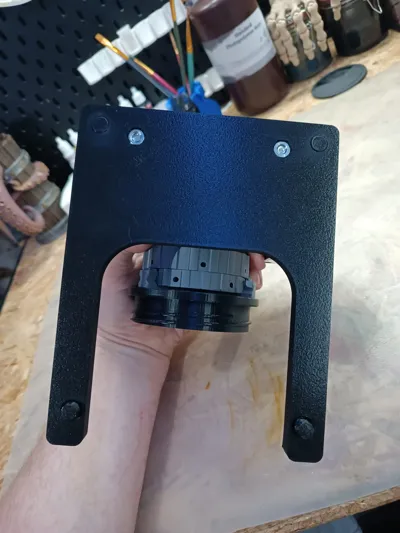

Base plate

2 x M6x16 countersunk screws

2 x M6 nut
2 x M6x20 set screw

Case

4 x M3x12 countersunk screws


Belt tensioner

3 x M4x10 countersunk screws

4 x M3x10 countersunk screws

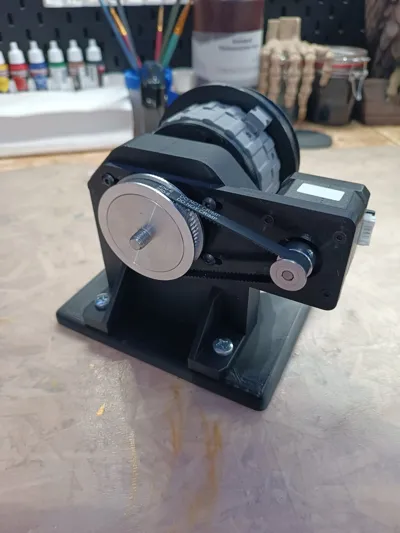

Drive

Pulley 20 T 5mm diameter

Pulley 80 T 8mm diameter (I bored 5mm to 7mm and cut an M8 thread)

GT2 250-6 belt

Shaft

1 x M8x50 screw

1 x M8 nut

1 x 8mm small U-washer

2 x 608 RS bearings

Shaft → Chuck

5 x M3x8 countersunk screws

Chuck

1 x M4x16 countersunk screw

1 x M4 nut (a pause in the print is set to insert the nut)

I used ruthex weld nuts.

GX 16 4 Pin Female

Stepper Motor Standard 1.8°

Stepper Motor Cable (usually included with the motor)

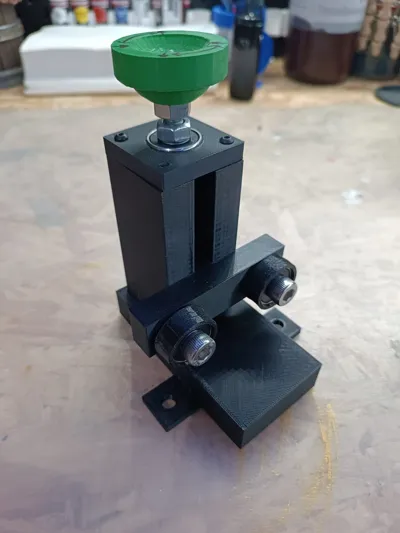

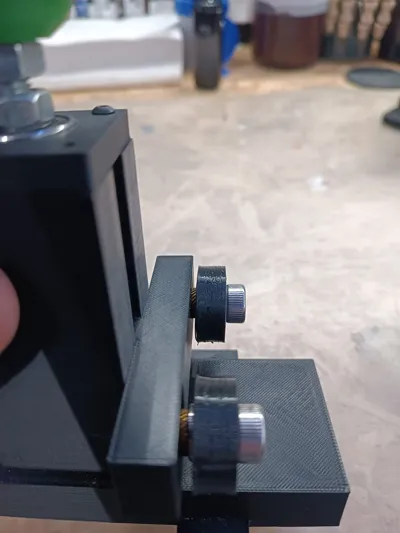

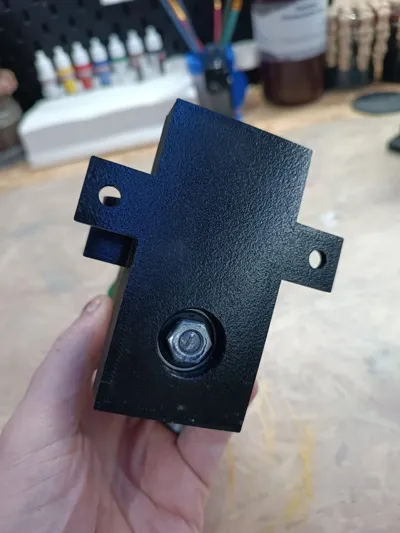

Support

1 x M8x125 screw (full thread) or threaded rod

3 x M8 nut (2 x if screw is used)

4 x M3x12 countersunk screws

2 x M8x16 (head doesn't matter)

2 x 8mm small U-washer

4 x 608RS bearings

3 x M8 weld nut


Wiring

GX16 4 Pin Female

1. A+

2. A-

3. B+

4. B-

Stepper Motor

See the documentation for the pin configuration and adjust accordingly.

If the stepper motor stutters, reverse polarity.

If it rotates the wrong way, swap A+ and B+.
