Box corners for 3mm wood

Print Profile(1)

All
P1S
A1 mini
X1
A1
H2D
P1P
X1E
X1 Carbon
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
1.5 h
1 plate
5.0(4)

Open in Bambu Studio
Boost
16
39
6
0
62
36
Released

Description

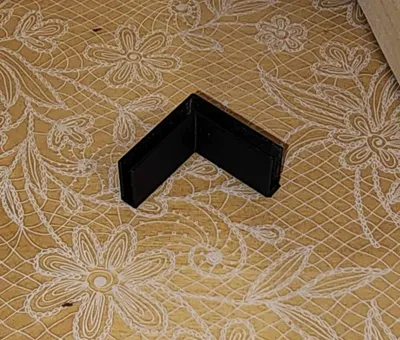

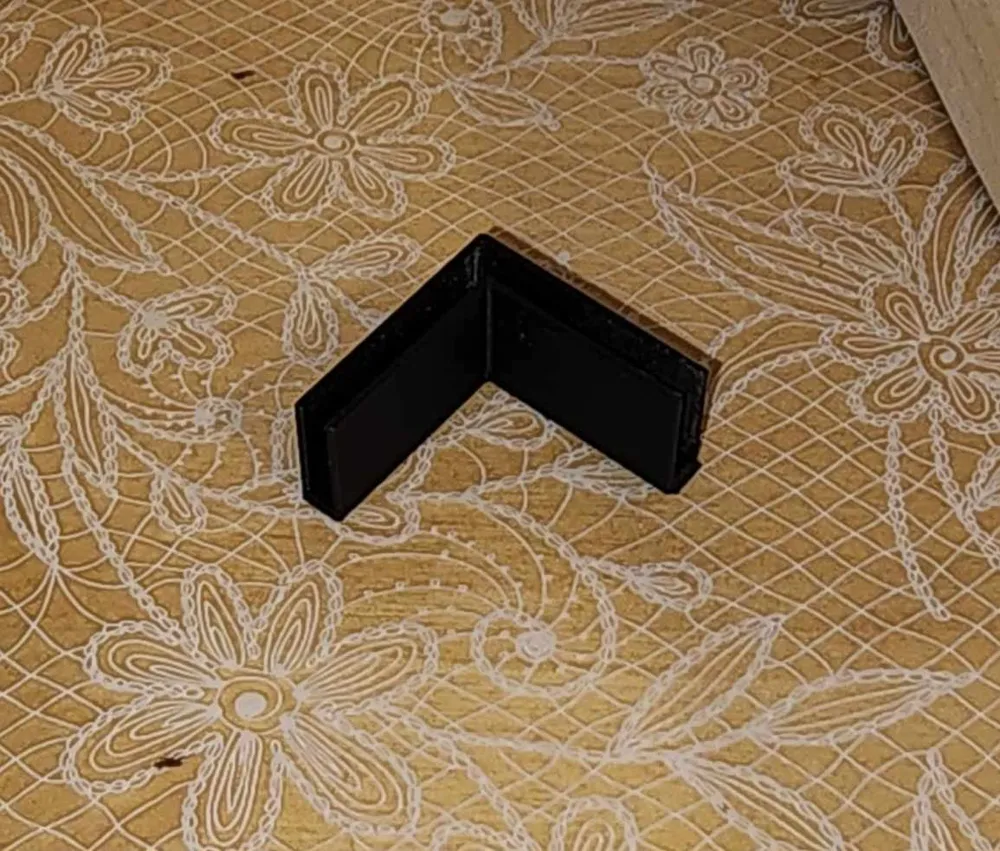

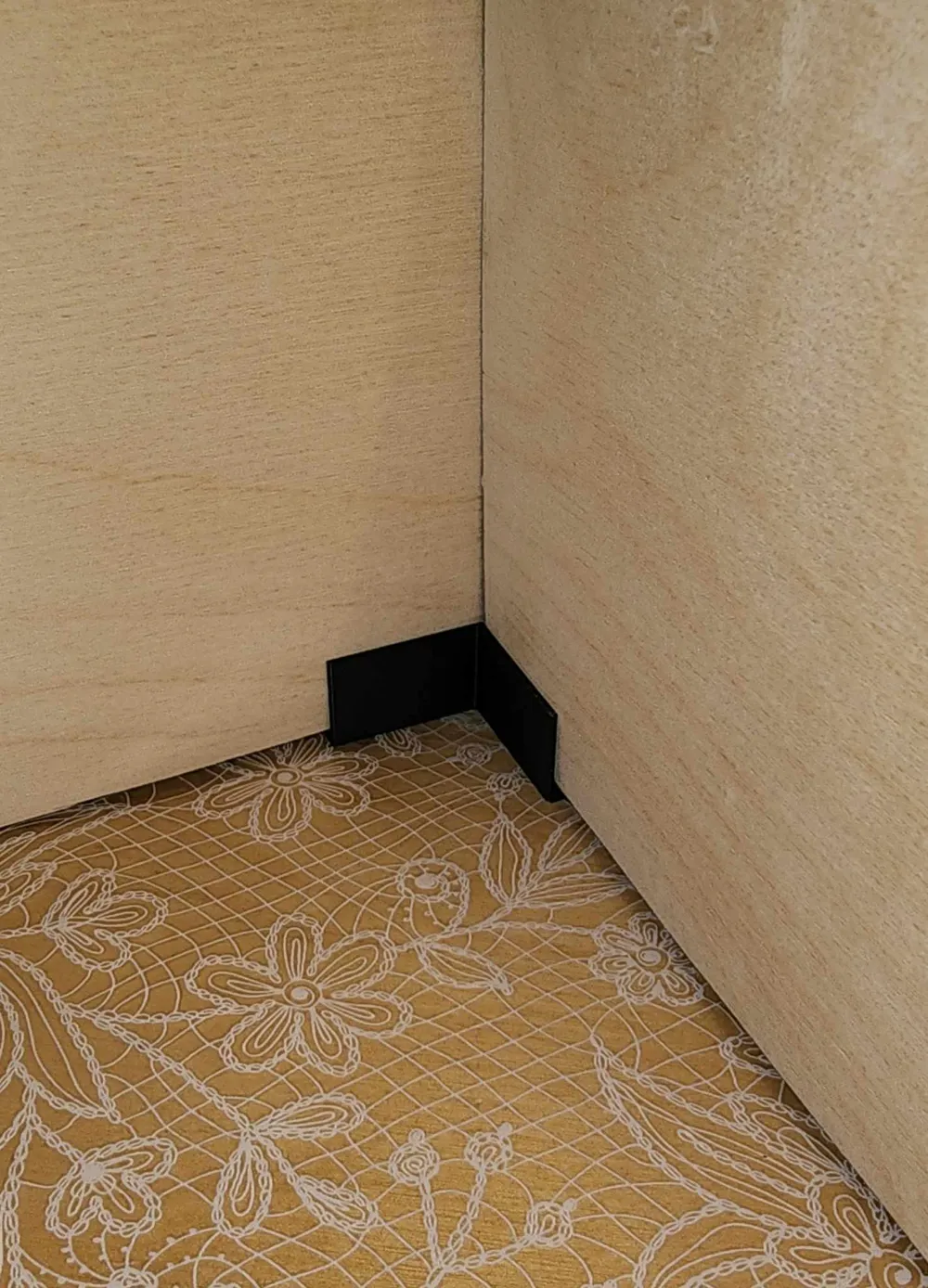

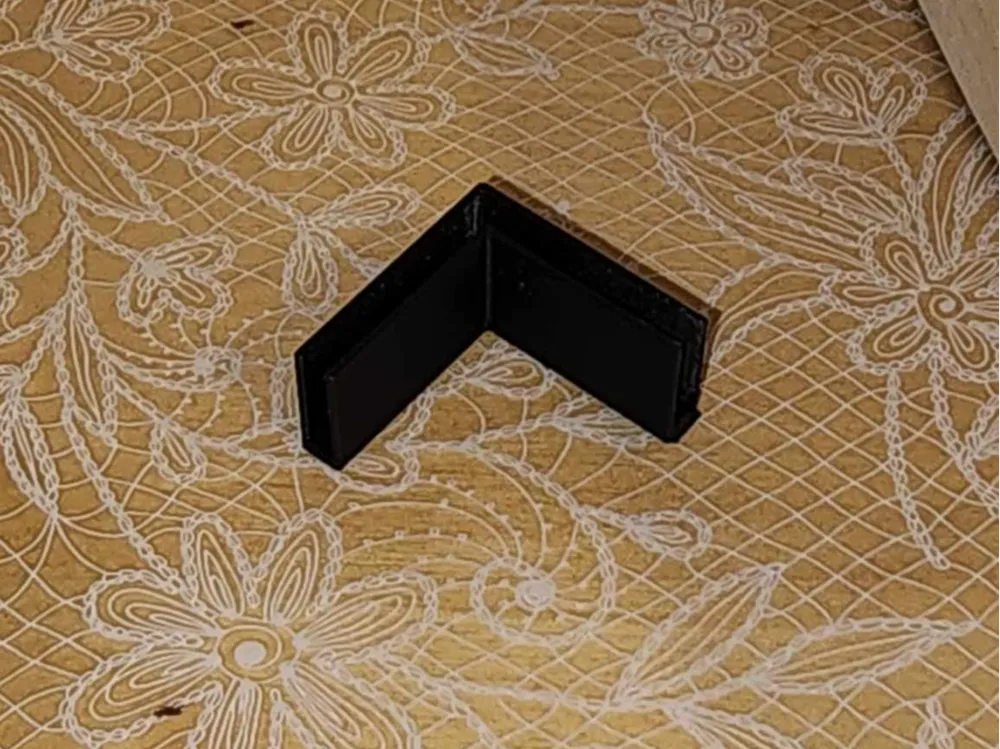

I was wanting to make customized organizers for my kitchen utensils drawer, but I couldn't find what I needed in the correct size. I wanted to use 3mm basswood for the project and wanted it to easily be switched out with different lengths of wood so I just did a quick L type bracket that the wood pieces can slide into. I made the “opening” 3.02mm for variances in wood size. The wood can just be inserted into the bracket and can be glued in if there will be a lot of movement of the box. Feel free to make any changes that you need. I printed with a brim to help adhesion and printed with PLA. If you want a stronger piece you can use PETG. The file has 16 corners on the plate.
