Reolink POE NVR Power Adaptor Wall Mount
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
2.6 h
1 plate
Open in Bambu Studio
Boost
28
91
2
1
111
65
Released
Description

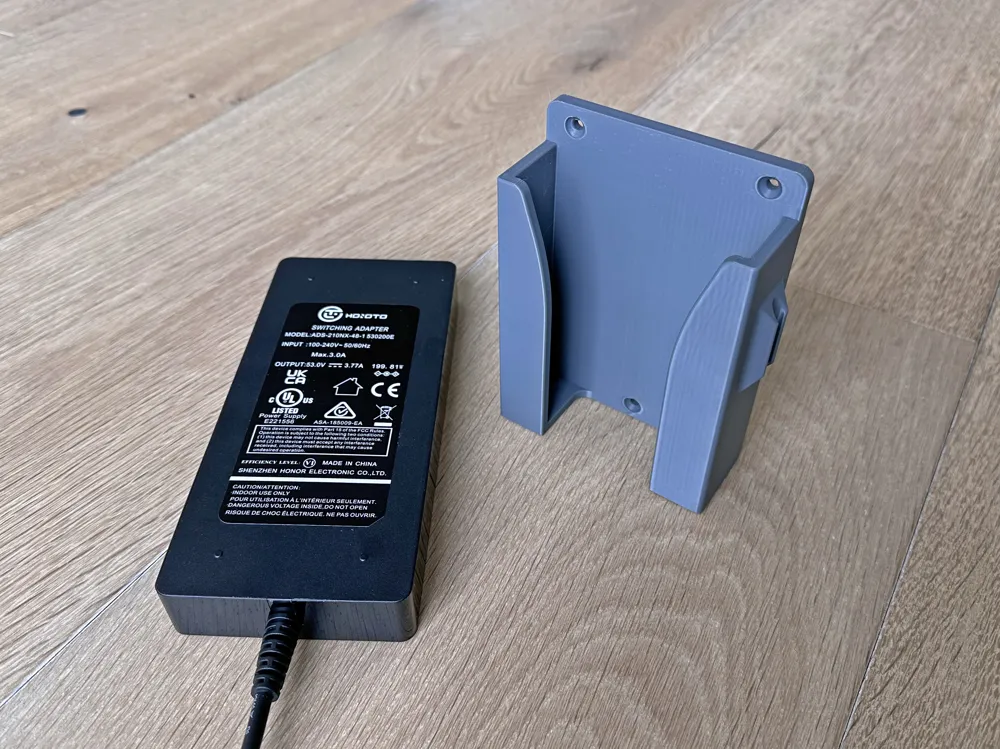

This is a custom wall mount for the power brick that was shipped with a Reolink RLN16-410 in May 2025, in the US.
Dimensions of the power brick are 7 ½" x 3 3/8" x 1". It is not Reolink branded, so a decent chance they source different ones. Check your size.

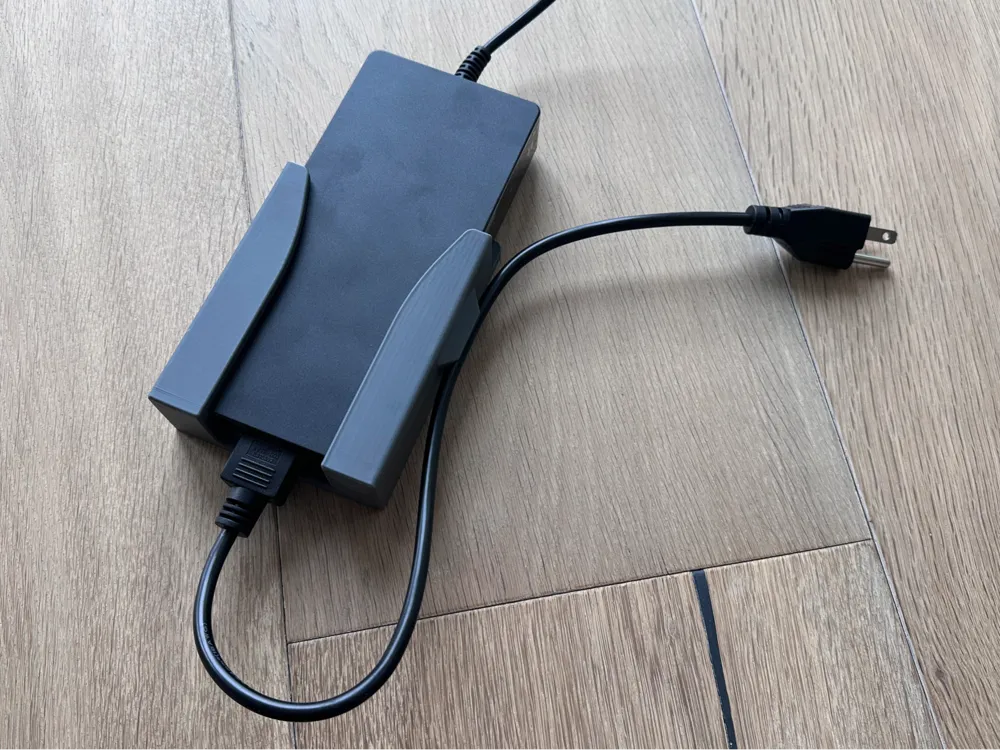

There is a slot for the power cord so no need to disconnect it, three recessed + countersunk holes for screws, and a press-in grip to secure the power cord. Included STEP and Fusion 360 files so you can modify.

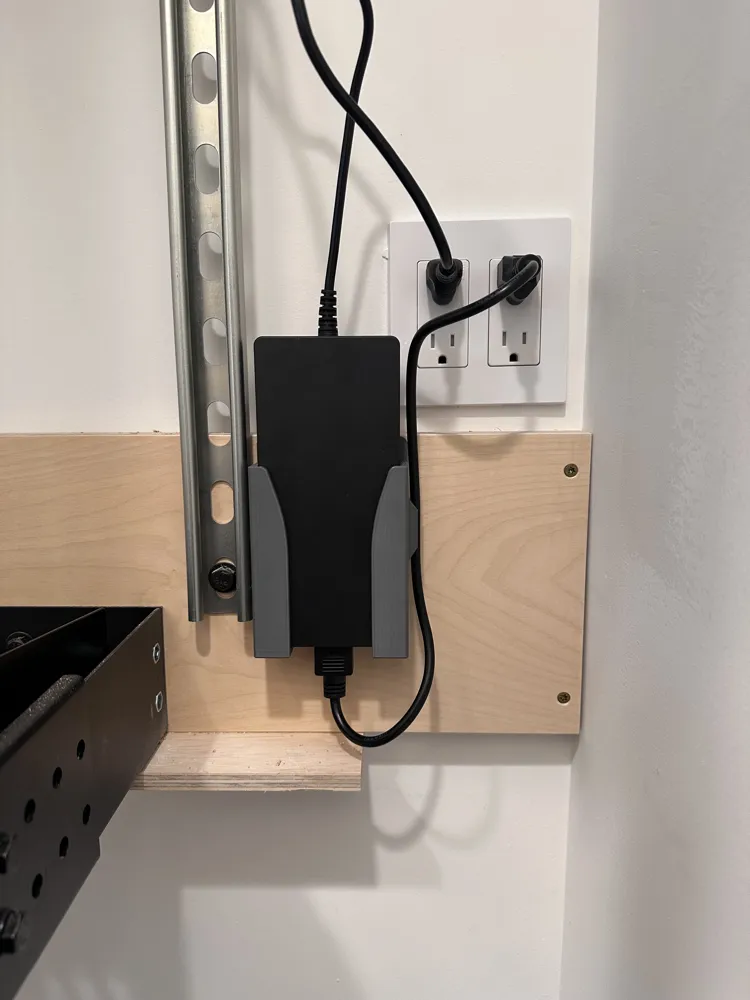

Print standing up (like in the 2nd picture) with the base where the power cord comes out on the bed. No supports are needed. I printed with 3 wall loops.
