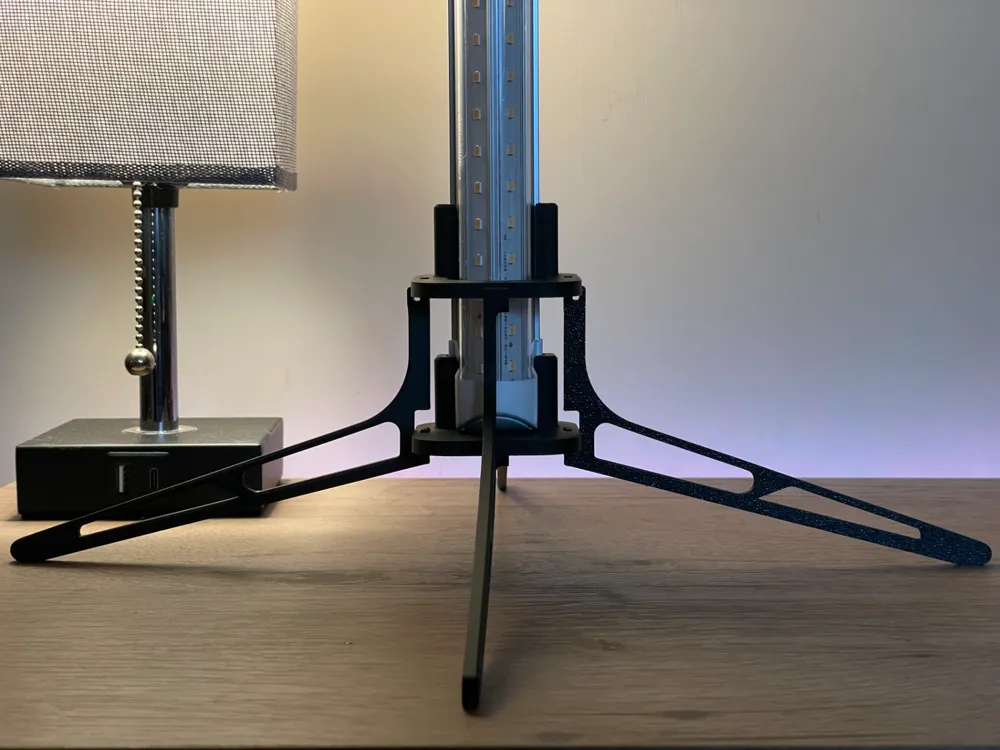

Easy to print vertical stand for Barrina T8 LED Grow Lights. Parts lock together with a snug fit and does not require glue to assemble.

Assembly:

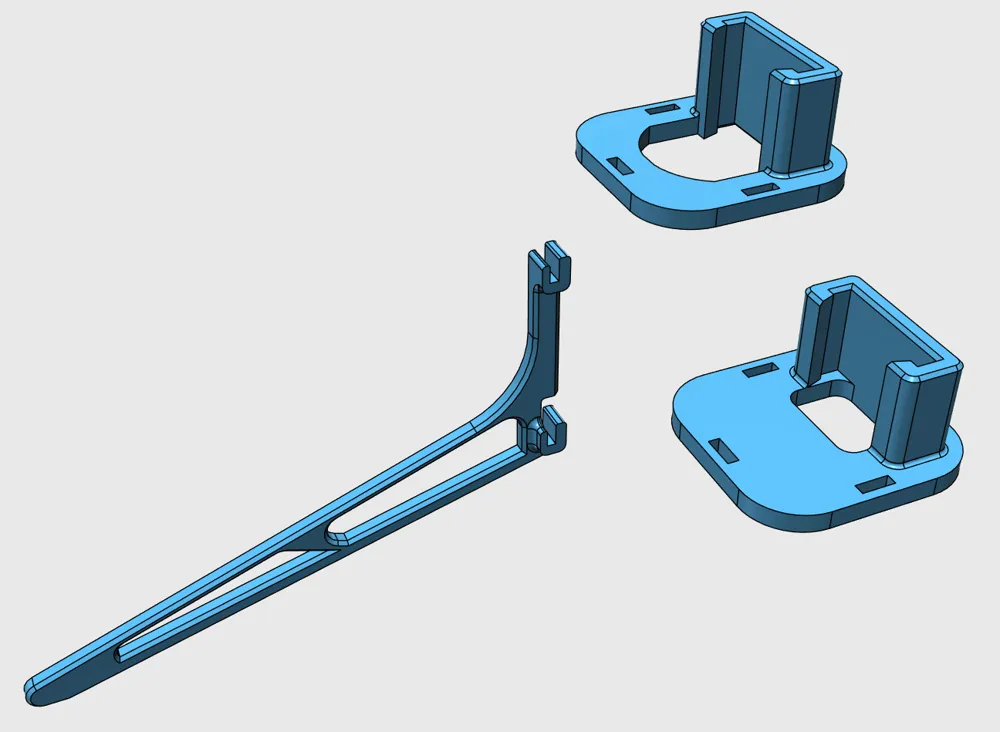

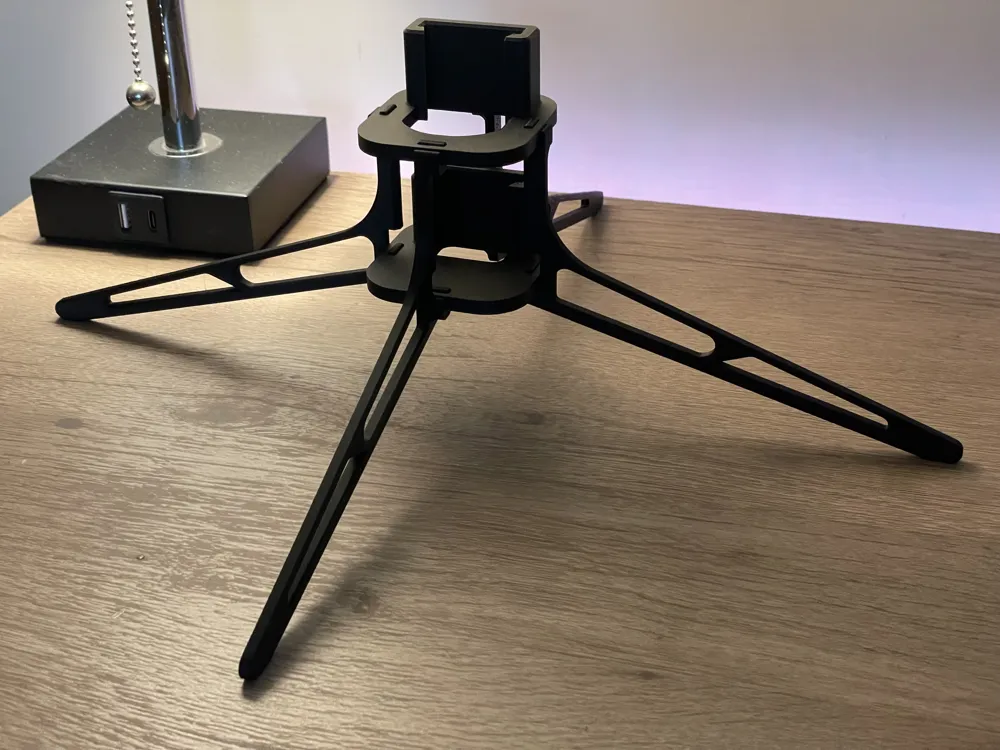

Attach the 4 Legs to the Base using the bottom clips

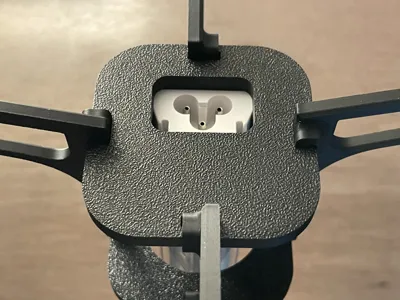

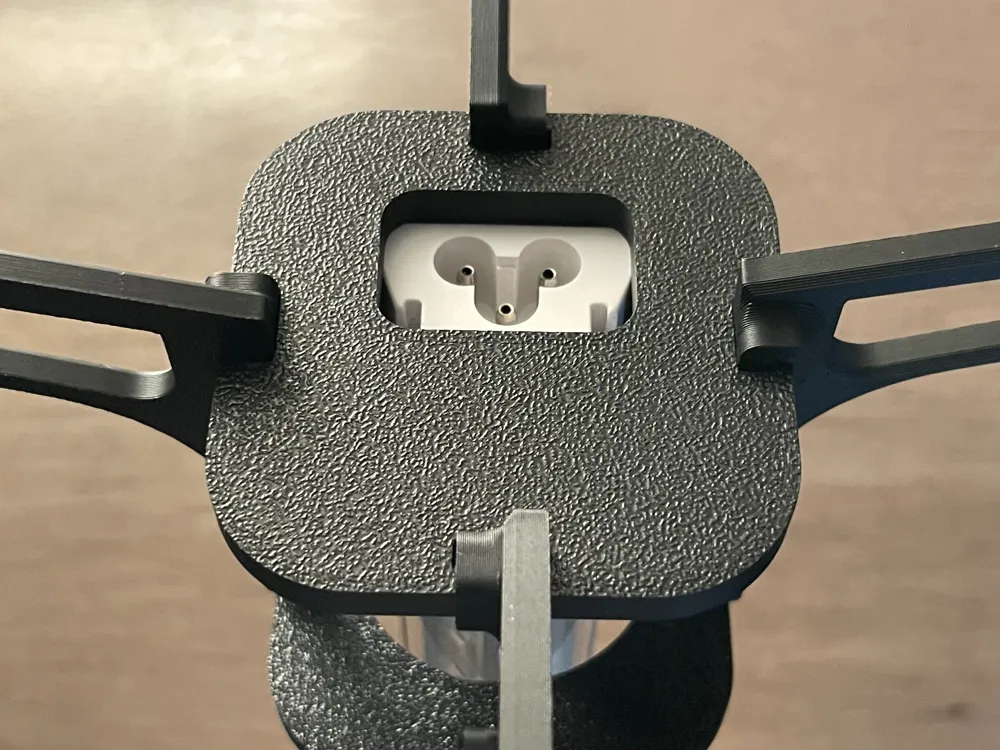

Attach the Brace to the top clips of the legs.

Additional Base and Brace .stl files are available for a loose fit.

original: 33.2mm x 6.2mm
loose: 33.6mm x 6.6mm

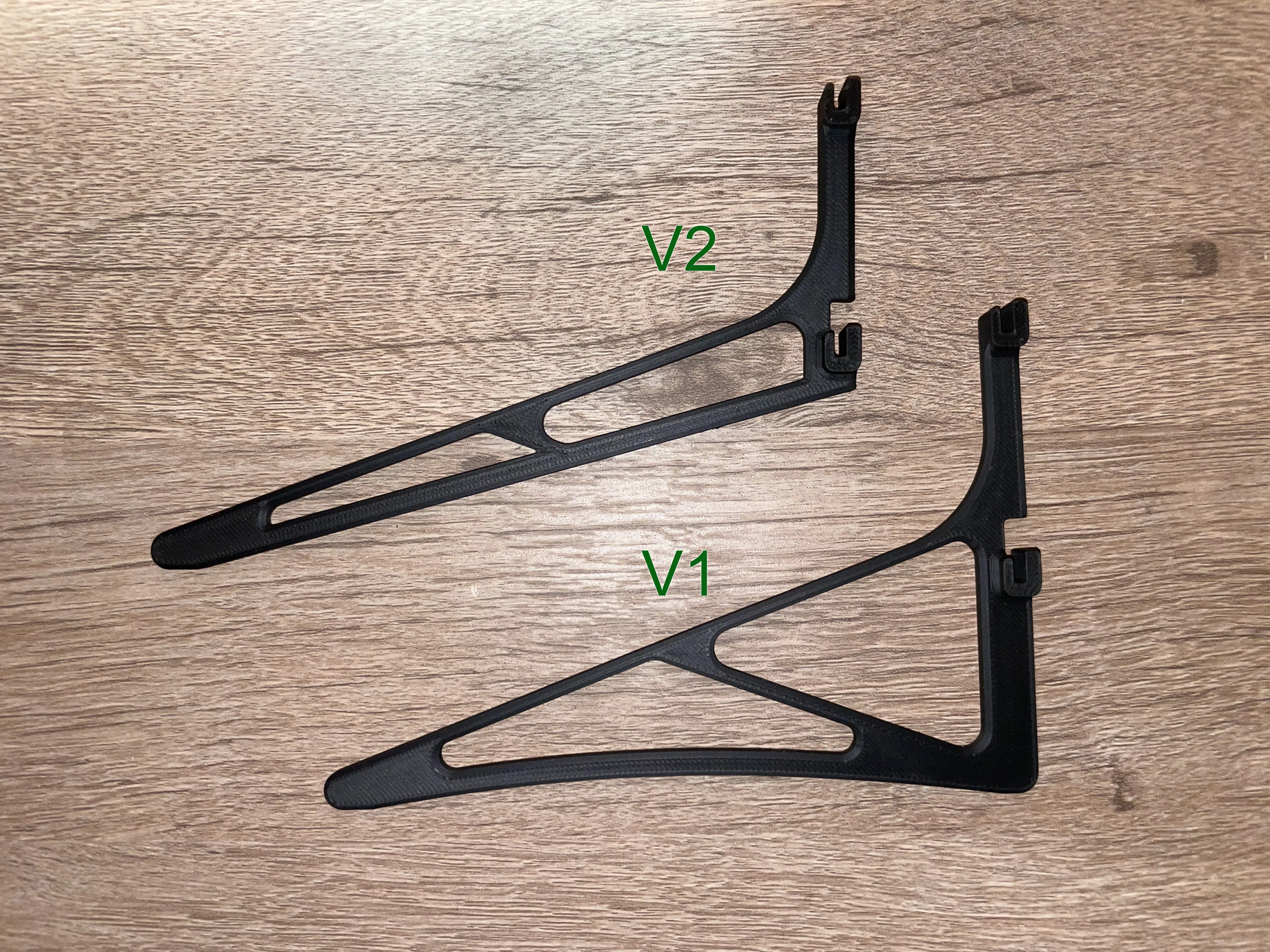

UPDATED: V2 Legs improve the balance of the stand and reduces the time and filament required.

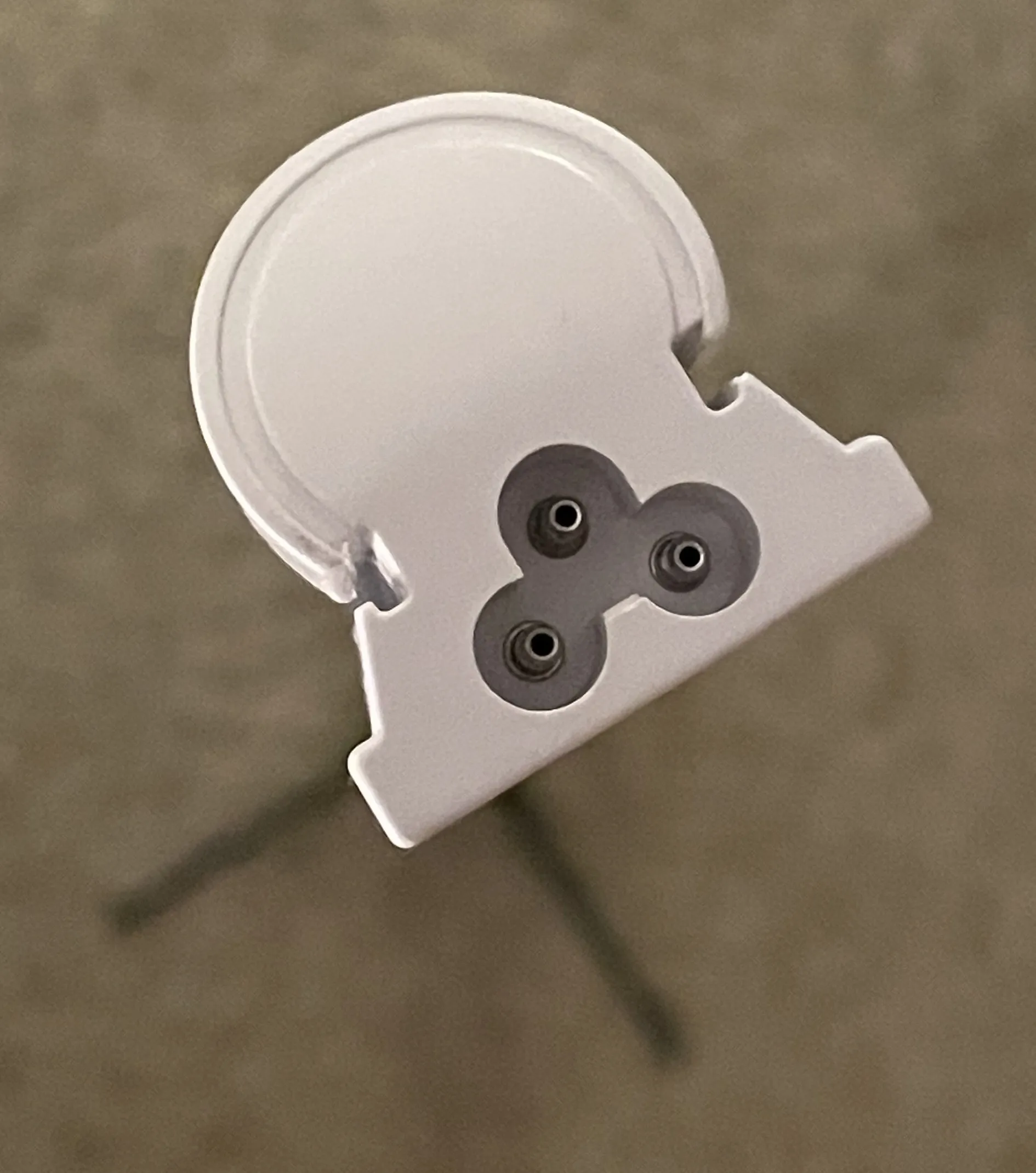

Designed for Barrina T8 LED Grow Lights - the stand attaches to the rail on the back.

Comment & Rating (19)

@ricch

Print Profile

0.2mm layer, 3 walls, 15% infill

Thanks for the designs. Printed in PETG. Was a bit of a snug fit on my Barrina T8. Added a 0.4mm tolerance to help with installing. otherwise, super functional for my soon to be built hydroponic system. Thanks again!

The profile uploader has replied

@user_2317404274

Did you modify the STL file? Because yeah I couldn’t get this to go together either. Seeing what best option is to get assembled. Trying it for my 8ft T8 for garage lighting.

@ricch

Replying to @user_2317404274 :

Yes, I modified the STL file to make it fit. The default spacing for for the model's T8 base was 33.2mm x 6.28mm. Was a bit snug, so i added a negative part (cube) of 33.6mm x 6.6mm (with a z-height that would provide full clearance). I did the same on the 'base plate' (on the left of the screenshot), but raised the elevation so that it wouldn't remove the 'notch guard'. Hope that helps.

@MunkyCream

Thank you for the suggestion! I kept it a bit snug to keep the stand from sliding off when moving the lights around. There is definitely room to relax the fit and make it easier to install. I've added .stl files using your recommended 0.4mm tolerance to hopefully help the next person. I appreciate it!

@user_157420846

Three things. 1. It is too tight. I just increased the overall size to 103%. 2. The legs fall when picked up. I super glued the legs to the bottom brace. 3. The top brace has to slide on the white cover on the end but once it has passed it is loose and allows the light to wobble a bit. I haven't implemented a solution for this yet. Otherwise works great. Thanks for the design.

(Edited)

The designer has replied

@MunkyCream

Thanks for taking the time to share feedback! I just added some .stl files with a looser fit which should help with item 1. Printing at 100% may also help with item 2, it is intended to be press fit. Regarding item 3, you are correct. It does slide over the cover and can be a bit of a pain to get back off. I tried lowering the back wall so the brace could be flipped upside down, but this caused it to be less stable overall. I am sure it can be improved upon, the current form is just what has been working best for me. Happy to read any of the solutions you come up with!

@user_1473709215

Print Profile

0.2mm layer, 3 walls, 15% infill

It'll be nice if the loose fit models are in the default 3MF file. I cannot assemble the default version, but the loose fit one works.

The profile uploader has replied

@MunkyCream

Great suggestion, thank you! I just updated the 3MF to include the loose fit.

(Edited)

@user_1312561458

Boosted

So happy to see exactly what I needed!

@GMH98

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

This is awesome.

@Print_Prod

Boosted

Double boost!

@Print_Prod

Boosted

Was trying to design something like this. Was blown away by the fact someone already did. Thanks for taking the time to make this!

@larrry

Print Profile

0.2mm layer, 3 walls, 15% infill

Fits well, plenty sturdy. Good work!

@user_2703142687

Print Profile

0.2mm layer, 3 walls, 15% infill

@jhill610

Print Profile

0.2mm layer, 3 walls, 15% infill
