Description

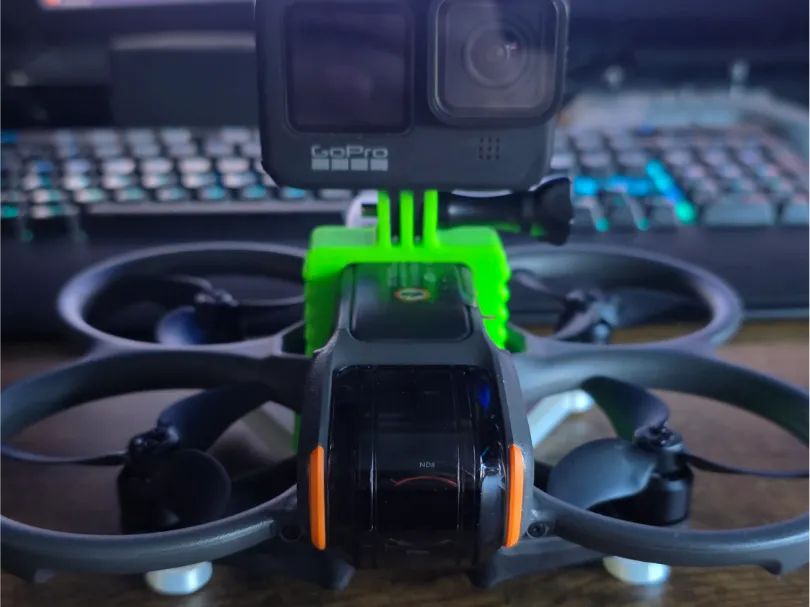

Hi i made a gopro mount for dji avata 2

parts needed soldereing iron

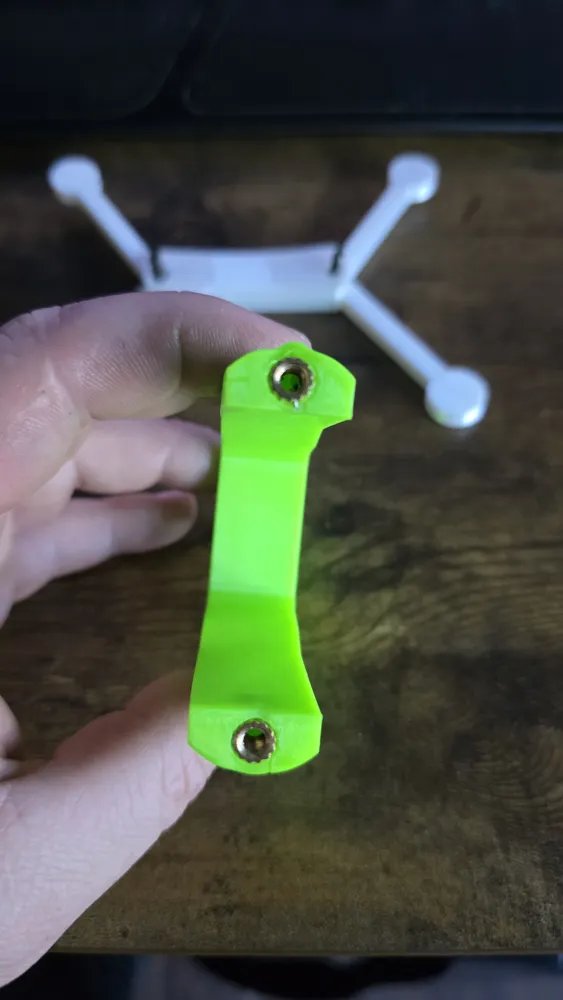

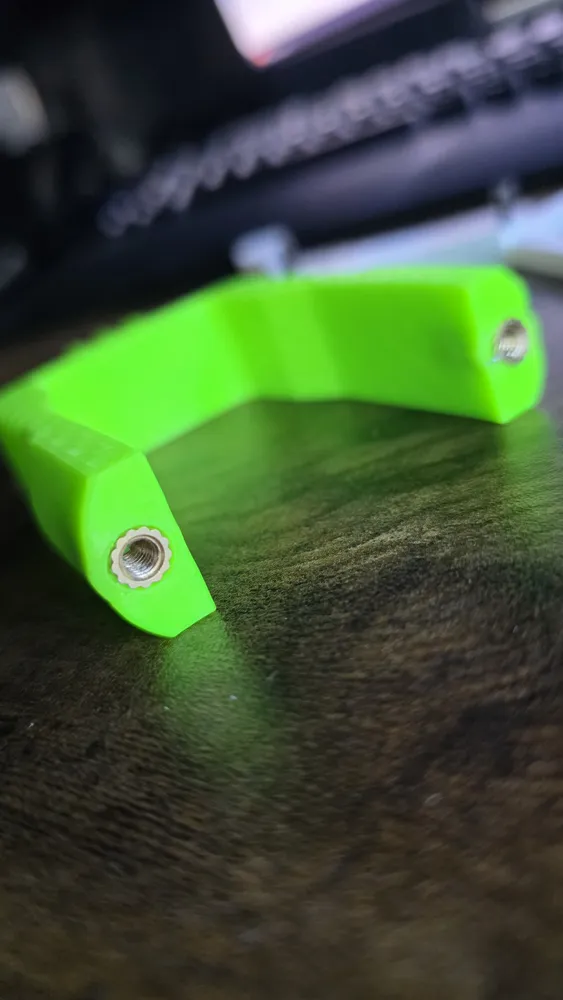

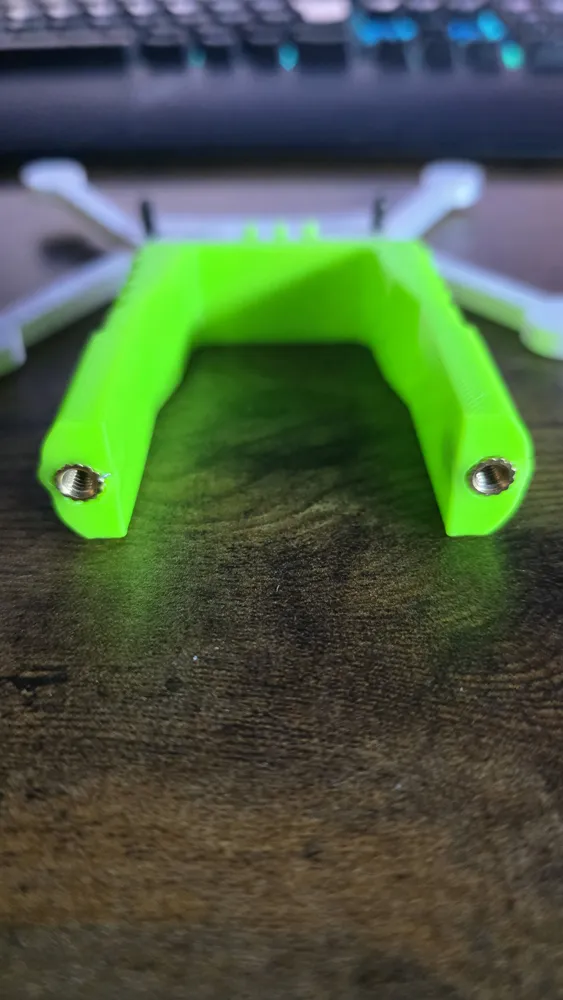

2 X M4 x 8.1 x 6.3} brass heated threaded inserts//// link

https://www.amazon.co.uk/dp/B0CZN4JRF8?ref=ppx_yo2ov_dt_b_fed_asin_title

2 X, M4 0.7 x 12//////

link https://www.amazon.co.uk/dp/B0CZN4JRF8?ref=ppx_yo2ov_dt_b_fed_asin_title

PETG filiment prefered

wall loops 3%

sparse infill pattern cross zag

support tree manual tree slim

please note i have made the gopro mount holes a bit tight so you have to screw them in making it a tight fit so the bolt doesn't slip,

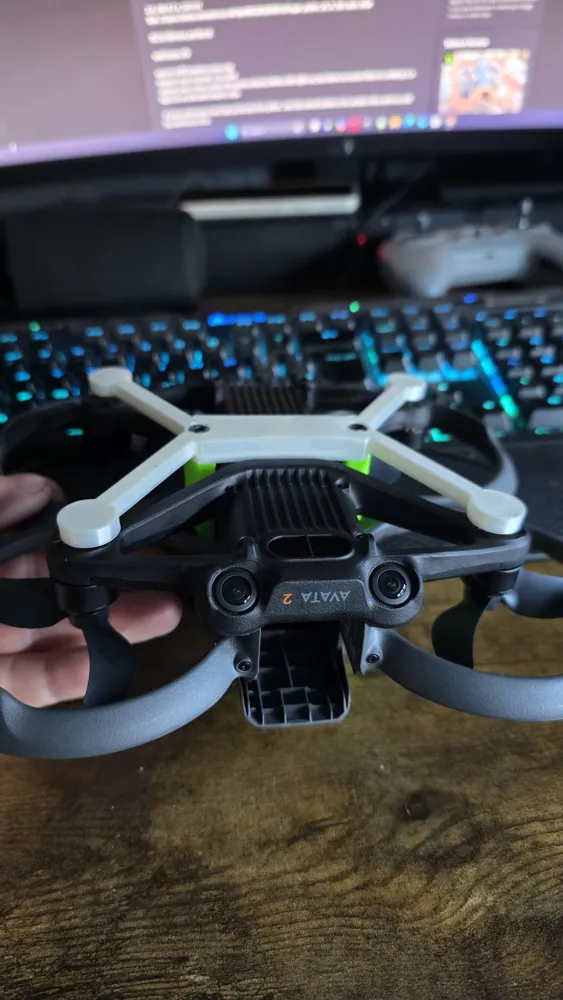

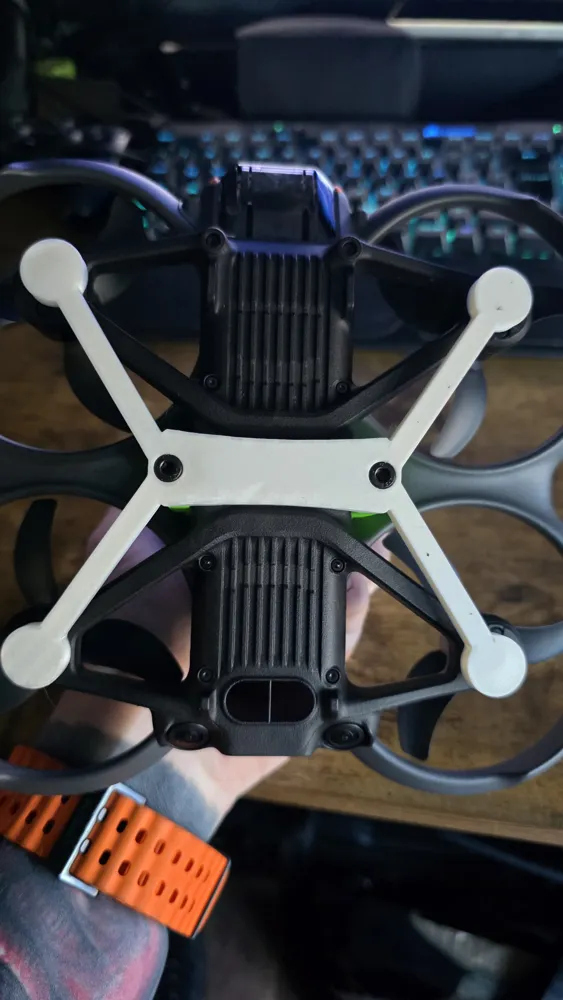

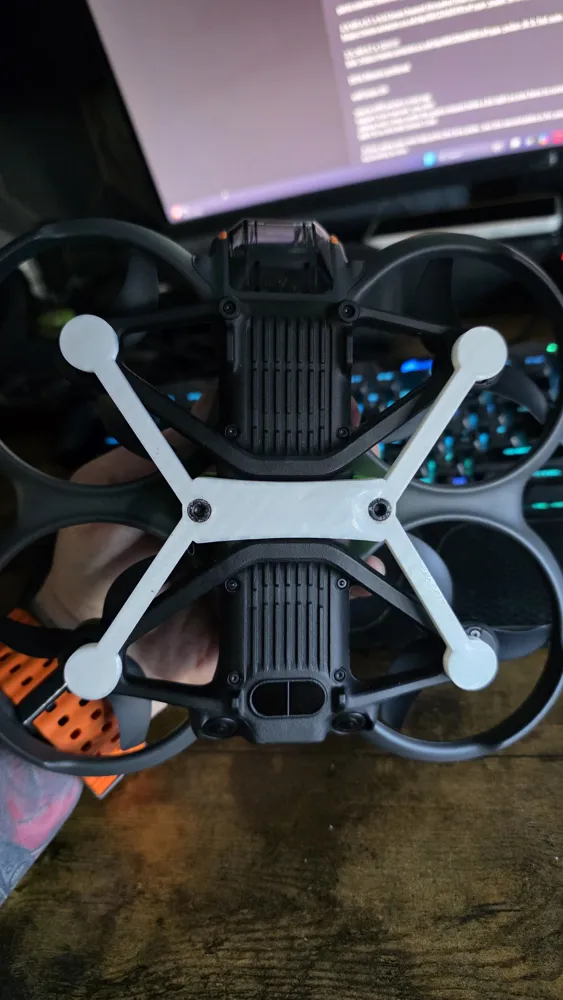

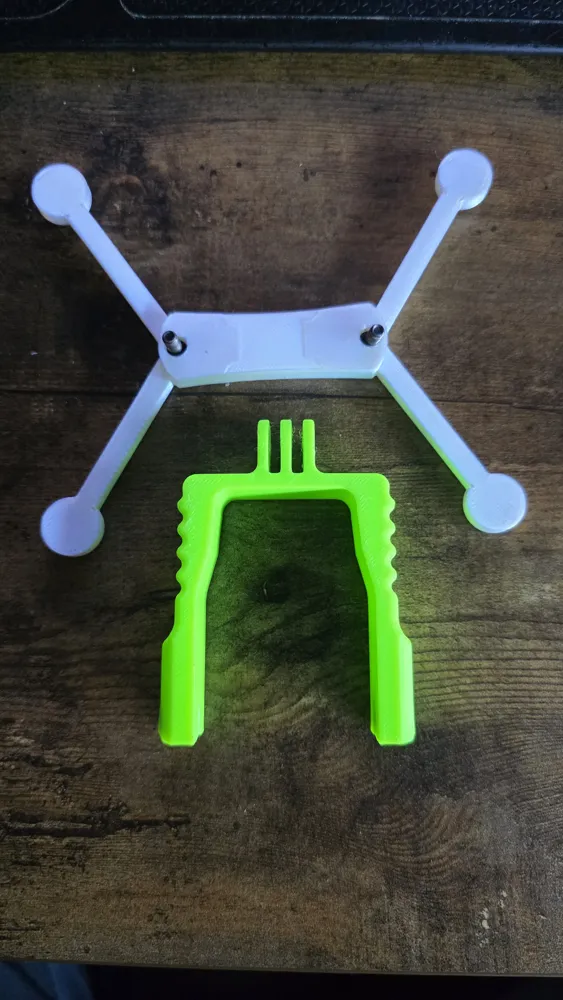

if your using your own legs print the first plate, but the second plate is for people who want to add leg landing to this,

Boost Me (for free)

please consider boosting if you like my desgins, thank you

disclaimer i am not responsible for any damages or losses, while using this product,

dji avata 2 gopro mount

gopro mount

dji avata 2

Comment & Rating (15)

@skilte

thanks for the model! Very good

The designer has replied

@K3YPT1C

looks great, & your welcome 🙏

@arianlebedinec

why add the 4 "feet" to where the motor is? what is the reason behind it?

The designer has replied

@K3YPT1C

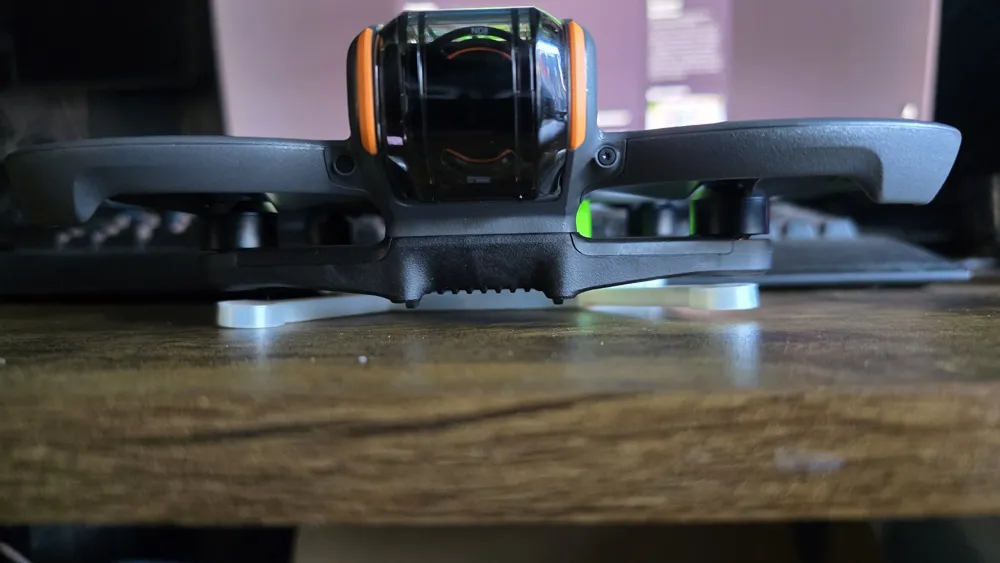

hi yes if the feet are not on. the drone tilts as it has no stability. if u read in my description I have already explained this. if your using your own feet you don't need the bottom part. if you see 3D preview your see there is a extra part on the build plate.

@arianlebedinec

Replying to @K3YPT1C :

ah makes sense, thanks!

@luis77v

there is no way to put M3

The designer has replied

Show original

@K3YPT1C

what do you mean the m3. are you on about the m3 sticky pad? if so you dont nee that it bolts together underneath. holding the unit together

@Weadick

i wonder why you would use this the avata 2's camera is good enough and it adds weight

The designer has replied

@K3YPT1C

people like to use a 360 cameras or if your in abandoned buildings the cameras like gopro are better quality then the built in avata 2. each to there own certain people have there own preferences & reasons for this & companys been making this product with a high price. while im giving free access to my own version for people who want to save money and easy replace parts if it gets damaged.

@Jaybeezyog_tv

can this hold a 360 camera?

The designer has replied

@K3YPT1C

yes this can hold a 360 camera i used my insta360x2 the mounts will hold any of them

@SKSVideoguy

Boosted

Works good with the Action 5

@KaiUwe

Print Profile

0.2mm layer, 3 walls, 15% infill

Osmo Action 5 attached Works perfectly

Show original

@user_1044155193

Print Profile

0.2mm layer, 3 walls, 15% infill

@agdesign24

Print Profile

0.2mm layer, 3 walls, 15% infill
