Description

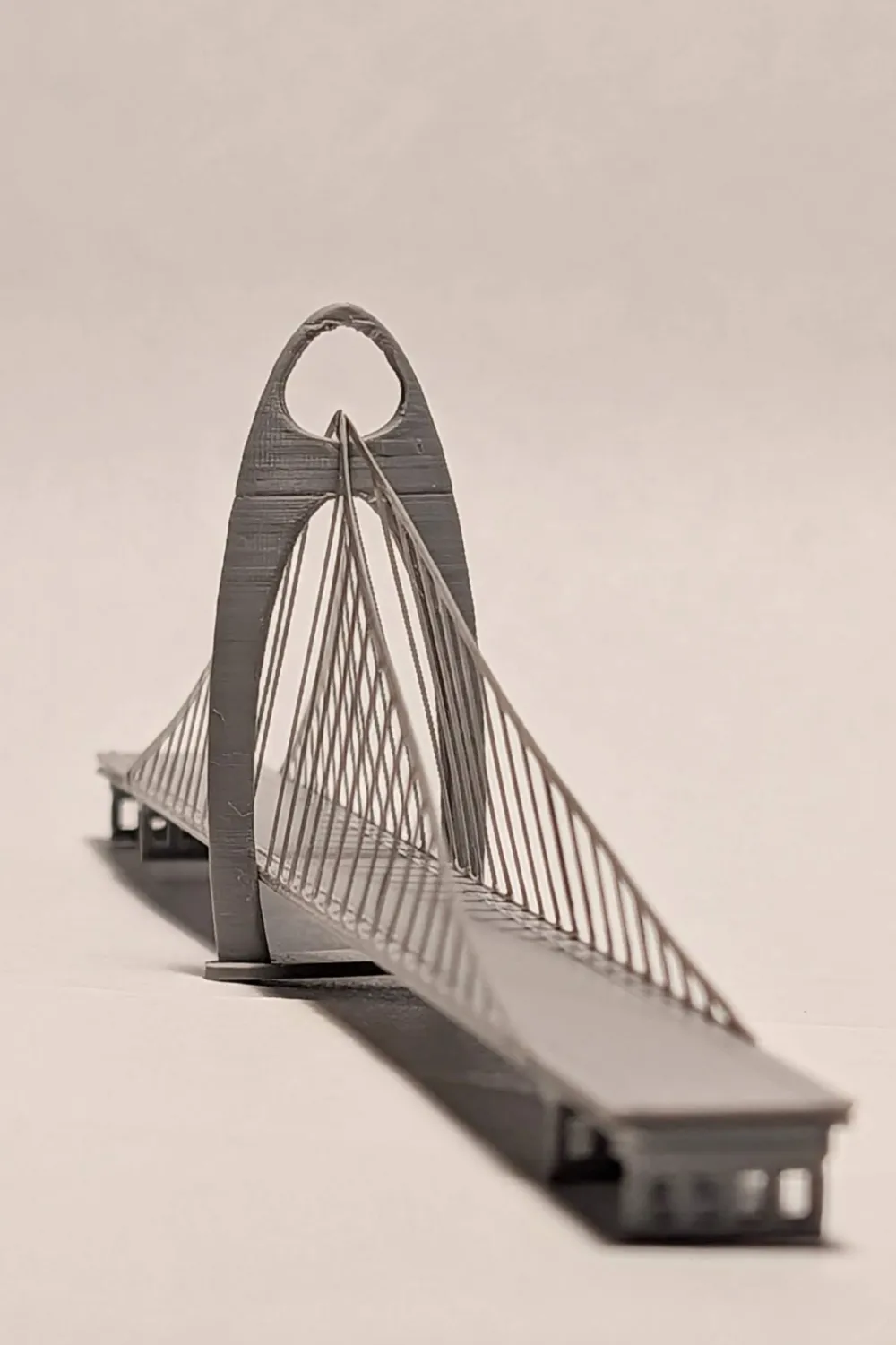

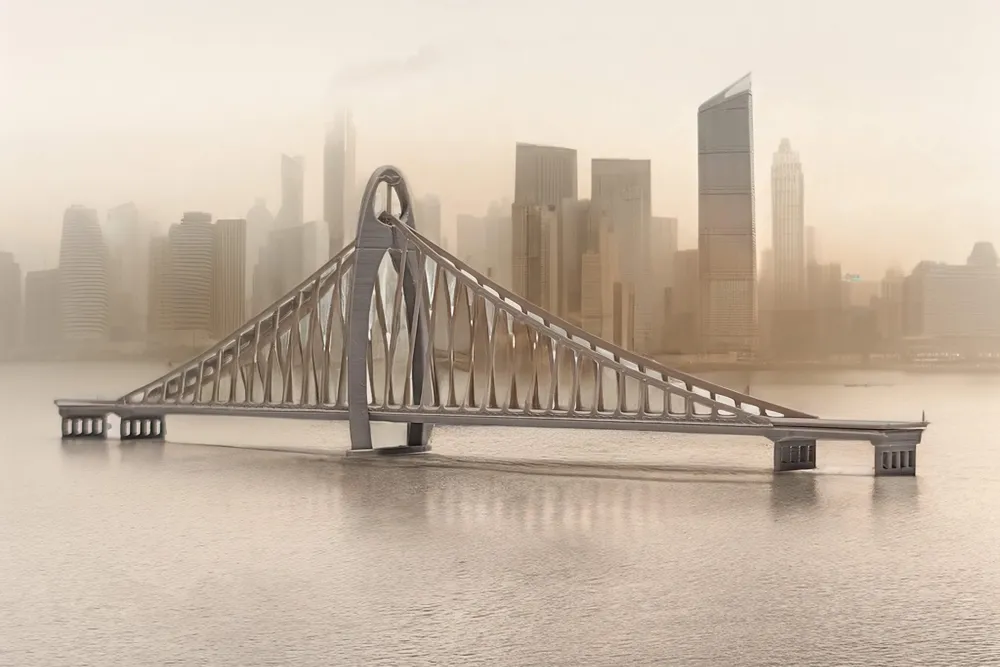

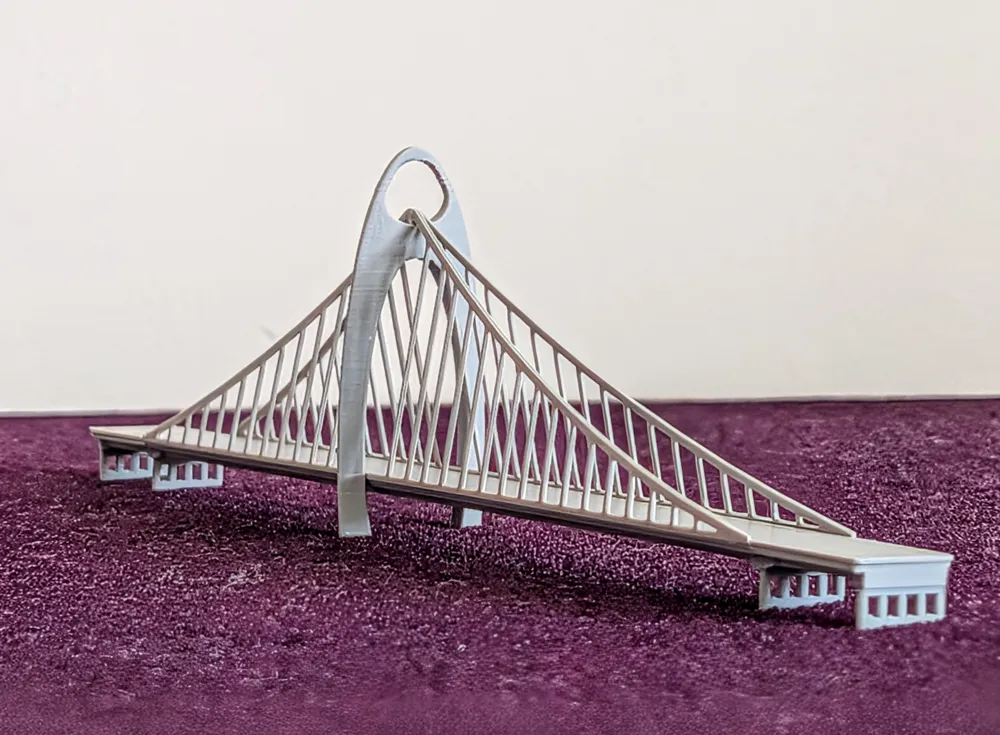

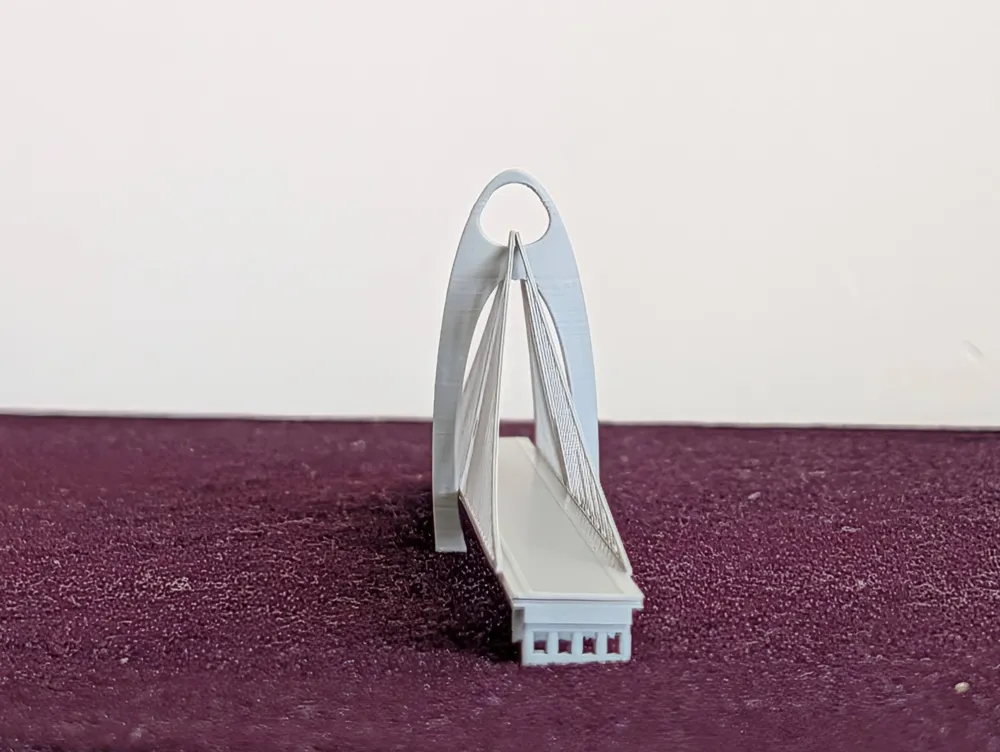

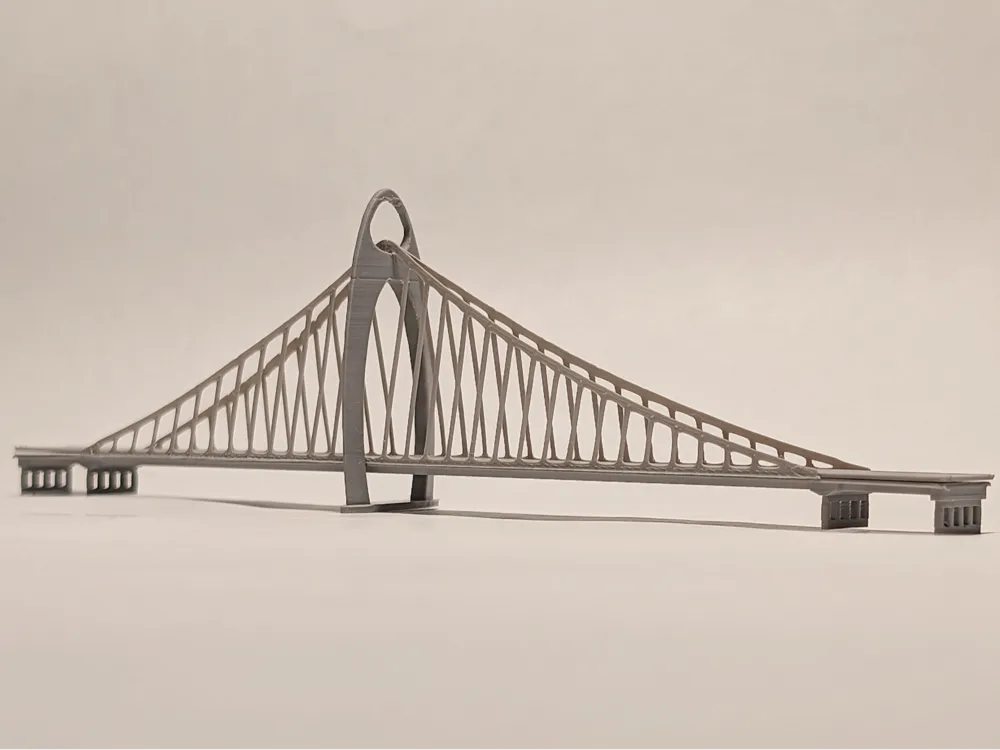

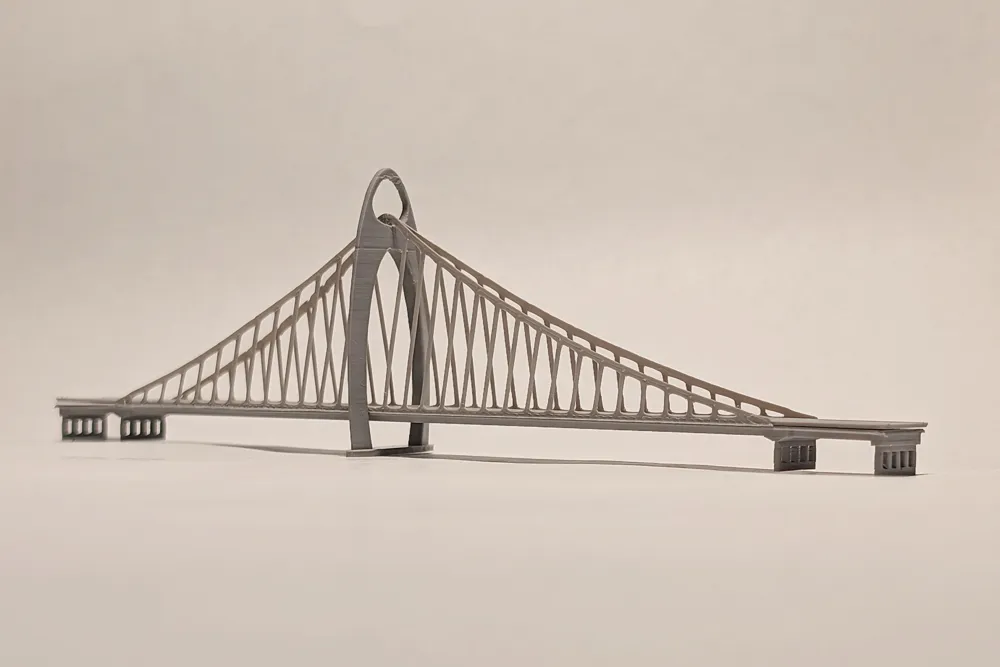

Liede Bridge 3D Printable Model (1:3000 Scale)
the first model in my series of 1:3000 bridge models: the Liede Bridge in Guangzhou, China.
It’s simple to assemble – no glue required，just a few folds and steps.
Assembly Instructions
- Score along the red lines
Using a hobby knife, lightly cut along the red lines to deepen the fold marks. Be careful not to cut all the way through. - Fold downward along the red lines
Gently fold the model downward along the red lines to shape the suspender cables into their correct positions. - Cut along the yellow lines
Carefully cut through the yellow lines to separate the main cable, so that it can be assembled to the hole of the tower. - Assemble the components
Attach the bridge tower, cables with deck, and deck surface together to complete the model.
