Fate Noble Phantasm collection https://makerworld.com.cn/collections/2321863

2025.04.28 Uploaded a new test version of the integrated ribbon, with the ribbon's thickness doubled compared to the initial version

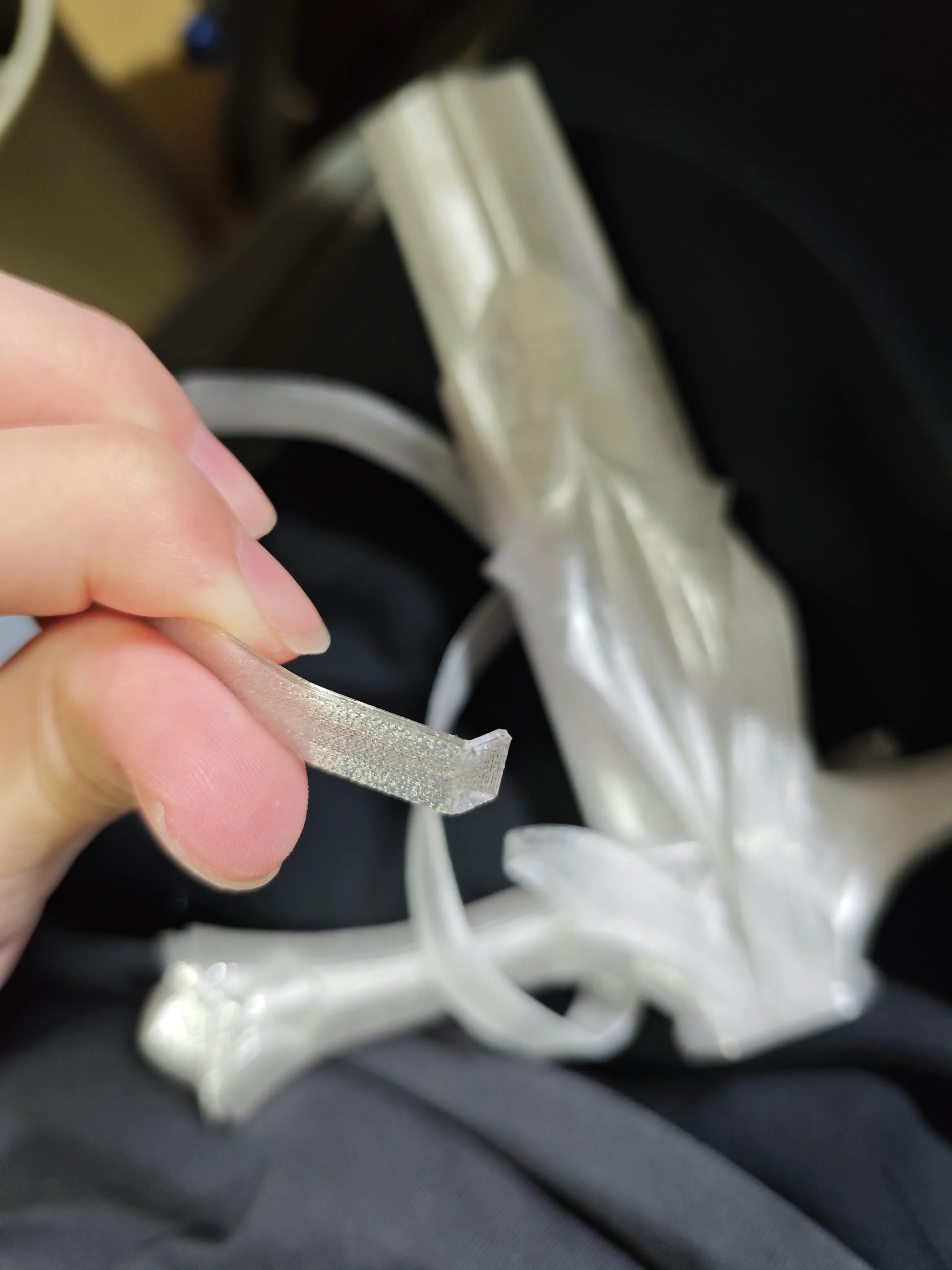

Integrated ribbon profile printing results (see comments for details):

-------------------------------------------------------------------------------------------------------

2025.04.25 The new solution model has been uploaded. If you have printed the previous model, you can just print plate 2 for replacement. Please pre-assemble and adjust the cutting connector to the appropriate length

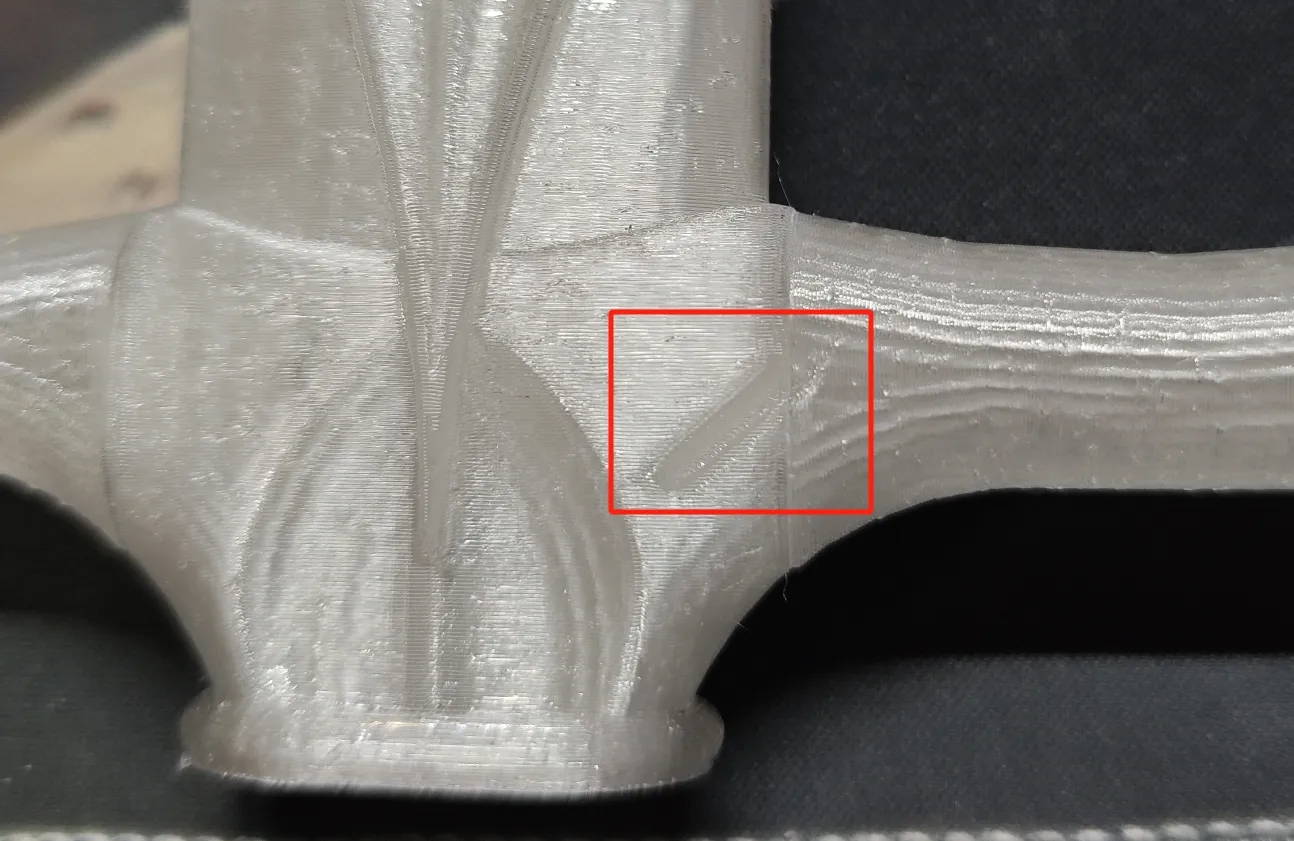

The new solution has slotted holes on the sword guard for attaching the ribbon (Adhesion requires fast glue, like 502, and by the way, don't bend the petals on top, don't ask me how I know)

When installing, make sure to align the slotted holes on the handguard

After attaching one side of the ribbon

It is recommended to bend the ribbon first for easier subsequent attachment

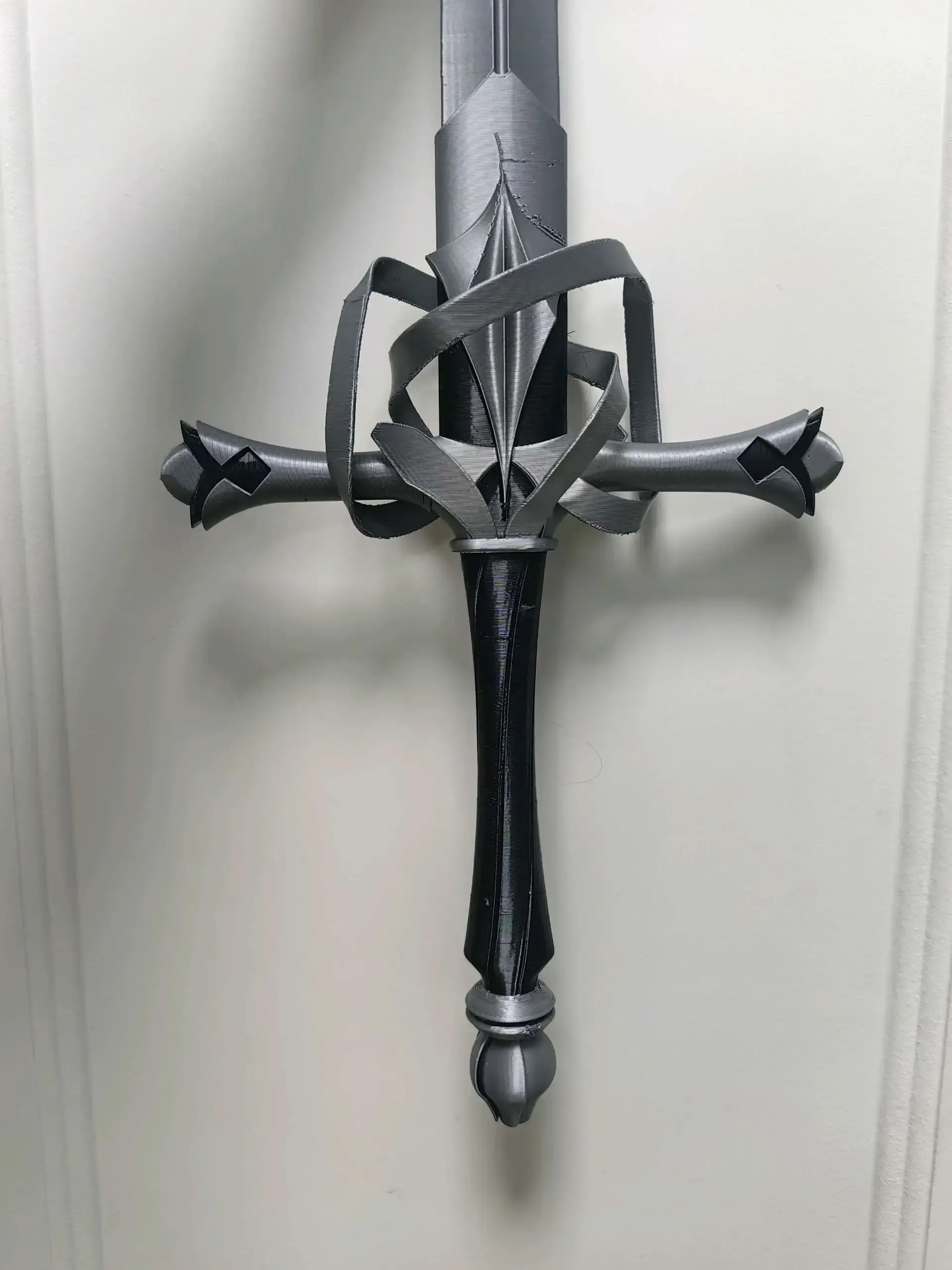

Finished

The ribbon can be replaced later using the original slotted holes

Uploading a version without the keel first. I have something to do, other versions will be uploaded when I have time

-----------------------------------------------------------------------------------------------------------------

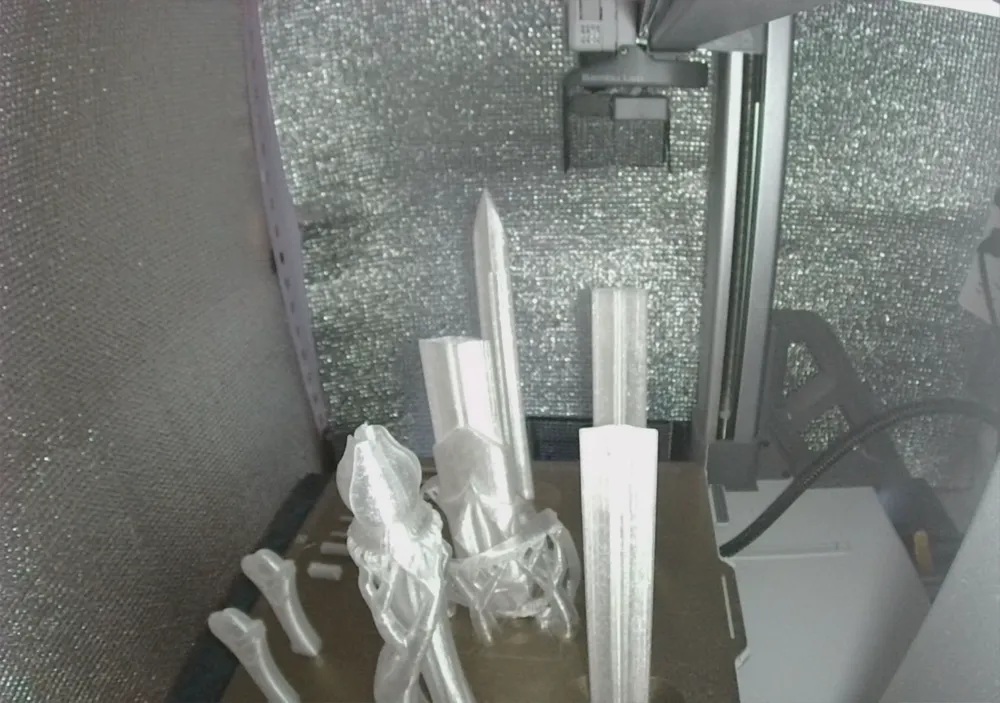

2025.04.24 Fixed (Please do not print yet!!!

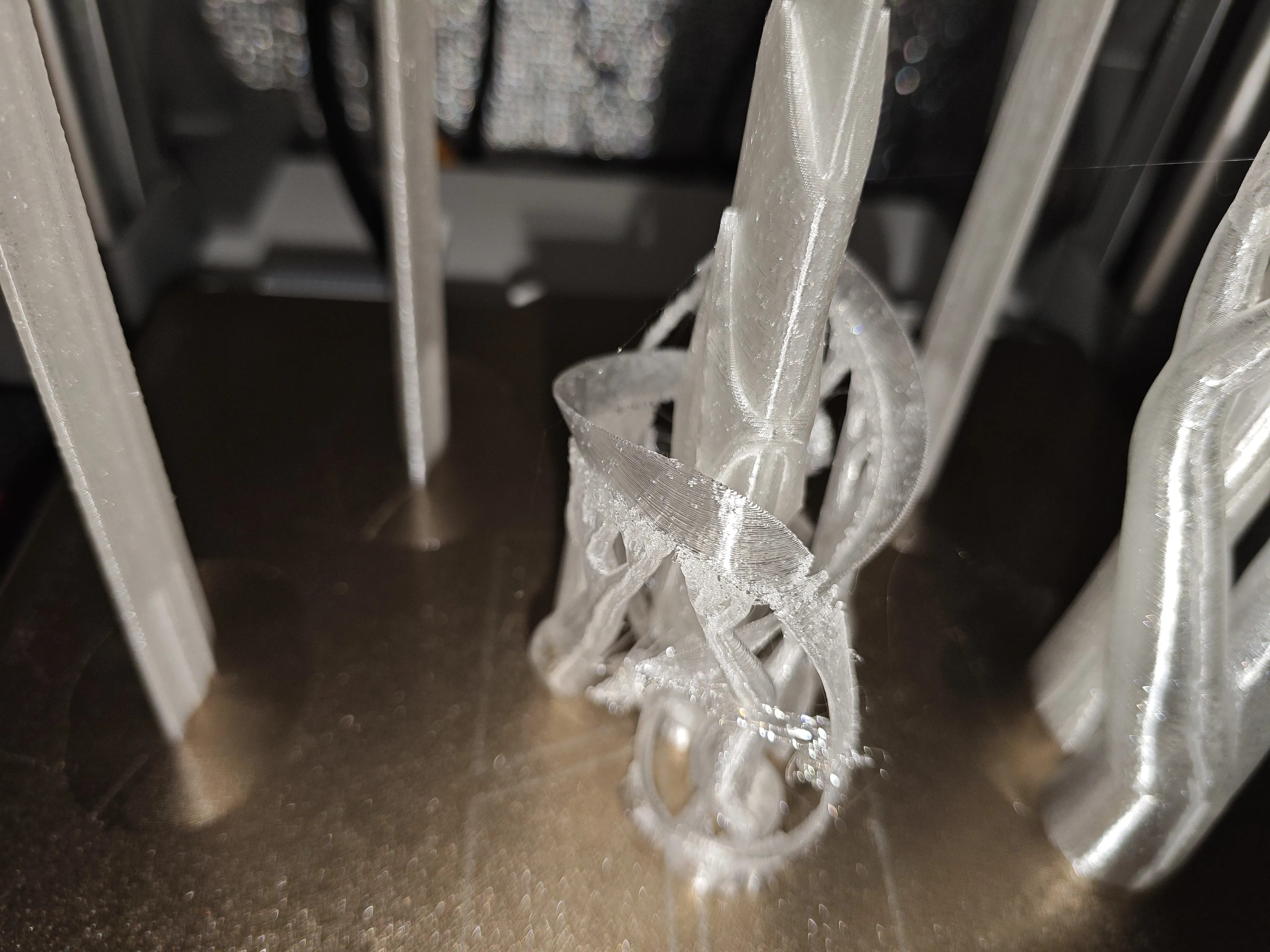

The ribbon part of the model will indeed fail. I will now modify the model according to an alternative plan, printing the ribbon and sword hilt separately, followed by adhesive connection)

--------------------------------------------------------------------------------------------

2025.04.22 Updated V2.0 reduced speed plus support version (with and without keel). If the initial version had printing issues, you can try the new one.

--------------------------------------------------------------------------------------------

Jeanne d'Arc's sword is also done

My personal suggestion is to print the version without the keel directly, as the entire sword is less than 200g and PETG material itself has sufficient strength

Of course, if you use the keel version, note that the reserved holes are double-slotted 3mm, the model's reserved hole diameter is 3.6mm, and the length is 750mm. PVC pipes don't seem to have this diameter; I only saw POM rods, ABS solid round rods, and steel rods

If there are printing issues with the ribbon, it might be adjusted later to have slots on the sword guard, requiring manual adhesion and shaping after separate printing

Lancelot's armor is postponed for now, postponed, postponed, postponed, postponed
