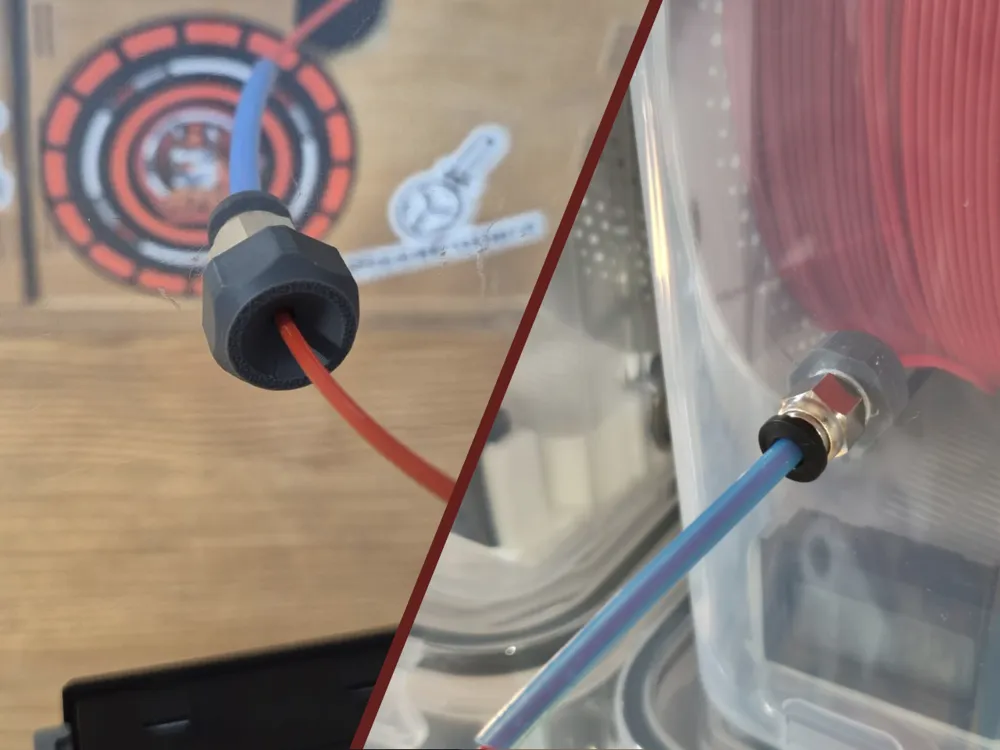

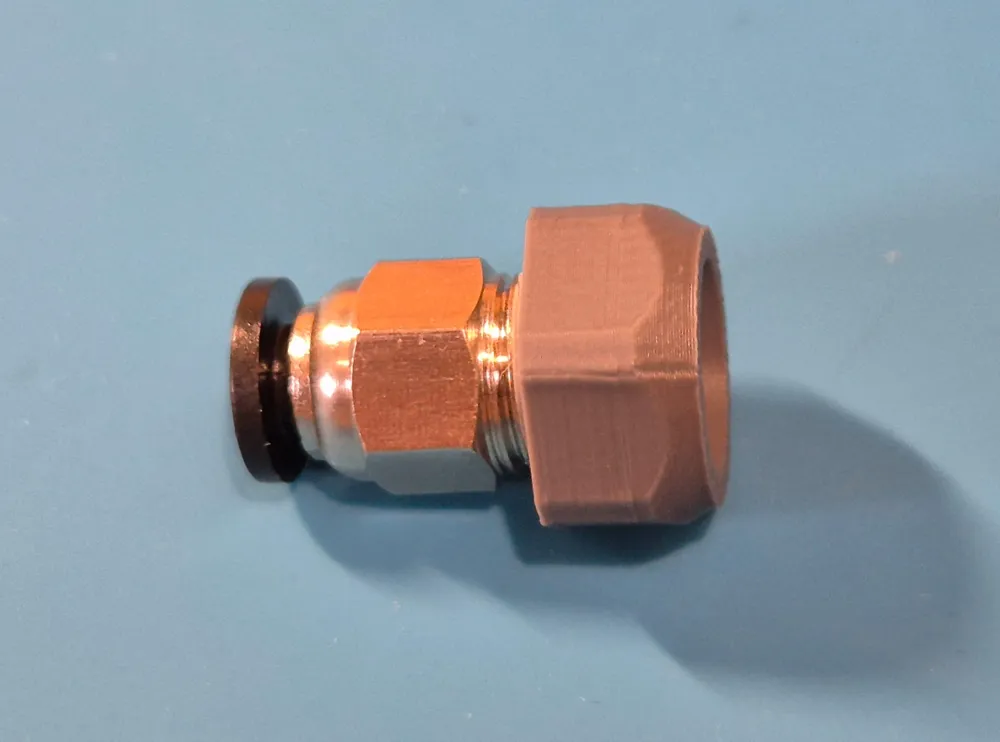

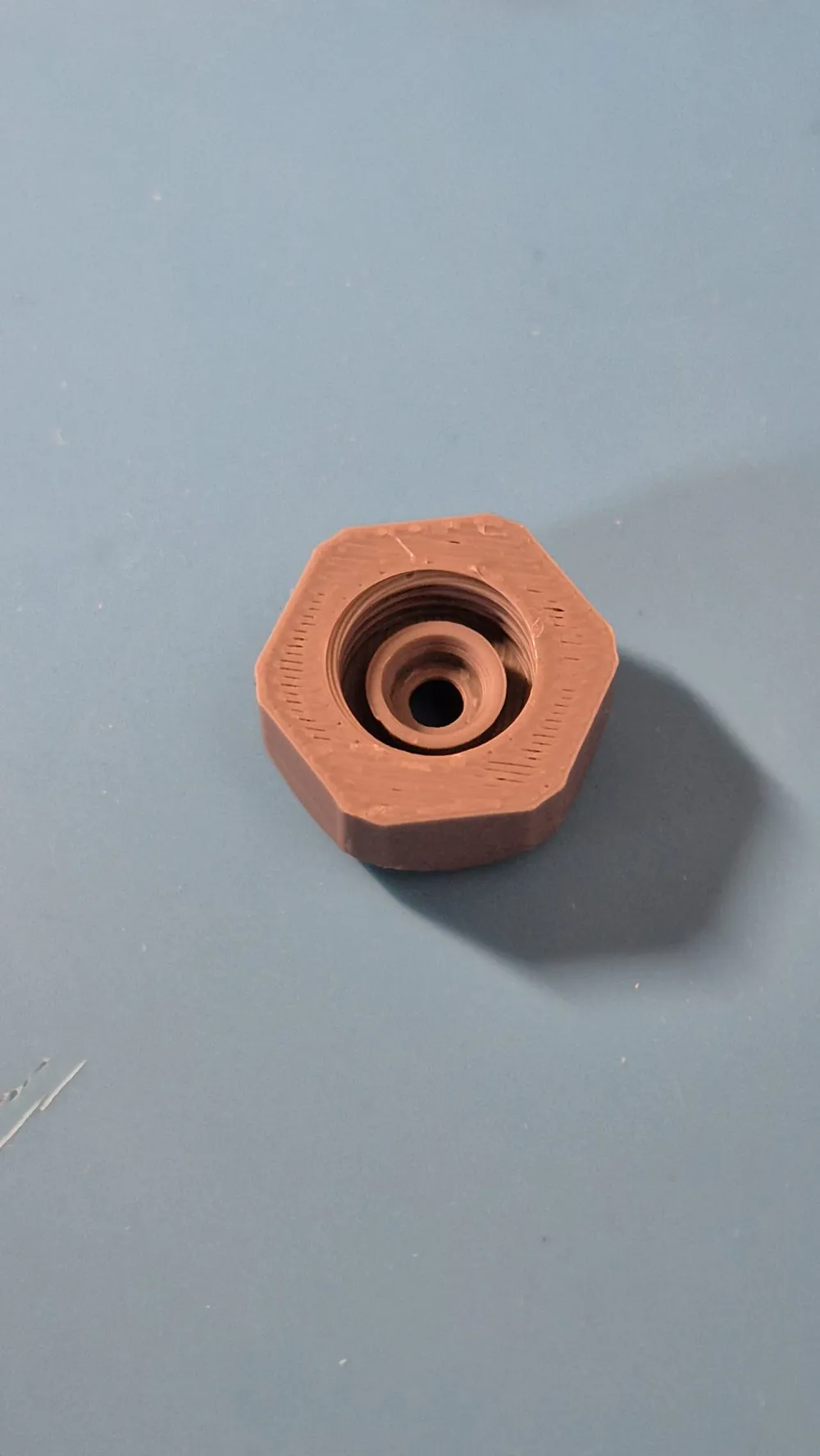

Designed for those cereal-box-style filament dry boxes. This part screws onto the inside of a PC4-M10 fitting to lock it in place and guide the filament cleanly into the PTFE tube.
M6 version

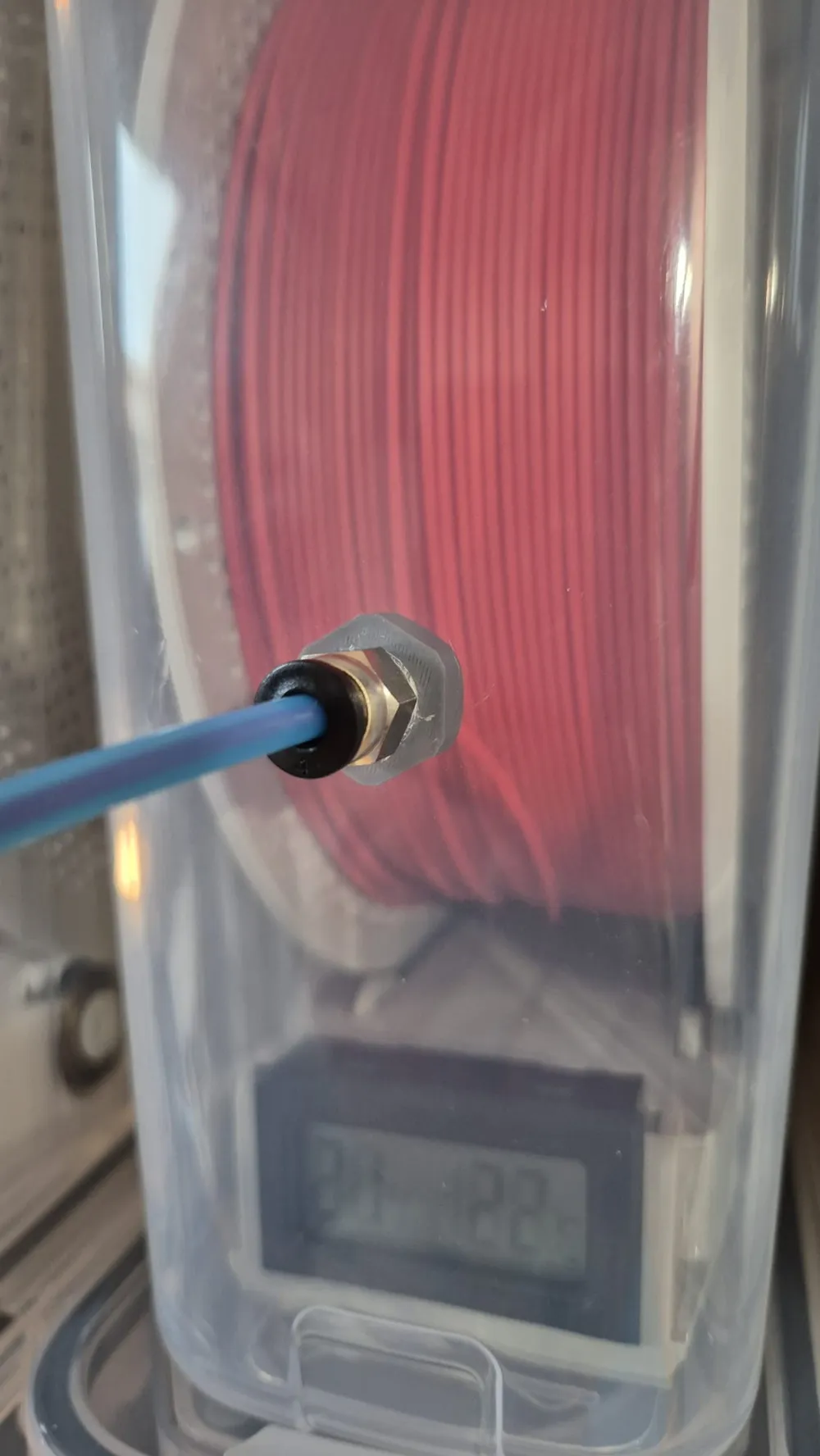

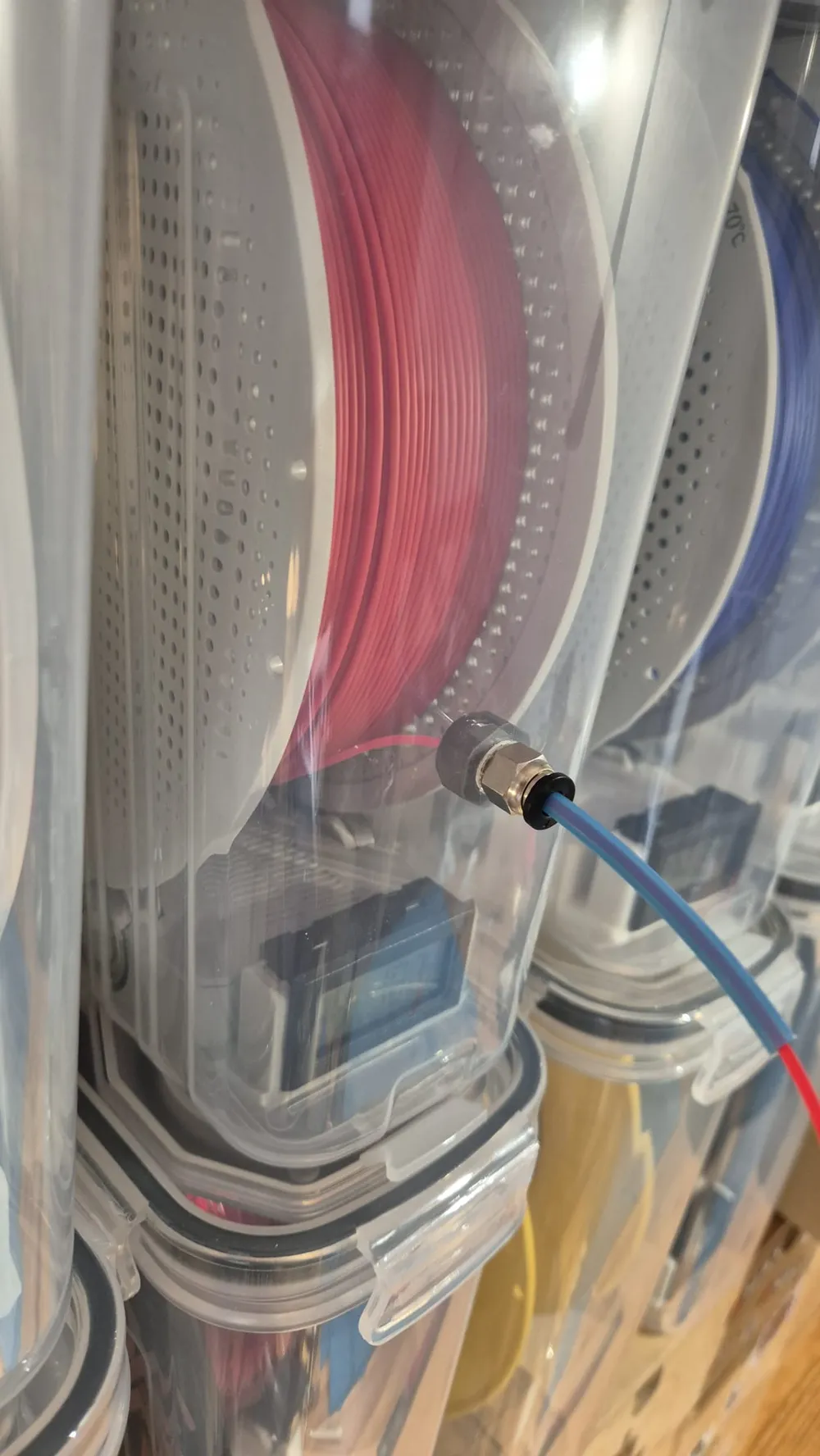

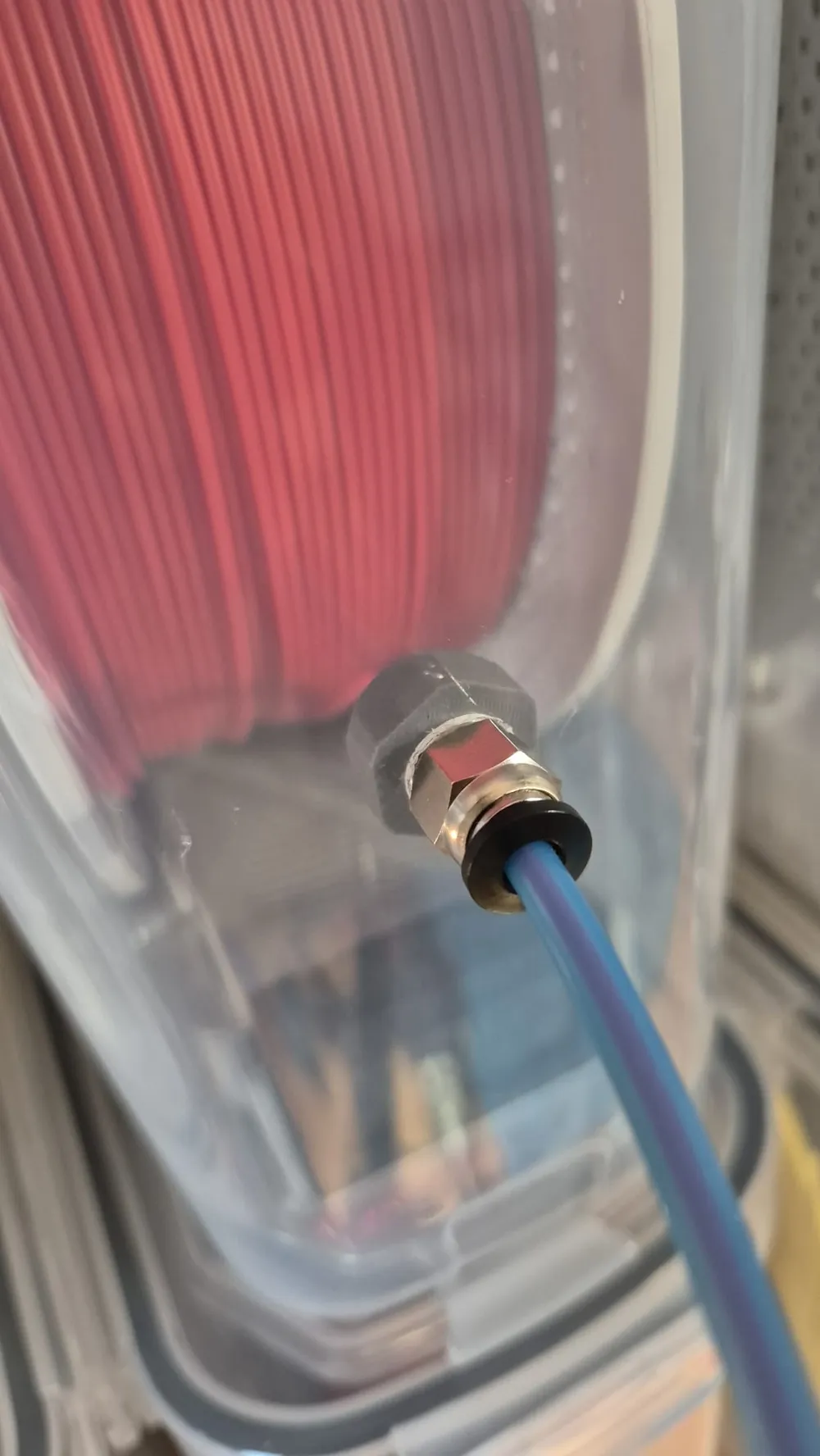

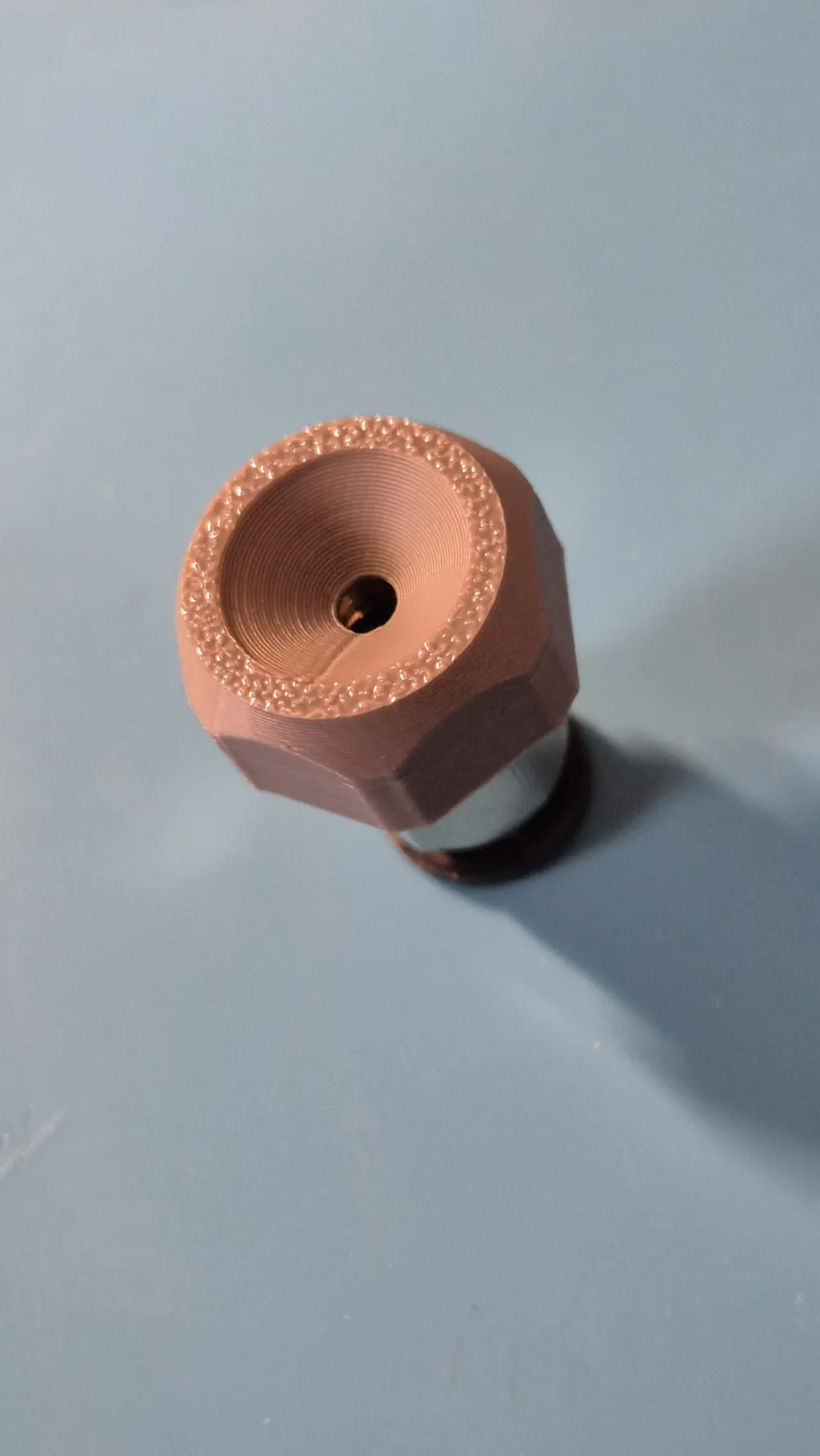

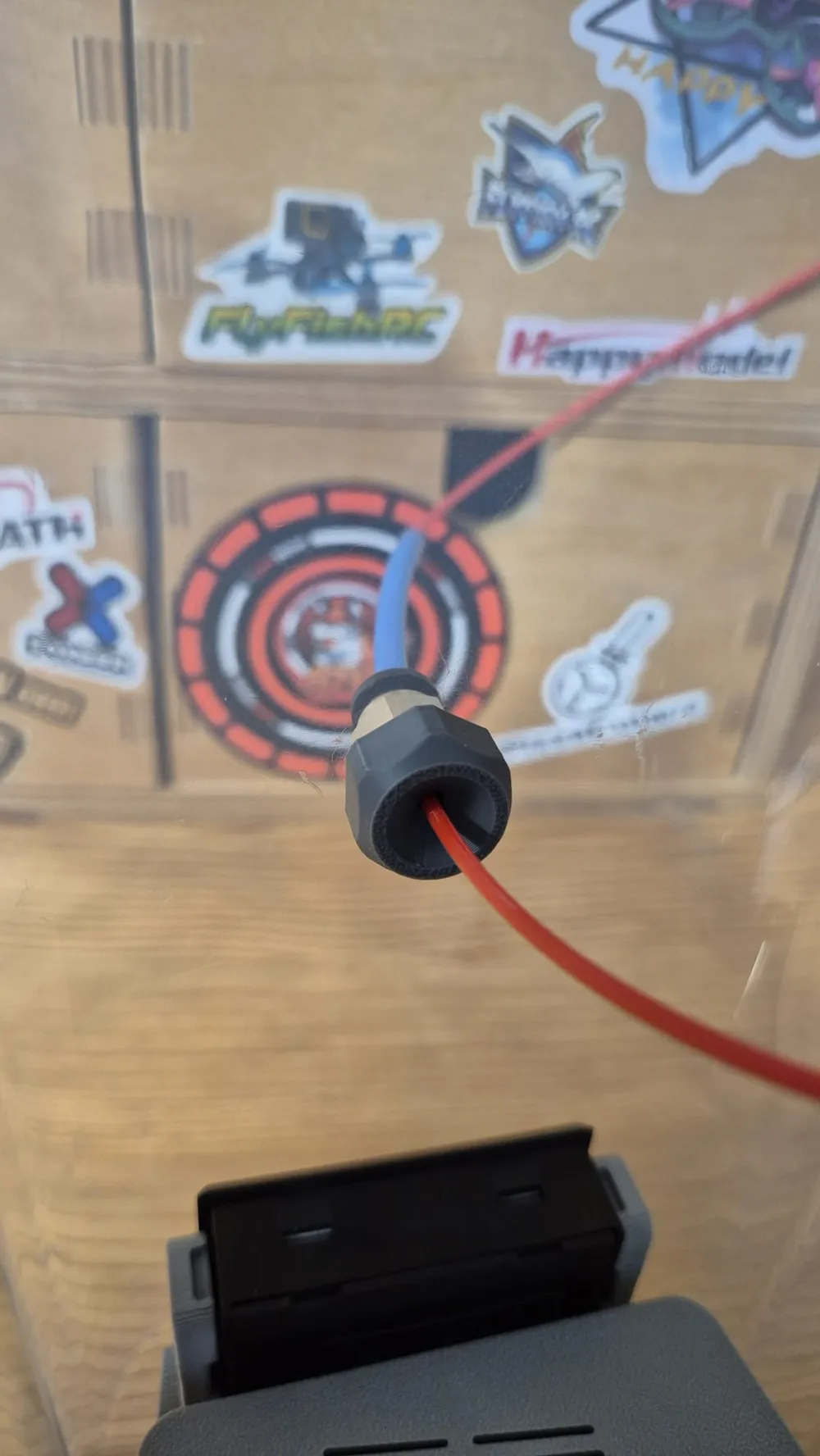

Just drill a 9 mm hole in your container, insert the PC4-M10 from the outside, and screw this nut on from the inside. The built-in funnel helps guide filament into the fitting and prevents the PTFE tube from sticking too far into the box.
Print at 0.12 mm layer height for clean threads. No supports needed. Simple and functional.
Appreciate you taking a look! If you try this model and have suggestions or run into issues, feel free to leave a comment!
