Winchester Burton LMR M1917
Print Profile(1)
Description
Overview

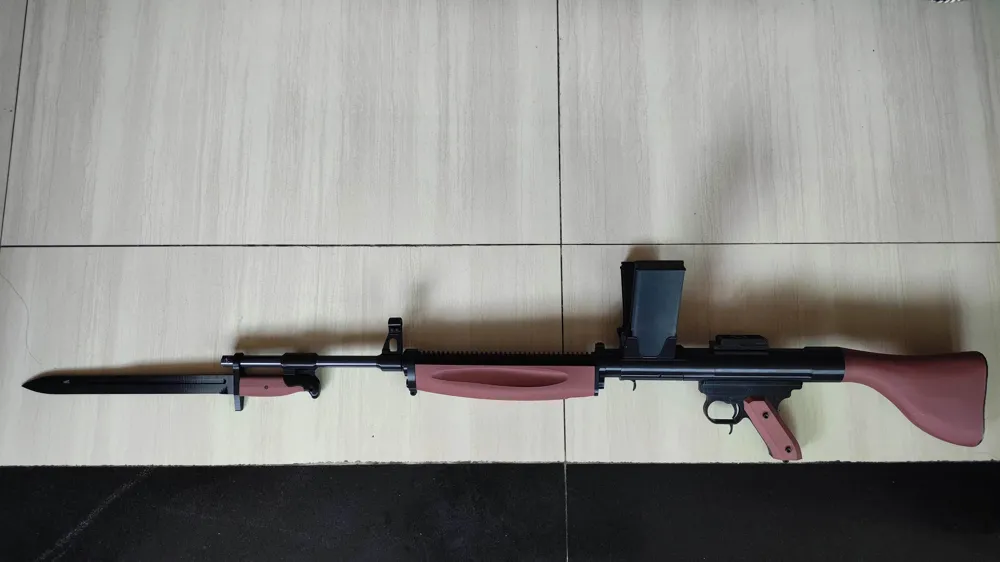

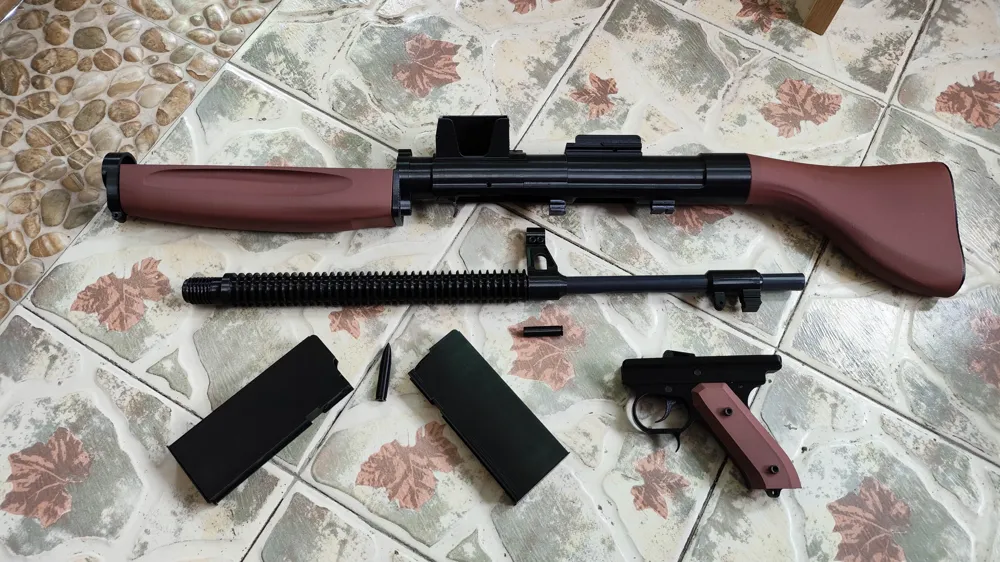

This model represents a weapon exclusive to the Battlefield 1 Support class, a historically accurate firearm from World War I. Optimized for printing on A1, P1, and X1 models, it strives for visual fidelity while incorporating functional elements such as a dual-clip system, detachable trigger assembly, and a partially functional barrel and bolt. Note that this model is non-firing and intended solely for cosplay, display, and casual handling. It is incapable of discharging ammunition.
Preparation
Machine Screws
M5*20
M5*16
M4*12
M4*8
M3*16
Compression Springs
0.5mm dia * 5mm OD * 25mm L
Compression Springs
0.5mm dia * 6mm OD * 35mm L
0.5mm dia * 6mm OD * 18mm L
Rectangular Spring
0.6mm dia * 35mm W * 11mm H * 240mm L
Steel Wire
1.5mm thickness (cut according to assembly instructions)
ABS Rod
6mm thickness (cut according to assembly instructions)
PVC Pipe
16mm OD * 14mm ID * 500mm L
Adhesive
416 recommended
Reference Video
Design References
Youtube ForgottenWeapons Burton LMR M1917
BATTLEFIELD 1

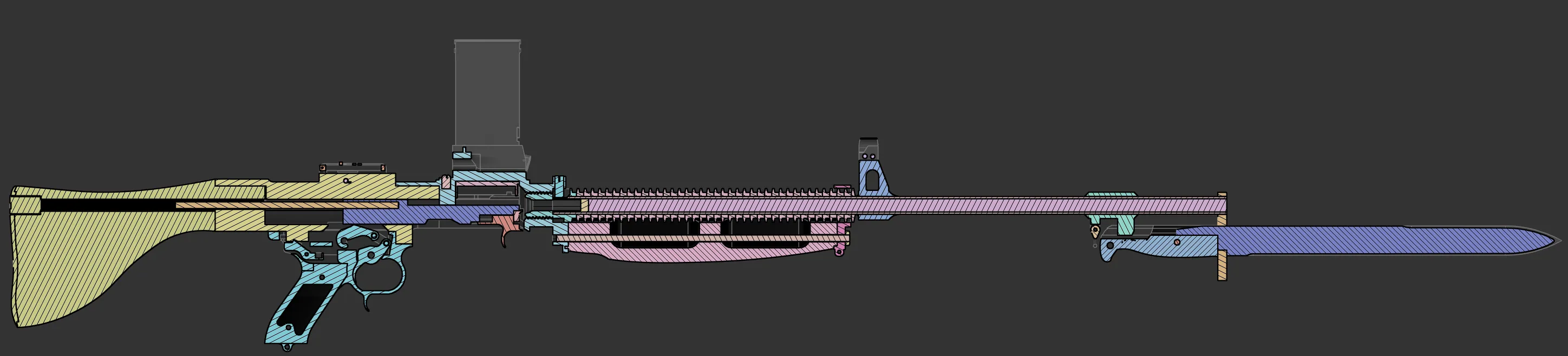

Modeling Design Diagram
