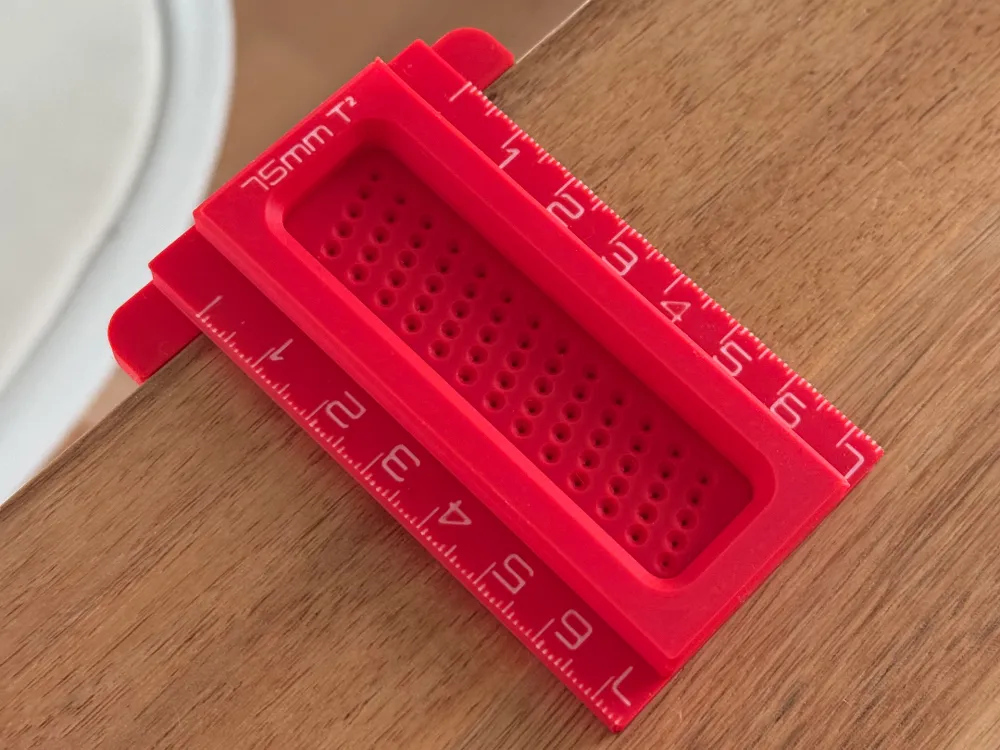

Pocket T-Square 75mm - Red Series
A T-Square is a versatile marking tool that can both help you in drawing perpendicular lines off the side of your working stock, it can also do accurate lines parallel to the side of your stock. This T-Square is a highly pocketable size and weighs next to nothing, ready to go where you need it!
Boost Me (for free)
Do you like the model? Was it useful for you? Throwing a Boost my way is a perfect way to brighten my day, and best of all it's free!
- 75mm long millimeter scale on both sides
- 1-65mm individual marking guide holes in the center, for use with a mechanical pencil and at most 0.7mm lead
- The model includes two alternative end pieces. A T-Bar if you want to use it as a T-Square, and a Saddle bar if you want to mark on both sides of your workpiece corner
- 23 grams of filament for a dual color AMS print
- All pieces fit together with reasonable pressure applied, there are clearances in place to make sure the pieces sit flush, but the tight fit is intentional to keep the tool in place
The model is designed for printing with a 0.2mm nozzle due to the small clearances and text size involved. The main shape will most likely also work with a 0.4mm nozzle but the marking guide holes and the legend text will most likely not
Let me know if you'd like to see a larger version of this model or some other variation
