God of War Leviathan Axe: Remix enhanced stability

Remixed by

Print Profile(3)

All
P1S
X1
X1E
H2D
X1 Carbon
P1P
A1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.24mm layer, 3 walls, 15% infill
0.24mm layer, 3 walls, 15% infill
Designer
33.8 h
21 plates
5.0(12)

Axe head &Additional parts 0.2mm layer,3 walls,10-15% infill
Axe head &Additional parts 0.2mm layer,3 walls,10-15% infill
Designer
13.6 h
14 plates
5.0(3)

Axe Handle 0.24mm layer, 3 walls, 15% infill
Axe Handle 0.24mm layer, 3 walls, 15% infill
Designer
20.2 h
7 plates
5.0(1)

Open in Bambu Studio
Boost
223
511
35
29
531
199
Released

Description

Boost Me (for free)

Like it? Support me with a boost 🚀

Big shoutout to Oddworks for this amazing model!

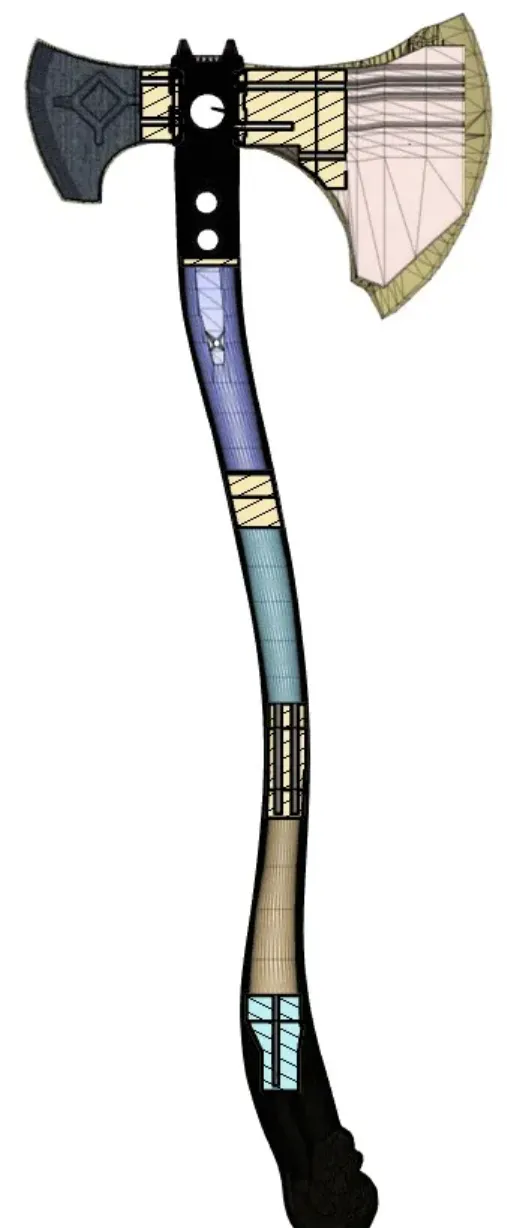

I remixed the God of War Leviathan Axe originally created by Oddworks and further remixed by SlurpeeMachine. Both creations have been improved for increased stability.

It's important to note that no light can be installed for the axe head due to these modifications.

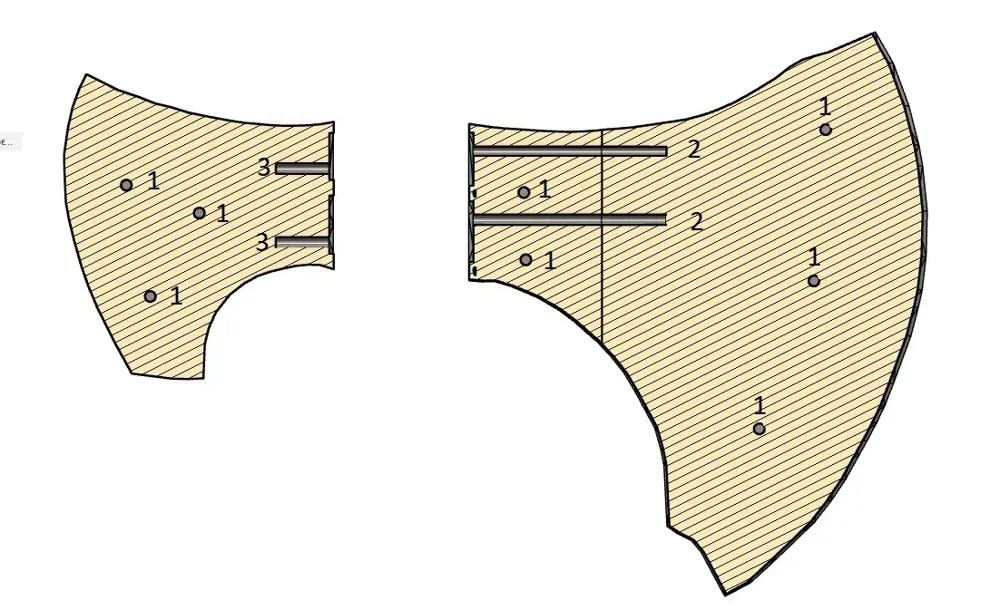

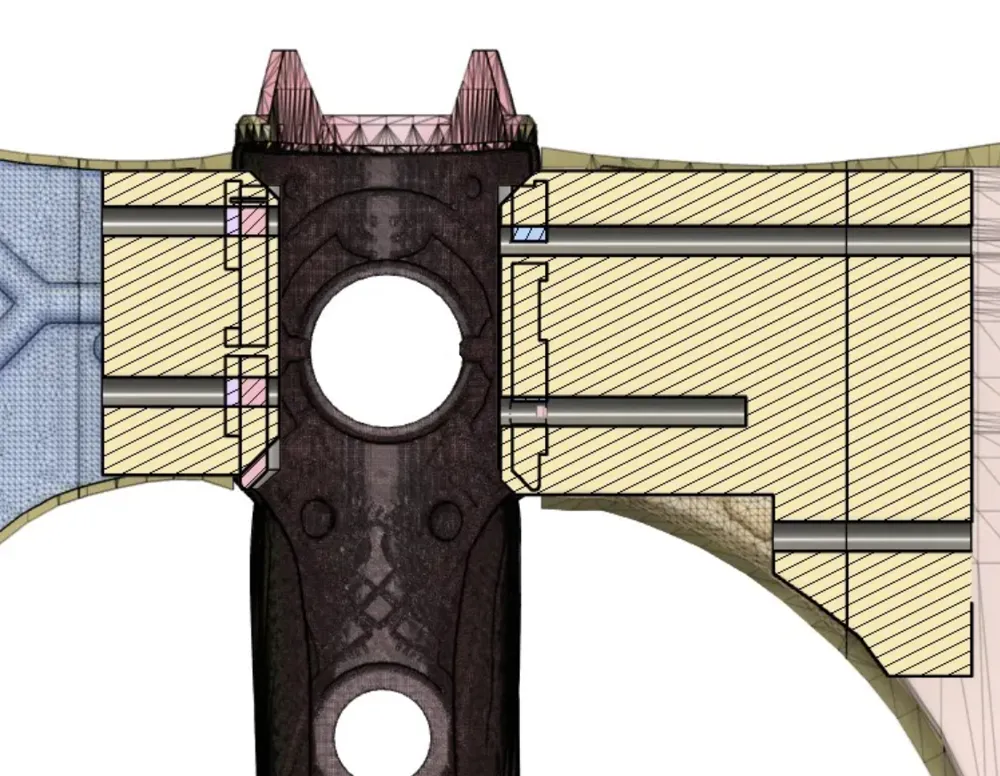

The axe head can be printed in separate parts, thanks to SlurpeeMachine. I have incorporated additional pins for alignment and enhanced stability.

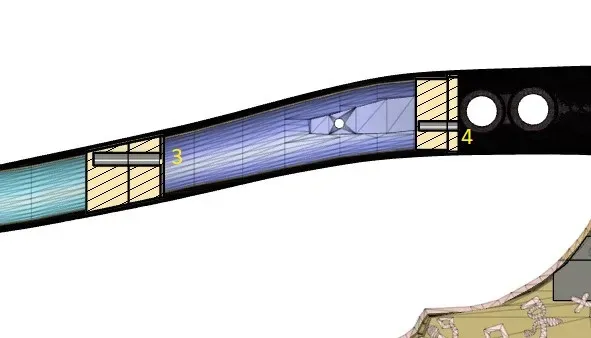

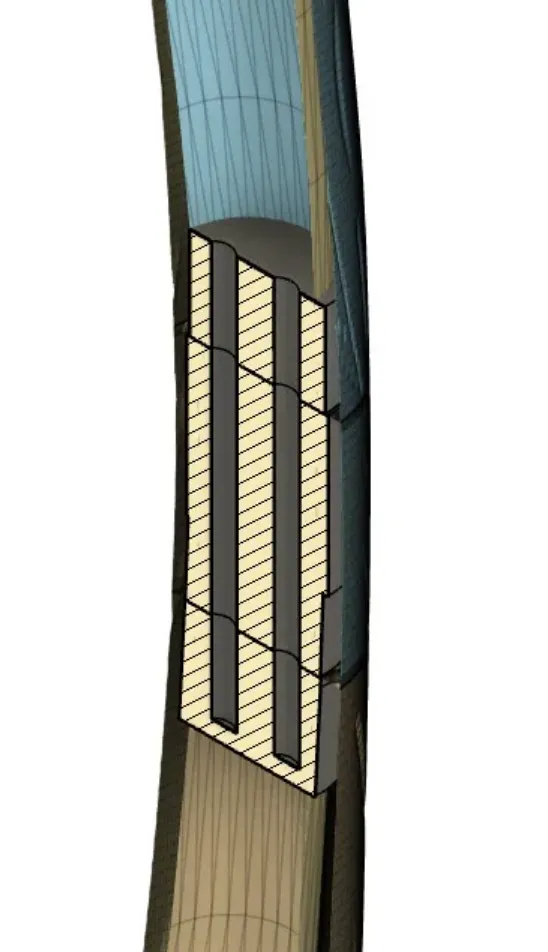

I have also remixed the handle, incorporating additional rods for increased stability.

Since this is a remix and I only had the STL files available, it was challenging to work with them. Occasionally, a little help with a small drill or file is needed! Printed and tested with a Bambulab P1S.



For the best results and visual quality, I recommend downloading and slicing the files individually. This allows you to adjust the settings for each part as needed—smaller pieces benefit from a finer layer height, while larger parts can be printed with a coarser resolution.



Key specifications:

  • 3 wall parameters
  • 10-15% infill lines
  • Use a brim if needed

Parts that don't need supports:

  • Axe 1
  • Axe 2
  • Axe 3
  • Axe 4
  • Axe 5
  • Axe head large (1, 2)
  • Axe head centre (1, 2)
  • Axe head small (1, 2)
  • Axe handle rods
  • Axe head rods
  • Badge square
  • Badge triangle
  • Cap ring
  • Gold ring
  • Badge gold
  • Peg

Parts that need supports:

  • Cap
  • Axe 6
