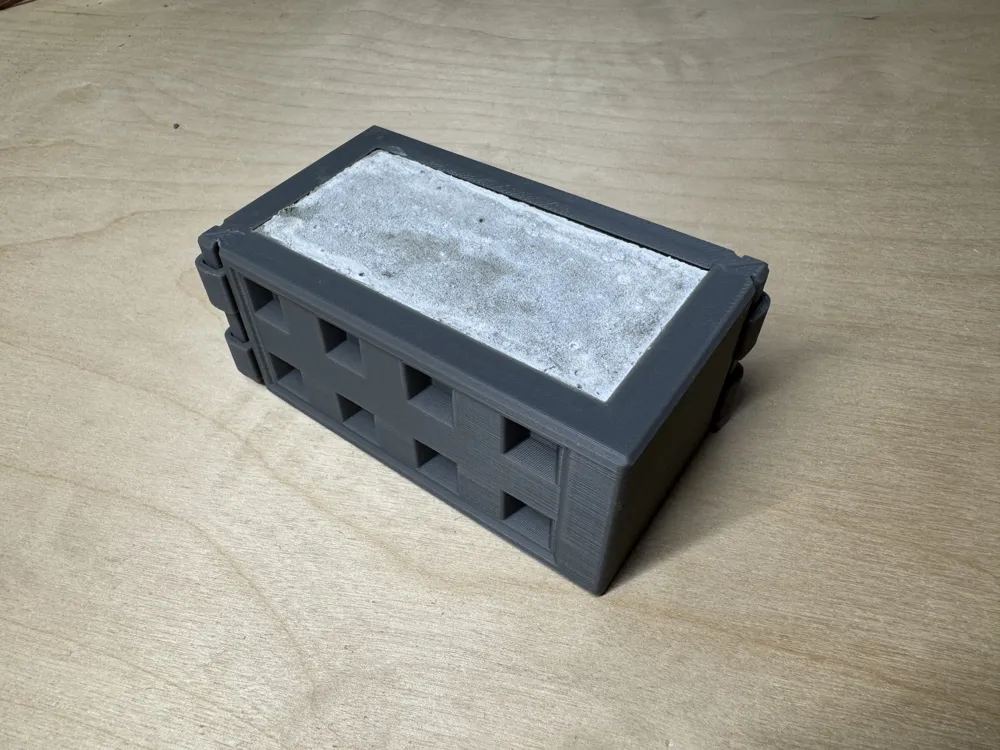

A simple mold for concrete blocks.

The finished concrete block measures 80x40x40mm (LxWxH) and is designed to a scale of 1:20.

The blocks are designed to be perfectly stackable and expandable.

Entire walls, barriers, or other boundaries and foundations can be created.

My designs also include other variants, such as the formwork for a 2x2 block, as well as a longer 6x2 version.

Feel free to take a look!

The individual models are compatible with each other, making building even more flexible.

Also perfect for realistic model making.

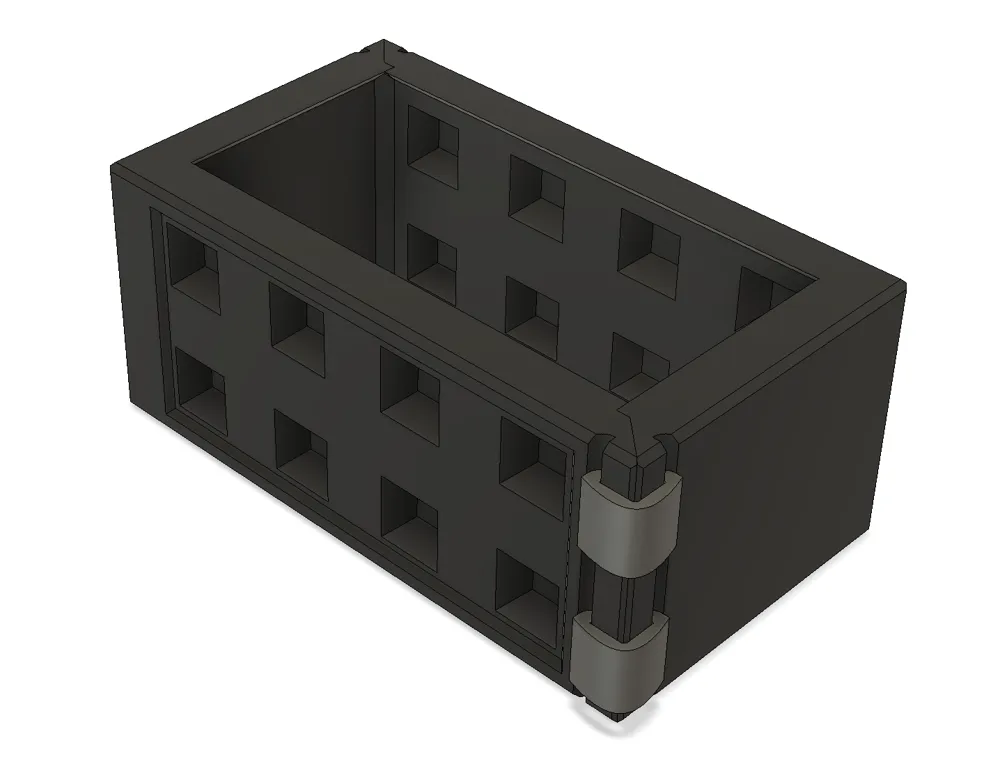

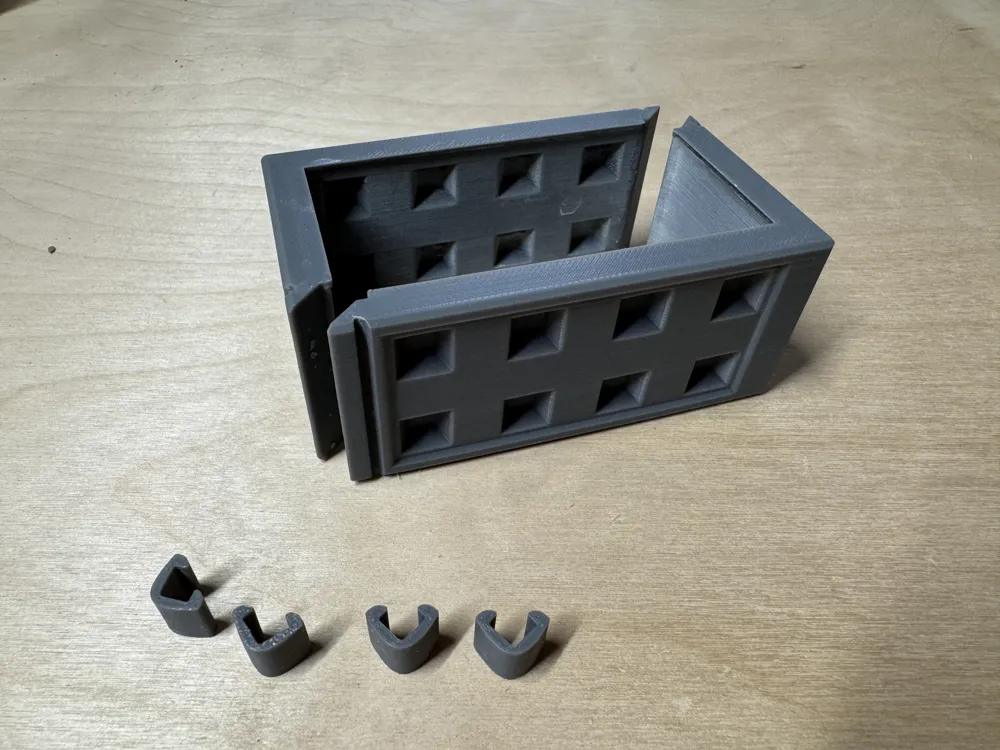

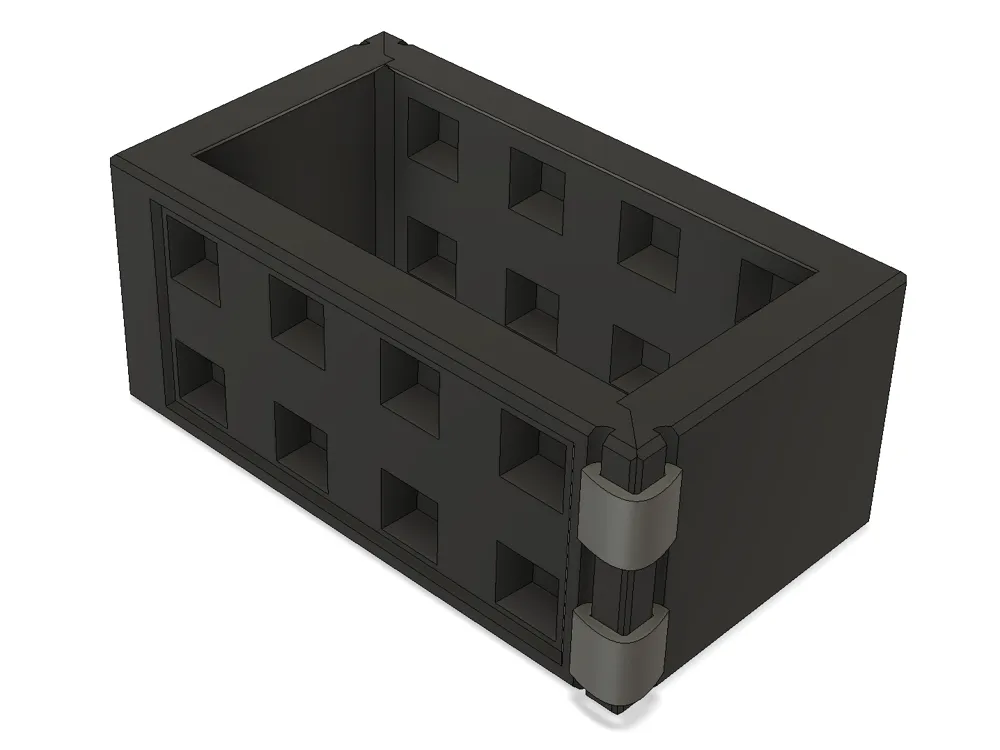

The individual parts fit together well and are held securely together by the clips.

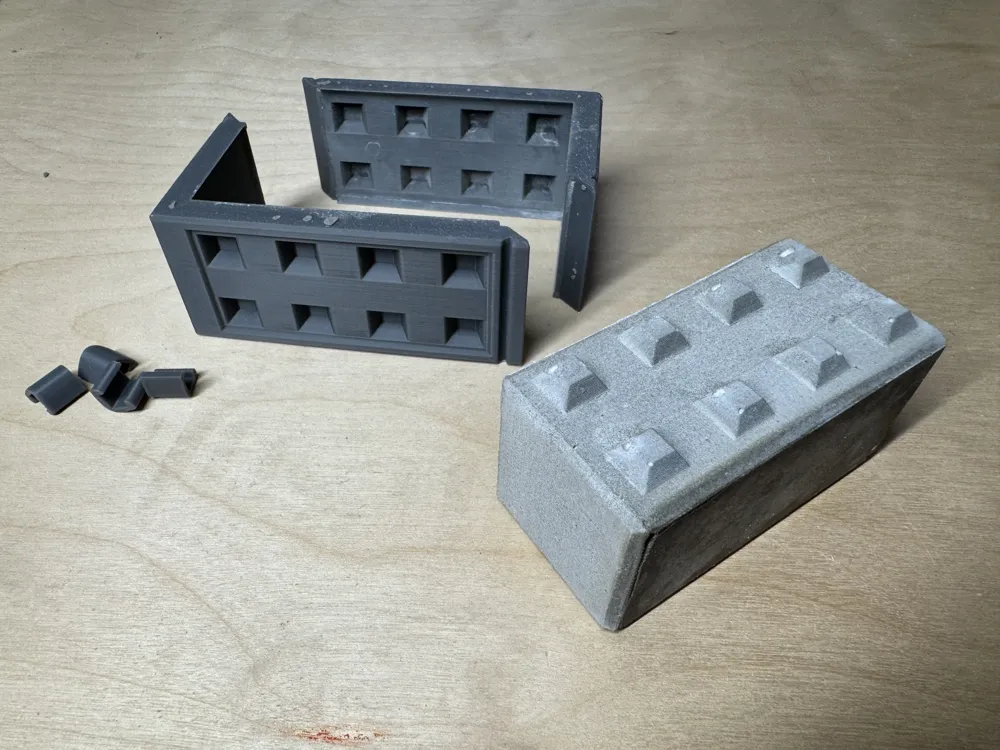

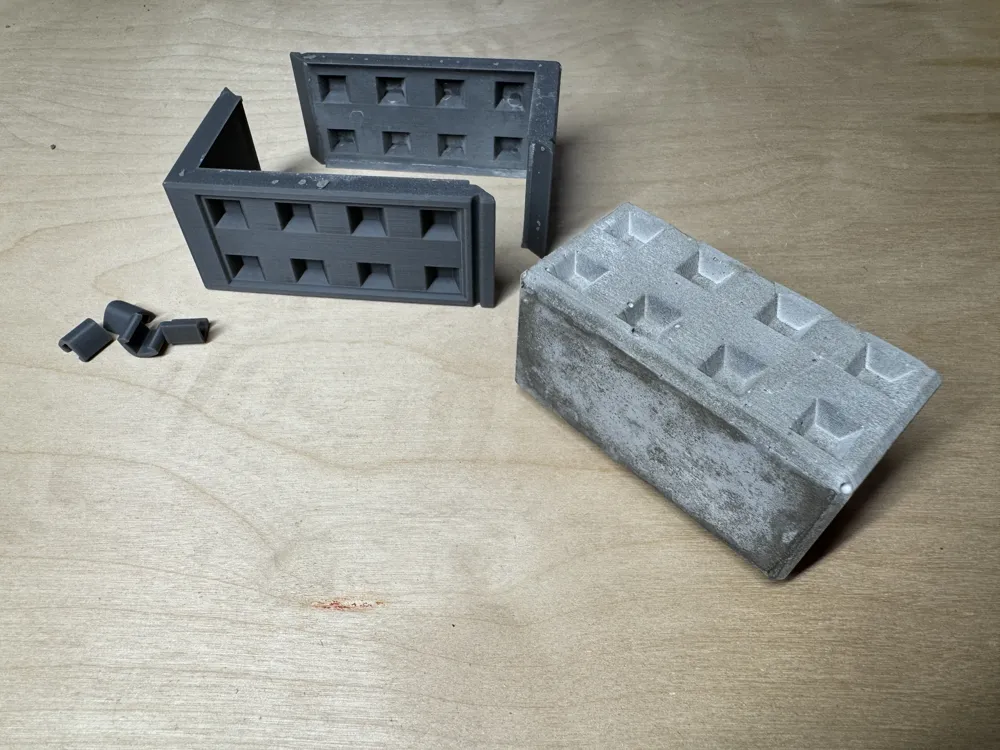

Thanks to the multi-part formwork, removing the finished block is also very easy.

Comment & Rating (34)

@L1TTL3

I scaled this up to 1:14 and printed 3 different versions of this mould on a 48h print. The moulds look absolutely fabulous, but my printer had a Y axis layer shift on the last 1mm of the print and messed up the chamfer on all 3 blocks. Now I have to decide what to do. absolutely top tare model though 👌

(Edited)

@user_1758620911

Hello @L1TTL3, could you please share what the size is to get them in 1:14 printed in 1:20 the 4x2 block is 91,49 x 51,51 x 40 thanks

@L1TTL3

Replying to @user_1758620911 :

i just scaled it by 142.857% in the bambu editor. if the mould is a true 1:20 scale this is within .001+- of true 1:14 scale.

@user_1758620911

Replying to @L1TTL3 :

thank you very much

@Thomas_hassl3r

Print Profile

0.12mm layer, 4 walls, 20% infill

great print no issues

The profile uploader has replied

Show original

@Bruckii

Thank you for the positive review :)

Show original

@3DRepairDad

The formwork was really easy to print and assemble I cast it with modeling plaster and after drying the formwork was very easy to remove The weight of the cast stone in my case was approximately 510g

The designer has replied

Show original

@Bruckii

Thank you for the positive feedback :)

Show original

@Saale025

Boosted

Print Profile

0.12mm layer, 4 walls, 20% infill

Top PETG Sunlu Black

Show original

@user_527551121

Hello a very good formwork and also very good to assemble I have now cast all the shapes with craft concrete and it turned out great, I have a question could you make capping stones for all sizes, i.e. smooth on top

The designer has replied

Show original

@Bruckii

Hey :) Thank you very much for your positive feedback. I'm glad you like the models! I can gladly provide end pieces that are smooth on the top. Give me some time, I think I can upload everything by the weekend. I'll let you know as soon as I'm ready!

Show original

@Bruckii

The models of the final projects have now been uploaded, you can find them on my profile :) Have fun with them! Thanks again for the cool idea for an expansion! :)

Show original

@Kaeferkami

the shape is perfect and absolutely top I would have a suggestion would it be possible to get a 45 degree angle for the 2 to 4 brick

The designer has replied

Show original

@Bruckii

Thank you for your praise! I'm glad you like the model! :) Can you explain to me in more detail where you mean the 45° slope? You can also send me a sketch or something via direct message.

Show original

@Bruckii

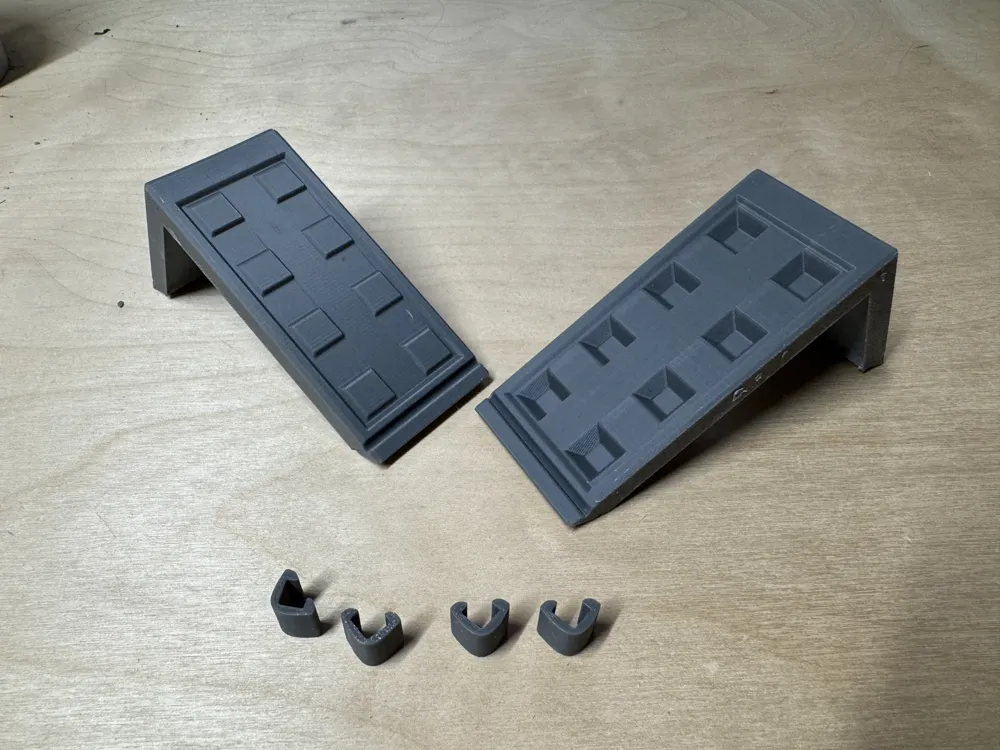

Your suggestion has been implemented and a new model has been uploaded accordingly. It can be found under my models from now on :) Have fun with it!

Show original

@Yunke_1984

Boosted

Thank you for the model, friend

The designer has replied

Show original

@Bruckii

Thank's to you :)

@user_3905127549

this i do like alot relly cool thinking for growing gard i do hoping see alot more on your Desing thx you

@user_2821724902

Boosted

Many thanks for the model; it opens up a wealth of possibilities

Show original

@user_4134558800

looking for something like this for size 1/10

Show original
