Description
Content has been automatically translated.

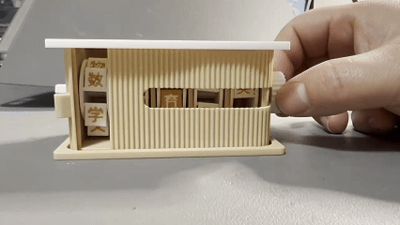

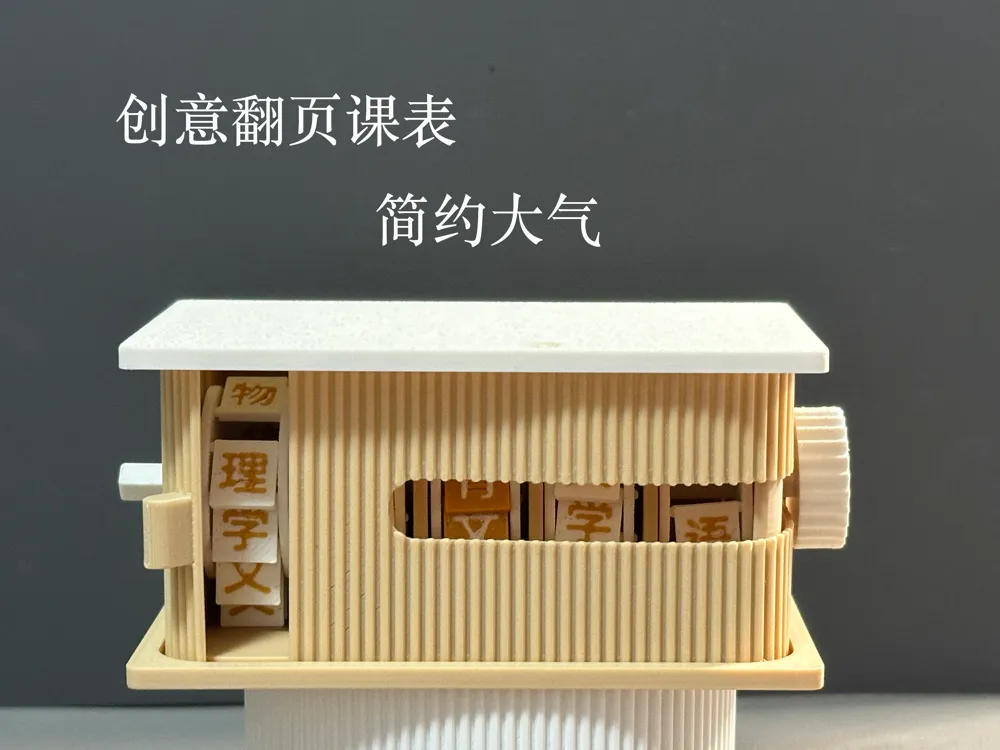

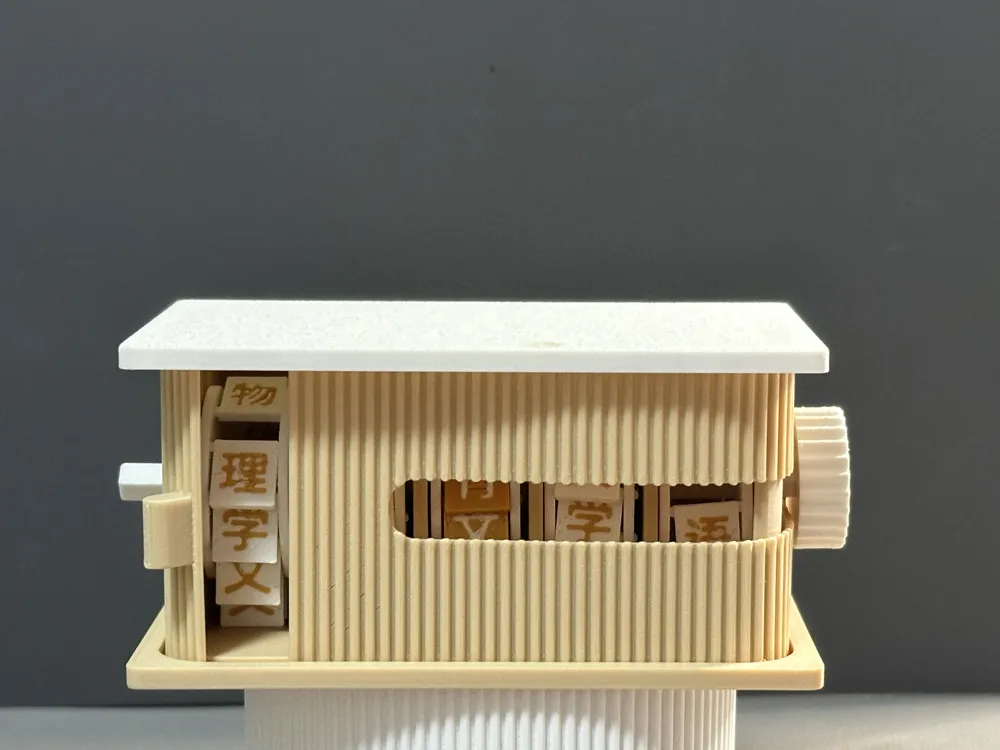

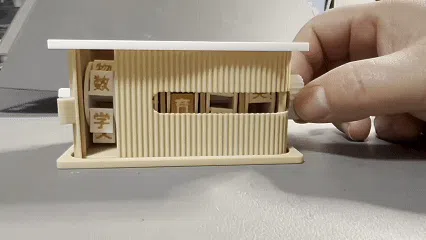

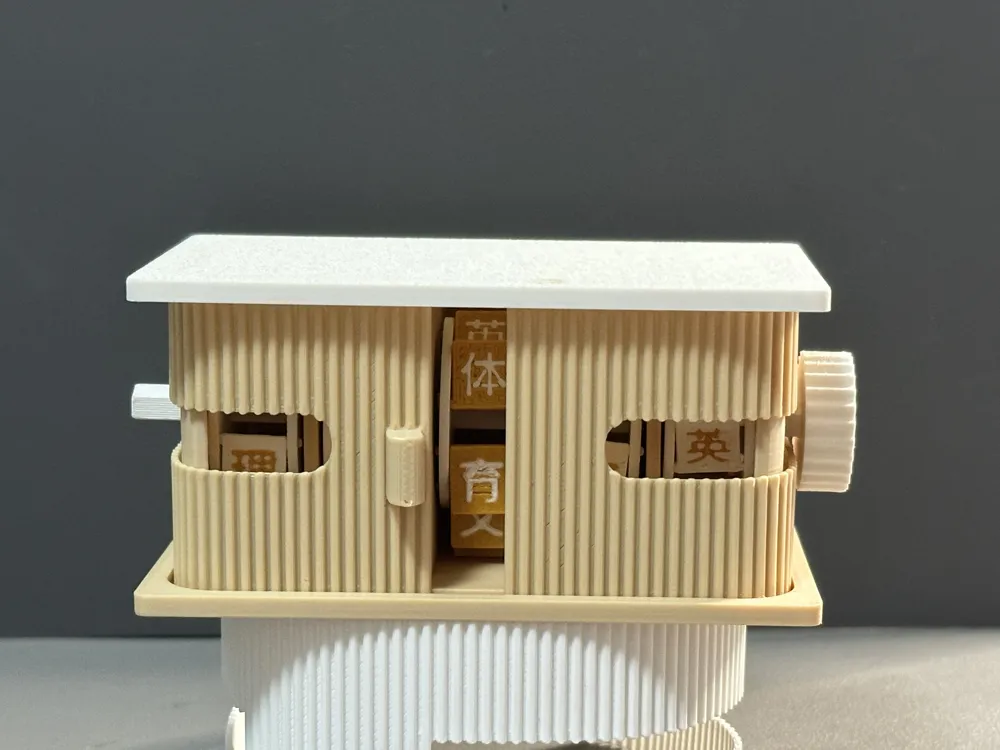

This is a minimalist schedule, uniquely designed to display lessons via page-turning.
(The hinge can be manually crafted or generated with a single click using OpenSCAD)
Below are concise installation instructions:
1.Attach the fastener to the crossbar, ensuring proper alignment of the holes.
2.Adjust the fastener's position, inserting it into the frame; two for each position.
3.Insert the hinge between the fasteners, minding the orientation.
4.Install the roller blind, secure the top cover, and attach the handle.
The installation process may be lengthy and tedious, but the final product is sure to be stunning!
2025.4.17 Adjusted hinge dimensions to prevent dislodging.
Added an OpenSCAD model to facilitate hinge creation and customization
