GX16 adapter for NAMCO Light Gun (Time Crisis etc)

Simple drop-in replacement for the metal bracket in the original Namco arcade lightguns to mount a GX16 connector for modification.  It has only been tested with the ORIGINAL Namco guns, not the chinese clones (NAMED).

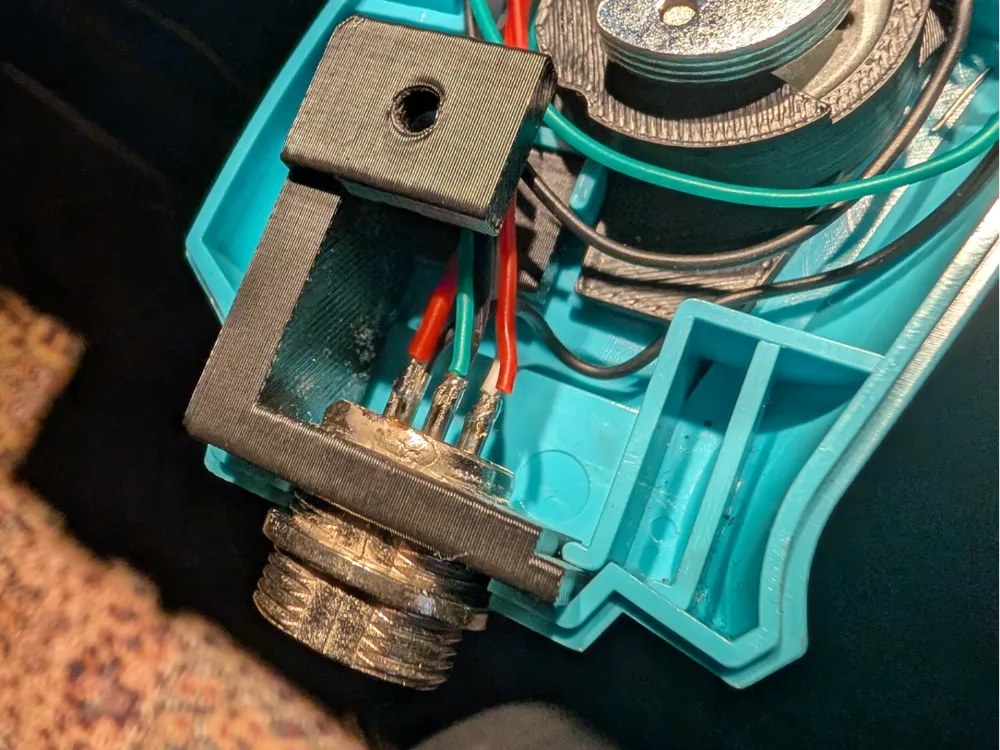

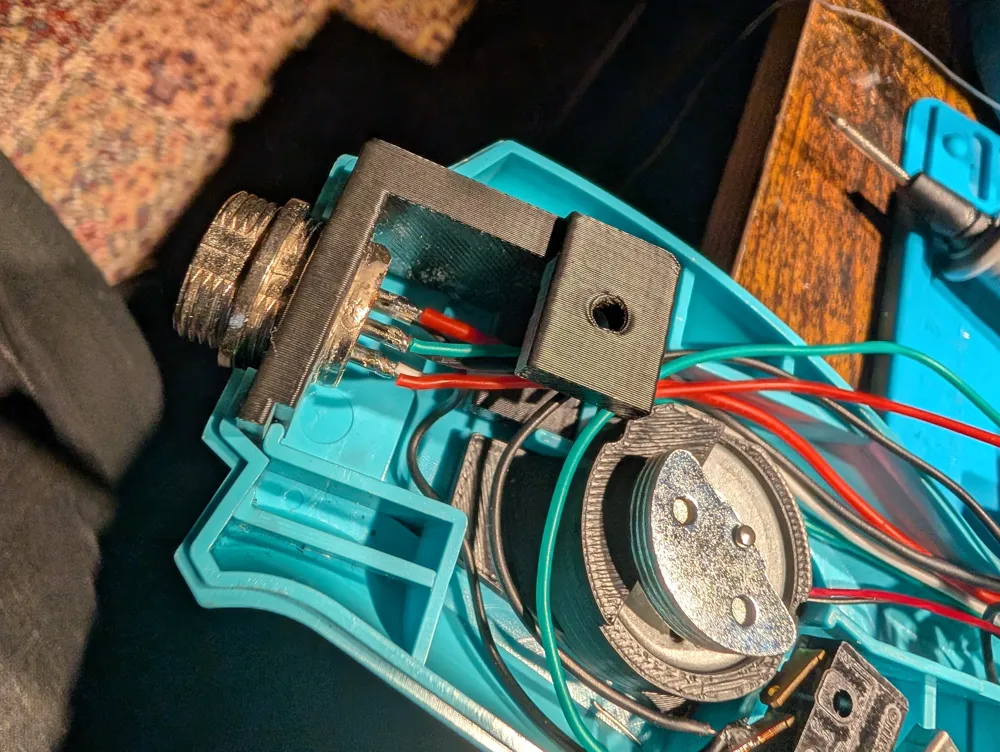

Just put it into the place the metal bracket was, add a little super glue to the hole for the GX connector and insert your GX16 connector in the desired orientation. I didn't use the screw to make it as sturdy as possible and went for glue instead.

Carefully use the 2 screws to make a thread into the holes - just be carefull not to overtighten. If the holes are too tight, heat up the screw a bit or use a threading tool.

This print needs no support.
