Gravity-Sealed Anti-Odor Floor Drain Kit

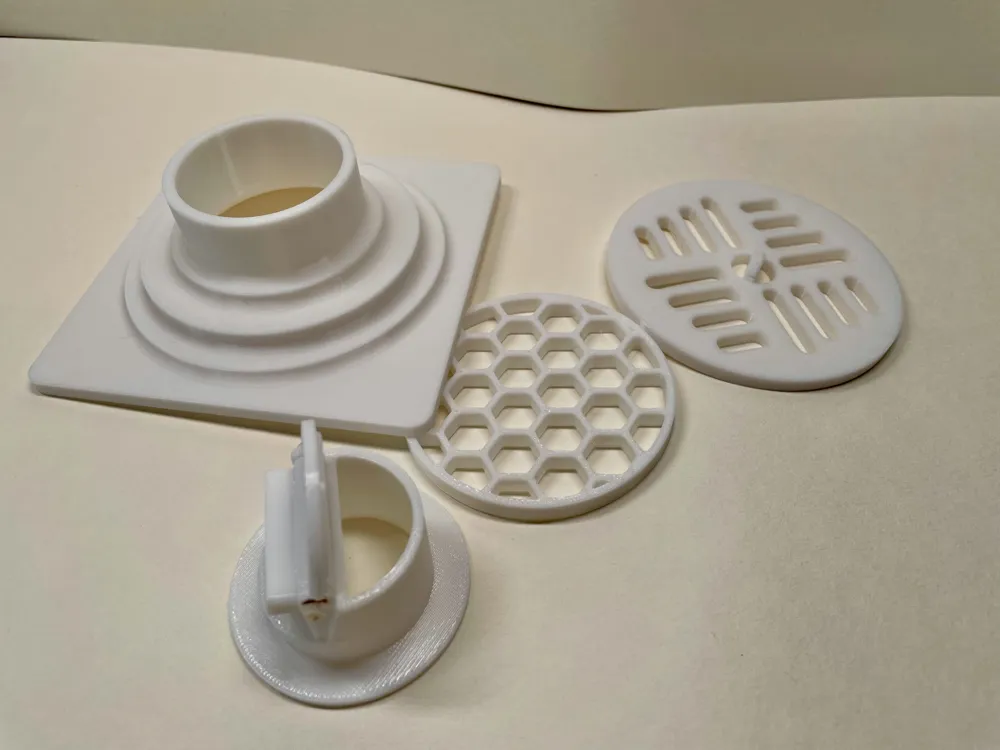

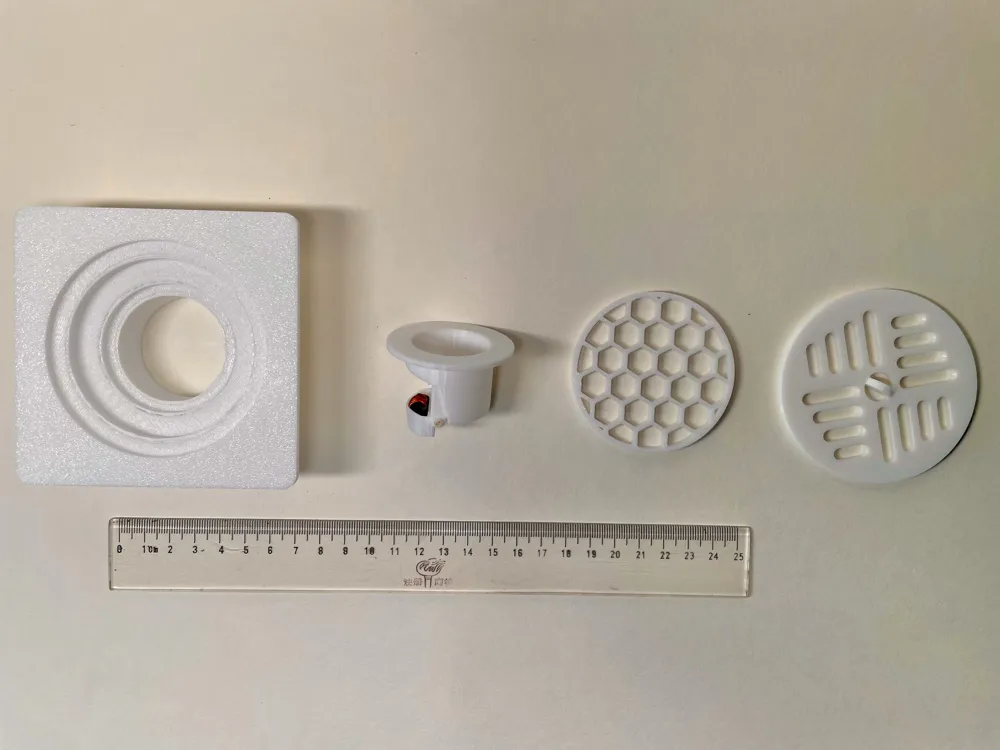

This kit includes:

    floor drain housing; drain cover; drain strainer; anti-odor drain core;

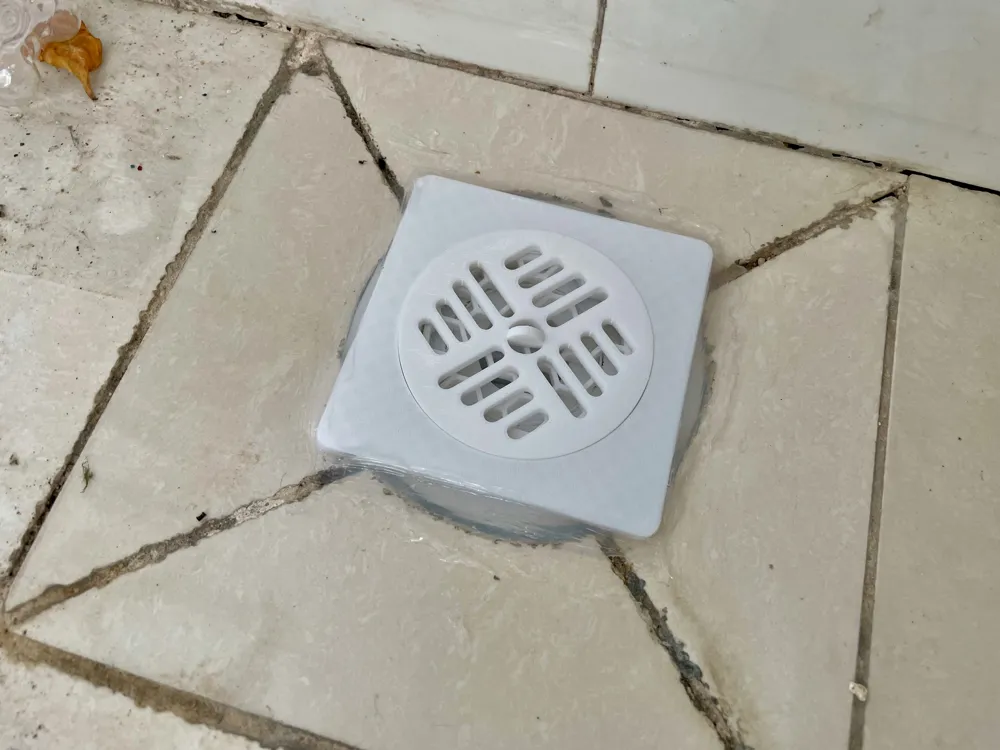

This kit features a 50mm installation depth with component specifications:

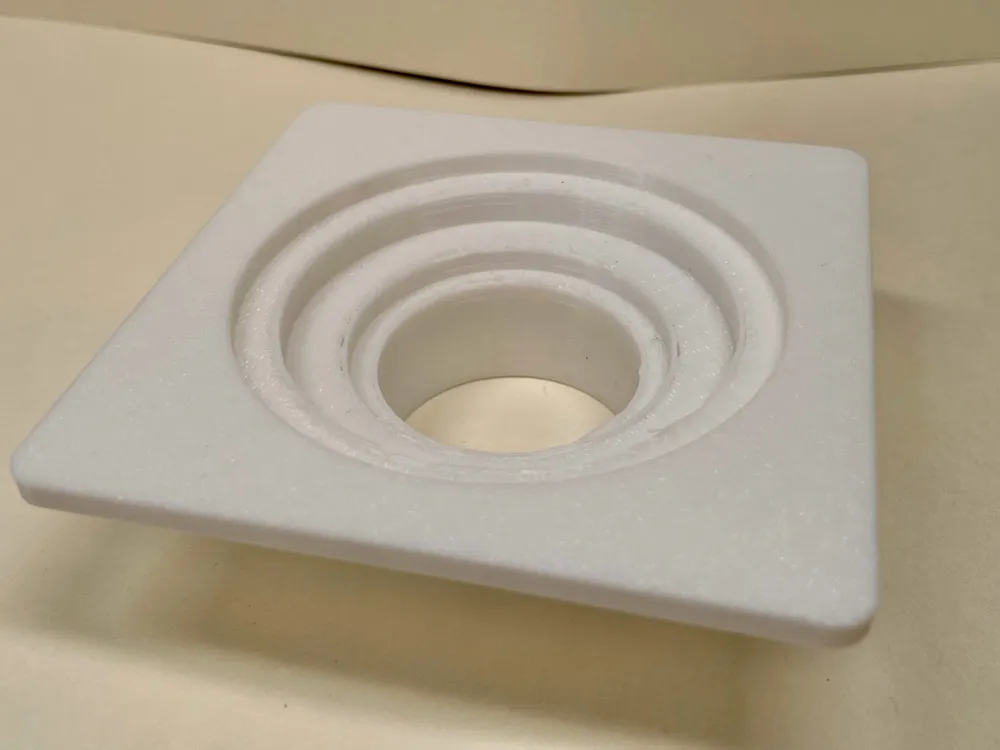

    floor drain housing dimensions 100*100mm;

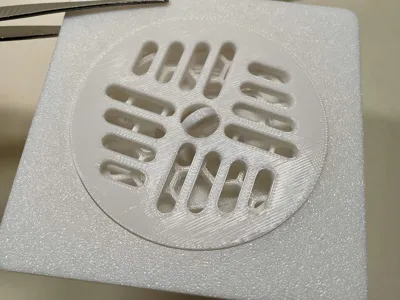

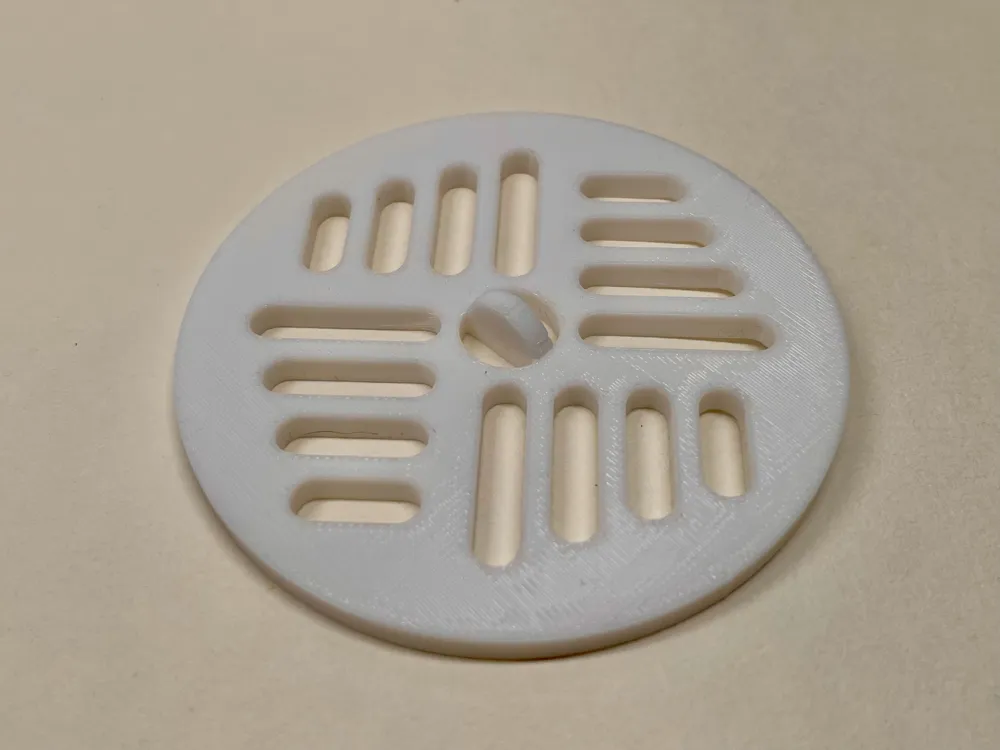

    cover diameter 78mm;

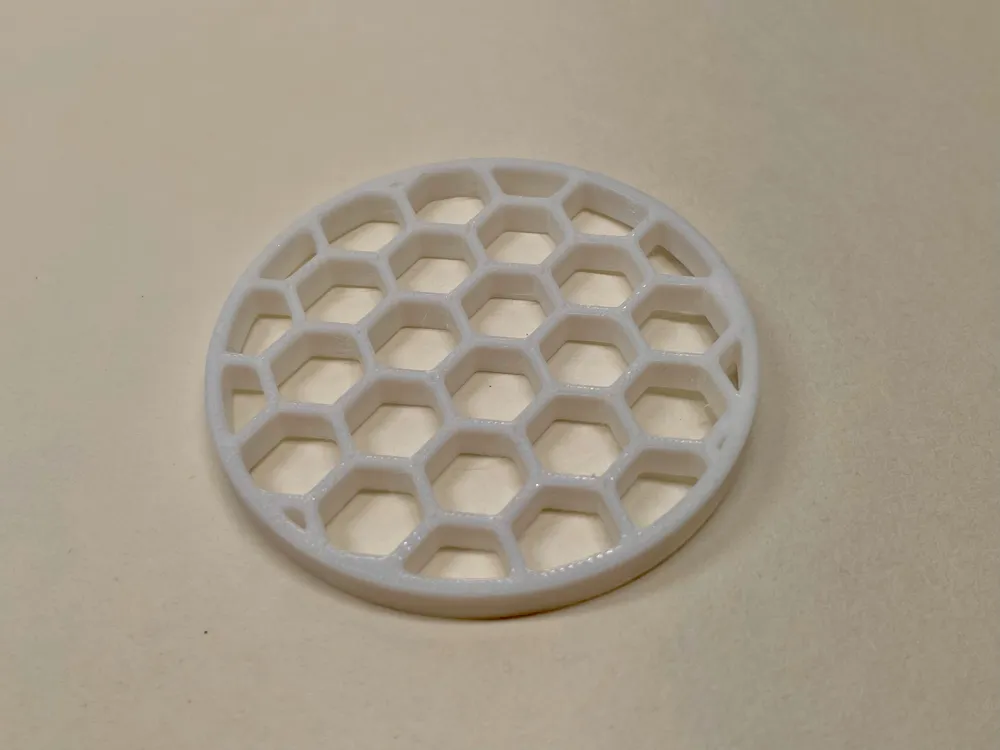

    strainer diameter 64.5mm;

    anti-odor core upper-end diameter 48mm/lower-end diameter 33mm;

The drain cover, strainer, and anti-odor core are recommended to be printed with 100% infill to increase density.

PETG is recommended for printing to enhance durability.

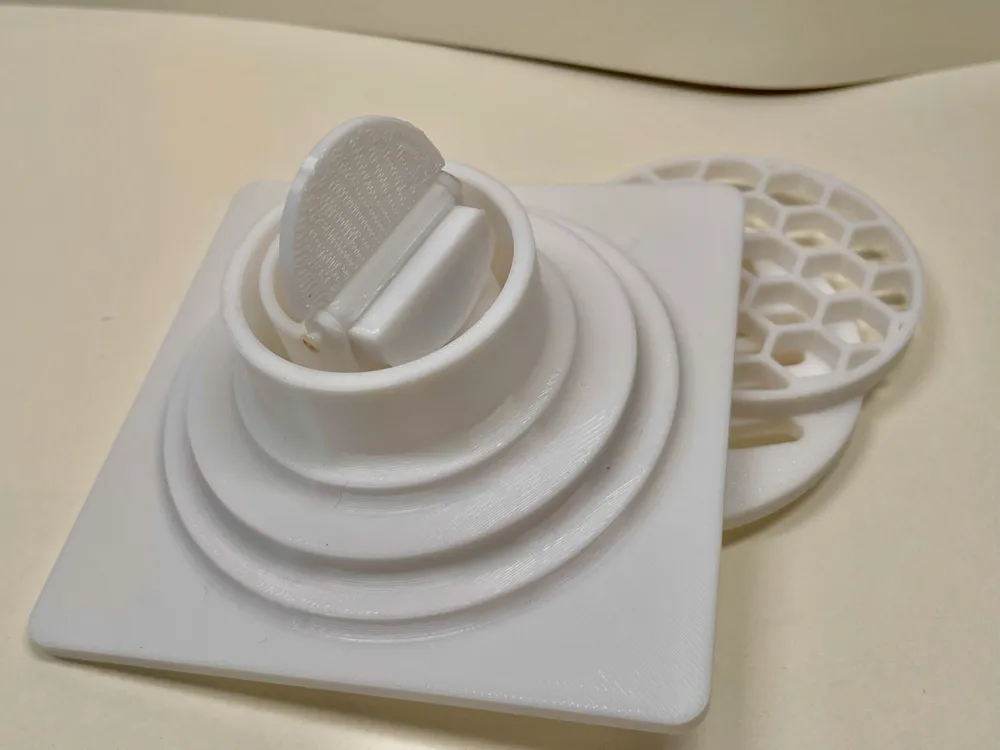

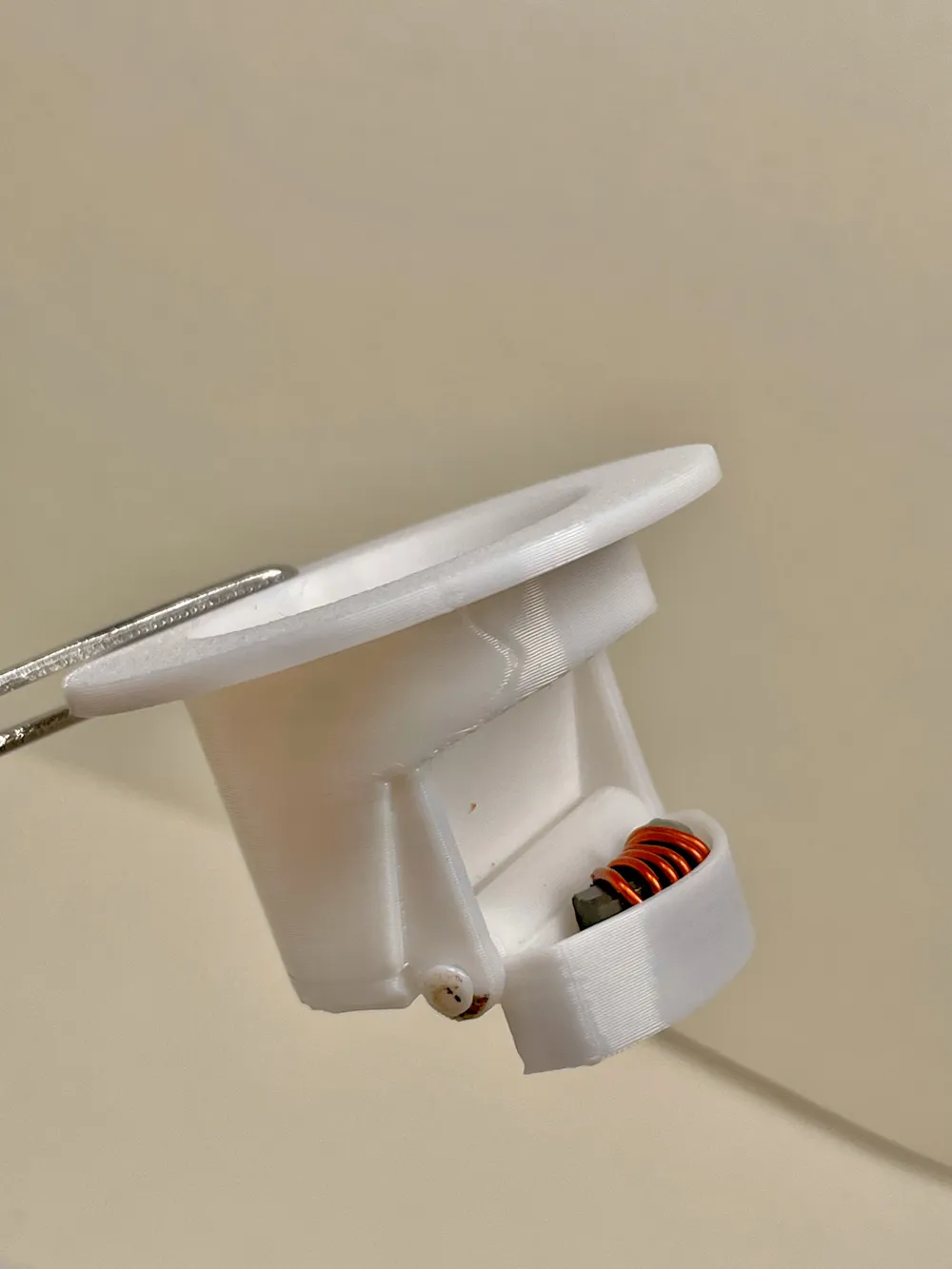

Regarding the anti-odor core:

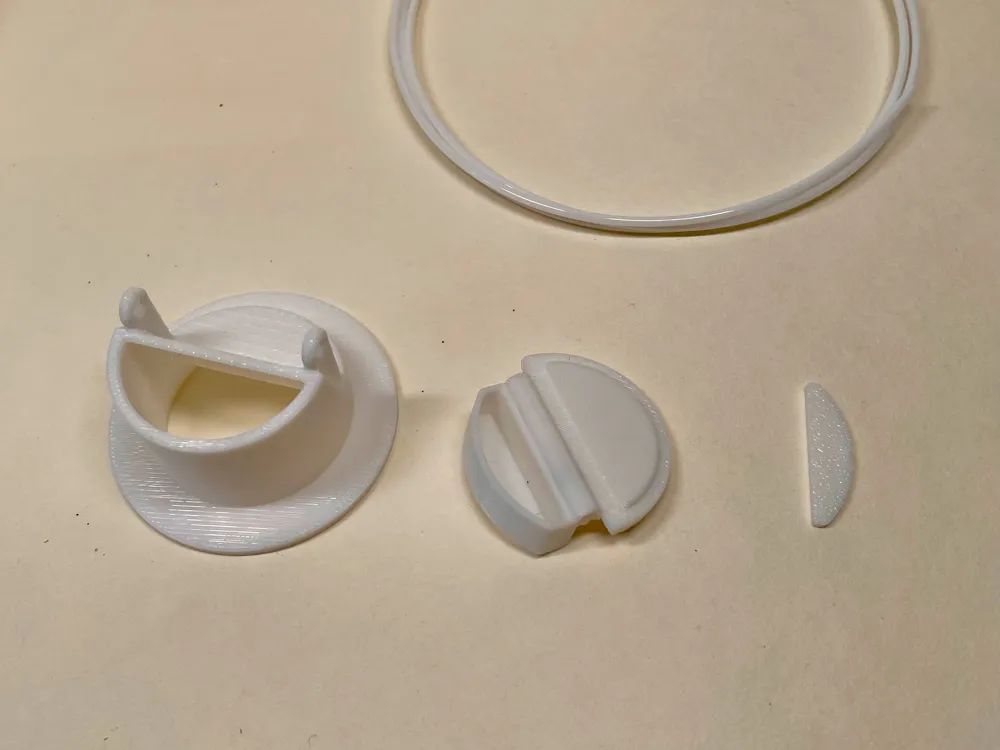

    The anti-odor core requires a counterweight; a minimum weight of 2g is recommended;

    The shaft utilizes filament. Please ensure the filament's straightness; otherwise, it will malfunction;

    The provided files include a counterweight cap. If using scrap material as a counterweight, please adjust the model's Z-axis length accordingly.
