Description

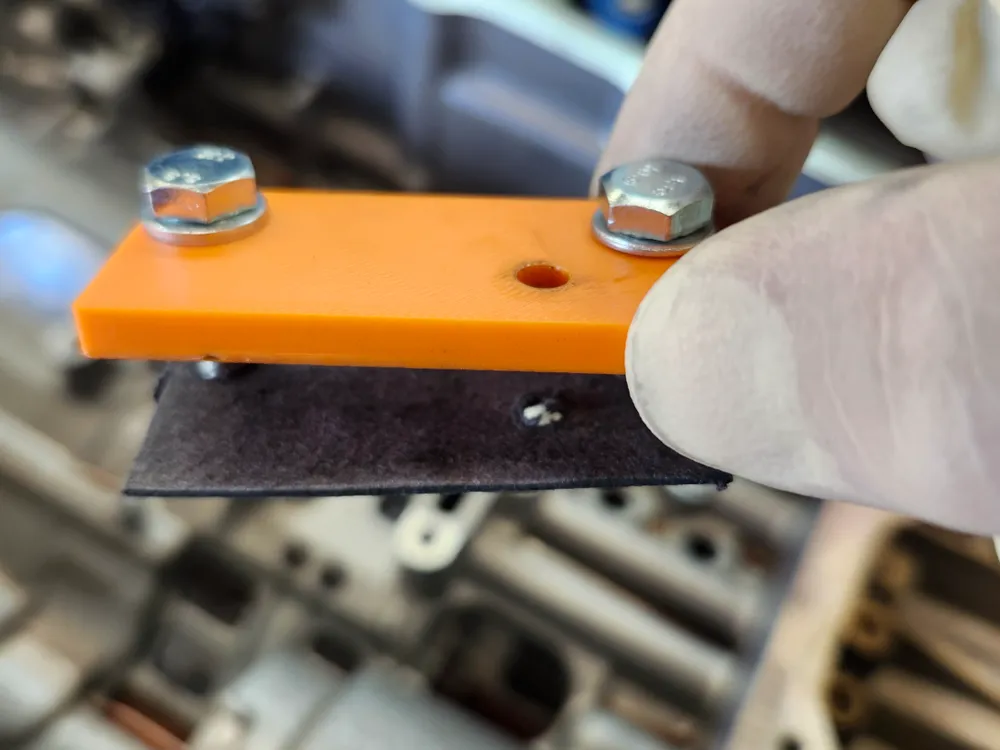

This model I had made to help preform the 1-2-3-4-5-Reverse clutch measurement on the GM 8 speed transmission. This in conjunction with a piece of gasket material and a few m8 bolts, it makes it easier to get a good seal on the rectangular hole to apply pressure too.

8l90

Tool
