Brass Pistol / Revolver Cartridge Sorter

Update: 05.04.2026
- added print profile for sorting .45 ACP cartridges. The sorter uses the original collar from the 9mm sorter. If .45 ACP cartridges are mixed with cartridges of smaller calibers, they fit into .45 ACP cartridges, but it saves work with sorting cartridges.

- added print profile for sorting .40 S&W / 10 AUTO / .357 SIG cartridges. The sorter uses the original collar and insert from the 9mm sorter. I did not have 10 AUTO or .357 SIG cartridges available for testing, only a few .40 S&W cartridges. Instead of .357 SIG cartridges, I used 7.62 x 25 Tokarev cartridges. The sorter is therefore also suitable for sorting 7.62 x 25 Tokarev cartridges.

- the base sorters that I published are now newly marked on the side with a description of the caliber they are intended for. However, I recommend differentiating them by color.

Update: 26.03.2026
- A version of the .38/.357 cartridge sorter has been released. It uses the collars of the basic 9mm cartridge sorter version.

Thanks to the user I_Print_Useless_Junk for the design, whom I allowed to publish his model next to my sorter. I successfully printed and tested the sorter.

For me, an almost indispensable tool for reloading cartridges. When collecting brass cartridges and their subsequent recycling, individual calibers are often mixed up. Sorting by sight one by one is tedious and laborious.

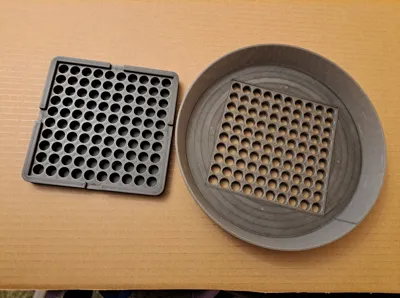

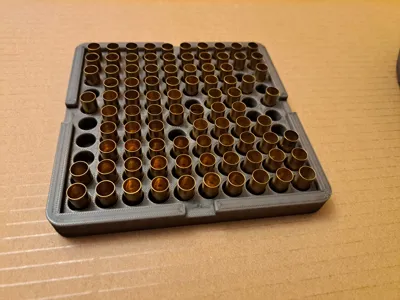

This is a two-part sorter for sorting 100 pcs of 9mm brass cartridges. It can be used for 9x19 (9mm Luger) cartridges, but also .380 (9mm BrC), 9mm Makarov and 9x21.

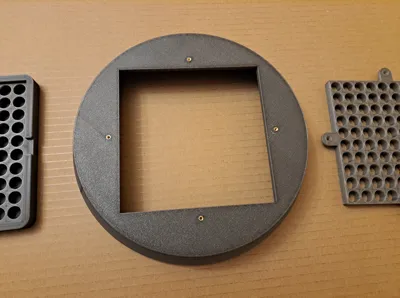

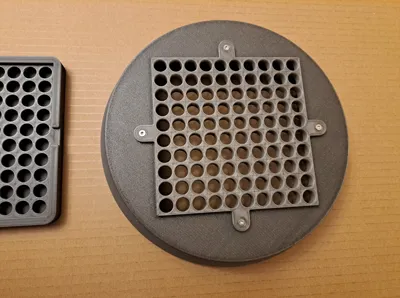

Unlike simple sorters that have no edge and therefore it is problematic to fill the edge cells, this one uses the same effect as the Lee Case Collator. Just pour the cartridges in and shake. After filling all the cells, just remove the top part with the collar and visually check the height of the cartridges and remove the wrong ones.
Even .32 ACP (7.65mm Browning) intruders can be easily identified.

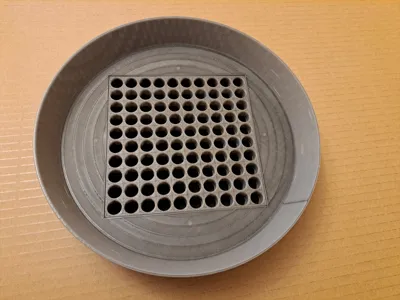

Pad 2 is intentionally printed with supports so that there is a textured surface of the pad inside the collator. Of course it can be rotated.

- 4x M3x6 countersunk head screw
- 4x M3 brass threaded insert for plastic
