ALBA Modular DIY Lamp
Print Profile(2)
Bill of Materials
Description

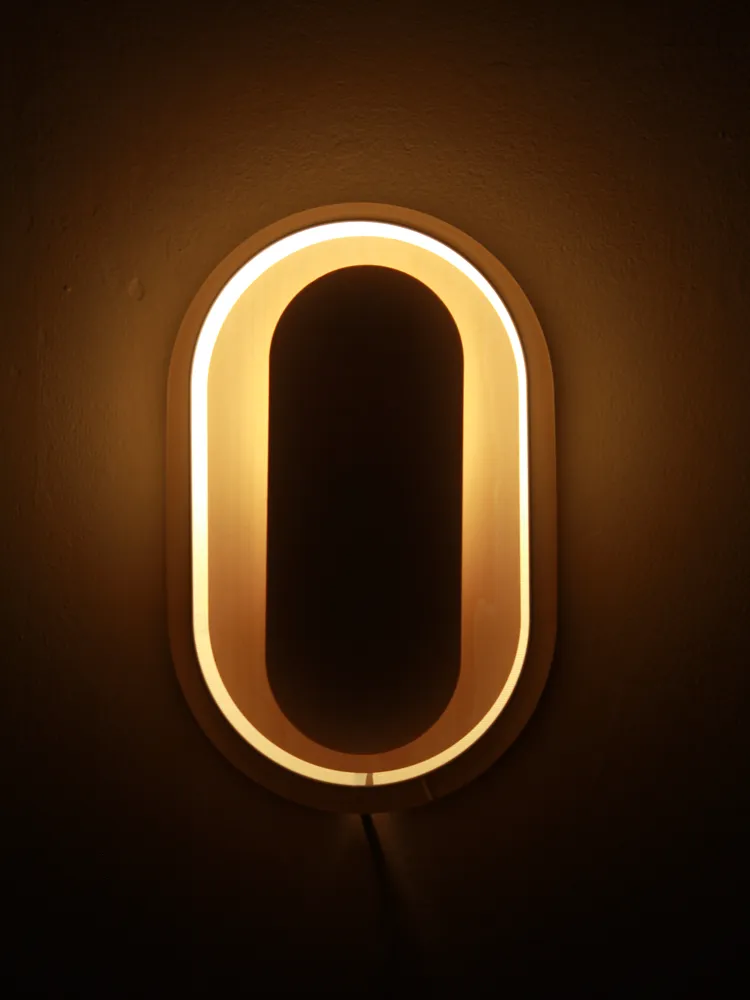

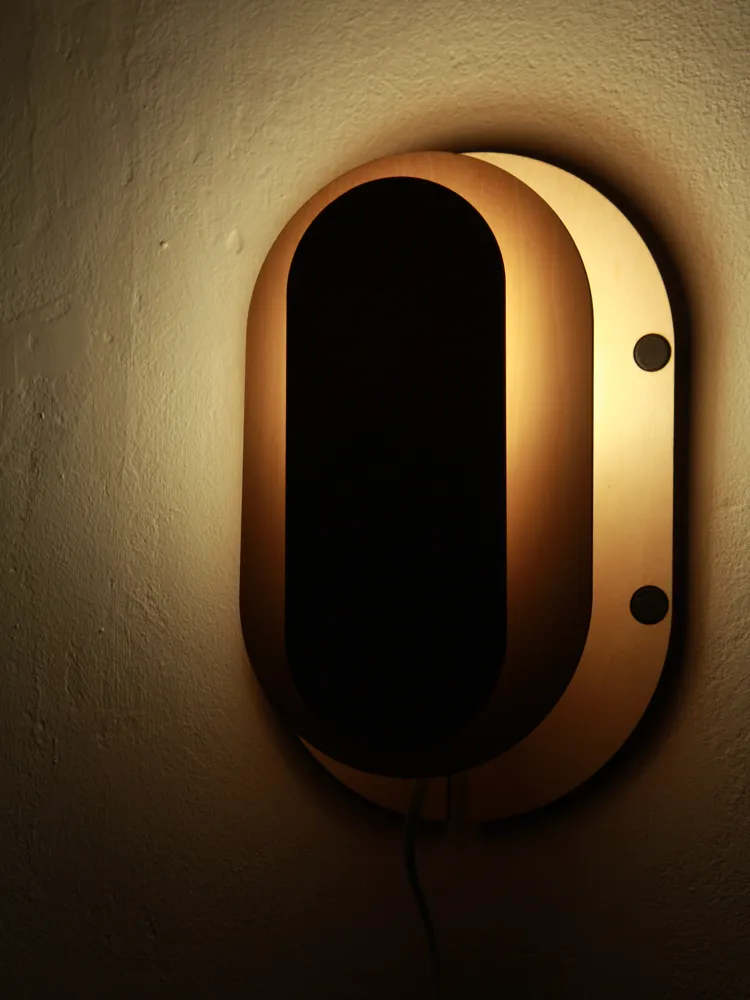

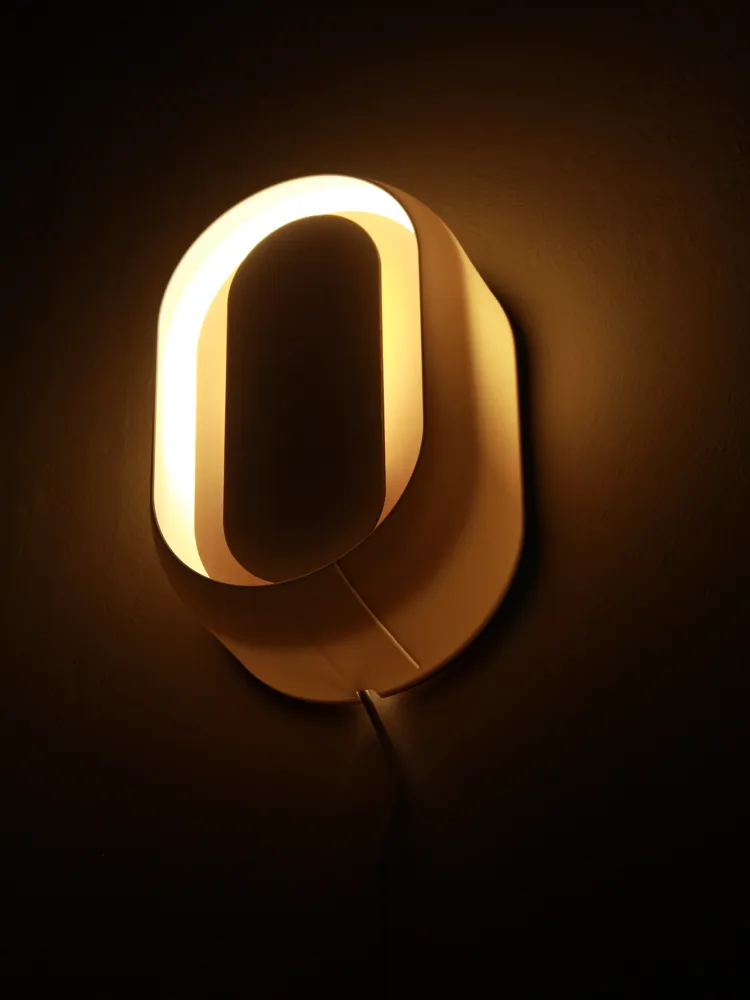

Introducing our first modular lamp design: ALBA.
Its modern shape difuses light, creating a halo effect reminiscent of the dawn.
The modular design lets you change parts easily if you want to print a different shade or use different materials.
Boost Me (for free)
Do you like this design? Having problems printing it? Just let us know! Happy to help. Consider giving it a boost to help us keep making free designs like this one :)

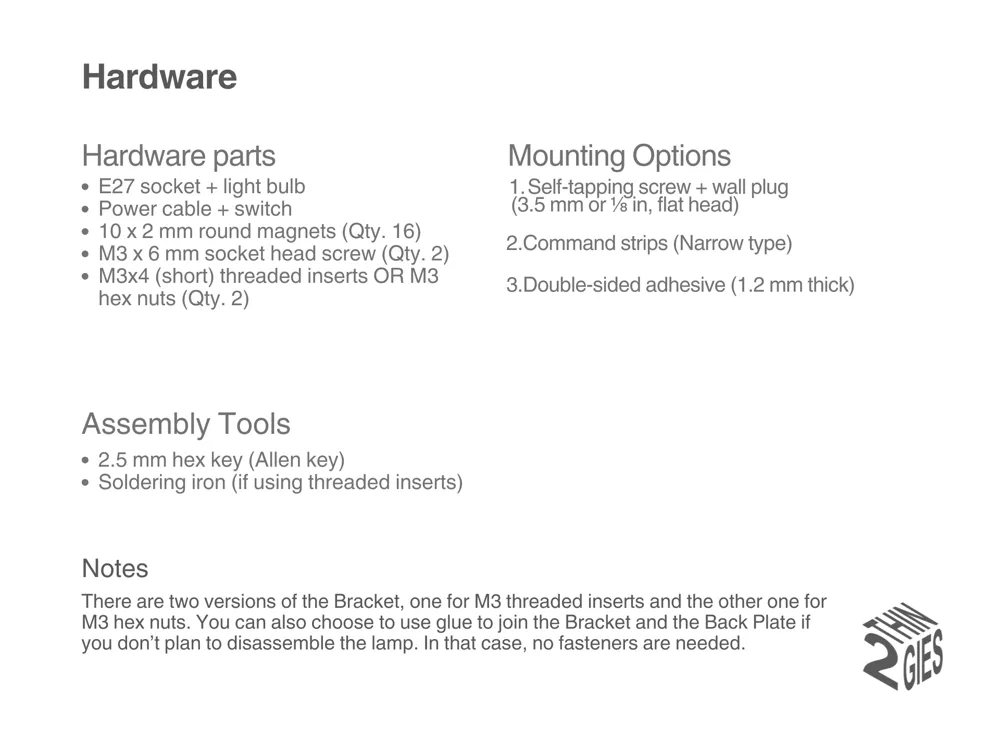

Required Hardware
- E27 socket + light bulb
- Power cable + switch
- 10 x 2 mm round magnets (Qty. 16)
- M3 x 6 mm socket head screw (Qty. 2)
- M3x4 (short) threaded inserts OR M3 hex nuts (Qty. 2)

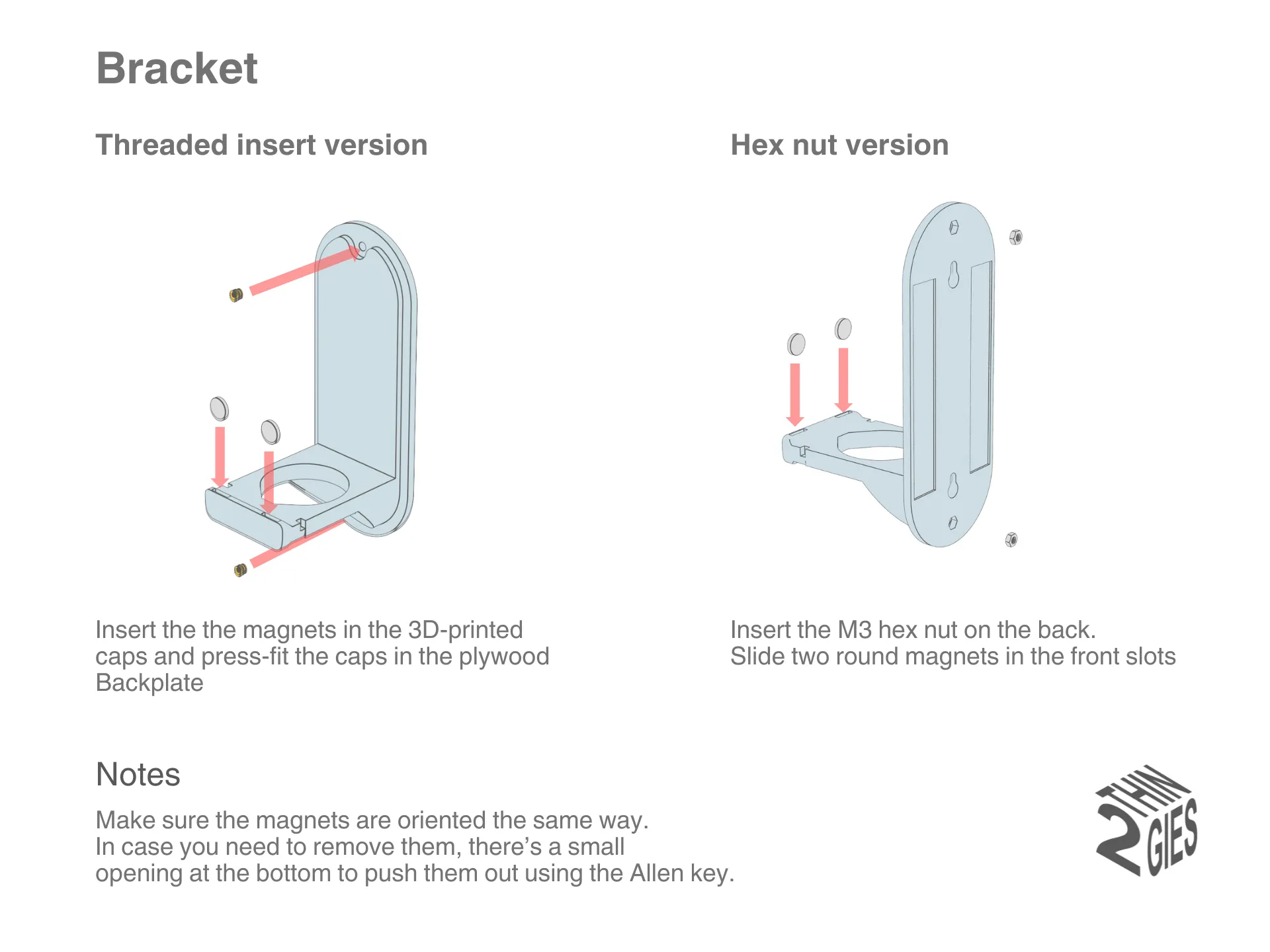

- There are two versions of the Bracket, one for M3 threaded inserts and the other one for M3 hex nuts. You can also choose to use glue to join the Bracket and the Back Plate if you don’t plan to disassemble the lamp. In that case, no fasteners are needed.
Required Tools
- 2.5 mm hex key (Allen key)
- Soldering iron (if using threaded inserts)
Mounting options:
- Wall screw mount
- Command strips
- Adhesive strips
