HomeRacker - Core
Boost Me (for free)
Help me overengineer more stuff if you like this one!

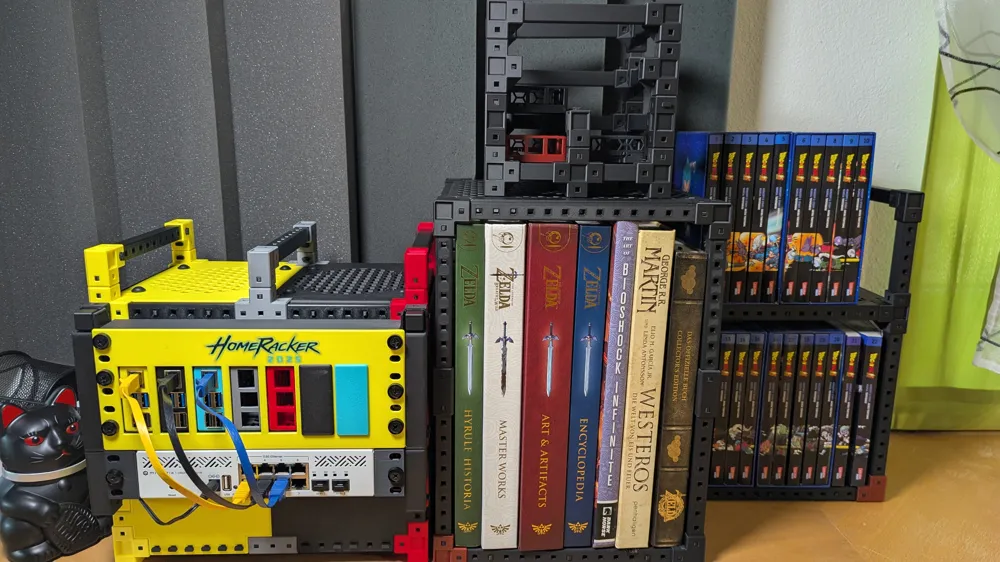

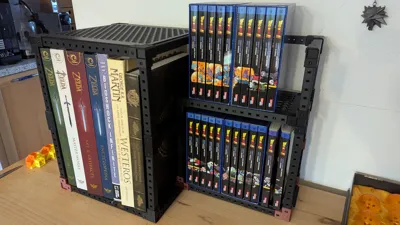

A fully modular universal rack building system for virtually any "racking needs" (Server Rack, bookshelf, shoe rack, you name it).
HomeRacker grows with your needs — start with a small Pi-Rack and scale up to 10" or even 19" racks. Multiple racks can be assembled together. There are no limits to how big you want to build.

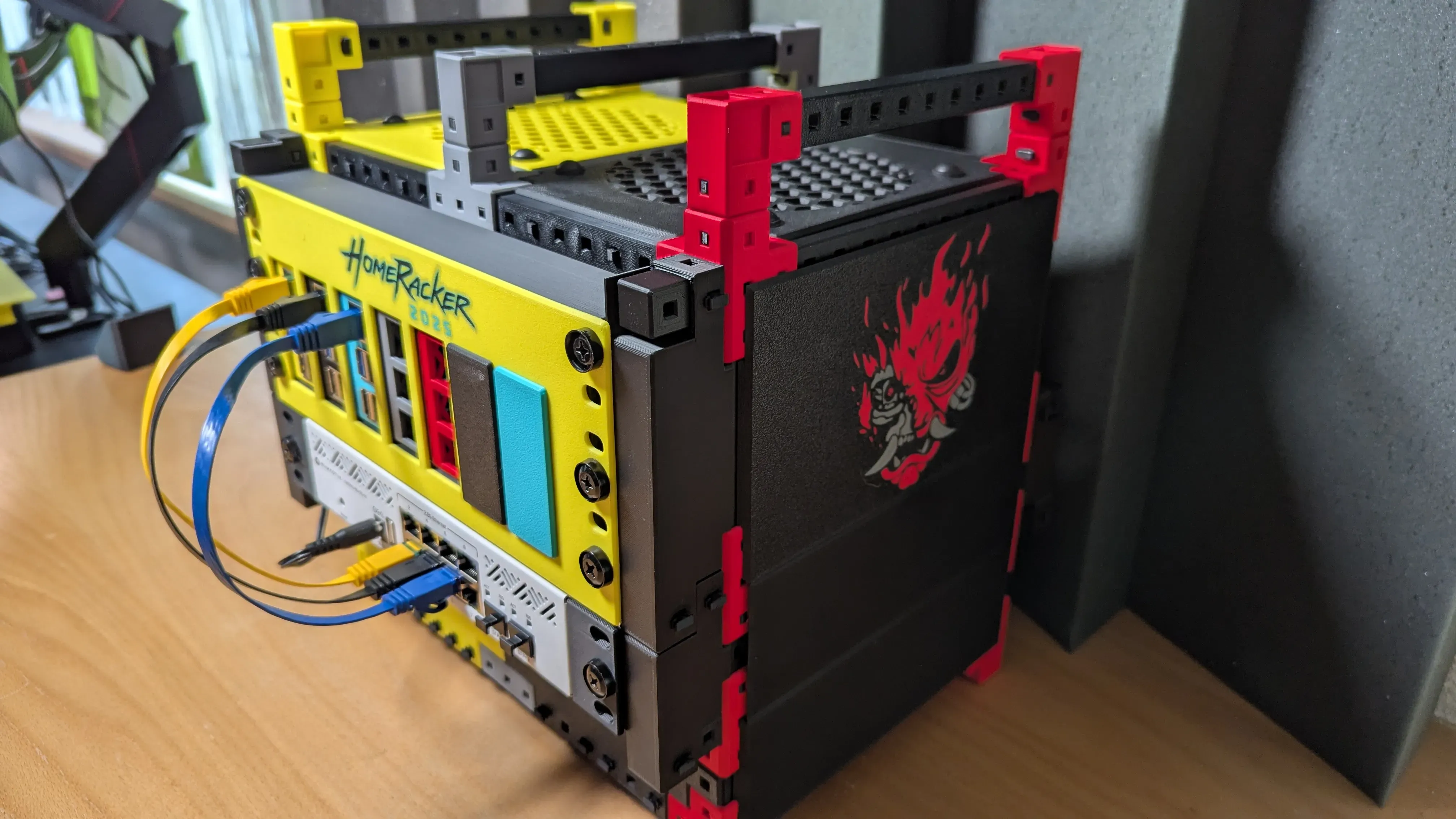

Check out this Cyberpunk-themed 10" Rack — a perfect showcase of what HomeRacker can do.
📦 What's in the Box?

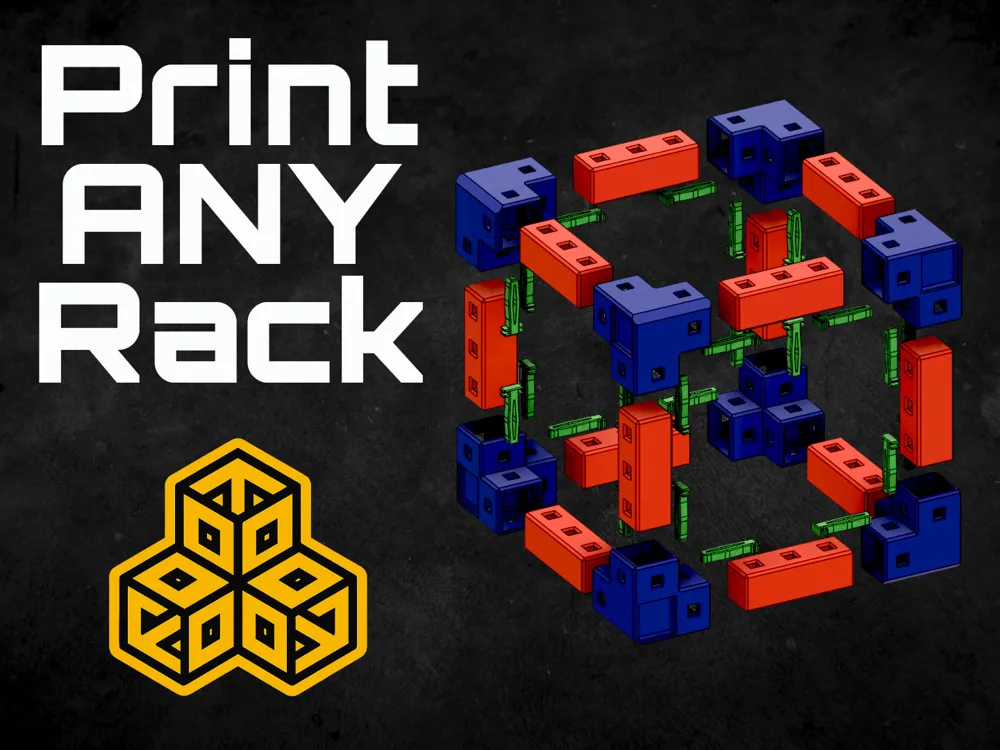

This model contains the core parts of HomeRacker:
- Supports — from x2 to x17 in the print profile, customizable up to x100
- Connectors — all permutations, sane defaults in the print profile
- Lock Pins — standard, extended grip, and neck extension variants
- Foot Inserts — snap into any connector arm for stability and grip (also available as a standalone model)
- Diagonal Supports — stabilizers for load bearing or large builds (separate 3mf folder)
All parts are fully customizable in the Parametric Model Maker (v1.8.0+).
🙅♂️ Do NOT autorotate the parts! 🙅♂️
No part needs printing-supports when exported from the Model Maker (provided you didn't deactivate optimal_orientation). Print single-holed supports with the hole aligned vertically for best locking experience.

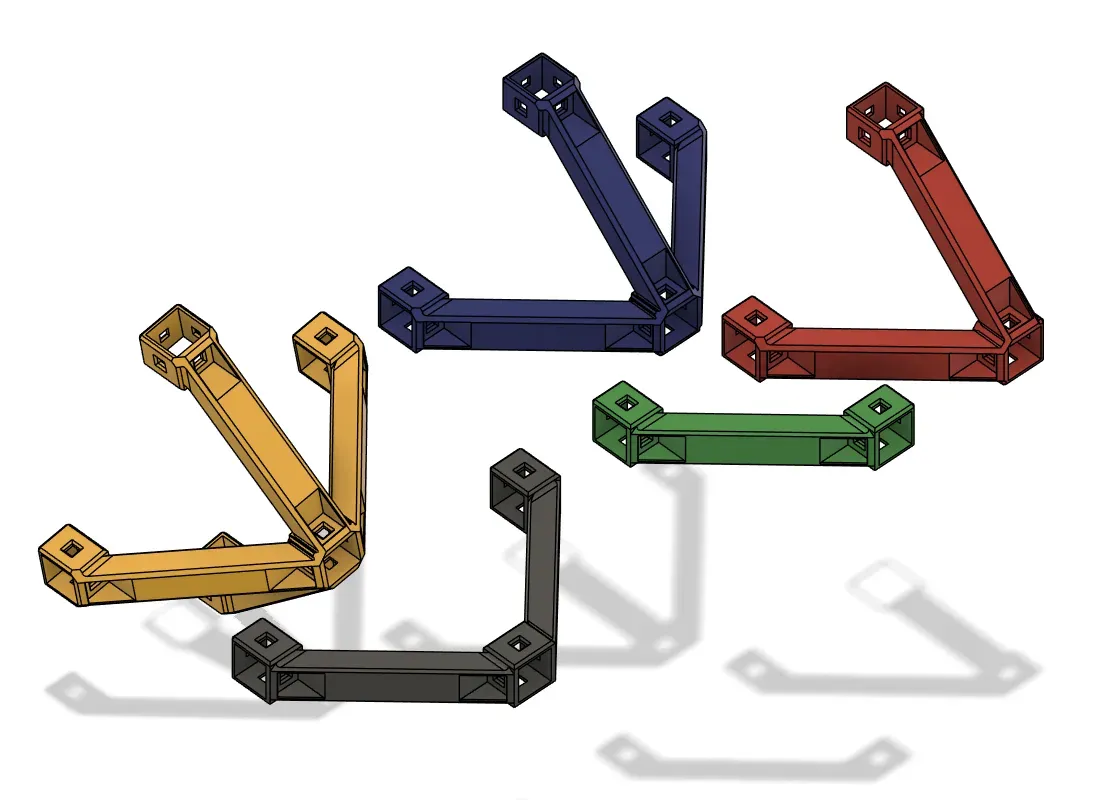

Diagonal Supports
Stabilizers for load bearing or large builds. 5 permutations to cover many directions, in almost any printable size. Available as 3mf files in the "Diagonal Supports" folder.
🔌 Projects
The Official HomeRacker Collection
Highlights:
⚙️ Technical Specs
Based on the open-source HomeRacker specification: https://homeracker.org/
Raise issues or contribute on GitHub.
🚀💰 Free Use and Commercial Freedom
The Core Model is, and will always remain, free for you to use! ✅
It's licensed under Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0): https://creativecommons.org/licenses/by-sa/4.0/ — which allows commercial use. You can create extensions and derivatives, and even charge money for them! 🤑 Please give proper attribution to KellerLab and include a reference to CC BY-SA 4.0; linking my MakerWorld profile is a great way to do that: https://makerworld.com/en/@kellerlab 🙏
⚠️ Important Boundary
This commercial freedom applies only to the Core Model described here. Other KellerLab extensions, add-ons, or derivative models that I publish are separate releases and may be offered under different licenses or terms.
🏘️ Community Driven
Anyone can create and share HomeRacker extensions under the open spec and CC BY-SA 4.0 terms!
- 🧑💻 Designers — Go ahead and build! I'd love to link your creations in the catalog.
- 💭 Idea-Generators — Pitch your idea to me with as much detail as possible!
Check out the Community Catalog
Pitch ideas or vote for them here on GitHub!
Join the KellerLab Discord Server
☕️ Support
If you appreciate this model and wanna buy me coffee, you can do so here: https://ko-fi.com/kellervater
Or simply scan this QR-Code:
📜 Changelog
- 🦶 v2.0.0 — Standalone foot insert added to Core (was previously part of the connector)
- 🫳 v1.8.0 — Lock Pins now have extended grip versions and neck extension options
- 🌐 v1.1.0 — All core parts now customizable in OpenSCAD (connectors, supports, lock pins)
Full changelog: CHANGELOG.md
