Silo Grain Storage Model Railway TT
Print Profile(1)
Description

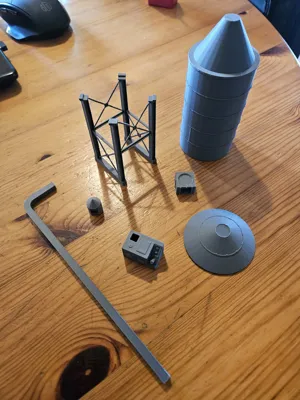

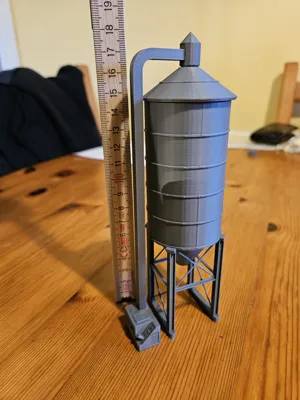

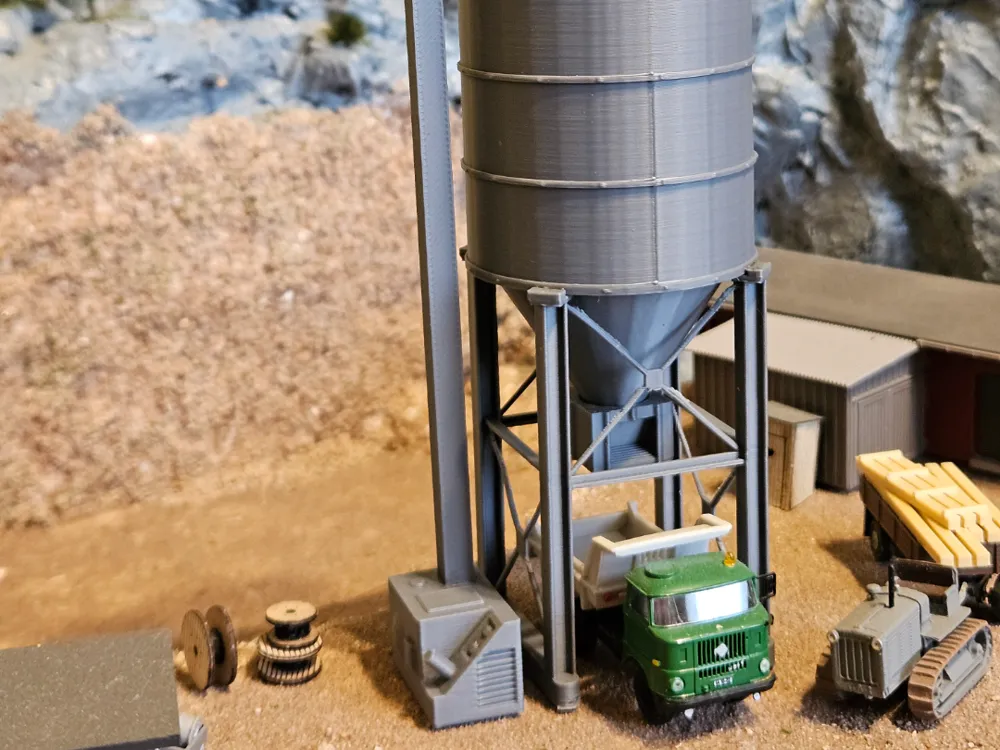

This is a model of a silo for the TT gauge model railway. It consists of 7 individual parts and must be glued together. The individual pictures show where each part belongs.

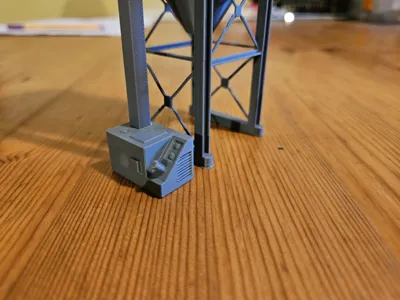

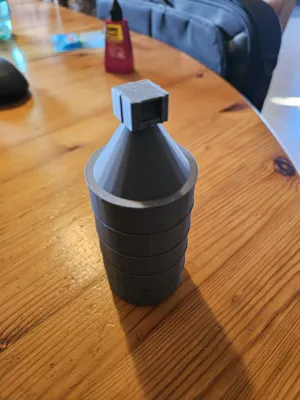

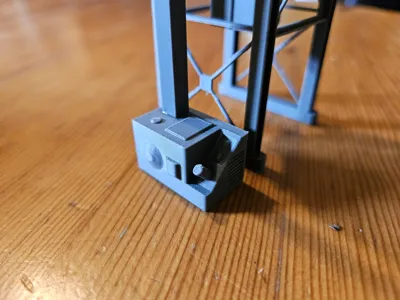

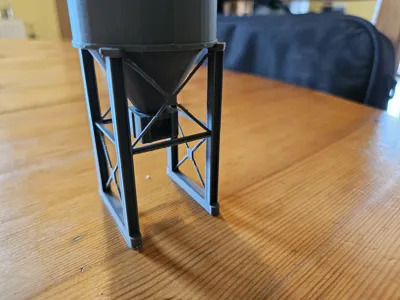

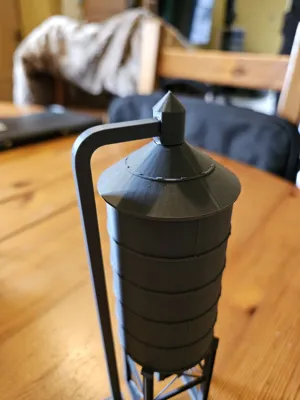

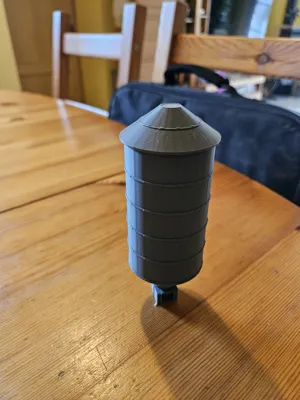

First, the distributor is glued to the underside of the silo. Then it is placed on the frame so that the “opening” of the distributor faces the direction of travel. Then the lid is placed on top and the tip is glued so that the opening for the pipe points in the desired direction. Then the pipe can be glued in. Once everything is firmly in place, the filling box can be inserted.
If there are any problems with the STL files, here are the dimensions of the individual parts again:
- Silo: -Dm 48.5mm x 105.5mm
- Frame: -42mm x 42mm x 66mm
- Filling: -25mm x 16mm x 15.4mm
- Lid: -Dm 51.35mm x 16mm
- Pipe: -30mm x 160mm x 5mm
- Tip: -Dm 11.45mm x 16.2
- Distributor: -16mm x 16mm x 10mm
