Customizable ventilation grid/Tube cover with grid
Print Profile(1)
Description

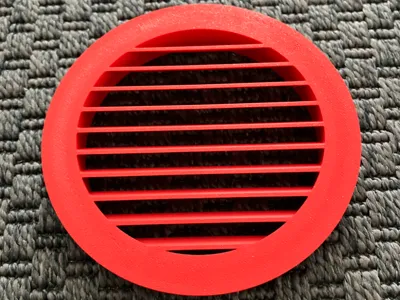

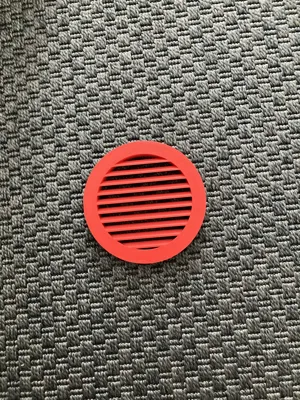

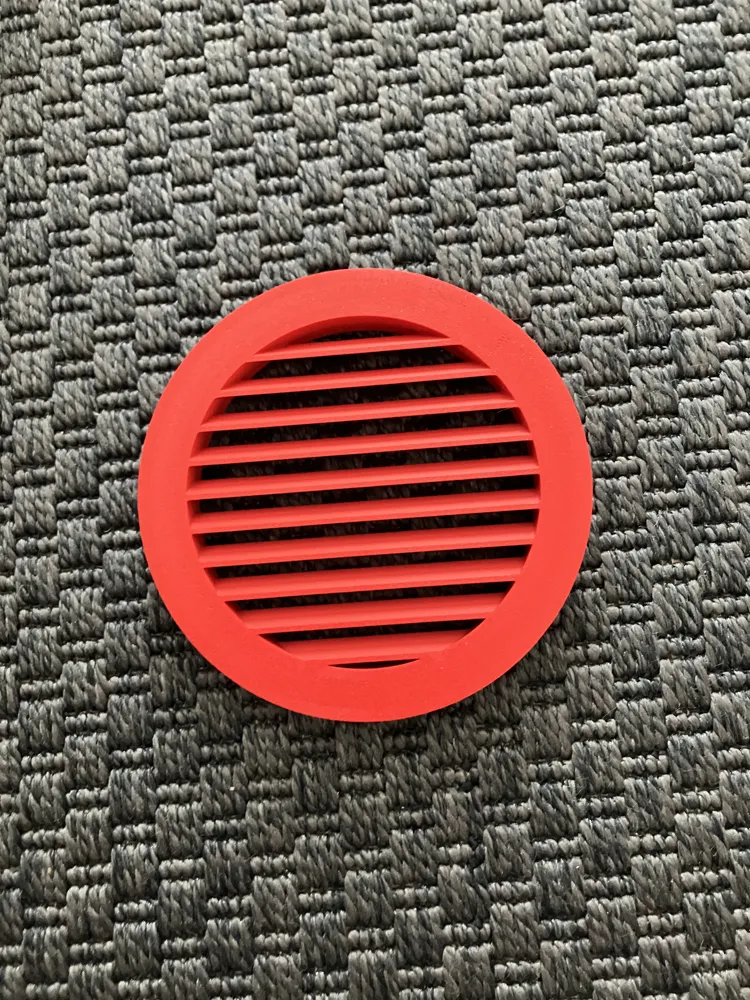

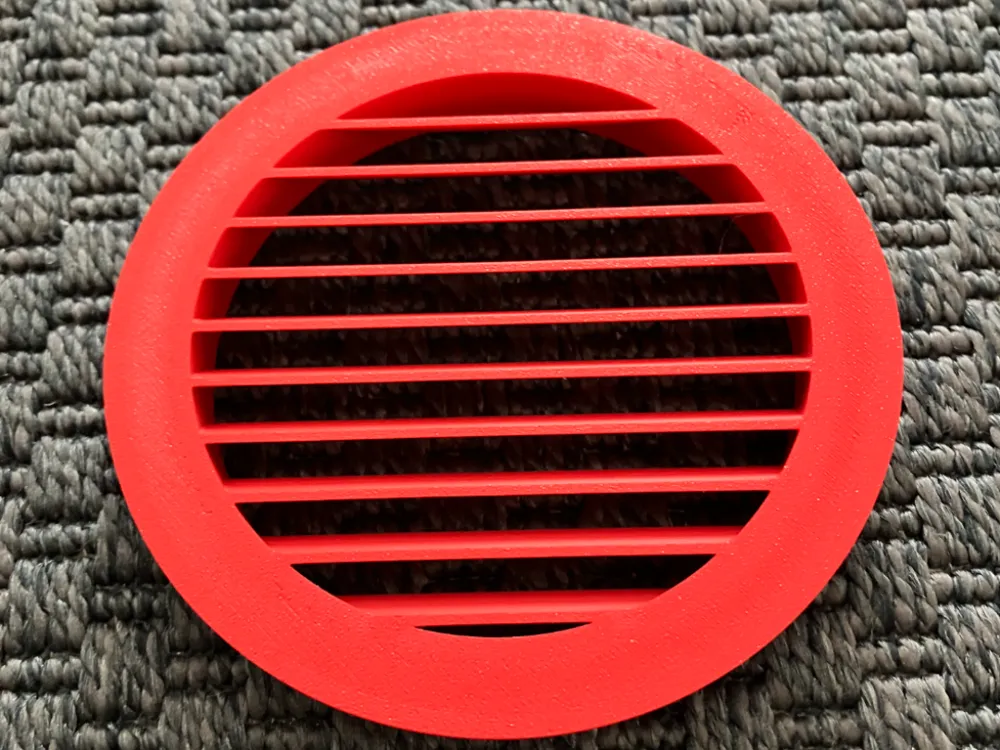

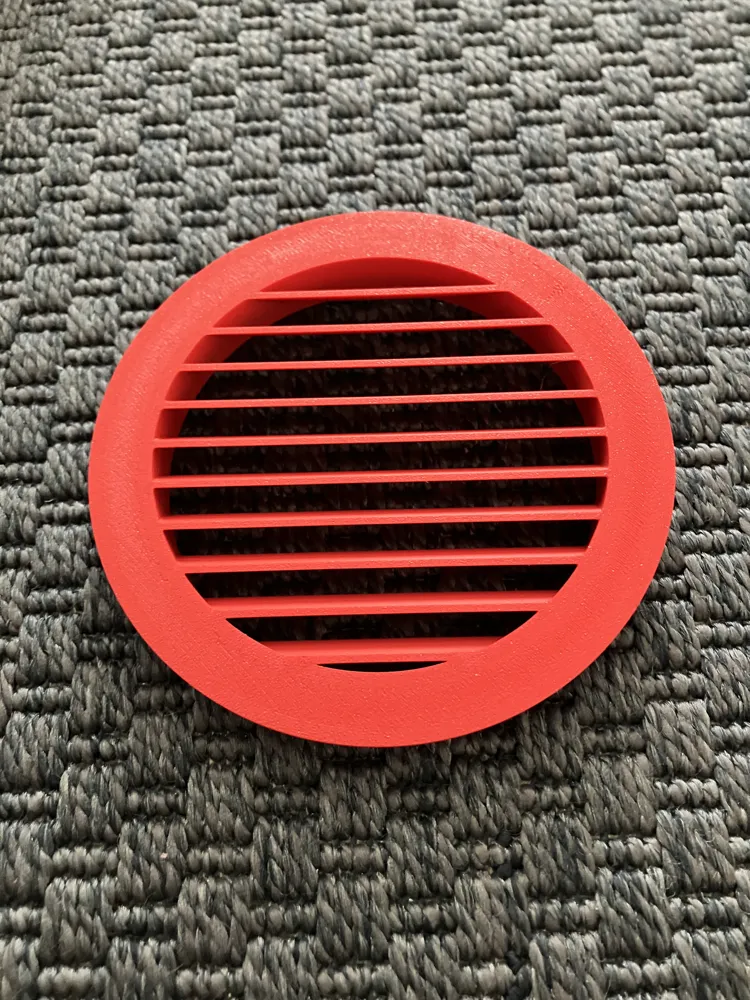

Customizable ventilation grid/Tube cover with grid.
With the help of the parametric ventilation grille, you can design any unique rectangular design by setting a few parameters.
You can also do this at the end of a PVC pipe, just enter the appropriate parameters.
You can set the folowing parameters:
Outer parameters:
outer_radius
outer_height
resolution
Inner parameters:
inner_radius
Border parameters:
border_thickness
border_height
Grid parameters:
grid_thickness
grid_count
grid_angle
grid_offset
grid_width
Grid offsets:
inner_offset_x
inner_offset_y
Use a very clean plate because the adhesion will not be adequate and I recommend using a plate with good adhesion such as textured PEI or PEI plate.
My modells: my modells.
My Customizable modells: click
If you are satisfied with my work, please, in addition to downloading the model, printing and evaluating it, you can also support it with boost.
Boost Me (for free)
Print and use!
