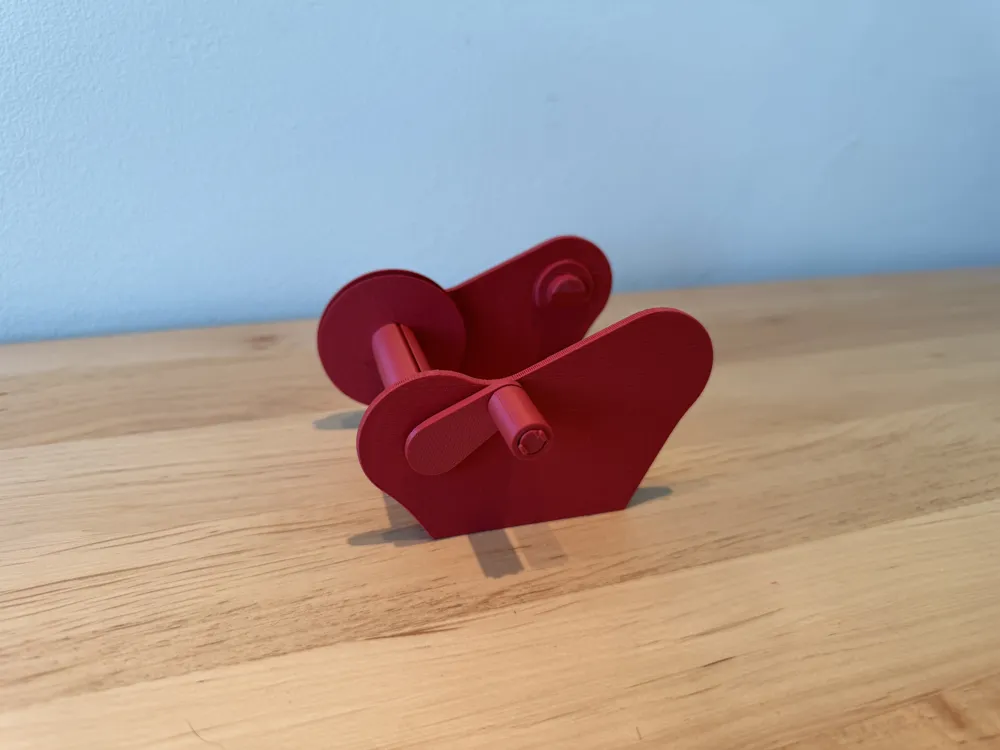

Thermal Paper Rewinder (57mm Rolls)

Thermal Paper Rewinder for Mini Printers (57mm Rolls)

This is a compact and easy-to-print thermal paper rewinder that allows you to use large 57mm rolls with small mobile thermal printers. Perfect for saving money and reducing waste by avoiding the need for expensive mini rolls.

Features:

• Print-friendly design: No supports needed, low material usage.
• Easy assembly: Just a few parts, fits together quickly.
• Manual or powered: Use the included hand crank or attach a drill for faster rewinding

How to assemble:

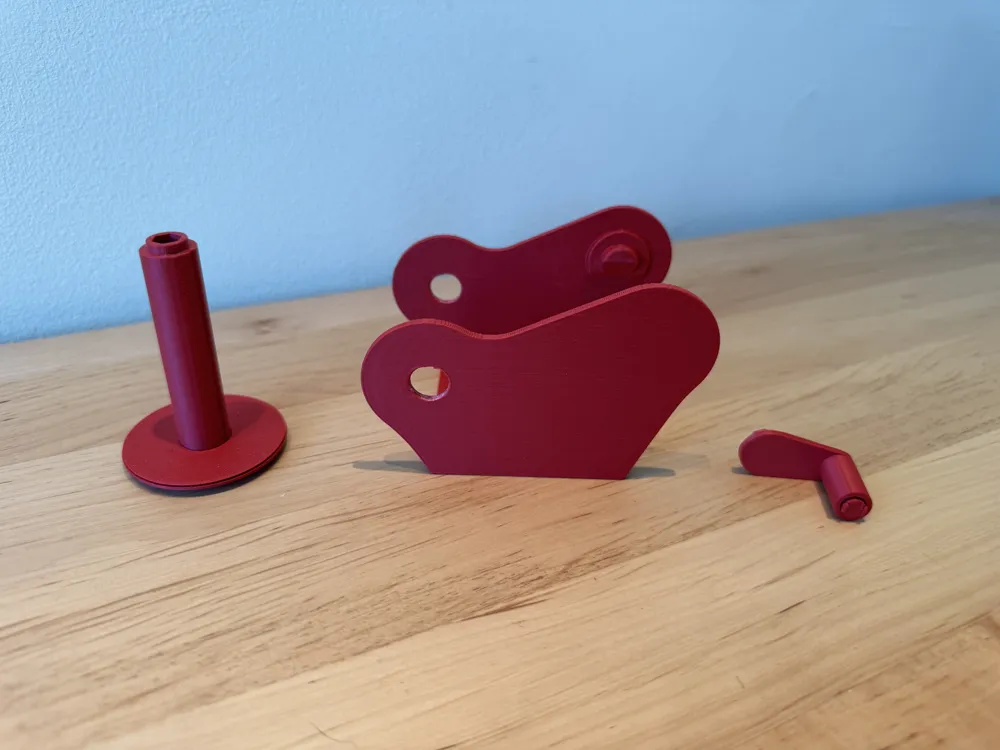

1.  Assemble the drum



   <-------- Get these three parts

   <-------- Put the seperator on the main drum

   <-------- Hammer or glue the axis into the hole on the back





2. Assemble the crank



   <-------- Get the crank-base and handle

   <-------- Press the handle on the crank-base





3. Assemble everything



   <-------- Put the big paper-roll in the back

   <--------- Put the paper into the slot of the drum

HAPPY WINDING!

to remove the new roll just pry between the two big disks, try using a drill if you´re lazy ;)
