A1 Tool Holder for Skadis Pegboard

Remixed by
IP Report

Print Profile(1)

All
A1
A1 mini
X1E
P1S
X1 Carbon
P1P
H2D
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
5.0(3)

Open in Bambu Studio
Boost
32
121
6
2
110
87
Released

Description

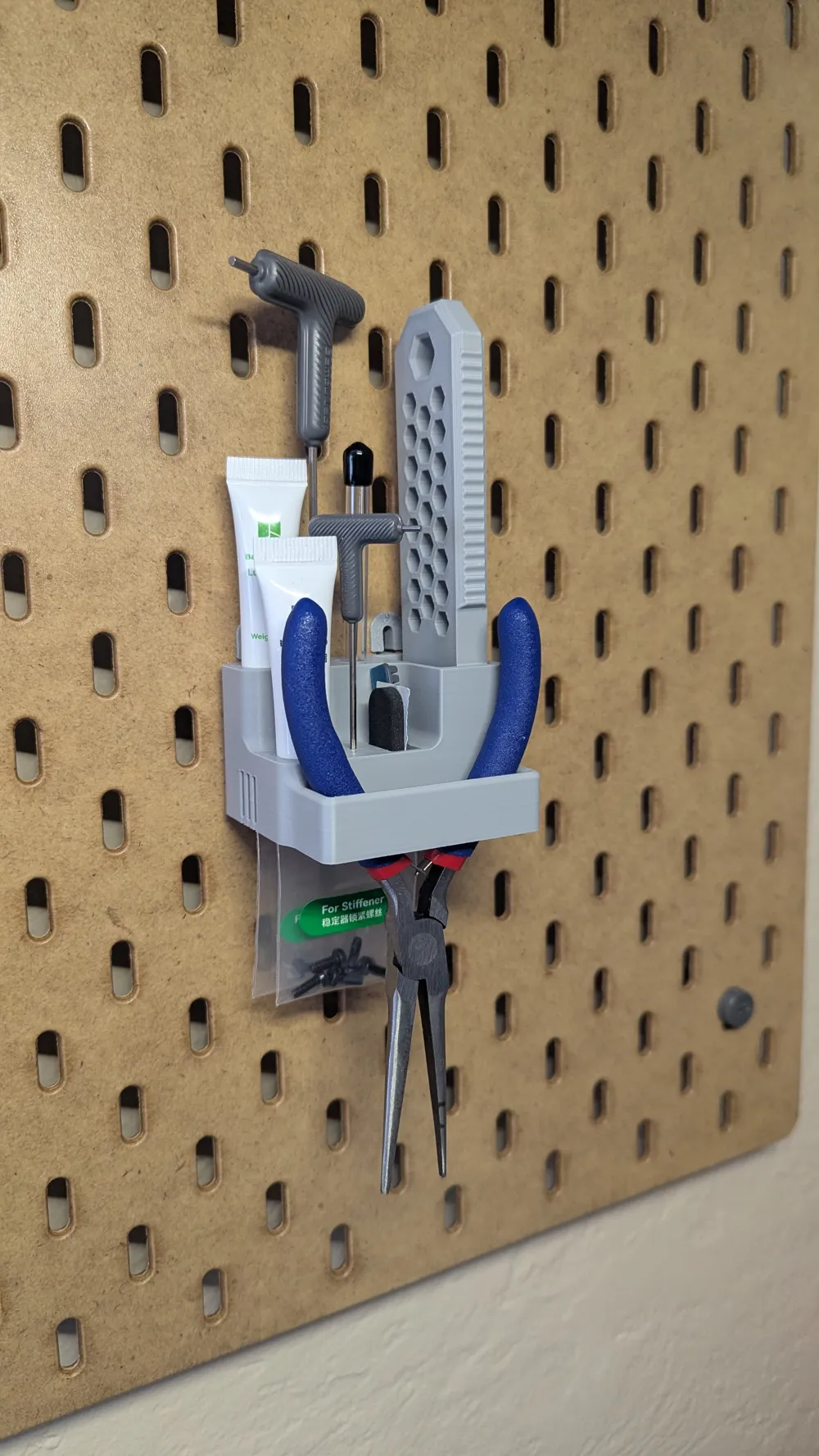

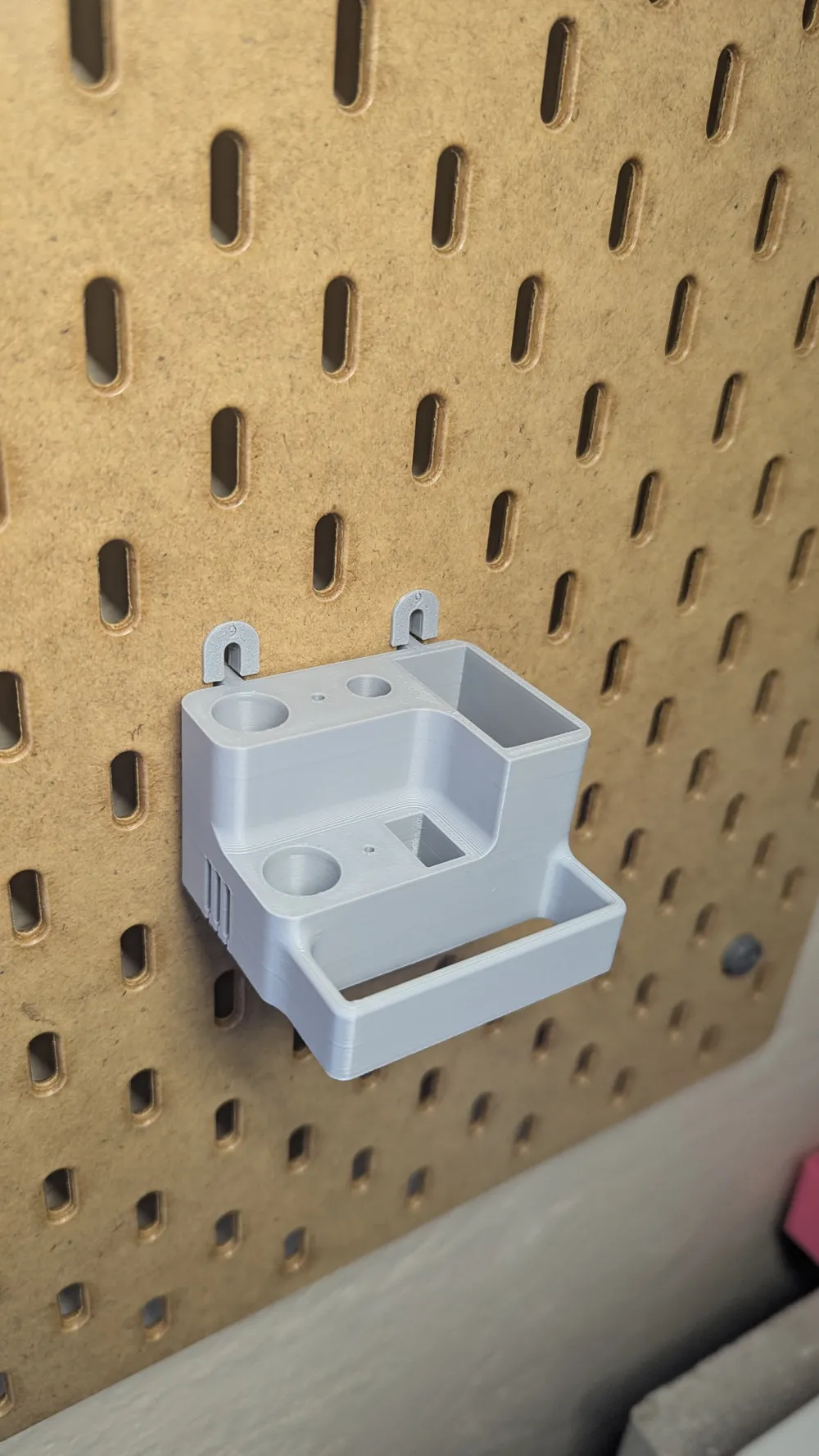

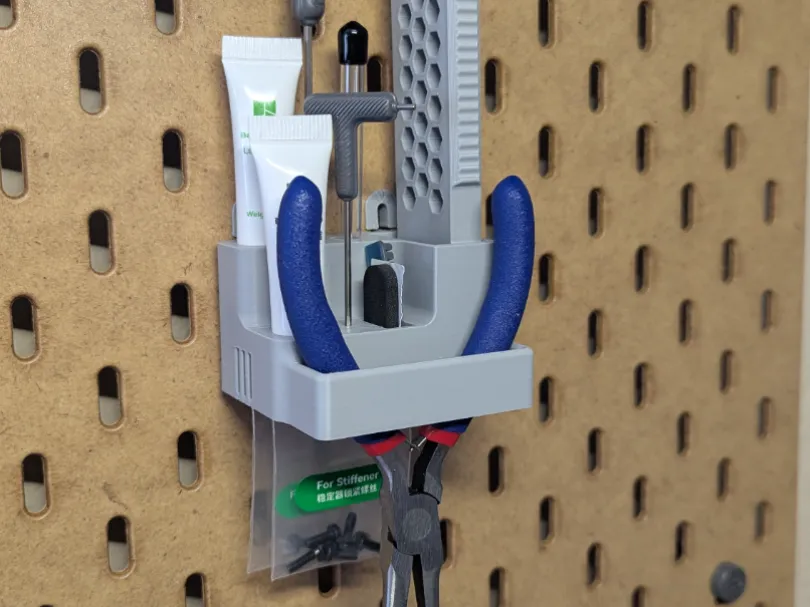

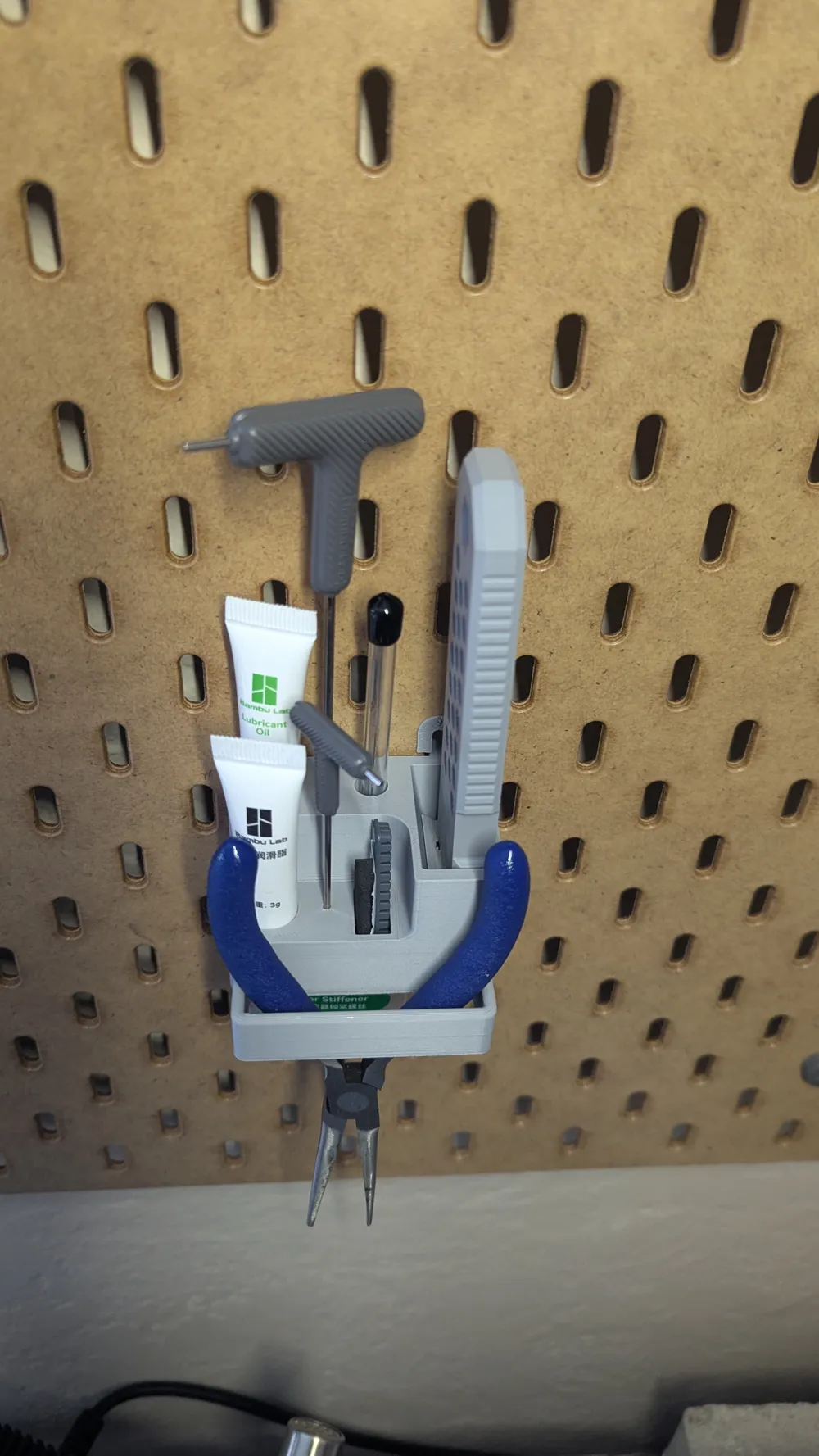

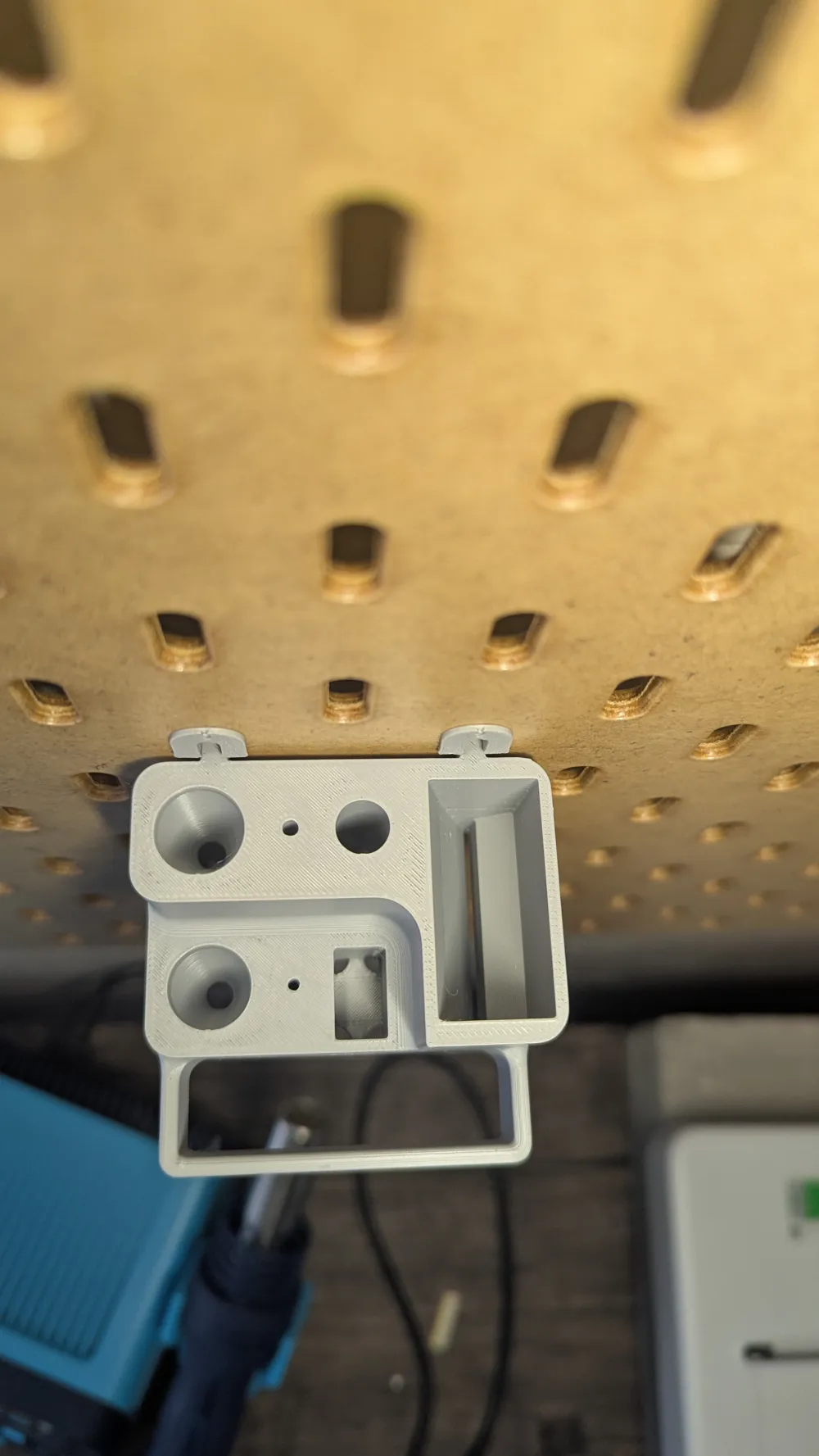

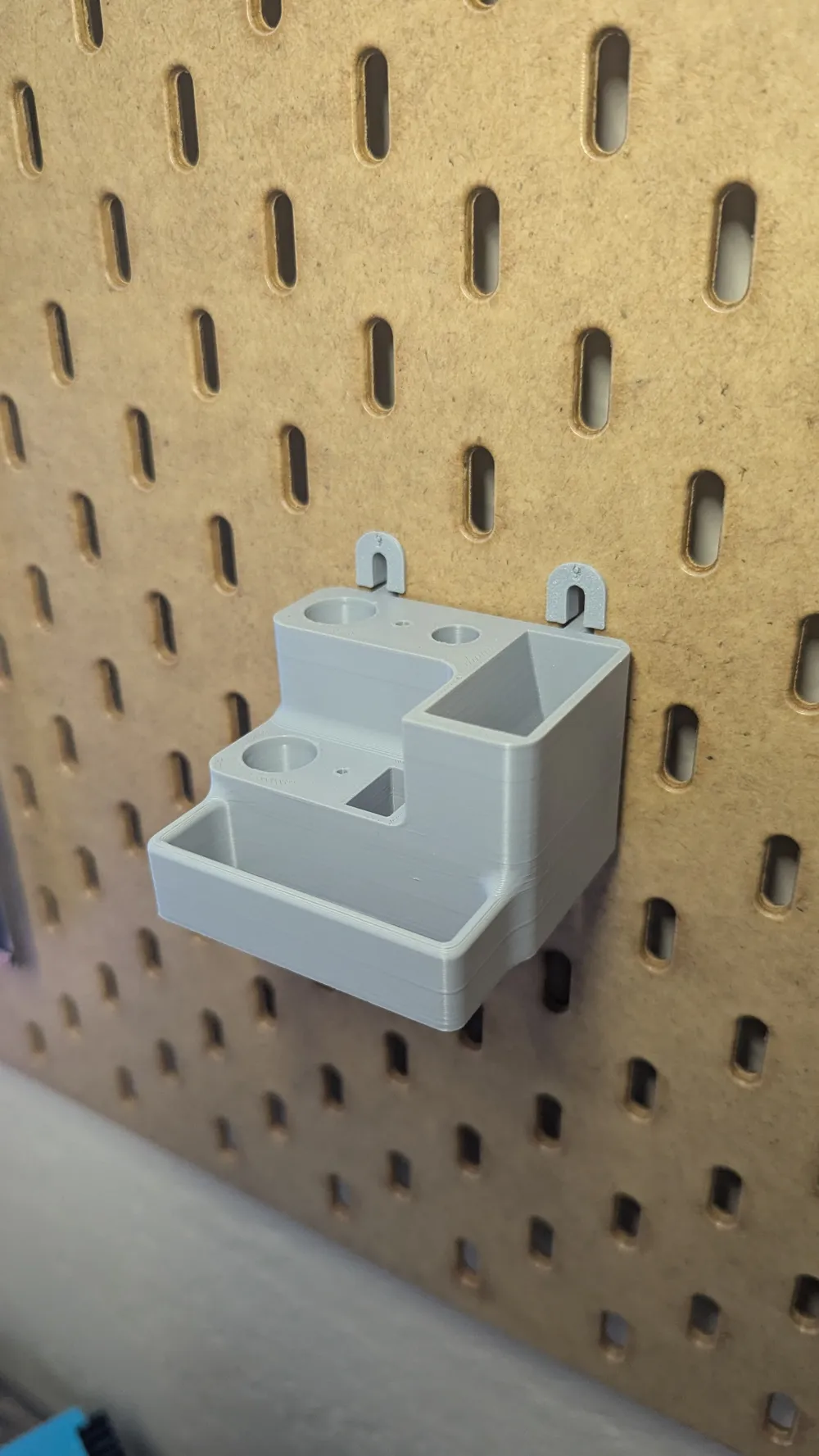

This is a remix on fobiDesign's compact SKADIS tool holder, but for the A1 printer tools and Nike's bed scraper. Changes I've made:

  • no slots for filament cutters or the cable organizer
  • slot for spare nozzle wiper expanded to fit a spare foam foot as well
  • additional slots for hanging 3 small ziploc bags holding spare screws
  • through-holes for all slots (excluding allen keys) to make dust removal/cleaning easier
  • more rounded/filleted edges
  • more compact dimensions

I would recommend using AU3D's lock plugs in 9mm (pictured) or 10mm size to secure the tool holder in place.

This print was made with Bambu PETG HF. I would highly recommend normal (snug) supports instead of tree supports to prevent sagging of pegboard hooks.



Thank you to the community for all their inspiration and I hope you find this remix useful!
