PRO Streamer Home Assistant VPE Module

Hey! I've been asked to share this, so here it is.

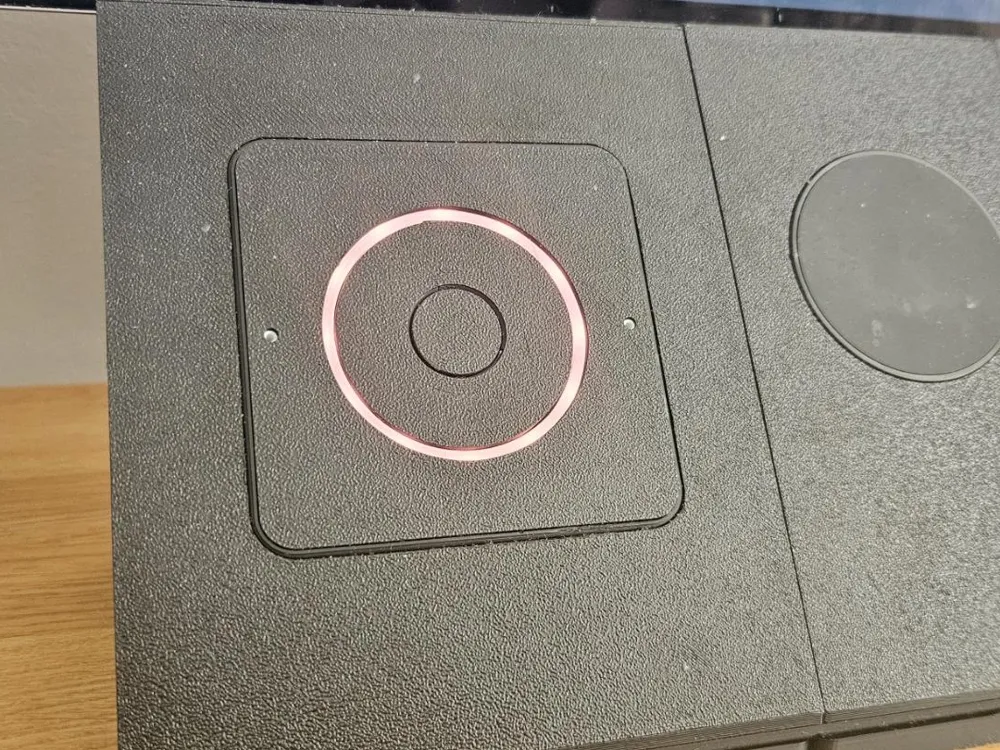

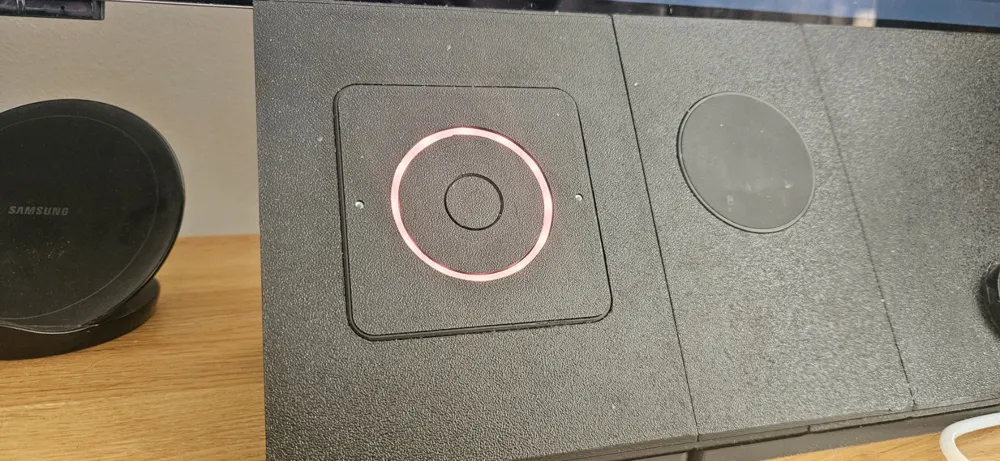

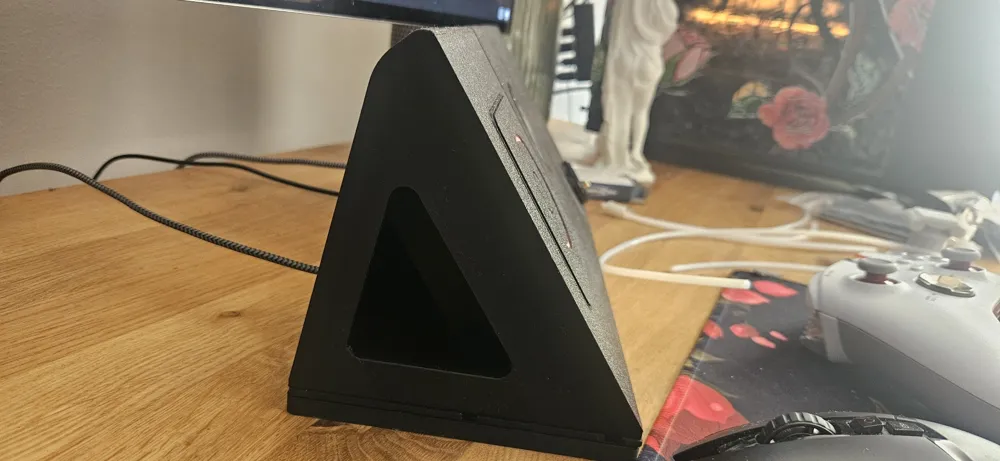

This is a very simple remix of the excellent PRO Streamer system by K2_Kevin, with just a hole punched into one of the modules.

Important! The standard case for the Home Assistant Preview Edition might fit, but I haven’t tested that. I’ve used—and based this off of—this amazing case design by freeskier93. It allows for a slightly larger speaker, which somewhat improves sound quality. Give him a shout!
🔗 Speaker Enclosure by freeskier93

You’ll need a 90° angled USB Type-C connector to plug it in. Here's the one I used:
🔗 Amazon link to angled USB-C connector

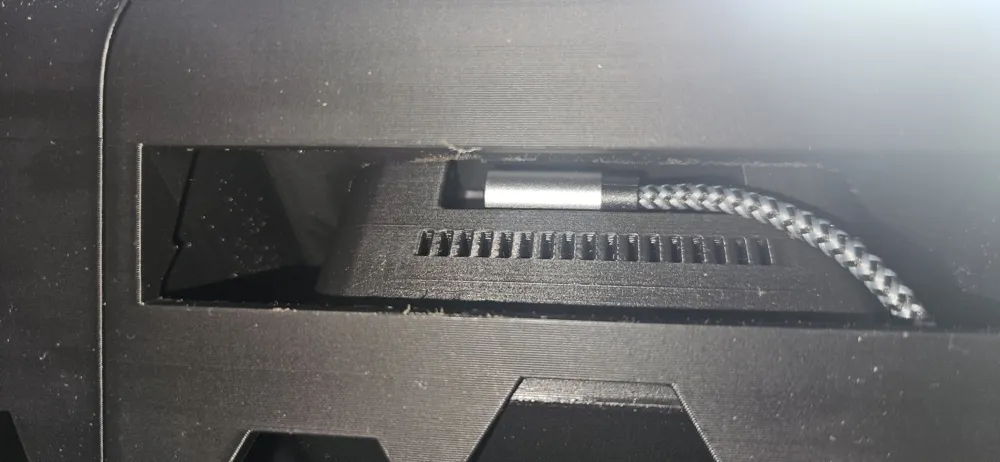

When wrangling the device into place, imagine trying to move a couch into your new flat. It’s frustrating at first, but the payoff is worth it—you’ll get a very nice couch. To make it easier: plug in the USB Type-C first, then slide the PE module in horizontally and push it into place from behind.

Additionally, I angled the faceplate of the module down onto the print bed. I like the nice texture that transfers to the surface when using a textured PEI plate.
