Description

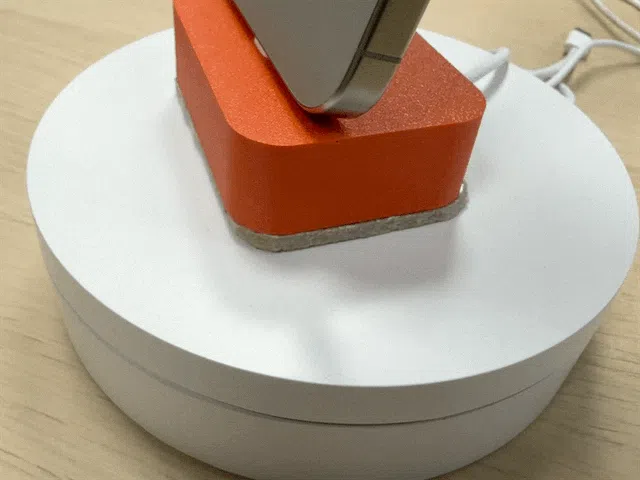

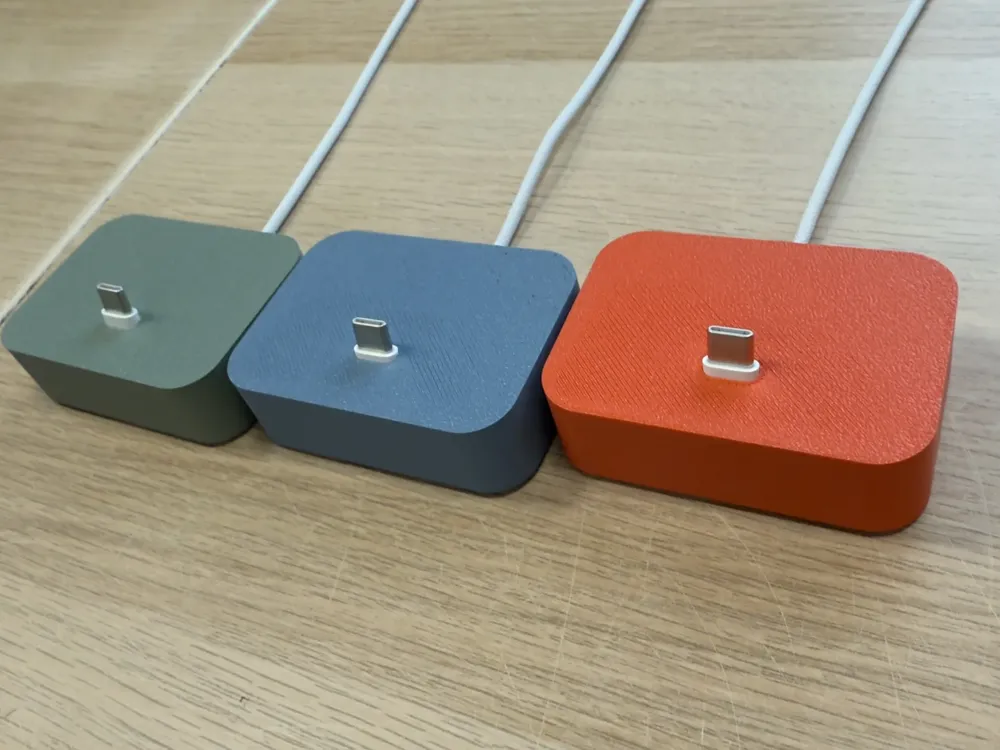

The iPhone USB-C DiagDock is a 3D-printable alternative to Apple's USB-C diagnostic dock, designed for technicians who need a cost-effective solution for pre- and post-repair testing. It features a bottom compartment for added weight (e.g., sand, screws, nuts, fishing weights) to improve stability, ensuring a secure setup during diagnostics.

🔹 USB-C Repair Dock Alternative – A practical stand for iPhone diagnostics.

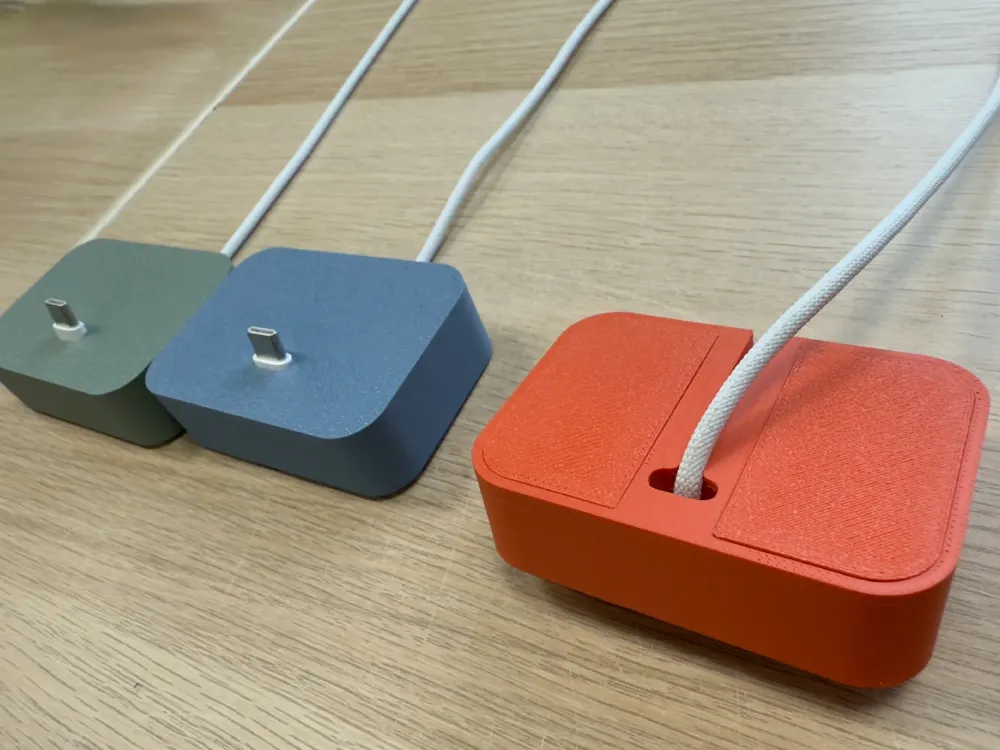

🔹 Stable & Weighted Design – Fill with sand (screws, nuts, fishing weights, etc.) and seal for extra stability. Bottom cover has fit-press design, but can be glued.
🔹 Easy 3D Print – No supports required, quick and efficient to make.

Perfect for repair professionals who want a reliable and affordable alternative to expensive tools!

it can be used as a normal iPhone dock with USB-C but there are tons of better designs so I don't know if it's worth it :)

TIP: https://paypal.me/MiltonLumky

iPhone

repair

tools
