Yamaha FZ6 Front Wheel Axle Slider Crash Pad
Print Profile(1)
Description
Yamaha FZ6 Front Wheel Axle Slider Crash Pad

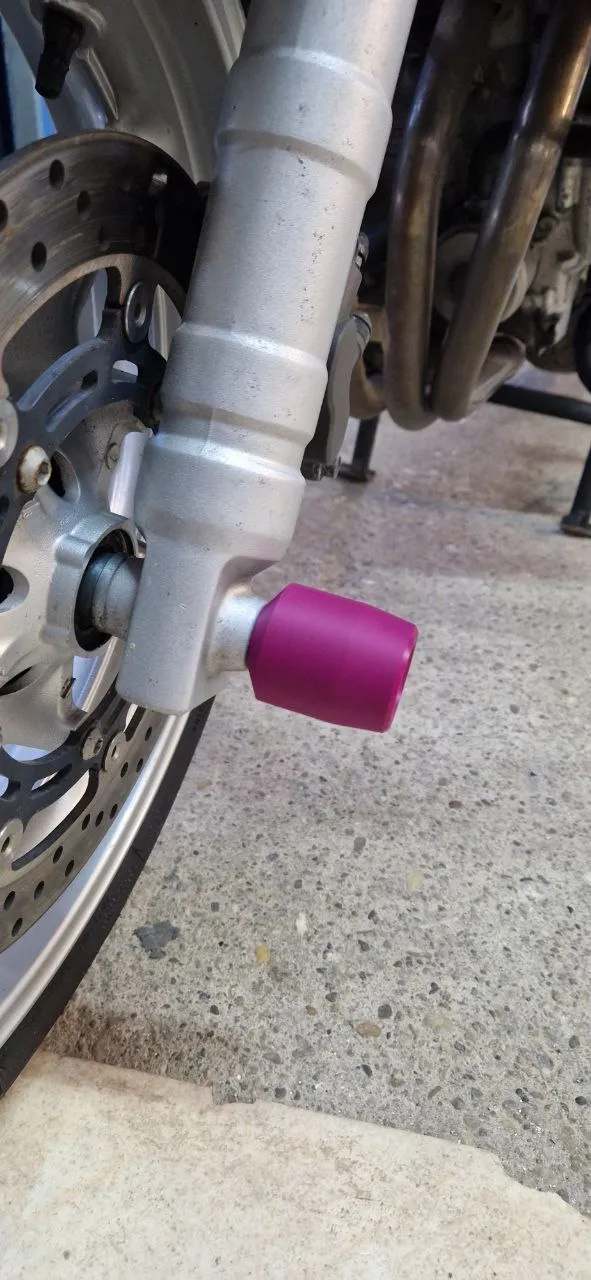

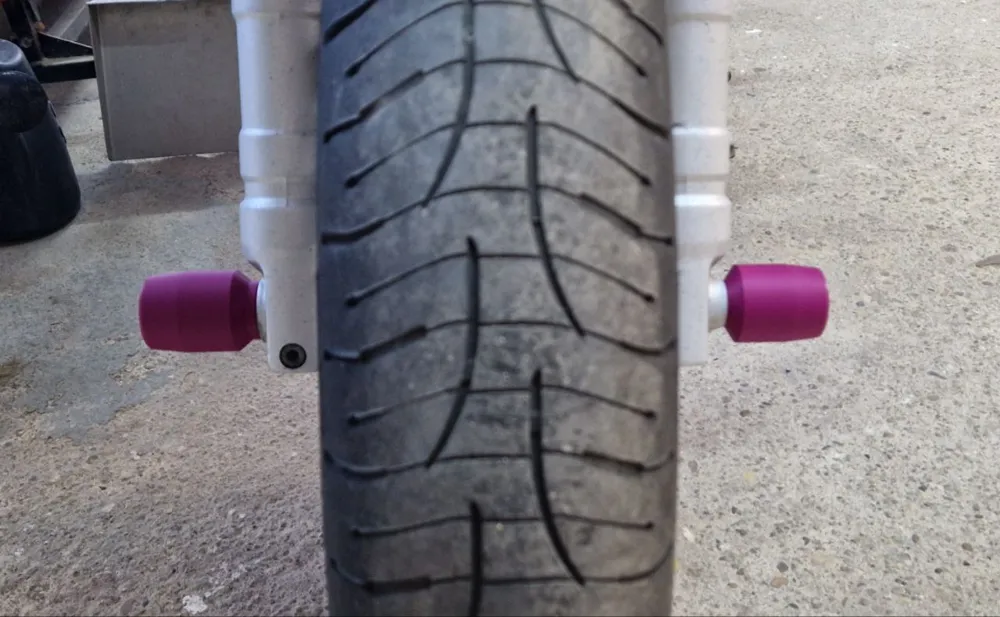

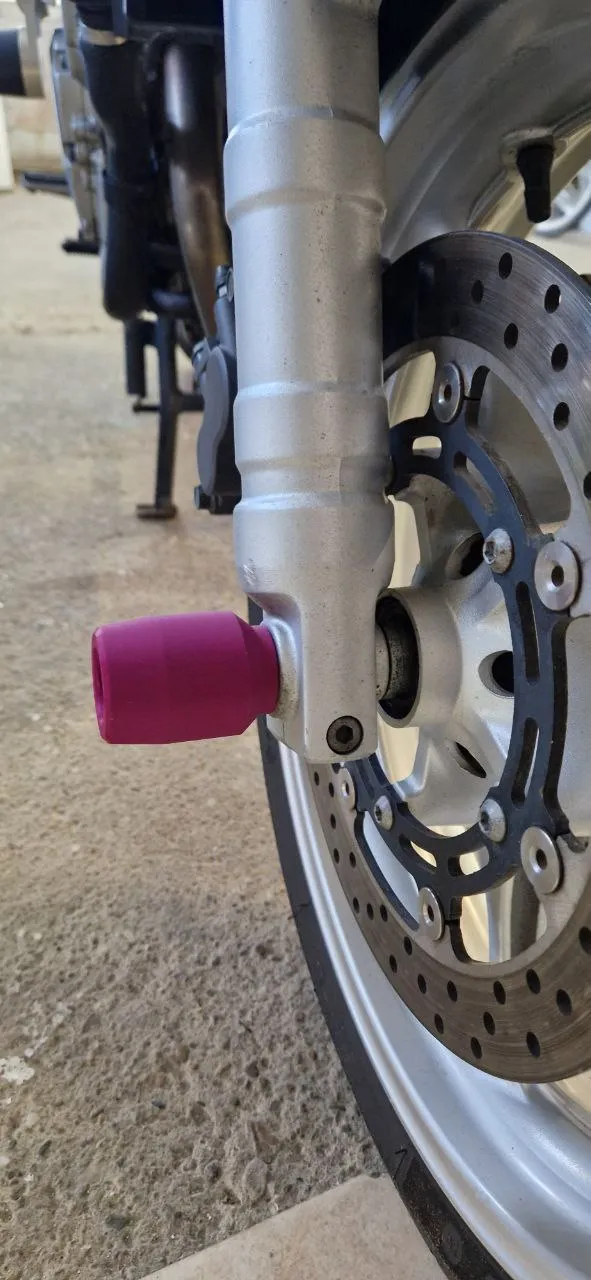

I used it on my Yamaha FZ6-S (2004) and it is a perfect fit. It should fit all FZ6-S S1 and FZ6-N S1 models with the same fork design that can be seen on the images.
Print it with PETG or ASA for outdoor use and 100% infill for strength.

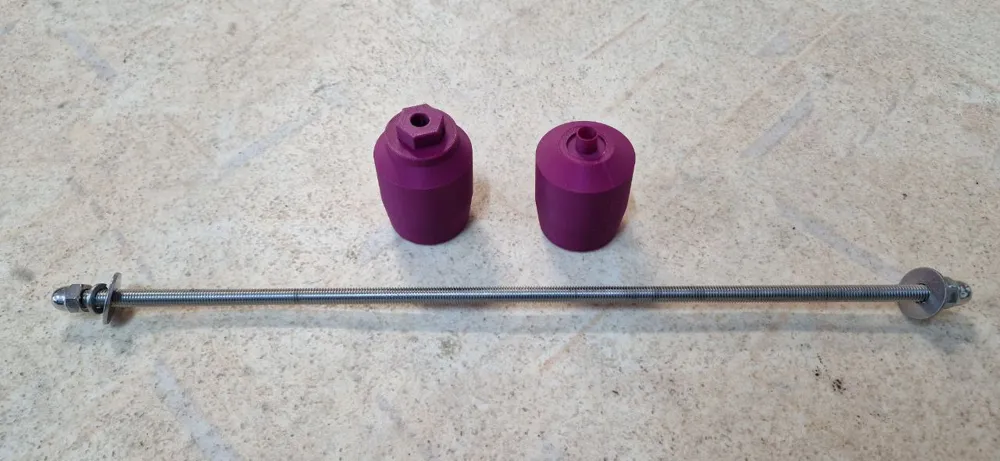

You will need the following hardware for mounting, preferably everything from stainless steel:
(1x) Threaded rod M8 cut to 355mm +/- 5mm
(2x) DIN 1587 M8 or (4x) DIN 985 M8
(2x) DIN 9021 M8
(2x) DIN 127 M8
DISCLAIMER:
Use it at your own risk! I am not responsible for any damages or injury for something you printed and put on your motorcycle yourself!
