Rexter

cover



Kyosho drx steering servo bracket.jpg

Horizontal layout


Vertical layout



Select which plate you want to print depending on your needs.There is a plate for horizontal, and vertical orientation.

Battery tray, two variants

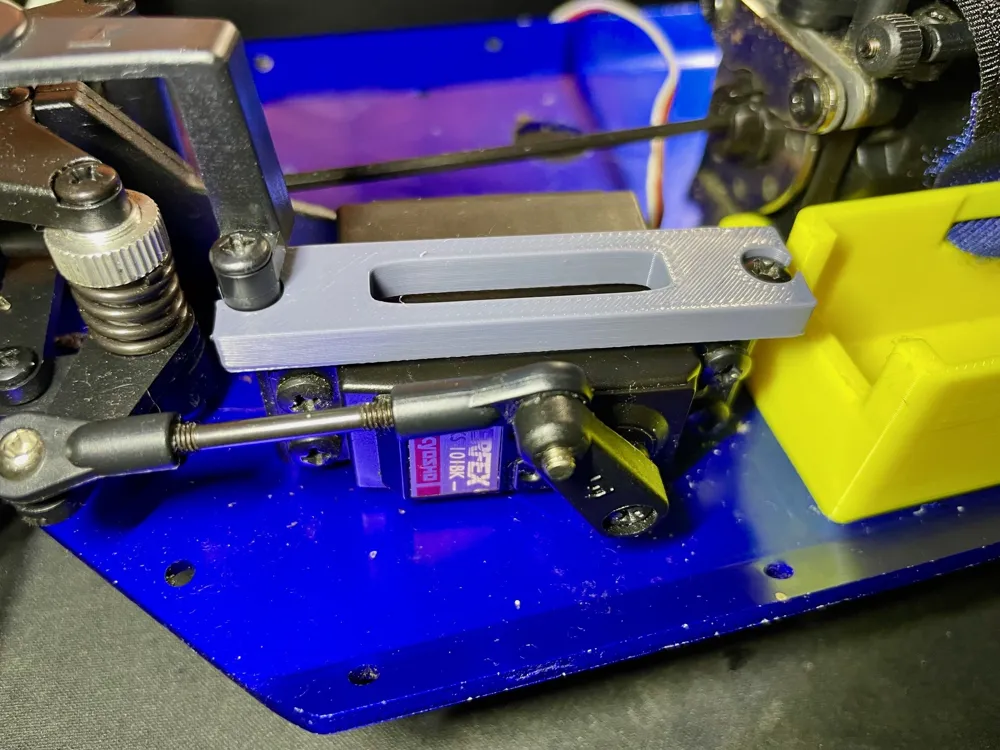

To make room for the battery, the electronics compartment will have to be removed. This compartment also strengthens the steering servo. So to reinforce the servo again, you can use this bracket as a replacement.

Steering servo bracket

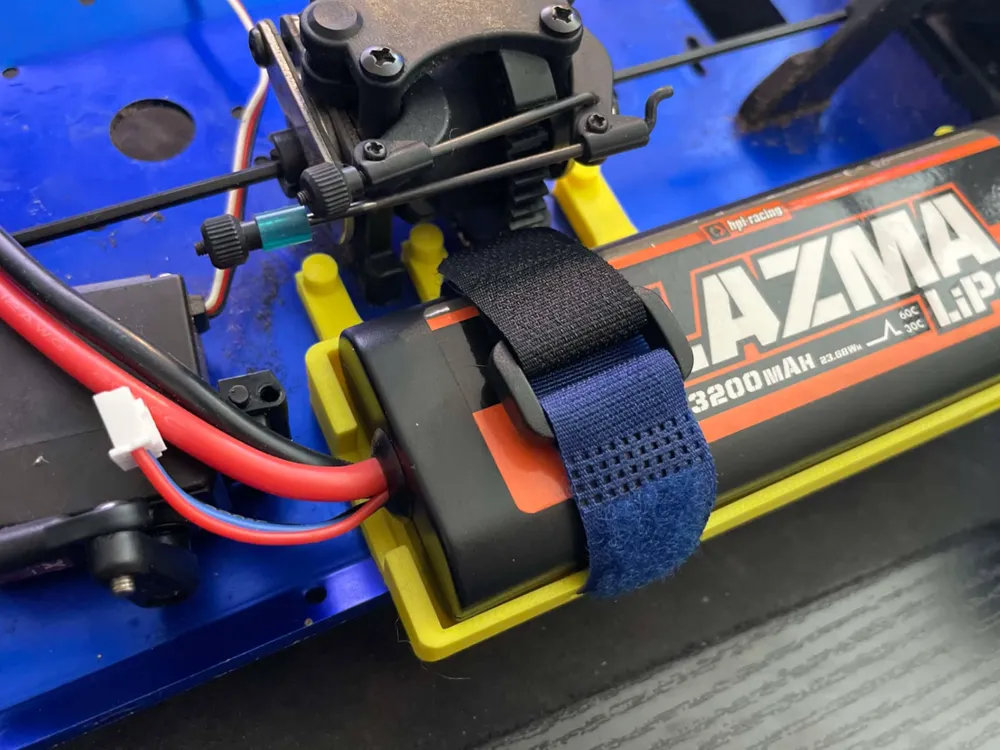

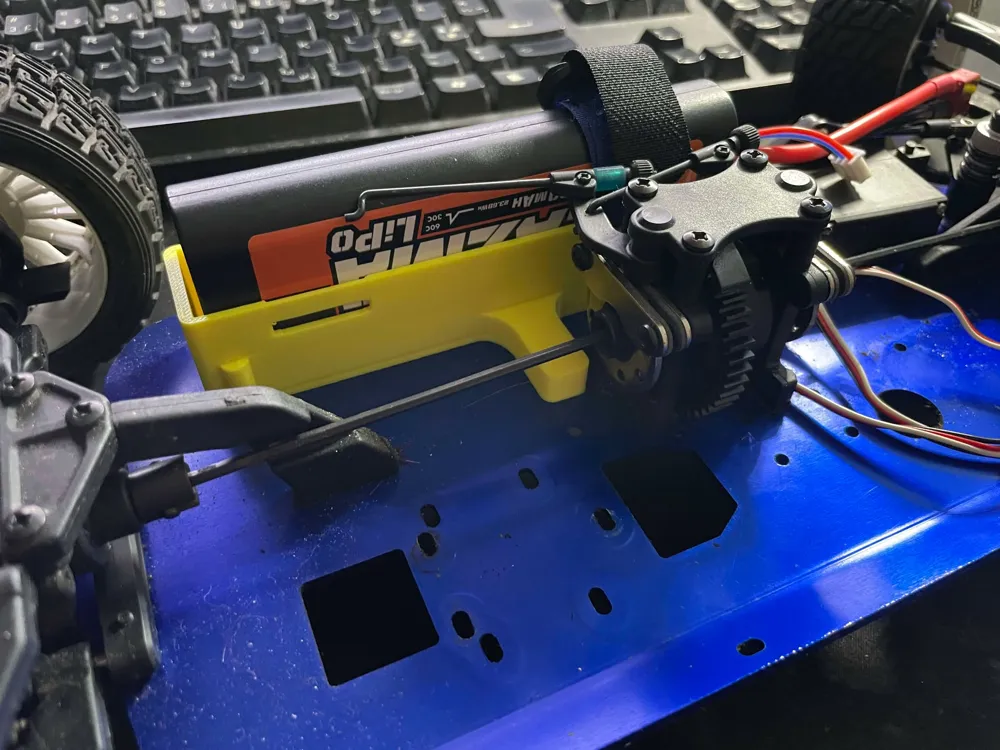

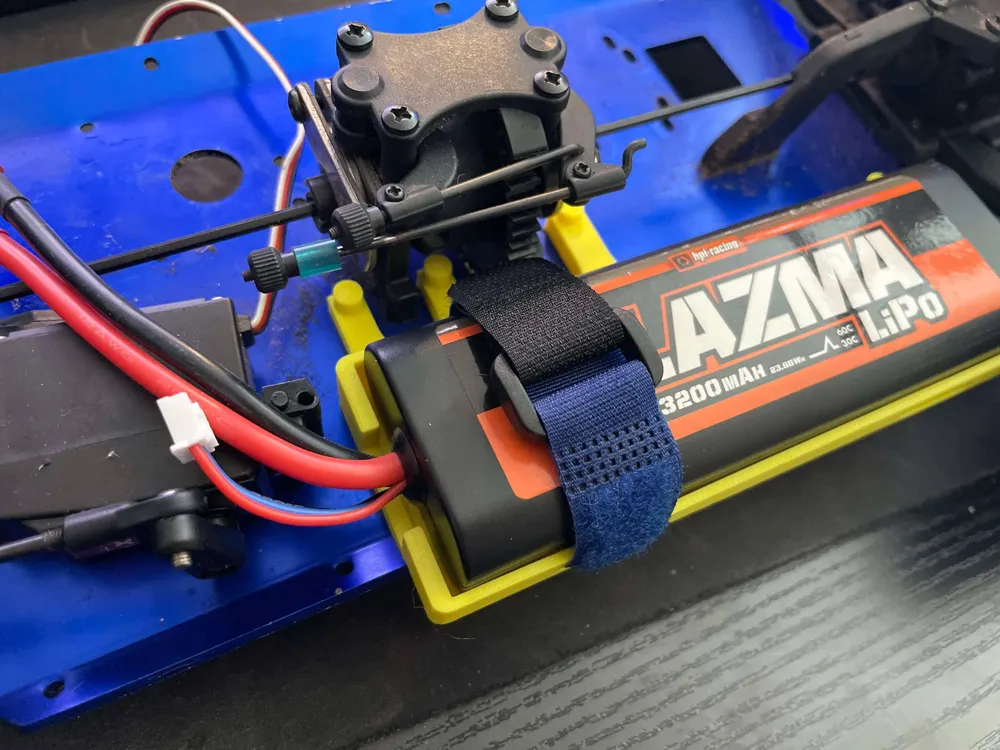

This is a battery tray for doing a brushless conversion for the Kyosho DRX 1:9 gas / nitro RC model car.There are two variants (horizontal, and vertical oriented battery), just select them from the plate for whichever might suit your needs.&nbsp;It will work fine with PLA, but I recommend printing in something stronger like PETG. If you want, play around with some settings if you need it even stronger.Its made for 2S lipo batteries with the following dimensions:H 24mmW 46mmL 135mmBut you might be able to fit other batteries. Also you must have a strap to fasten the battery with.

Kyosho DRX brushless conversion battery tray
