Activated Carbon Filter Creality K1-K1C_MOD-1
Print Profile(1)
Description

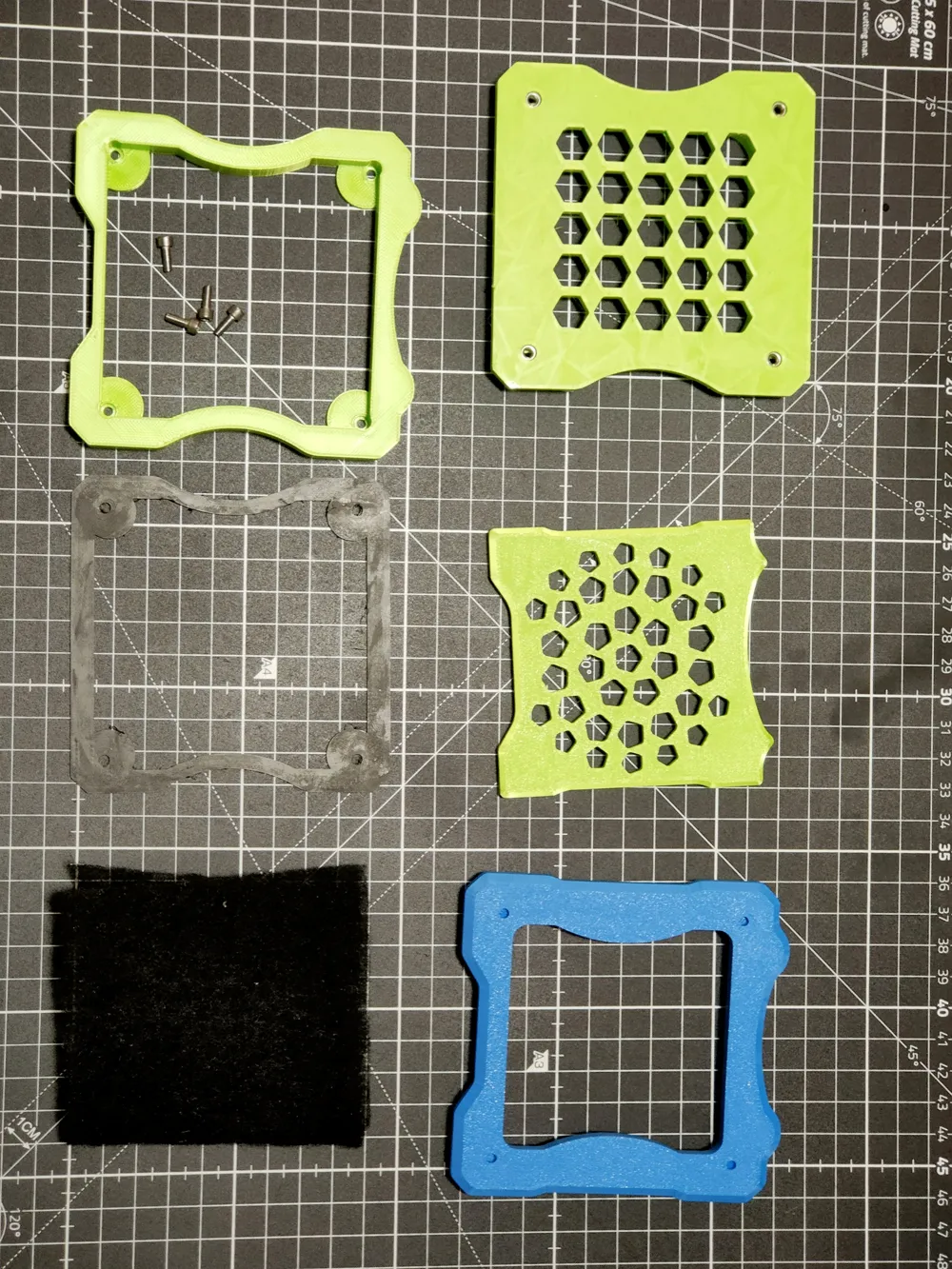

Printed in PLA with a TPU gasket. Used 4 M3 nuts to be inserted on the base with a pause at layer 20.
No Supports.

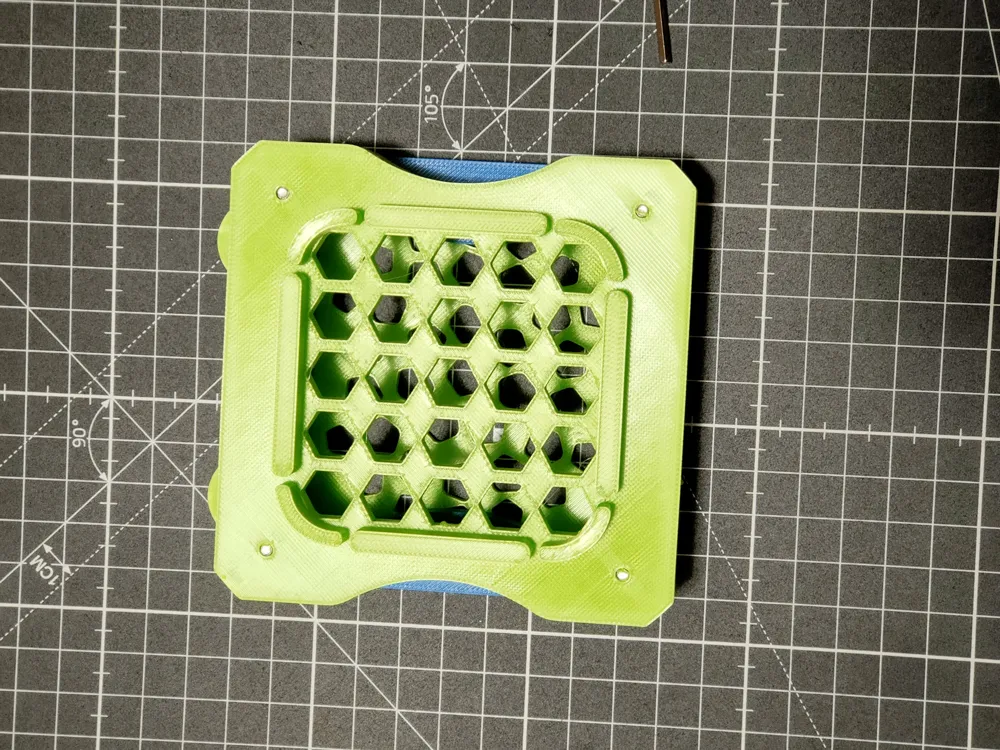

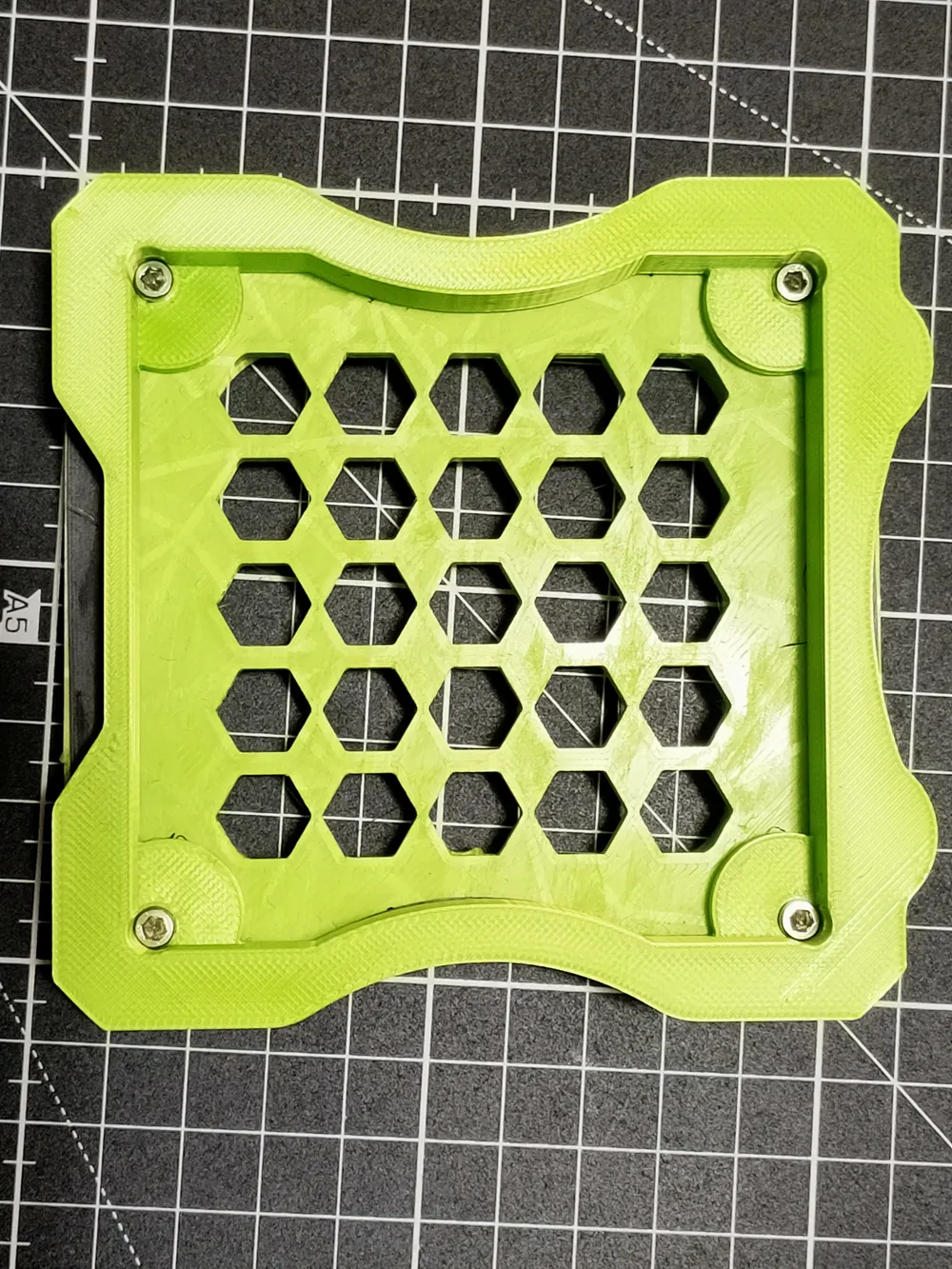

Attach the base to the rest of the body with 4 M3x8 screws, inserting the gasket between the two objects.

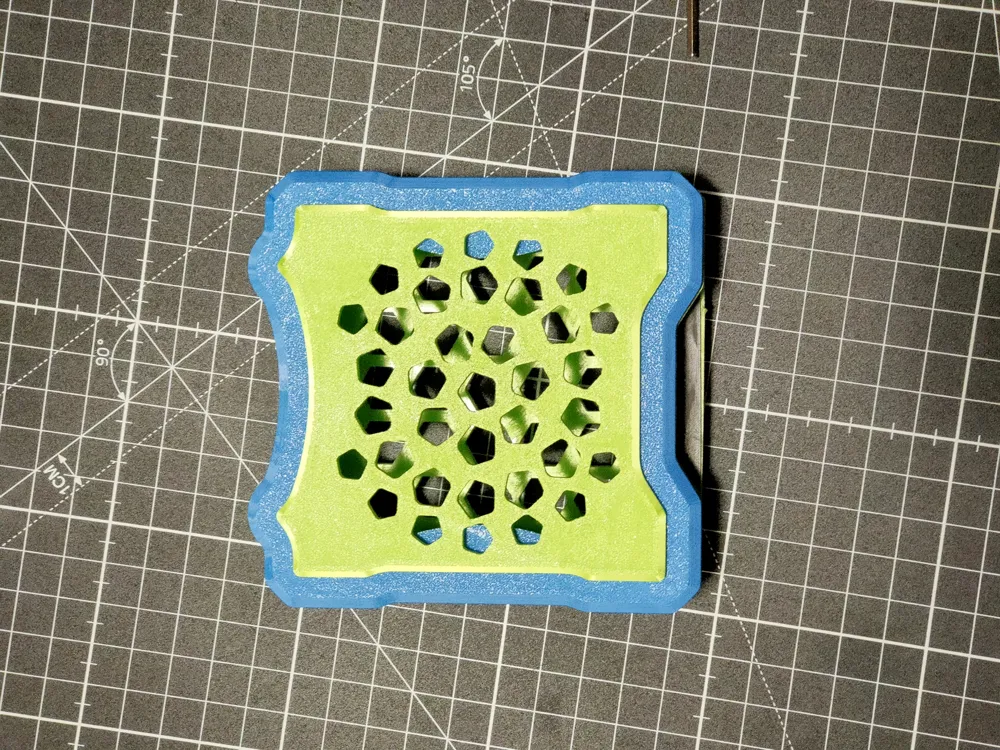

The lid cap can be glued to the lid.

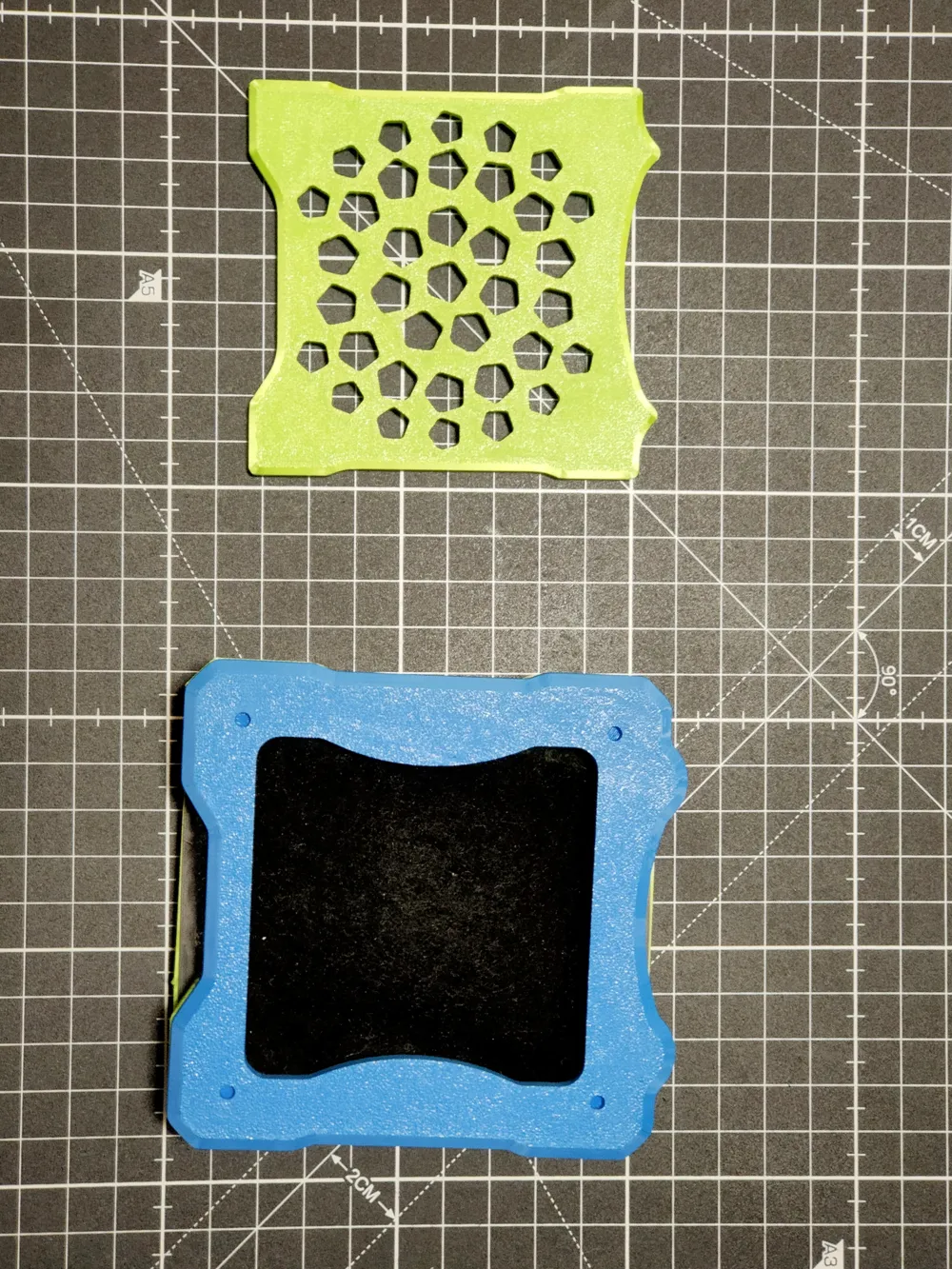

I used a sheet of active carbon cut and doubled inside the filter.

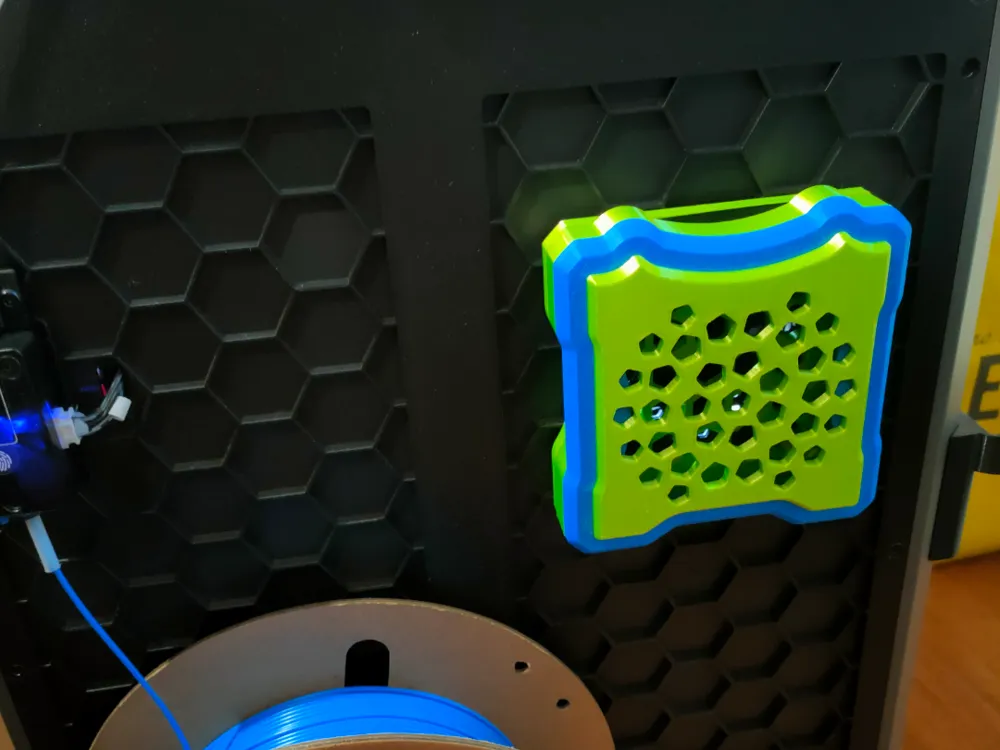

Once everything is assembled, insert it into the back of the printer.
Note that the fitting has a correct direction to enter.
