Raspberry Pi 3B Allstarlink with URI
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
5.8 h
2 plates
Open in Bambu Studio
Boost
2
2
0
0
3
1
Released
Description

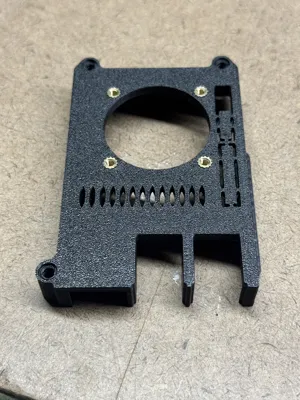

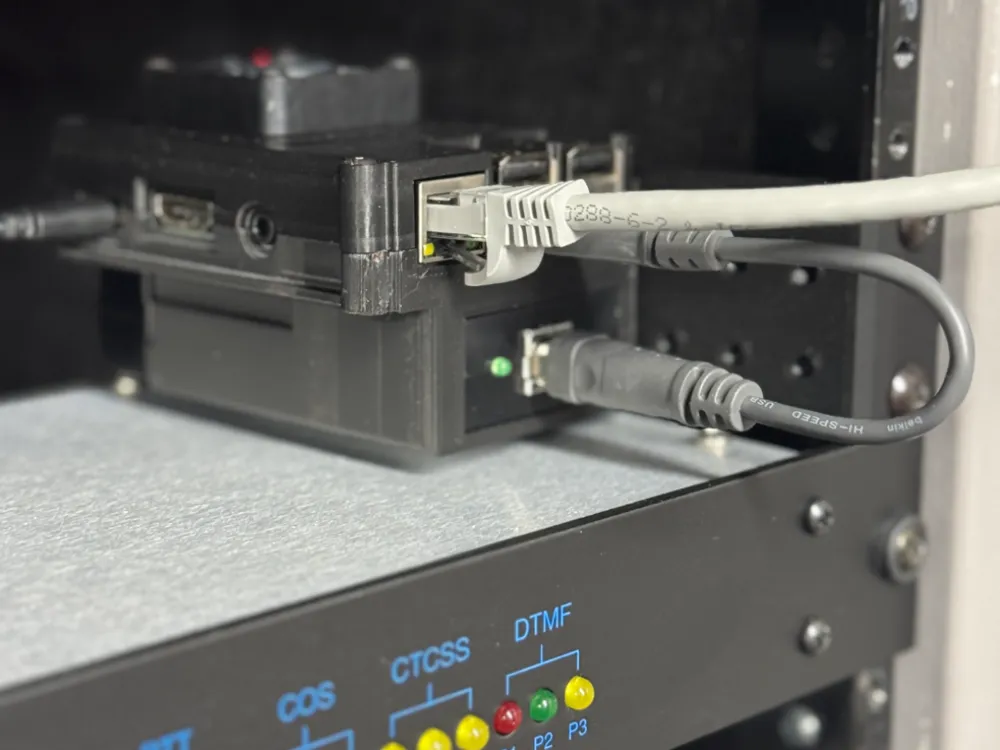

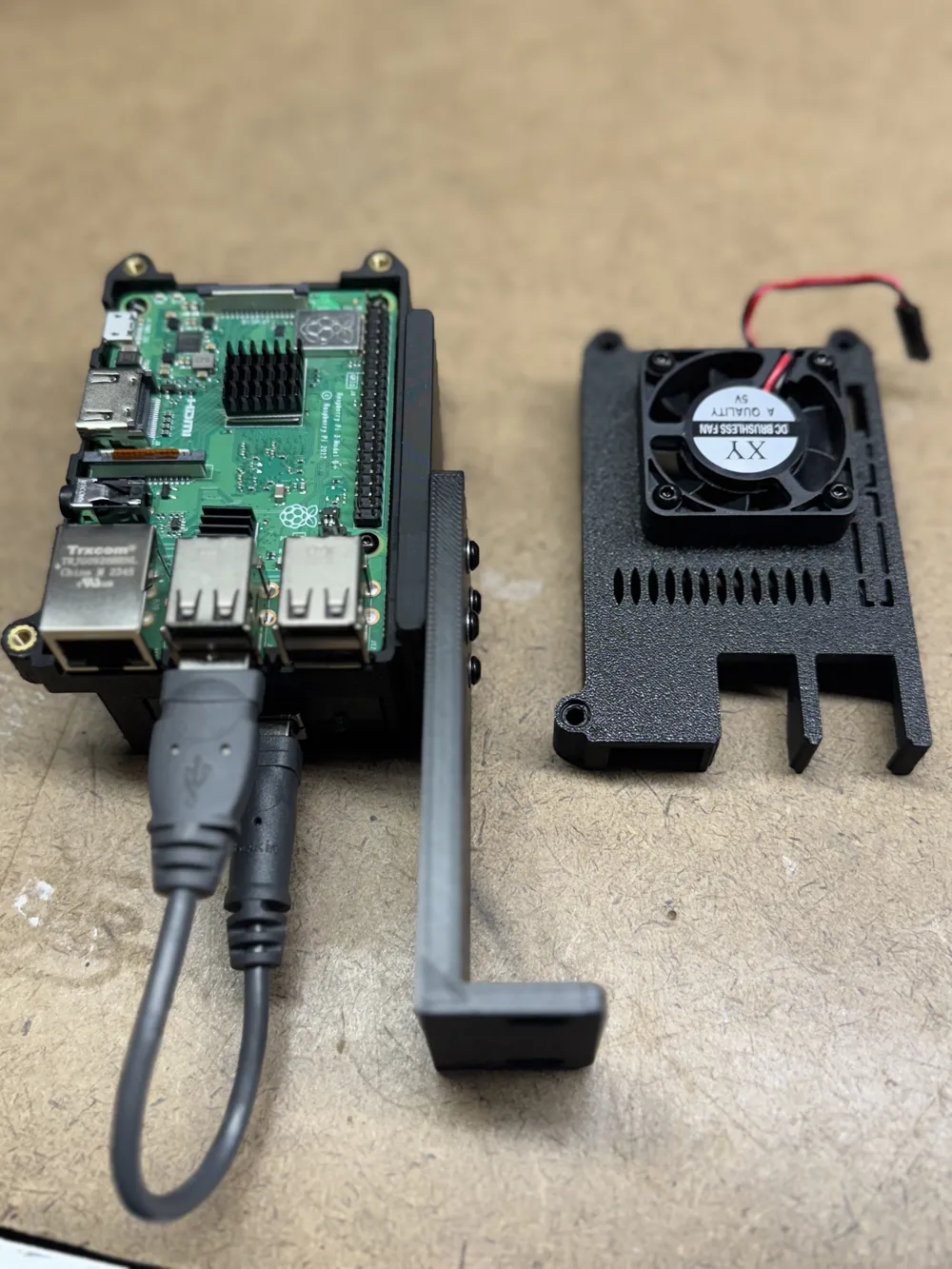

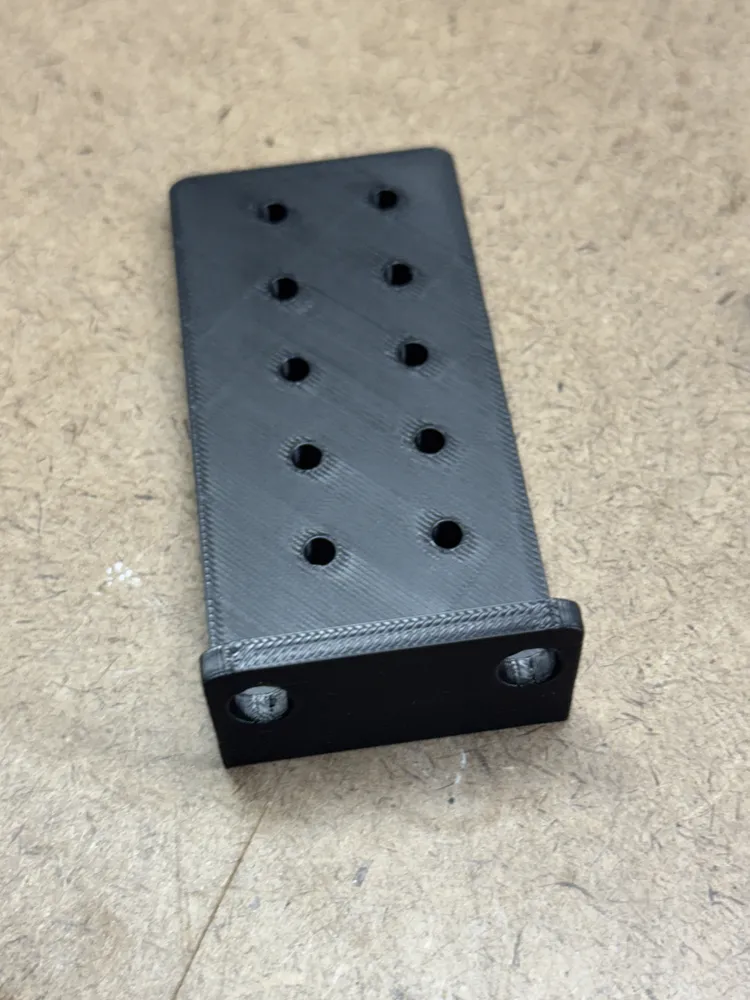

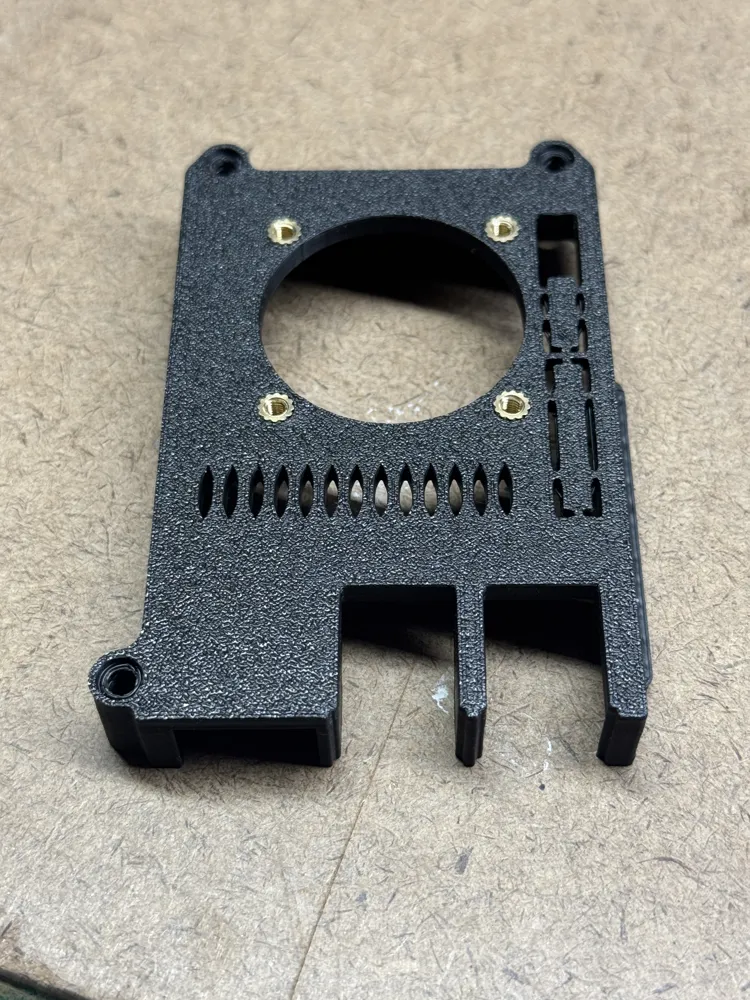

Rackmount RaspberryPI 3B case that also holds a DMK Engineering URIx. The ear tab allows for adjustment of how the case sets in the rack.

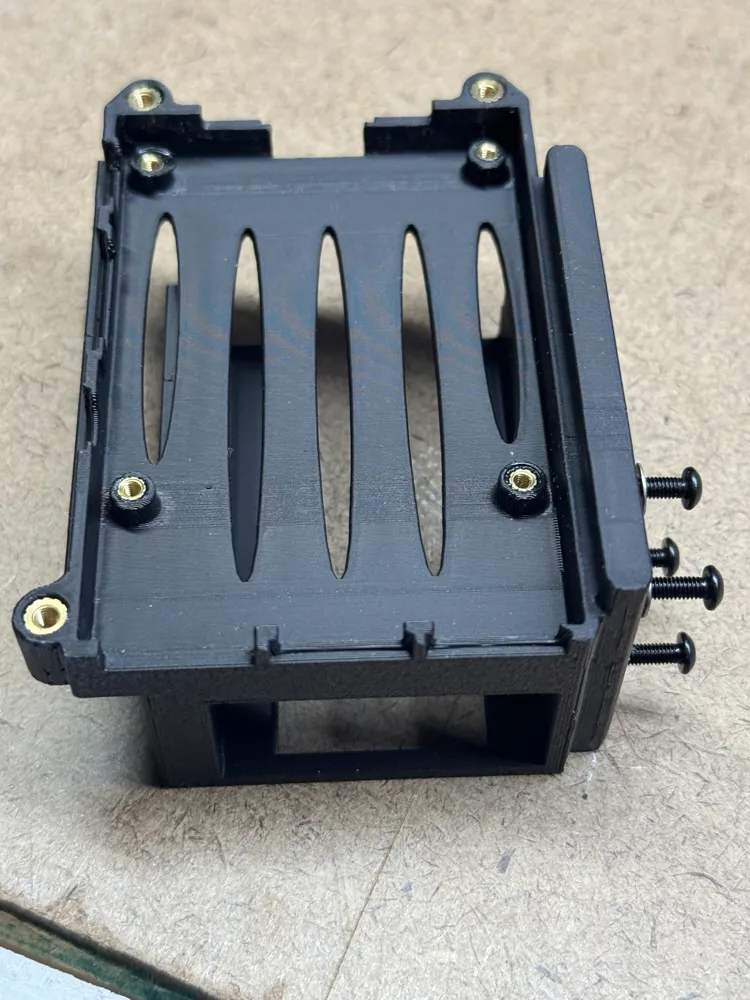

Uses the following threaded inserts:
M3 x 4mm x 5mm Metric Threaded Insert - https://www.amazon.com/dp/B0CWDBHZKX?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
M3 x 10mm x 5mm Metric Threaded Insert - https://www.amazon.com/dp/B0CWCY8LQ7?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
M2.5 Heat Set Insert - https://www.amazon.com/dp/B0CS6YVJYD?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
40mm Fan 5V - https://www.amazon.com/dp/B0DY6GQMJX?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
