XTOOL F1 Riser
Print Profile(1)
Bill of Materials
Description
You've been asking me about my Riser for XTOOL F1 for a while now.
Before publishing it I wanted to make sure it was easy to use and assemble!

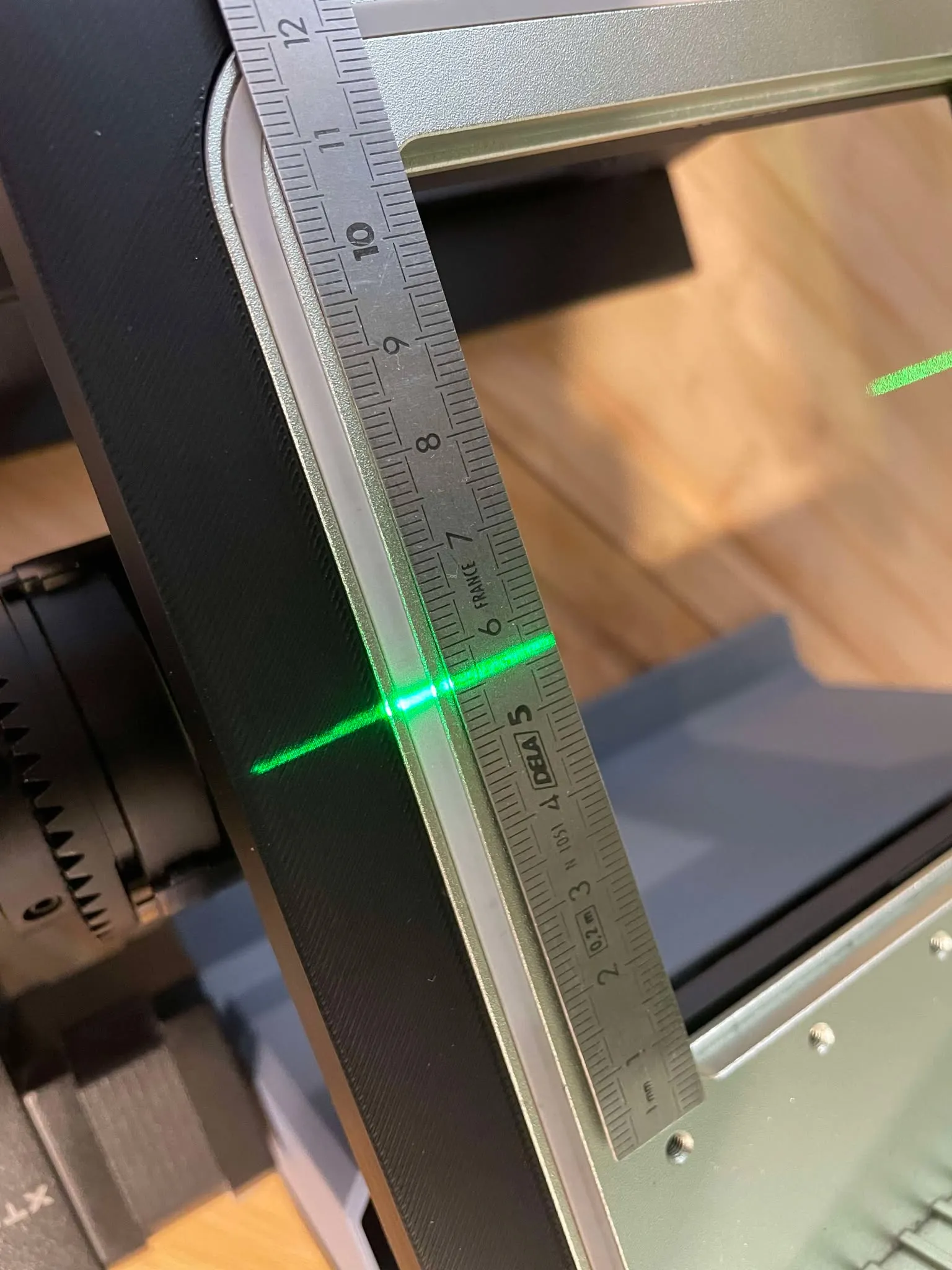

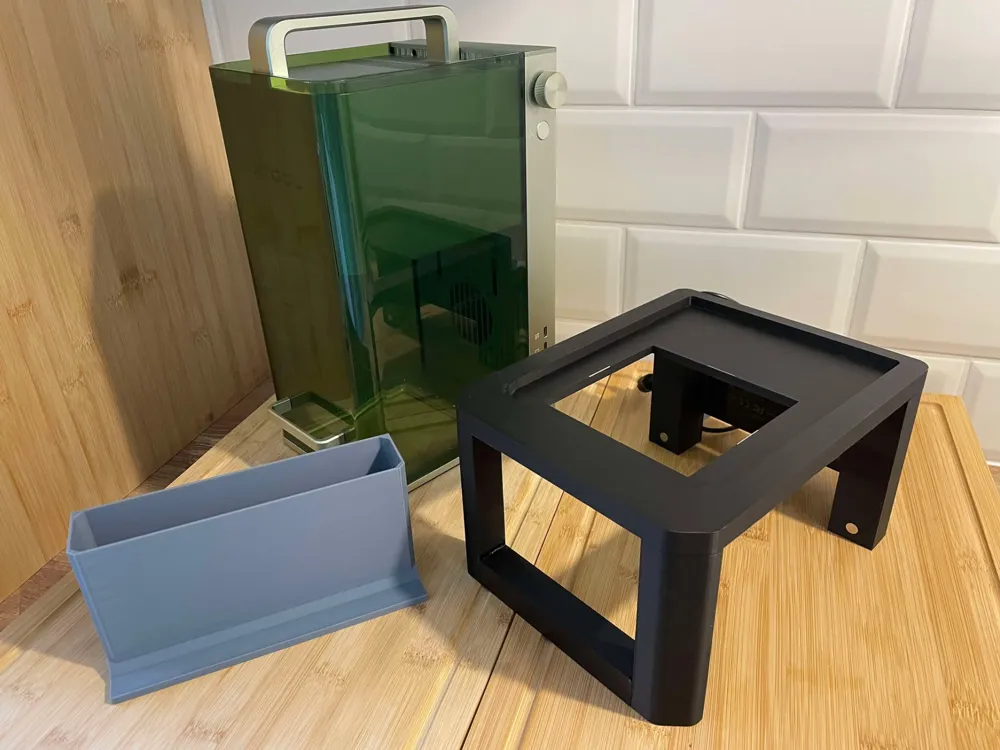

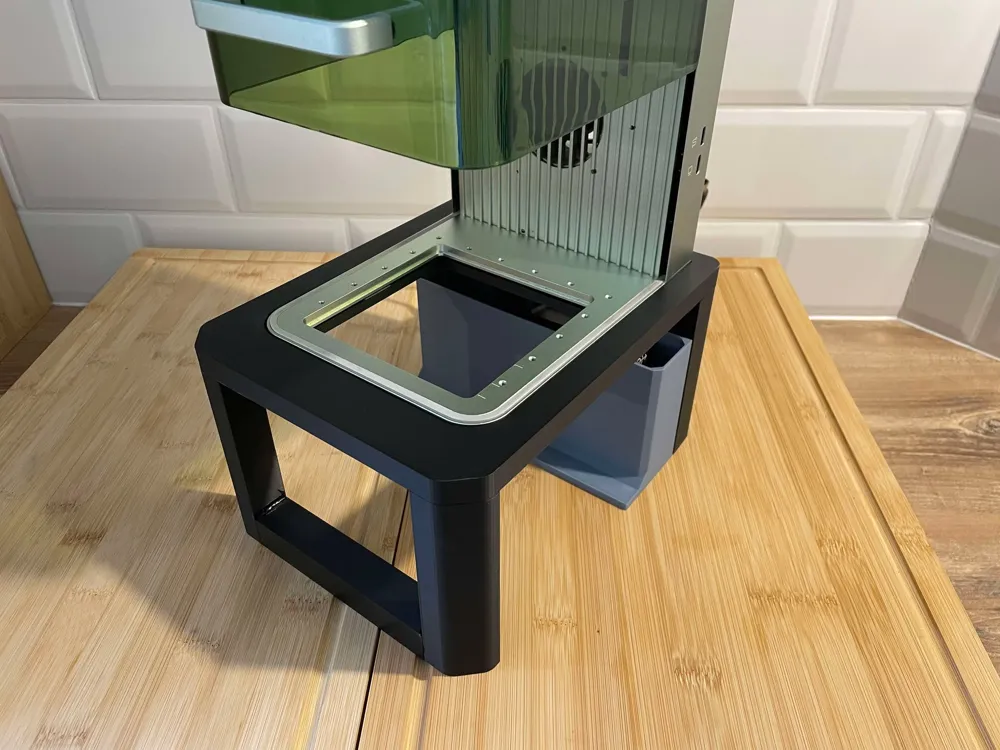

This XTOOL F1 Riser will allow you to mount your laser ~13 cm, ideal for sliding a Rotary under the laser and engraving your projects without any problem.

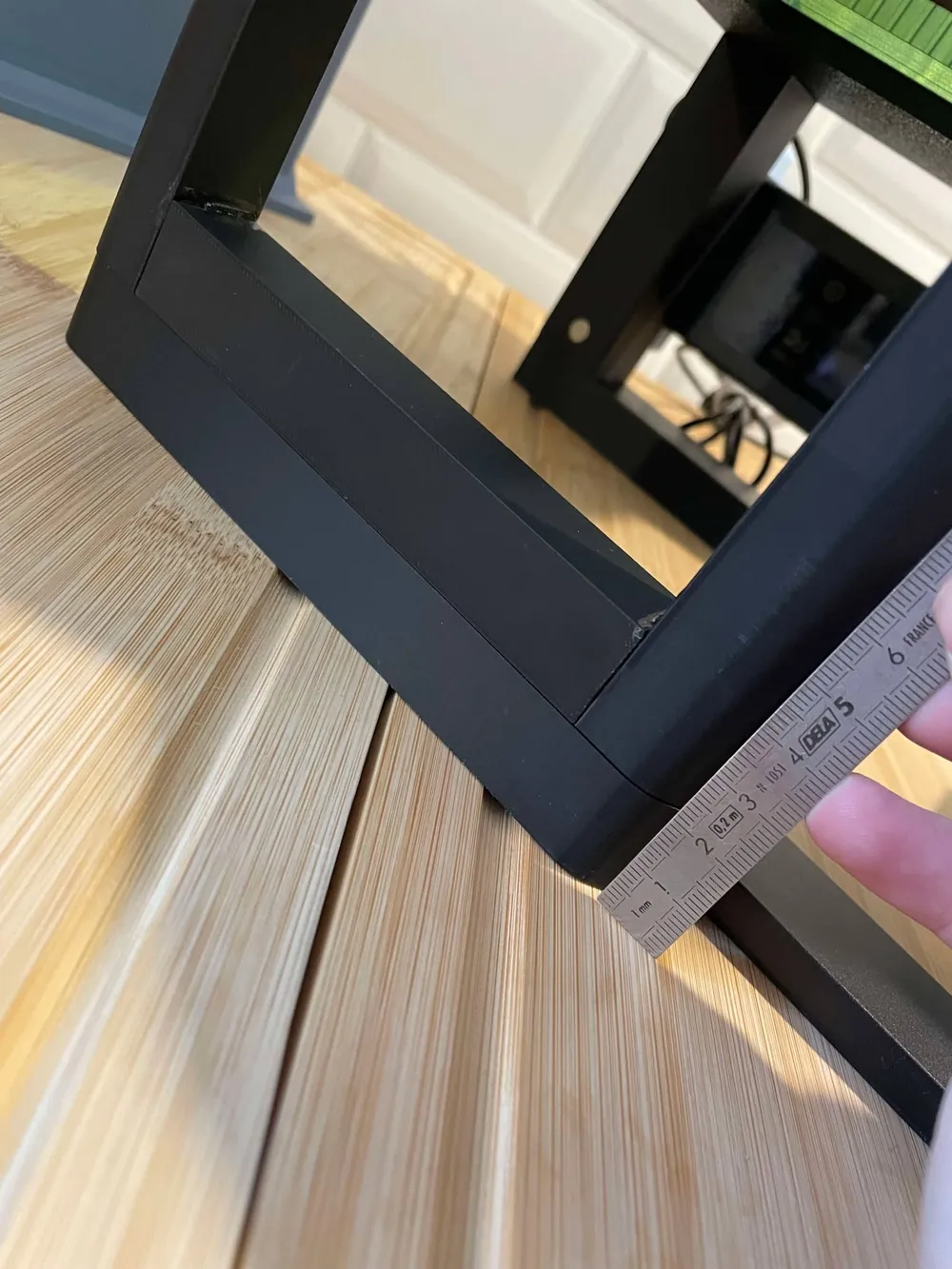

If it's not high enough, I recommend printing out 20mm spacers that you can slide endlessly under the riser feet!

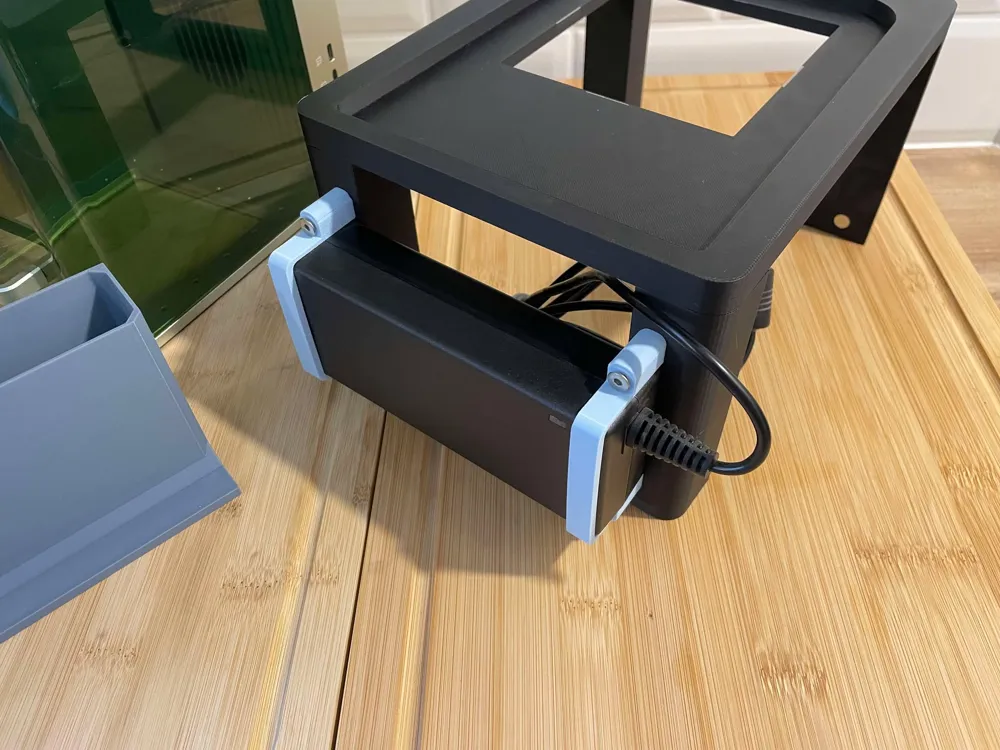

At the back you'll have a system for attaching your power supply!
For this project you'll need :
- 8x brass threaded inserts M4 x 5mm max

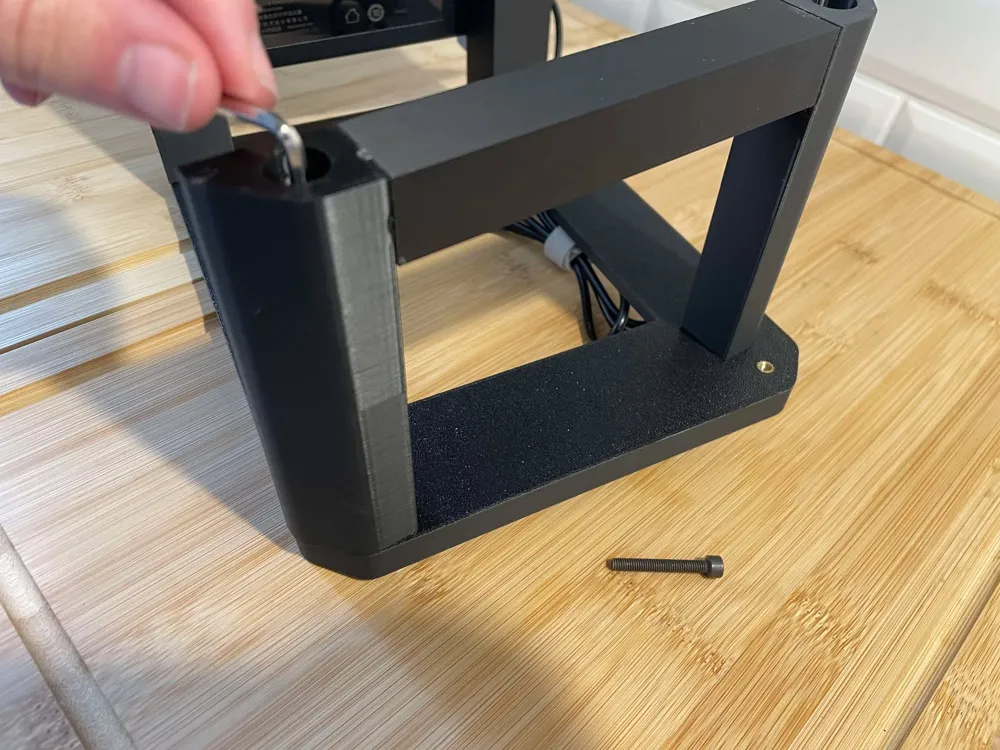

- 4x M4 x 30 screws for the feet
- 4x M4 x 25 screws for the power supply bracket

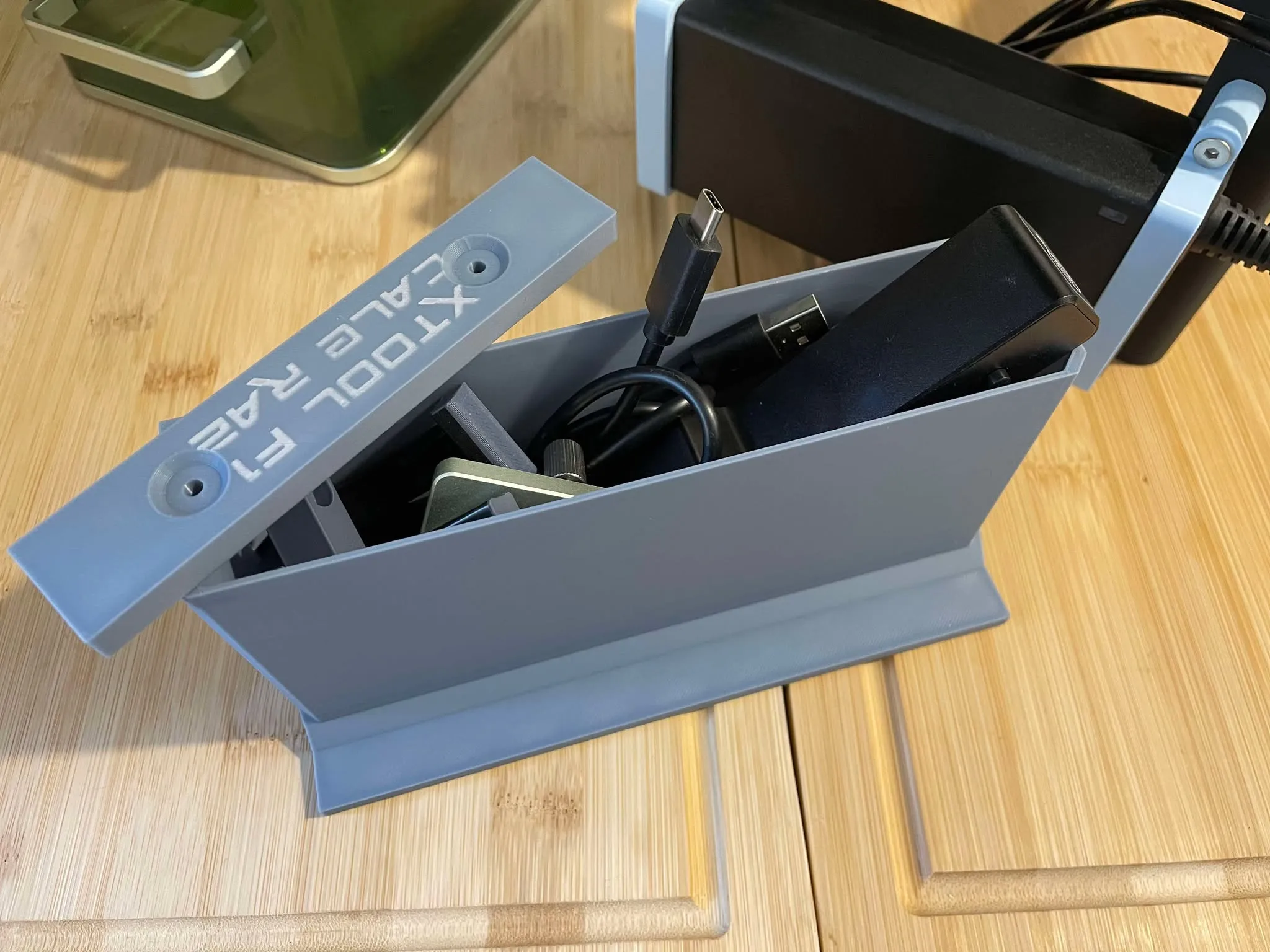

- 8x2 magnets if you want to use the magnet system for the storage box under the riser or if you want to create a magnetic system for your riser!

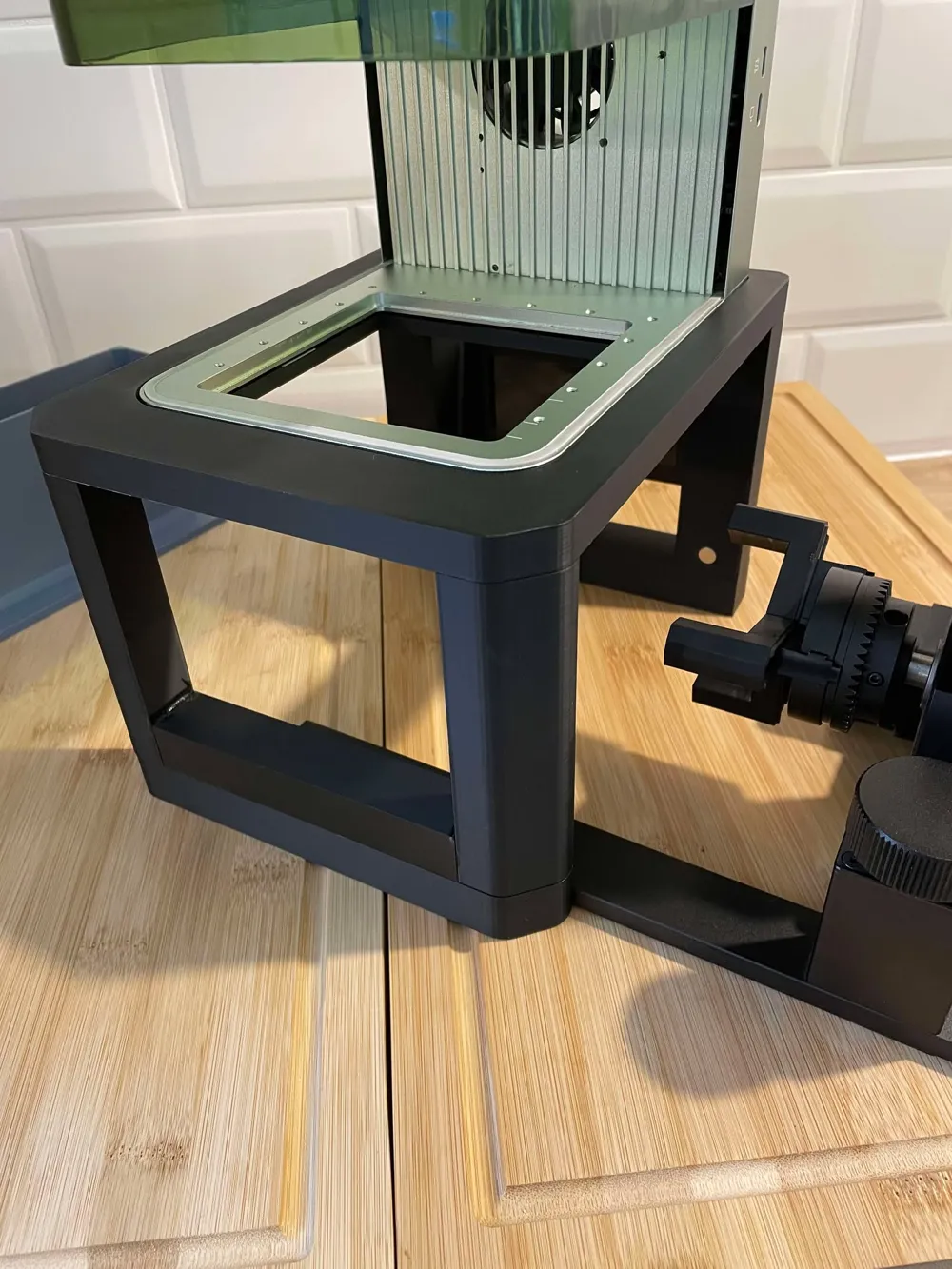

If, like me, you're using Xtool's angular rotary system, you can slide the rotary under the riser and press the rotary system directly against the riser, so you're aligned on the centre!
If you have any suggestions, don't hesitate to get in touch!
Happy printing
