Description

This is a housing for a round rocker switch to mount it to the wall. There are two versions to choose from: Either print the regular housing and connect the wires afterwards, or print the two halves to use it with a switch that is already wired in (and you don't feel like redoing it like me ;)).

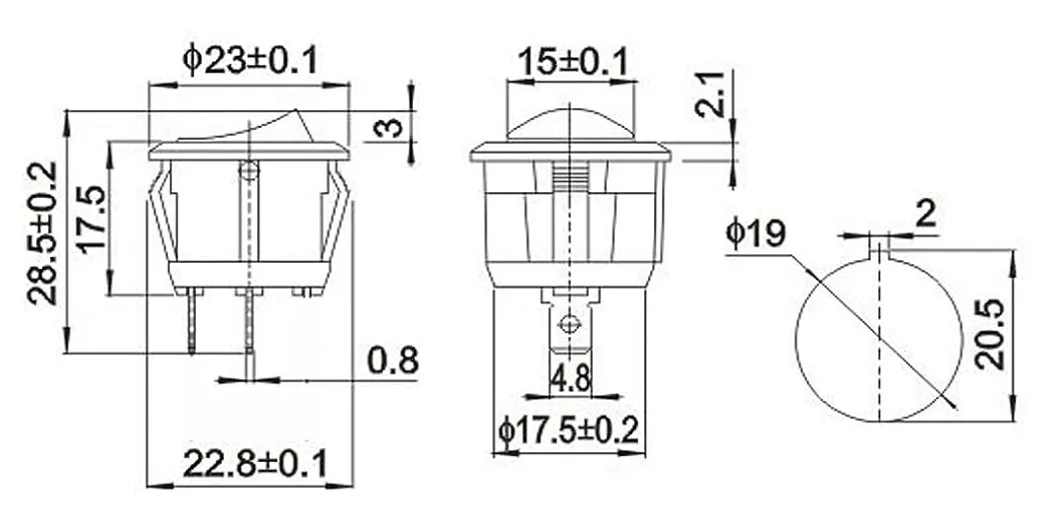

The parts are designed for rocker switches with these dimensions:

Print settings

All parts print as they are oriented, with the face on the build plate.
No supports necessary.
Make sure your printer is good at printing overhangs so they look nice, but all overhangs are designed at a 45-degree angle and are easy to print.
Print in a material suitable for the intended use.

Materials

Regular #8 wood screws to mount it to a wall.
For the Split - A & B housing: two M3x8 SHCS and two M3 nuts to join them.

Comment & Rating (22)

@james.flores

Just what I needed! thank you.

@georning

Print Profile

Complete Housing 0.2mm layer, 6 walls, 25% infill

It has worked perfectly for me It was just the accessory I needed to mount this type of switch safely and cleanly The design is very functional and makes installation much easier What I liked the most: Sturdiness: By printing it with 6 walls, the housing is extremely robust, which is ideal for withstanding constant use of the switch without the plastic suffering Fit: The recess for the round switch is precise and wall mounting is very easy thanks to the side tabs Speed: It is a very quick part to obtain, perfect for maintenance projects or quick installations Details of my print: Settings: 0.2 mm layer, 6 walls, and 25% infill Time: Only 48 minutes Material: 21 g on a single plate Compatibility: Printed without issues on the Bambu Lab series A very useful and well-executed technical design I am very satisfied with the result
