Description

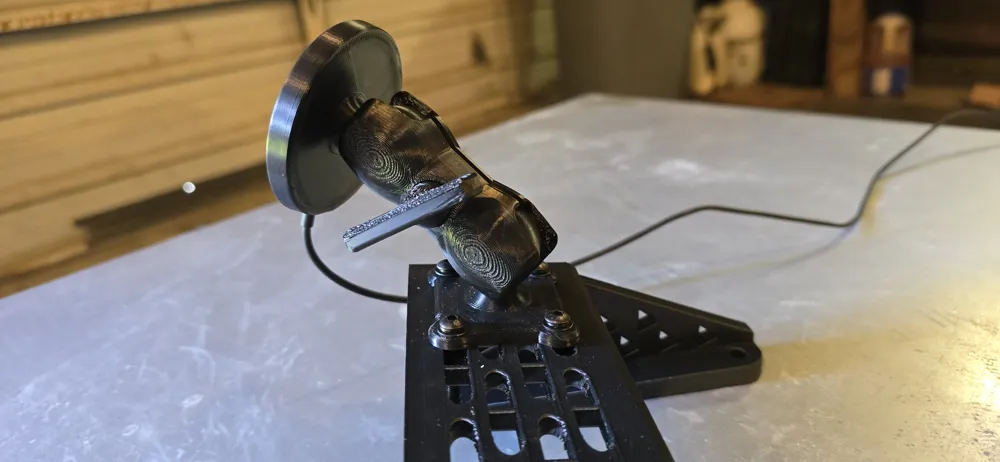

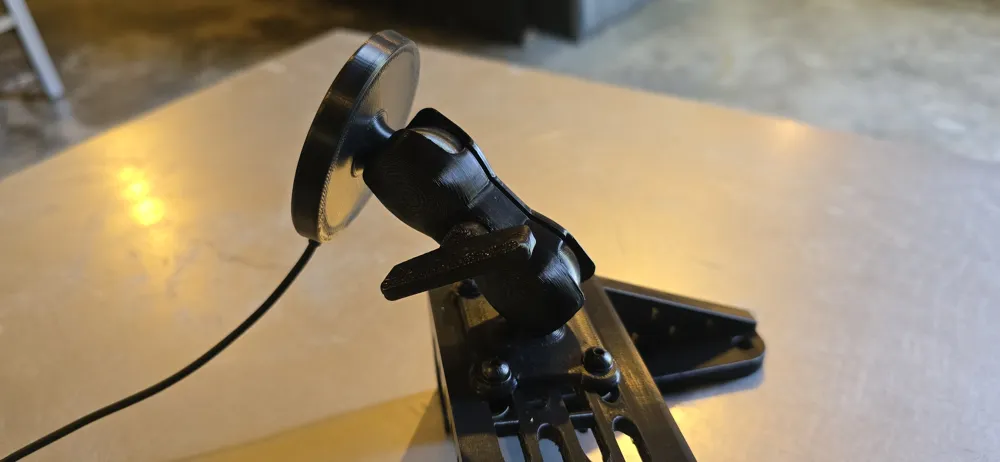

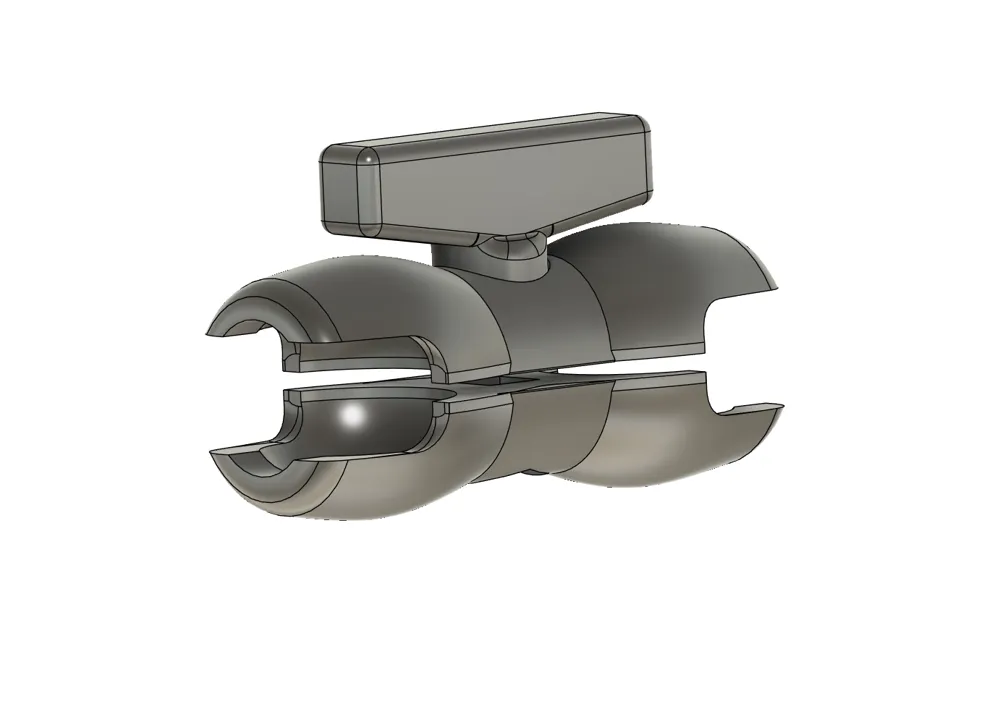

Made this 1in Ball Connector to mount some of my gadgets and gizmos in my truck.

It can clamp to a standard 1in ball mount or you can print your own. (I've seen a few on here already).

You will need:

1 - M6 x 25mm Hex Bolt

1 - M6 Nut
(These are amazon affiliate links and I do receive a kickback on every purchase.)

Wingnut is designed to have the nut press fitted into the plastic.

May take a bit of force or a clamp.

Printed out of ABS.
