H0/1:87 Scale Playground

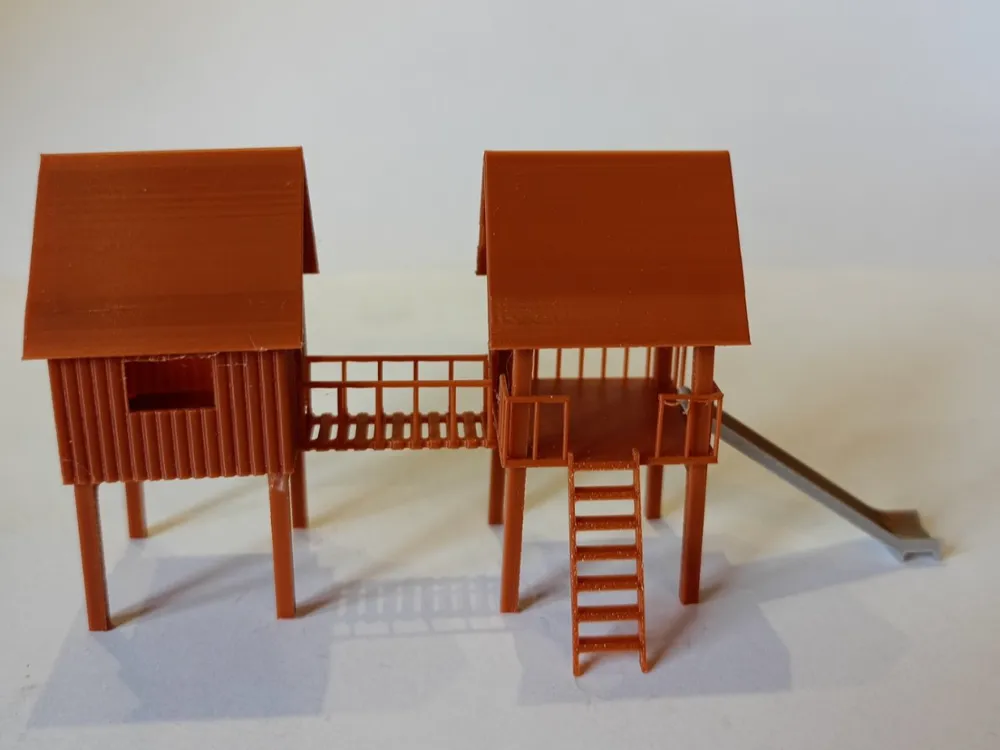

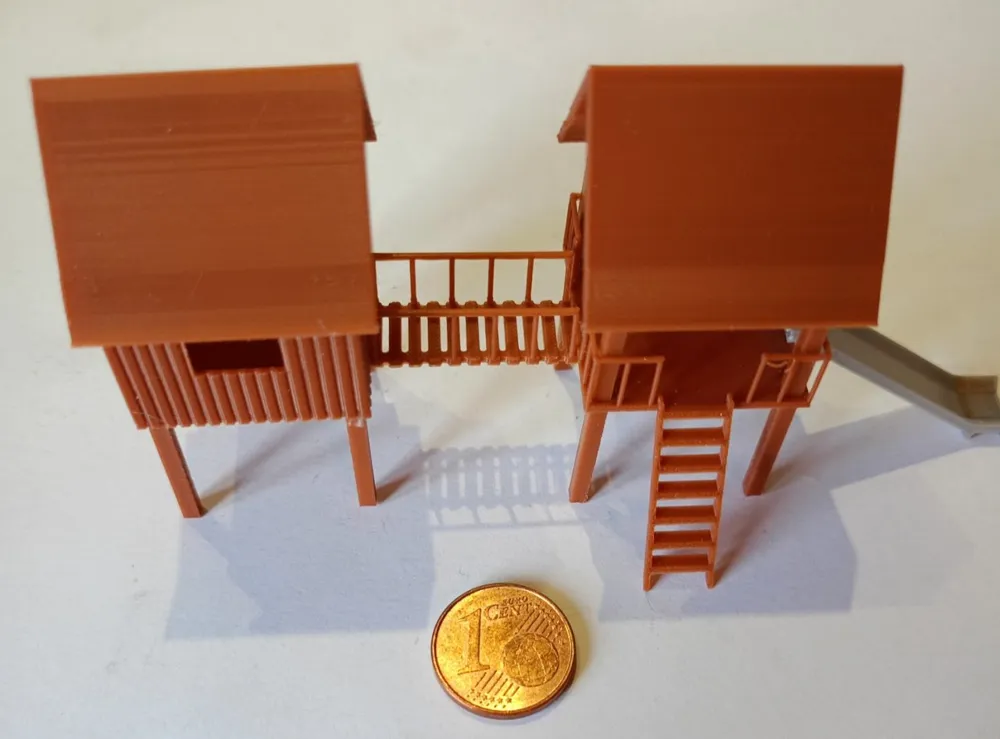

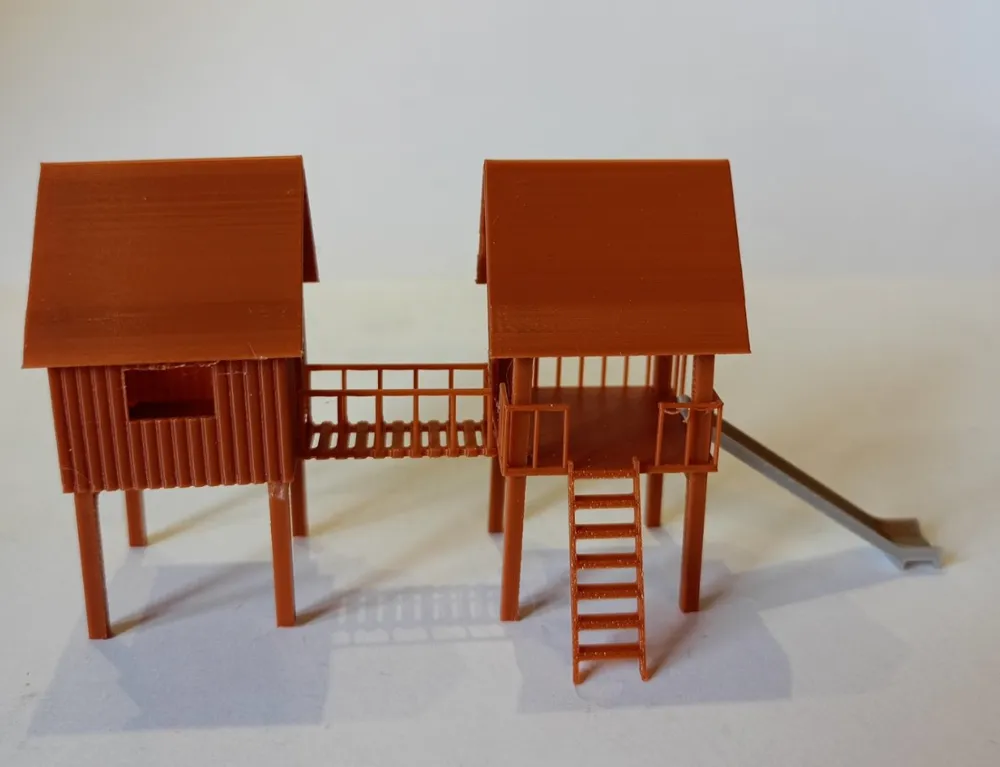

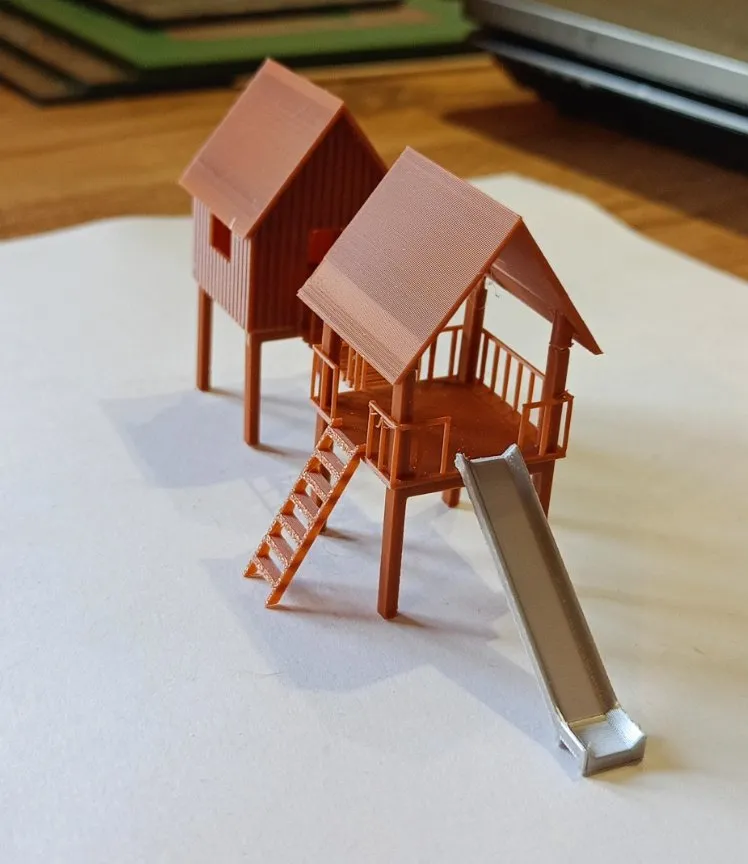

This is an H0 scale model of a children's playground.
The model is very delicate (the railing struts are 0.6x0.6mm), but it can be printed very well with a well-tuned FDM printer and calibrated filament.

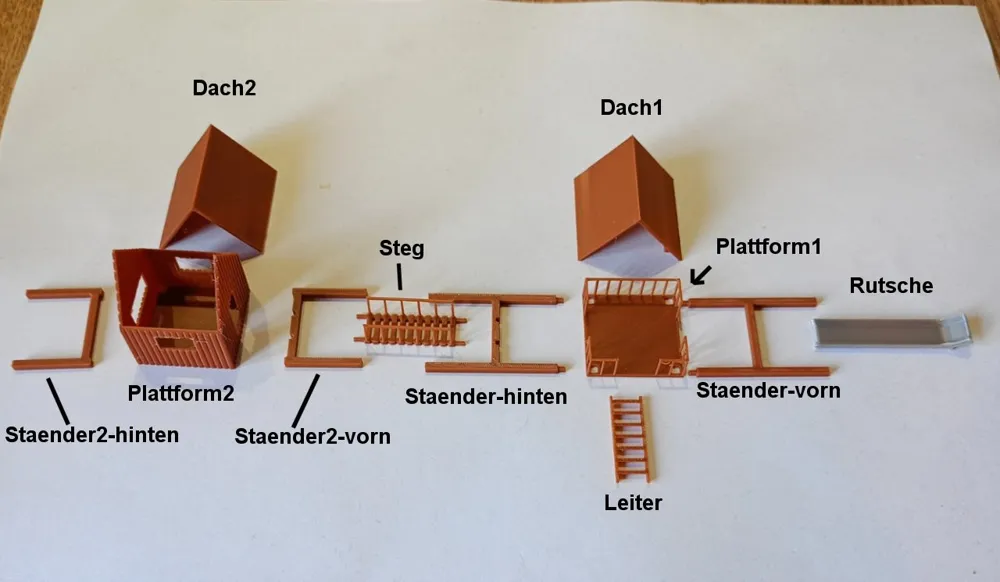

The parts are assembled and secured with a small amount of super glue.

The project was created with FreeCAD 1.0. The FCSTD file is included, so changes/extensions can be easily implemented.

Printed with PLA on a Bambu A1-Mini with a 0.2 nozzle. The included 3mf file was created with Orca-Slicer for this printer.
The slide is printed lying on its side, the ladder lying on its top.

Printing parameters:
Material: PLA
Nozzle: 0.2
Layer height: 0.14
Perimeter: 4
Top/Bottom layers: 5
Infill: 15% Gyroid
Supports: only for door and window of platform 2 (organic tree manually)

You can find more of my H0 models here:
https://makerworld.com/de/collections/3767669-model-building-h0-1-87-scale-modeling
