CNWANS P150C Pro/P150C Pro-D负载测试仪外壳
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
3.3 h
1 plate
Open in Bambu Studio
Boost
4
4
1
0
12
0
Released
Description
Content has been automatically translated.

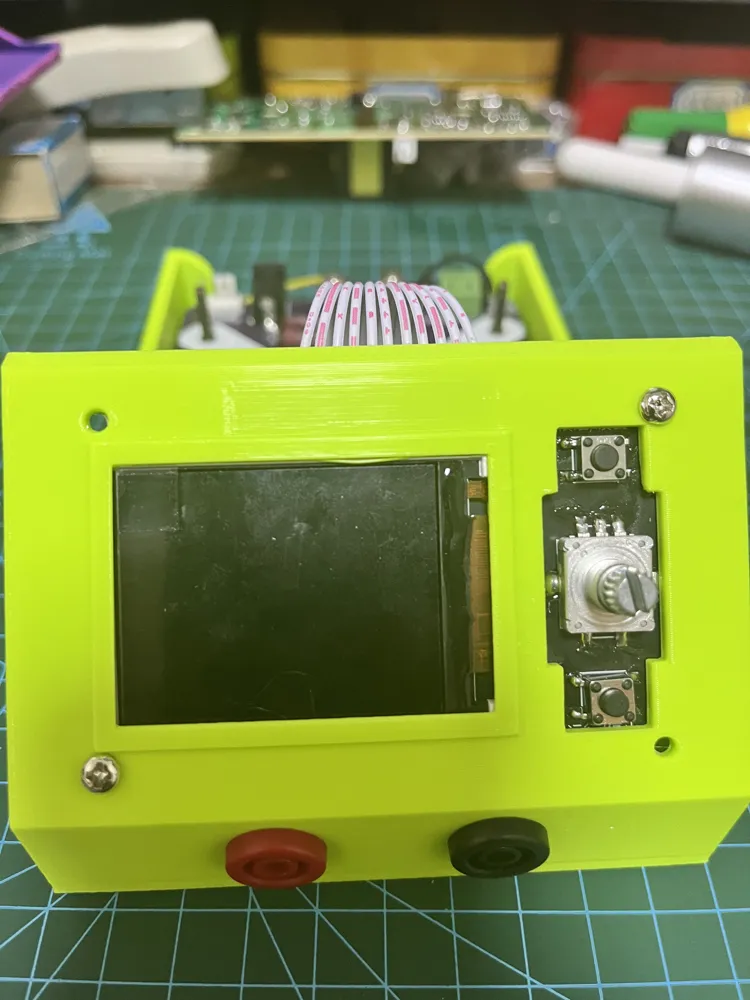

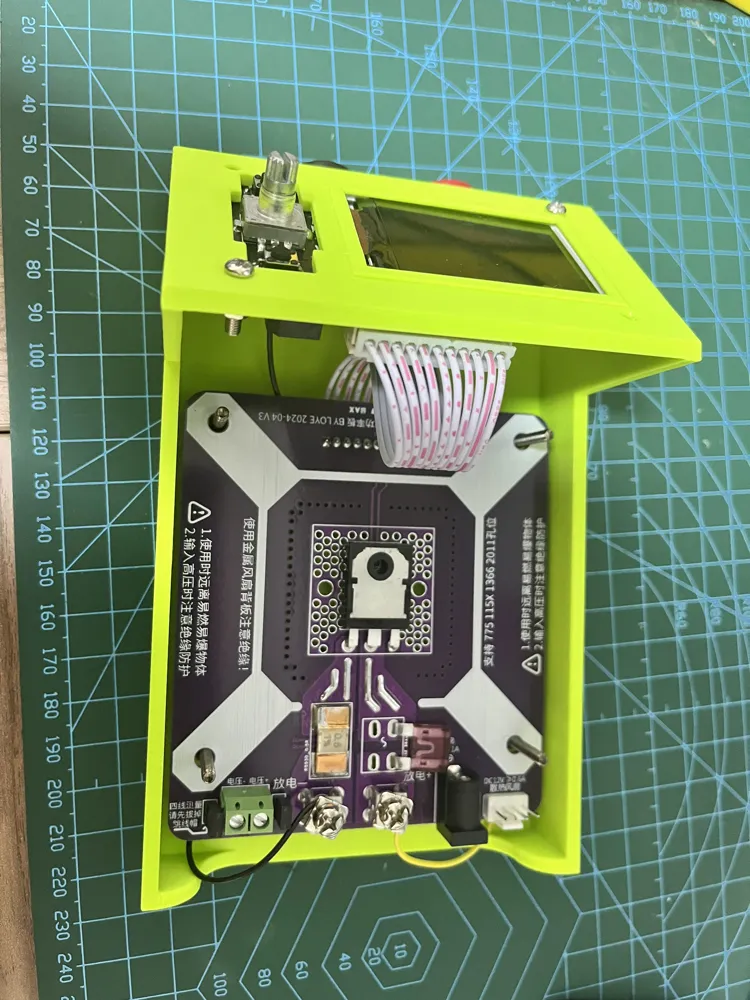

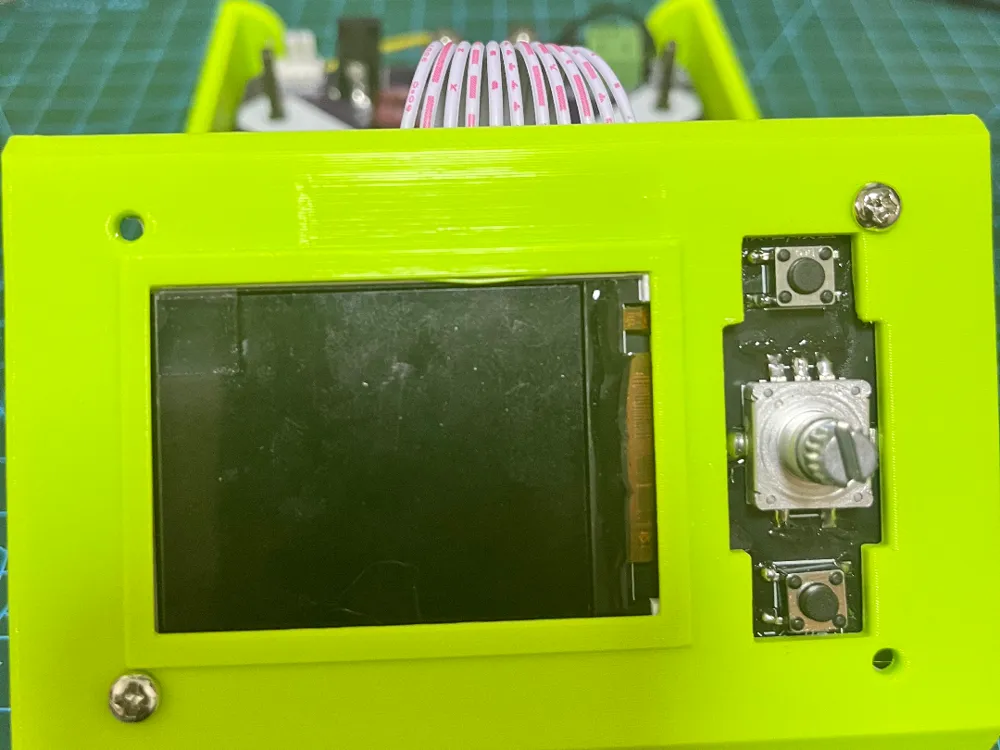

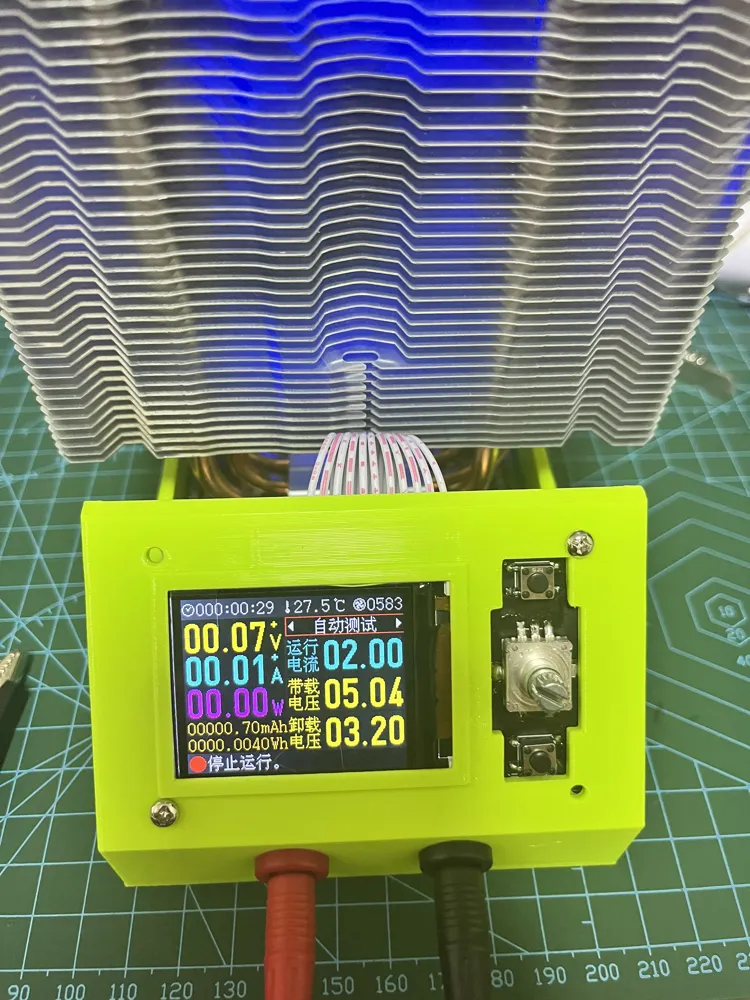

P150C Pro/P150C Pro-D series electronic load enclosure, compatible with split PCB, uses the 115X version (four screw spacing 75mm*75mm) of the Xuanbing 400 for the heatsink. The bottom has reserved mounting holes for the Xuanbing 400, and it can also be paired with M3*3*4.5 heat-melt nuts + M3 screws to fix various 115X heatsinks. The front panel is secured using M3 screws + hexagonal nuts (ps It is best to add an M3 paper washer under the hexagonal nut to prevent scratching the PCB).
The power input uses two 4MM banana jacks, and the opening is 12MM. Your feedback is welcome!
