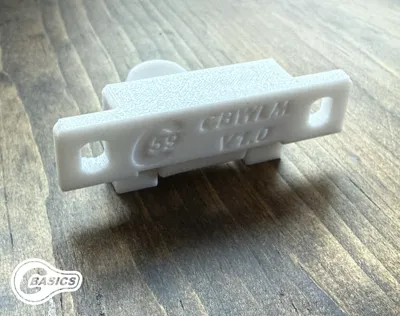

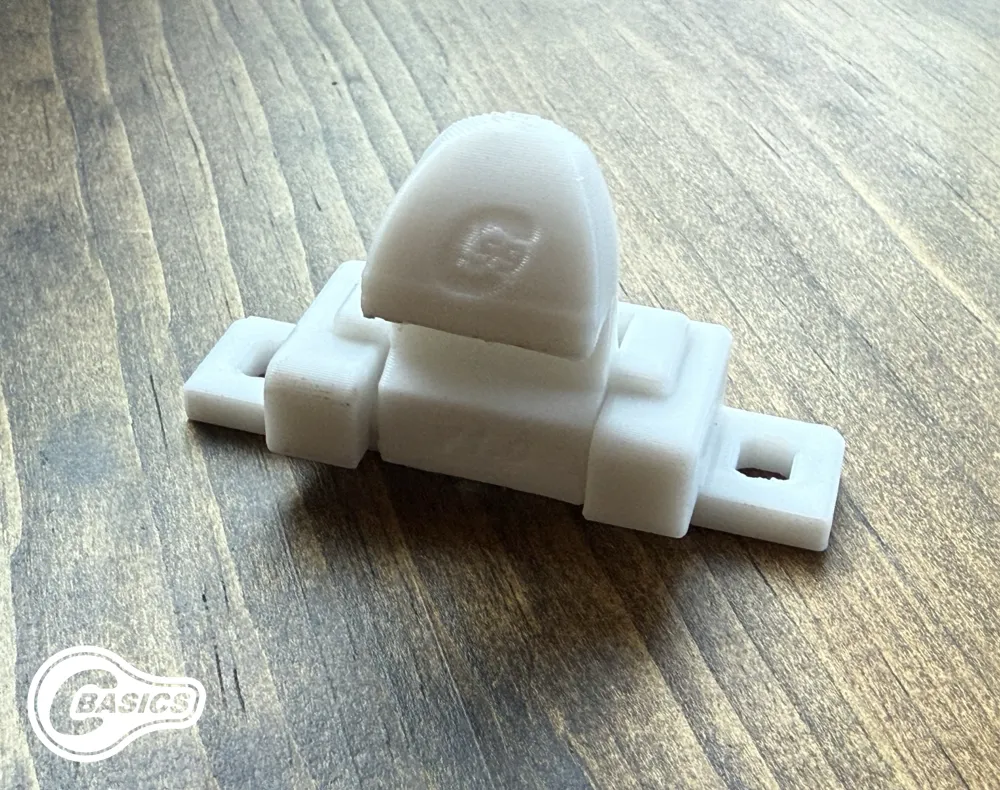

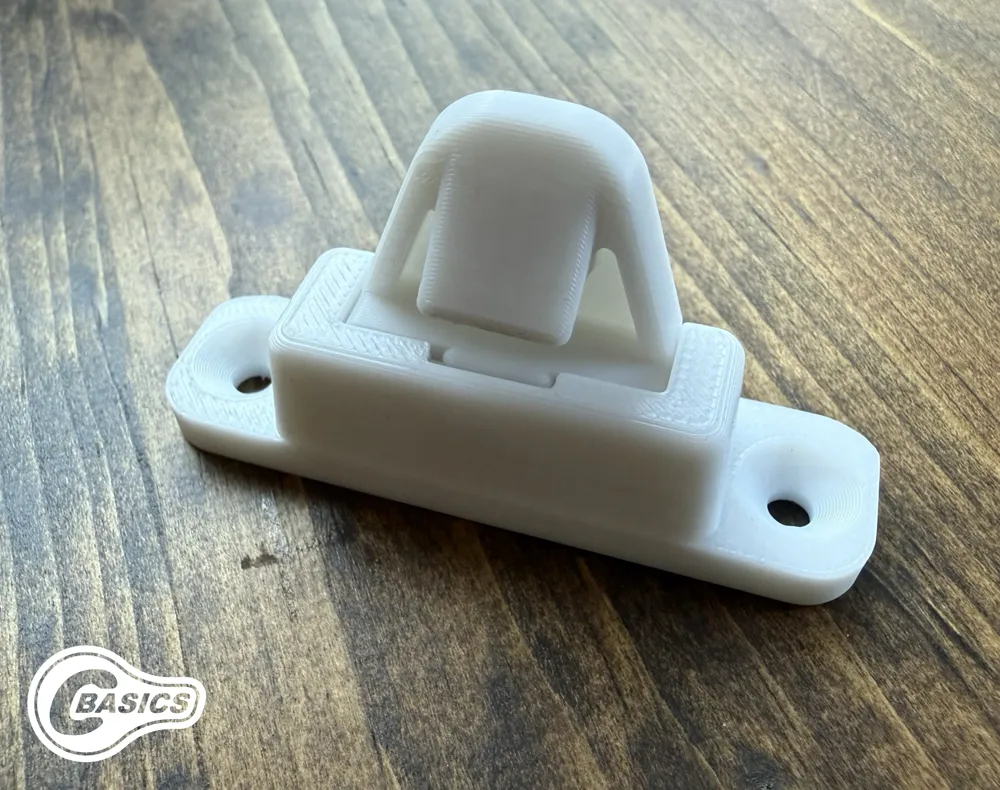

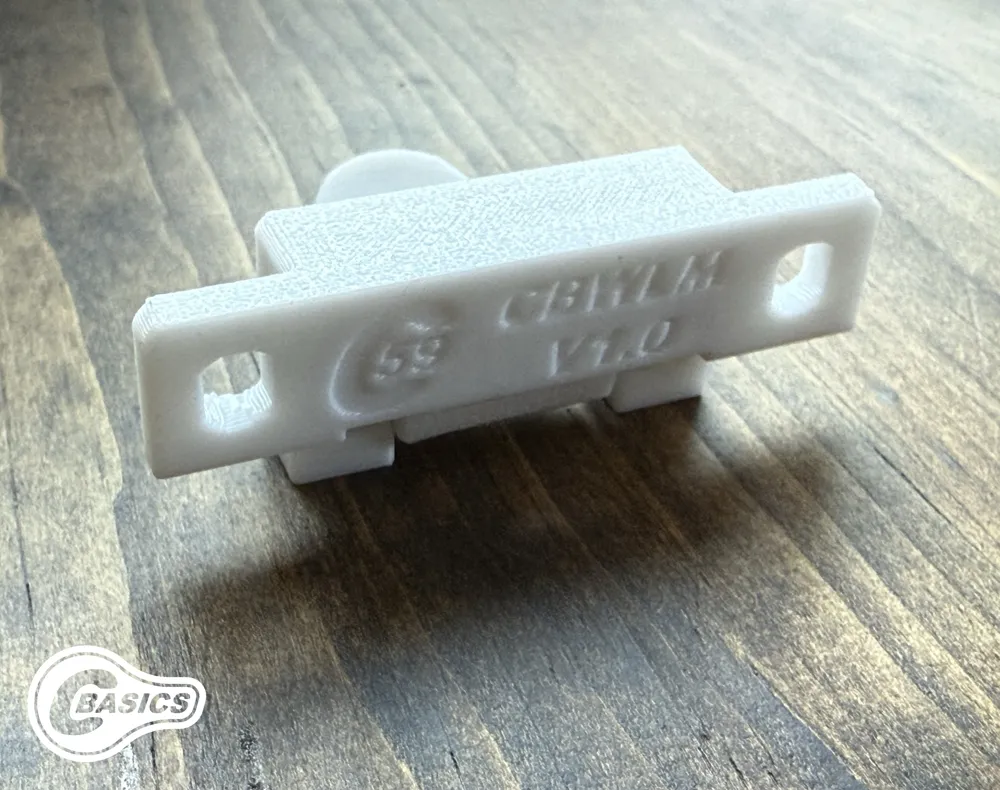

🪟 Home Window Latch – OE Replacement (Design 1 & 2)
C59 Basics – Everyday Utility at Your Fingertips

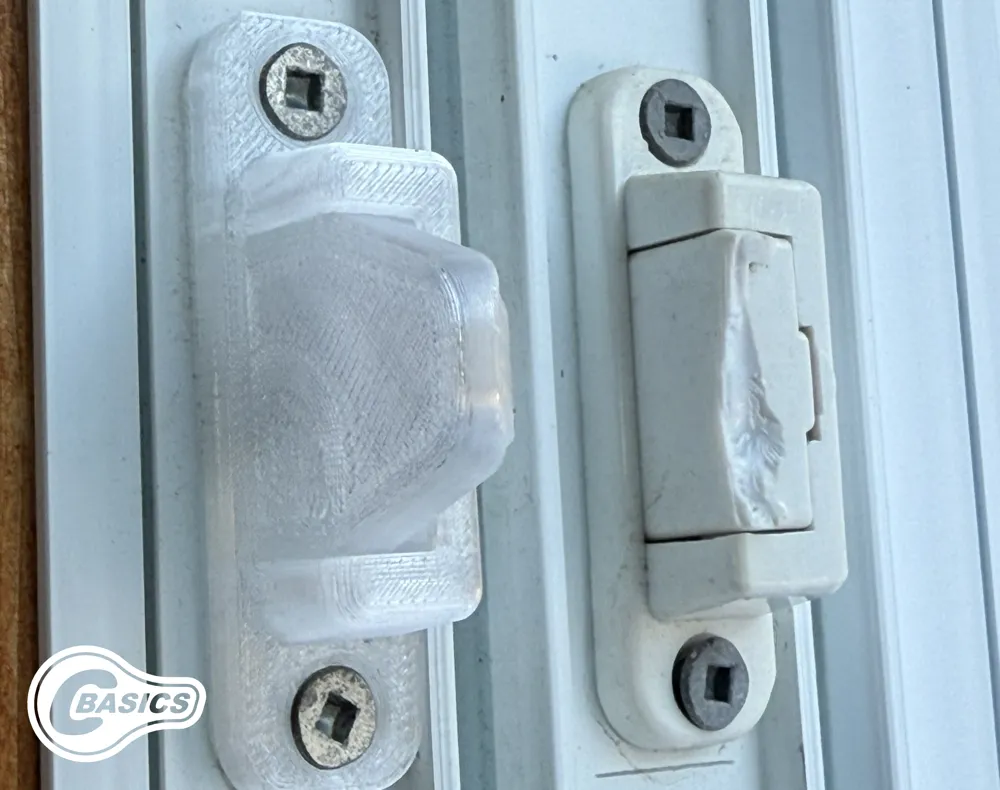

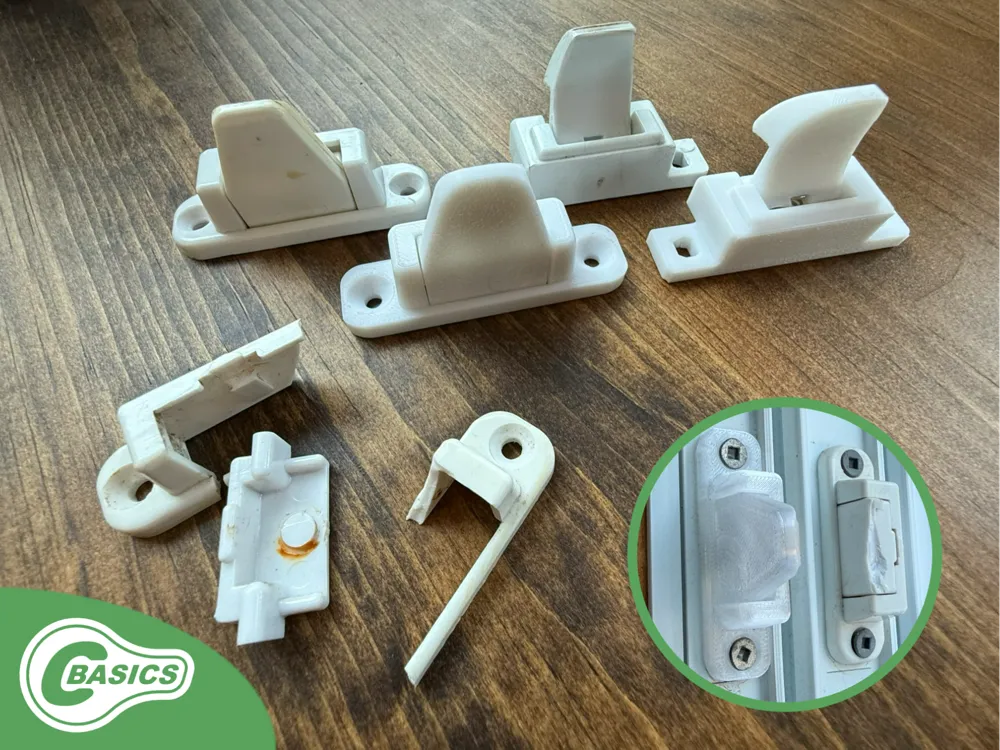

This things includes two OE-style replacement window latches, created to match two different latch types found in my cabin. These designs are intended for restoring functionality while keeping the original look and feel with a clean, minimalist approach.

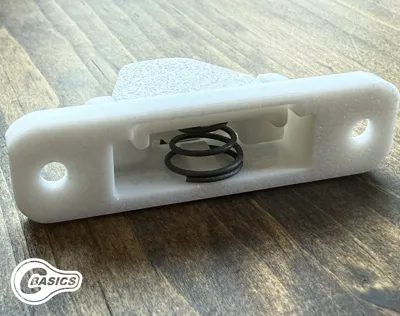

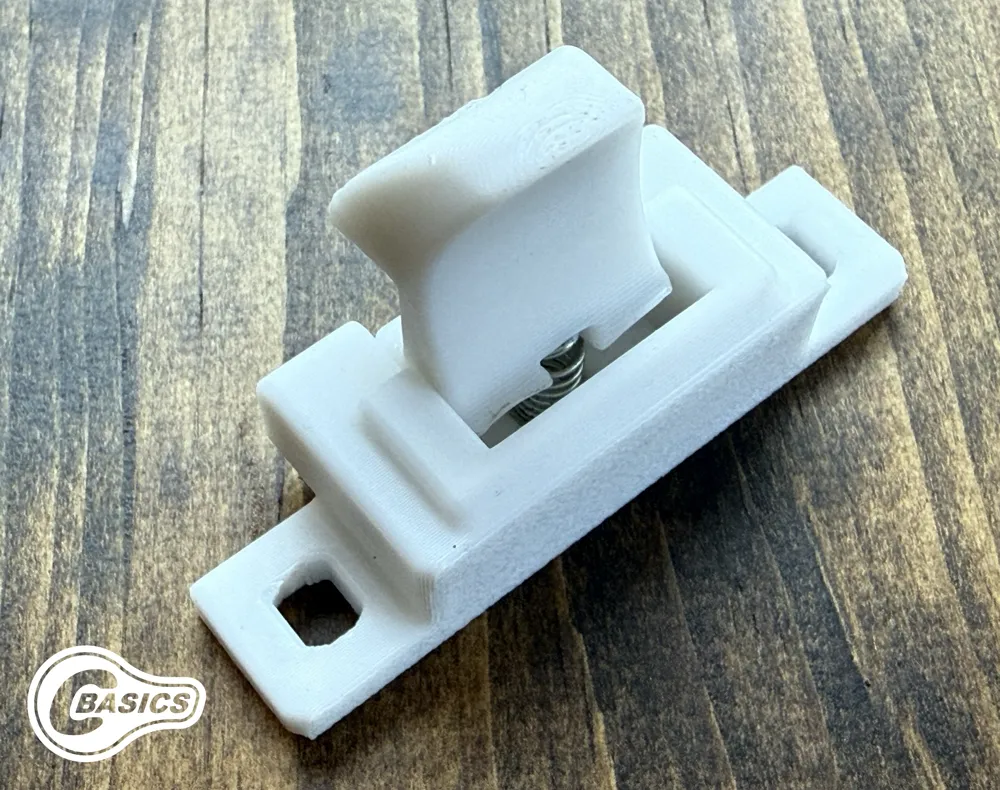

- Design 1 uses a standard coil spring — may be replaceable with similar-sized springs from hardware stores or online sources.
- Design 2 A heavy-duty version is in development. This design is intended for a tapered, non-standard spring. Since this is intended to replace a broken unit and I haven't verified any replacement sources, the original spring must be reused.
🔧 Features:
- Two models for two legacy latch styles
- Direct replacement with original spring reuse
- Simple, modern, and functional design
- Designed for real-world window use
- Supports required for proper printing
⚠️ Spring Note:
Springs are not included in the design files.
- Design 1: Common coil spring — may be sourced separately
- Design 2: Custom tapered spring — must be salvaged from the original latch
If a reliable source for either becomes known, it will be shared in the future.
🖨️ Recommended Print Settings:
V1.0 Model 1 Print Specifications
- Material: PETG (or similar, NO PLA for durability and sun resistance use PETG and better sun resistant like ASA etc.)
- Printer Profile: Strength
- Layer Height: 0.20 mm
- Mode: Certified Ludicrous
- Infill: 100%
- Walls: 6
- Bottom Layers: 3
- Top Layers: 5
Printing Details
- Supports: Required
- Print Time: 00:47:21
- Filament Usage: 0.43 oz
- Estimated Cost: ~$0.36 (based on $26 PETG spool)
