MVRC 6DOF Motion Simulator 1/10 Scale Functional
Print Profile(0)
Bill of Materials
- M3 x 24:
Description
🧠 Project Description:

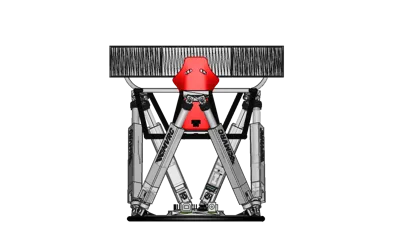

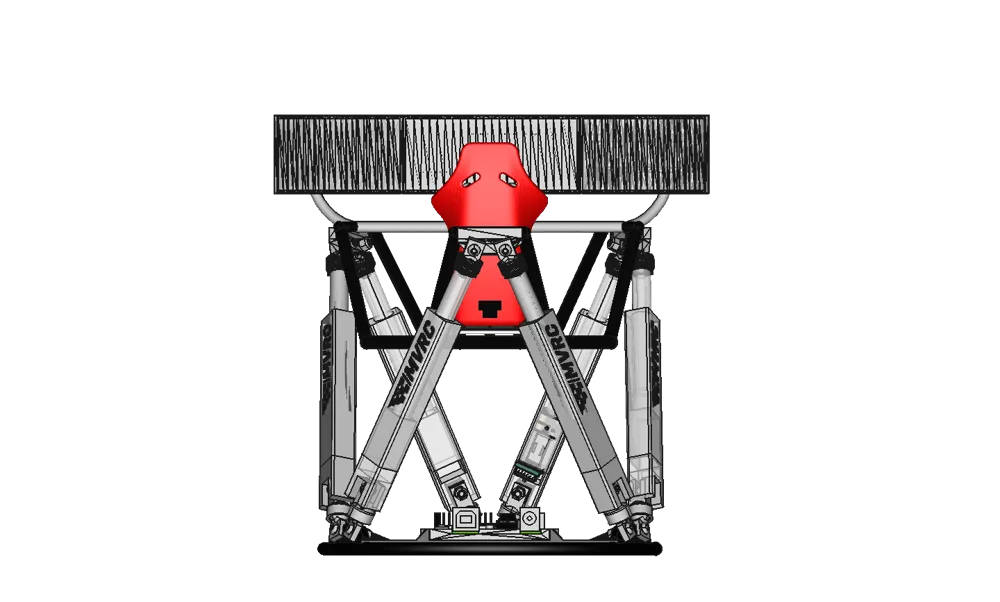

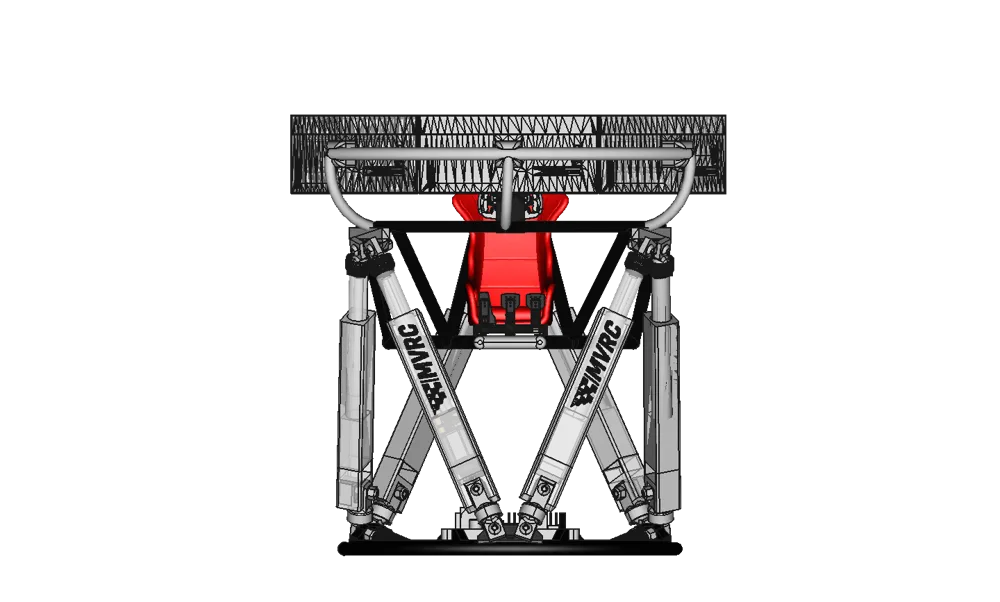

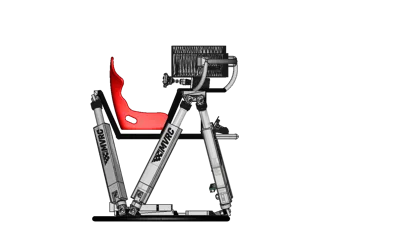

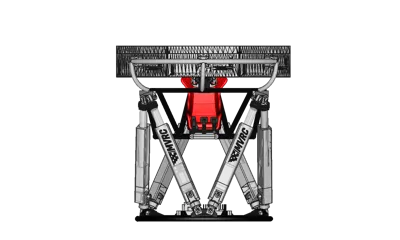

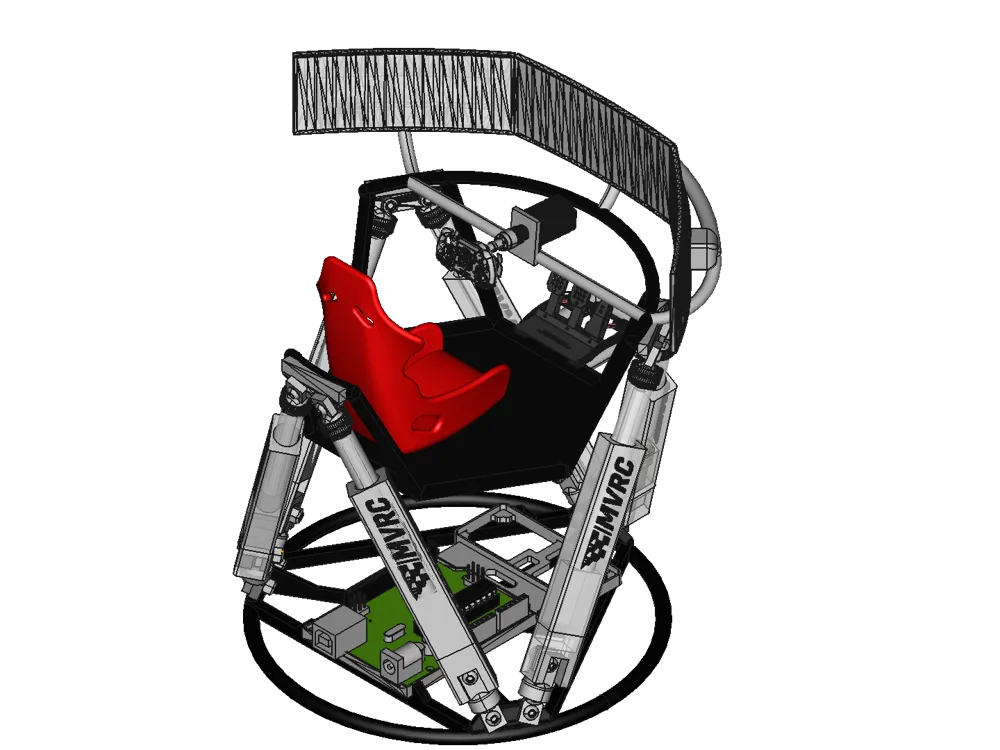

Bring high-end motion simulation to the RC world with this fully functional 1/10 scale 6DOF motion simulator platform. Designed for RC enthusiasts, robotics developers, and hobbyists, this mini rig replicates the motion dynamics of full-scale 6DOF systems in a compact and accessible form.
The platform is powered by 6x N20 12V 300RPM gear motors using M3x45mm threaded lead screws, delivering precise linear motion in all six degrees of freedom (Surge, Sway, Heave, Roll, Pitch, and Yaw). Perfect for educational demonstrations, small-scale VR/FPV rigs, or RC telemetry-based movement replication.
🔧 Includes:
- STL files for all 3D printed parts
- Detailed assembly guide (PDF)
- Wiring and connection diagram
- List of electronics and hardware
- Optional mounting suggestions for small RC vehicles or displays
🔩 Main Components:
- 6x N20 Gear Motors – 12V 300RPM
- M3x45mm Threaded Lead Screws
- M3 Nuts and Screws
- Micro Ball Joints
- Custom 3D Printed Linkages
- Optional: Arduino / ESP32 for motion control input
🎯 Features:
- Full 6DOF motion with scalable architecture
- Compact design tailored for 1/10 scale RC models
- Compatible with FPV setups for immersive simulation
- Easy to build with basic tools and 3D printer
- Modular motor mounting for easy maintenance or upgrades
