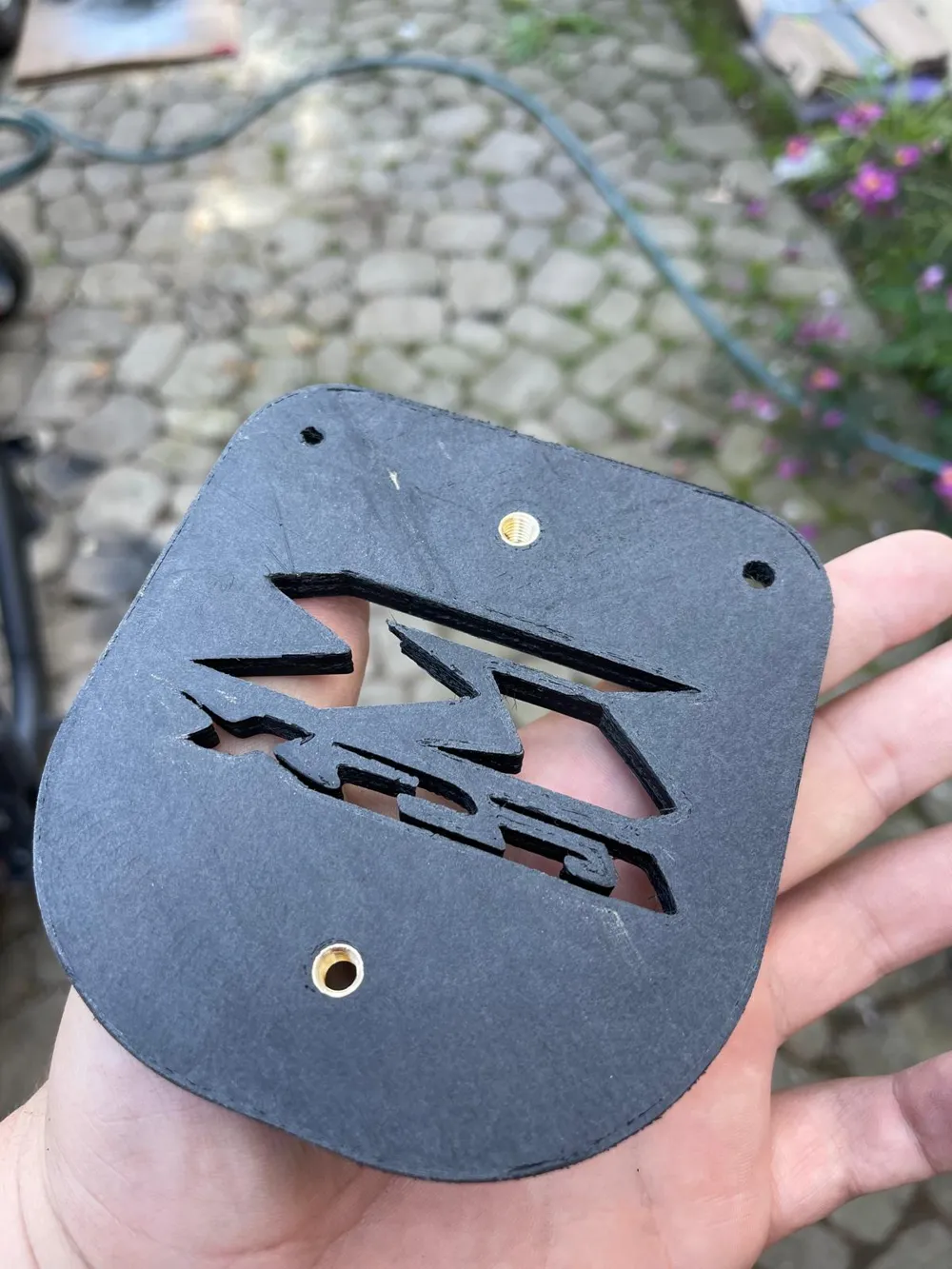

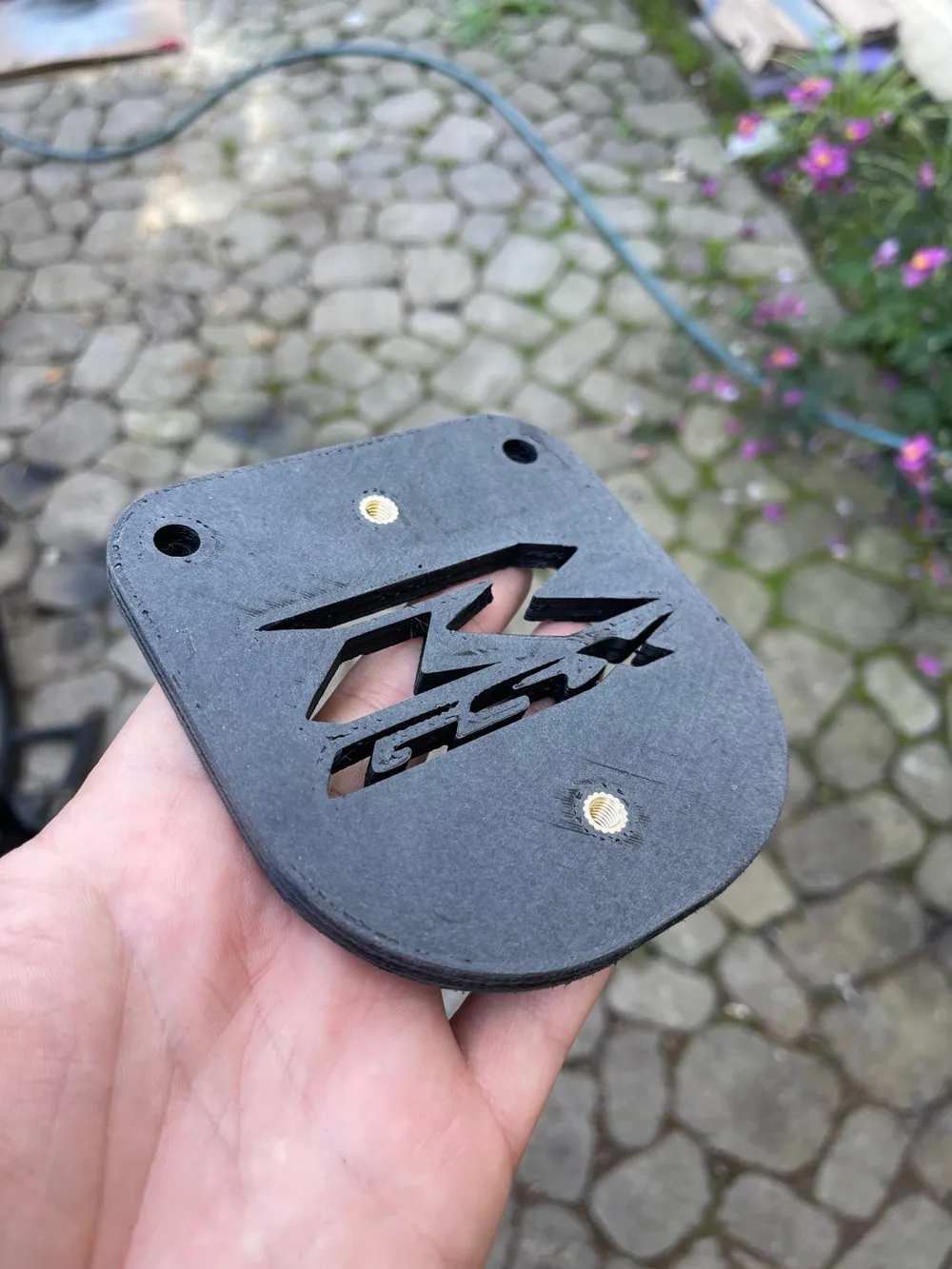

Voltage Regulator Mount for Suzuki GSX-R

Many owners of older Suzuki GSX-R 600 models are familiar with this problem:
The original voltage regulator sits directly behind the exhaust manifold, where it gets extremely hot. The result:
➡️ The regulator overheats, regularly fails, causes charging voltage problems and, in the worst case, leads to a breakdown.

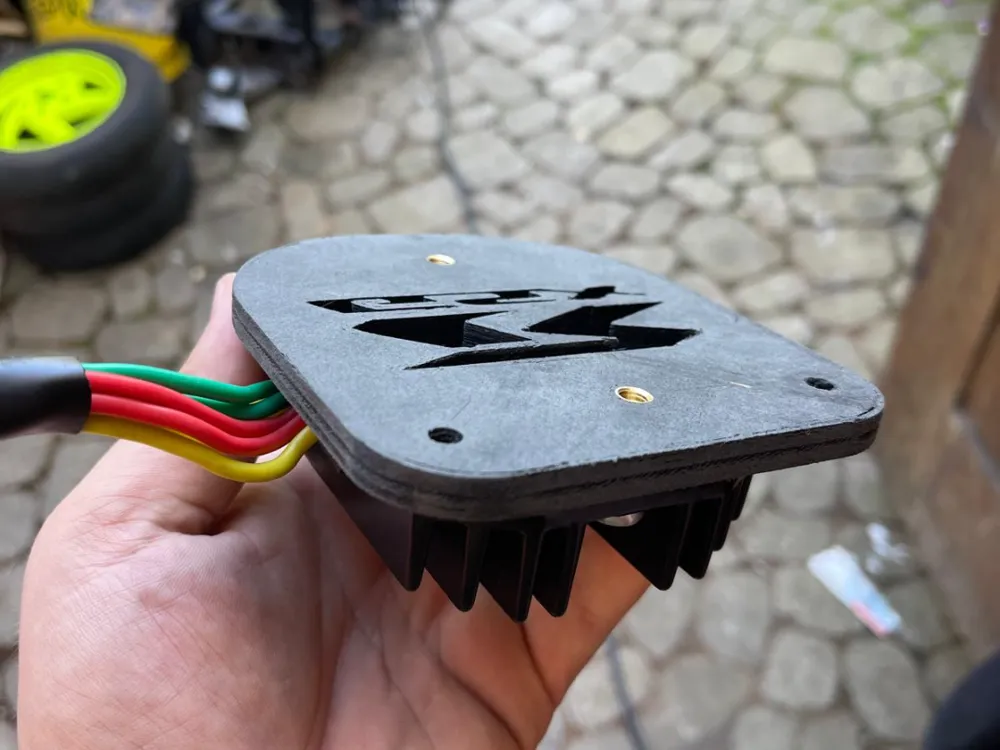

This mount relocates the regulator to the front, underneath the triple clamp – a location with significantly better air circulation and lower ambient temperature.

⚙️ Technical Details:

• Suitable for: older Suzuki GSX-R 600 models (e.g., K1–K4 series – please compare dimensions)
• Mounting point: under the lower triple clamp (headstock)
• Designed for standard regulators (or comparable aftermarket models)
• Optional: Use of thermal paste is recommended

🖨️ Printing Recommendation:

Setting	Recommendation
Material	PETG / ASA (heat-resistant)
Infill	≥ 50 %
Walls	min. 4
Support Structure	as needed, depending on orientation
Layer Height	0.2 mm

✅ Advantages:

• Relieves electrical stress and extends the service life of the regulator
• Improved maintainability due to new position
• Inexpensive & effective solution for a known problem
• Fast printing & easy assembly
