Two-Speed Gearbox for 1:10 or 1:8 Scale RC Cars
This compact and efficient two-speed transmission is designed specifically for 1:10 or 1:8 scale RC vehicles. Ideal for DIY enthusiasts and custom RC builds, it offers a balance between torque and speed with the following gear ratios:
First Gear: 1:3 (for high torque and smooth acceleration)
Second Gear: 1:1 (for higher speed and efficient cruising)
Assembly Requirements:
3mm metal shafts
3mm bearings (optional: a printable plastic bushing is included in the design if bearings are not available)
M3 bolts, 20mm length

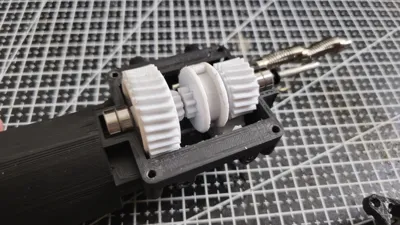

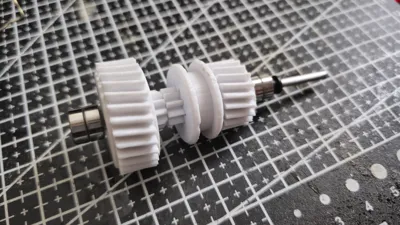

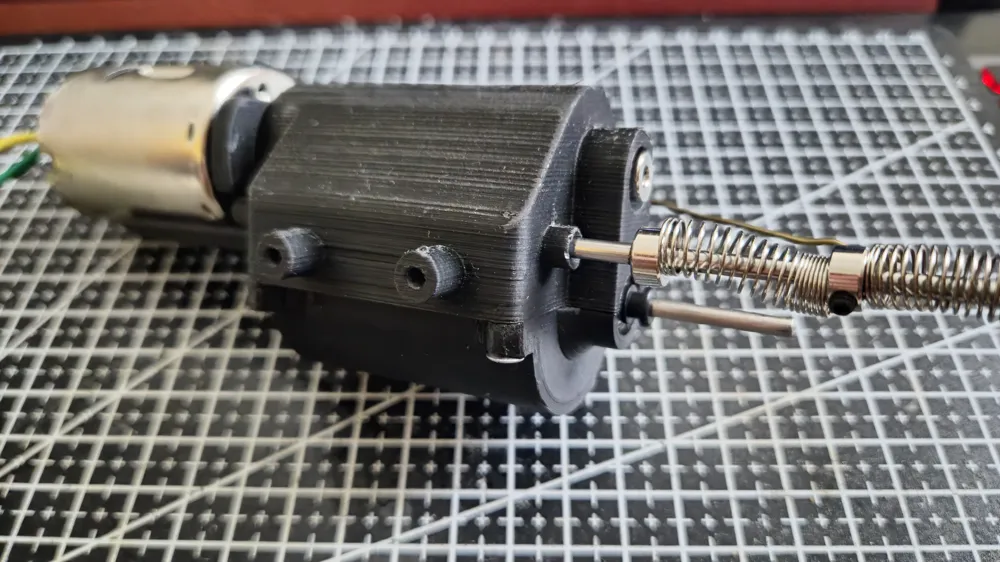

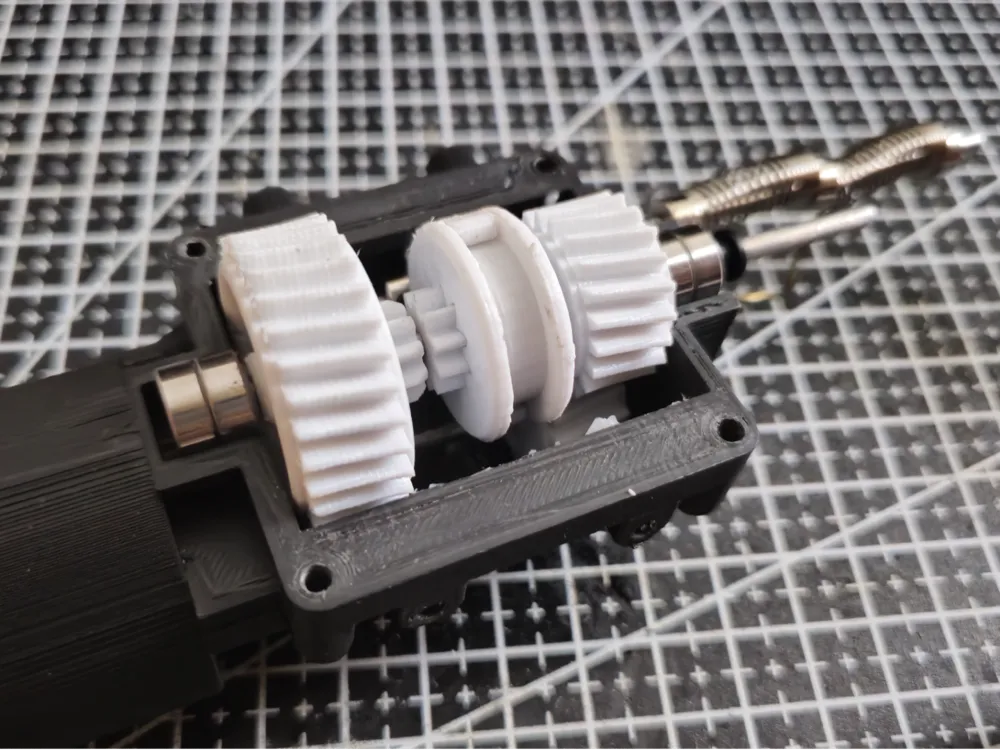

The gearbox housing and internal components are optimized for 3D printing and are easy to assemble. Step-by-step assembly is shown in the photos for your convenience.
You can also use individual gears from this gearbox in your own custom mechanical projects — feel free to remix and adapt!

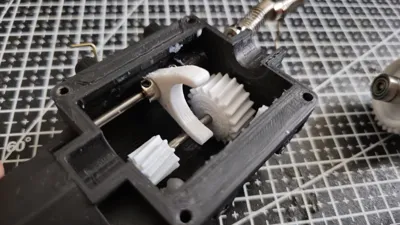

Set up your servo motor for shifting between the two gears — install it wherever it's most convenient in your build.
Perfect for hobbyists looking to enhance their RC cars with a functional and reliable shifting mechanism. Compatible with brushed or brushless motor setups. Customization is possible depending on your drivetrain configuration.
