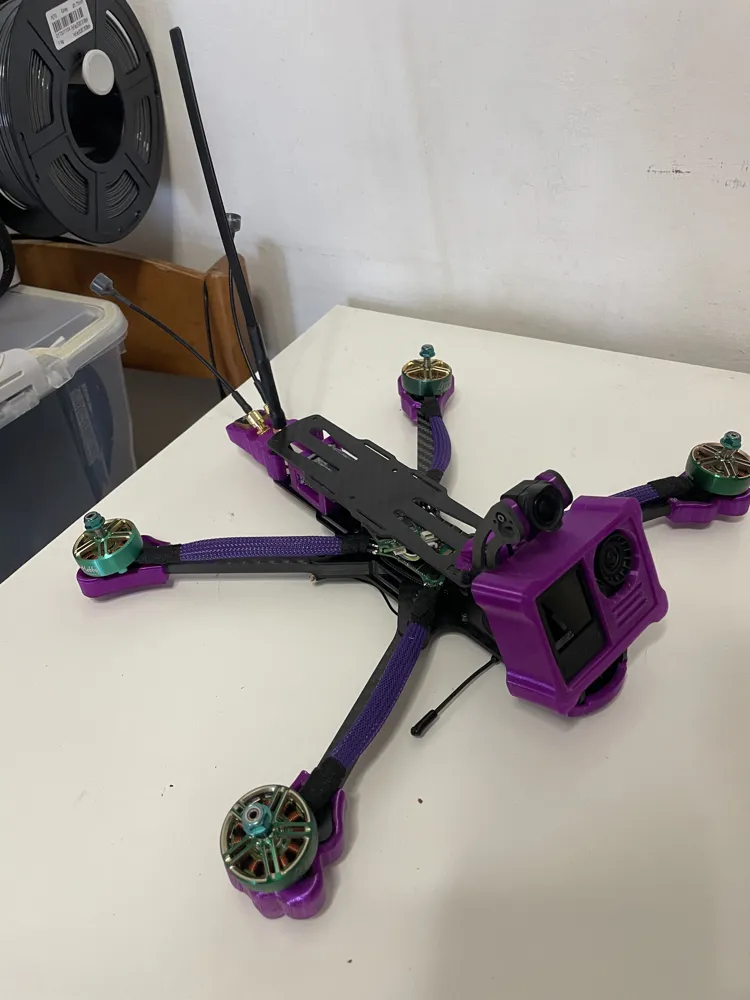

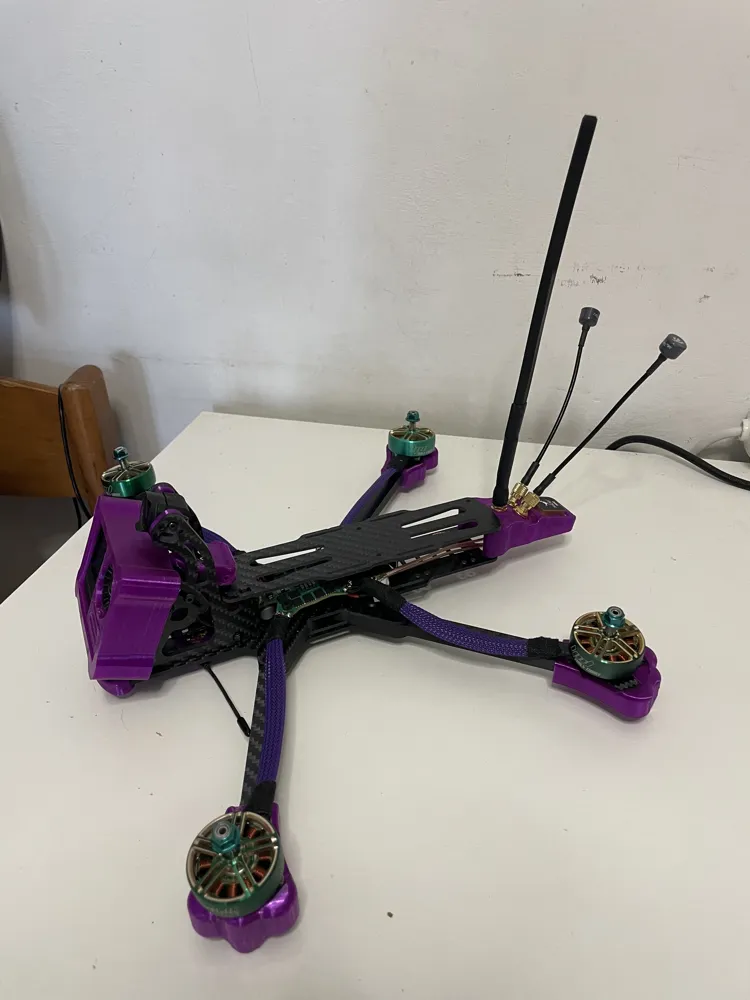

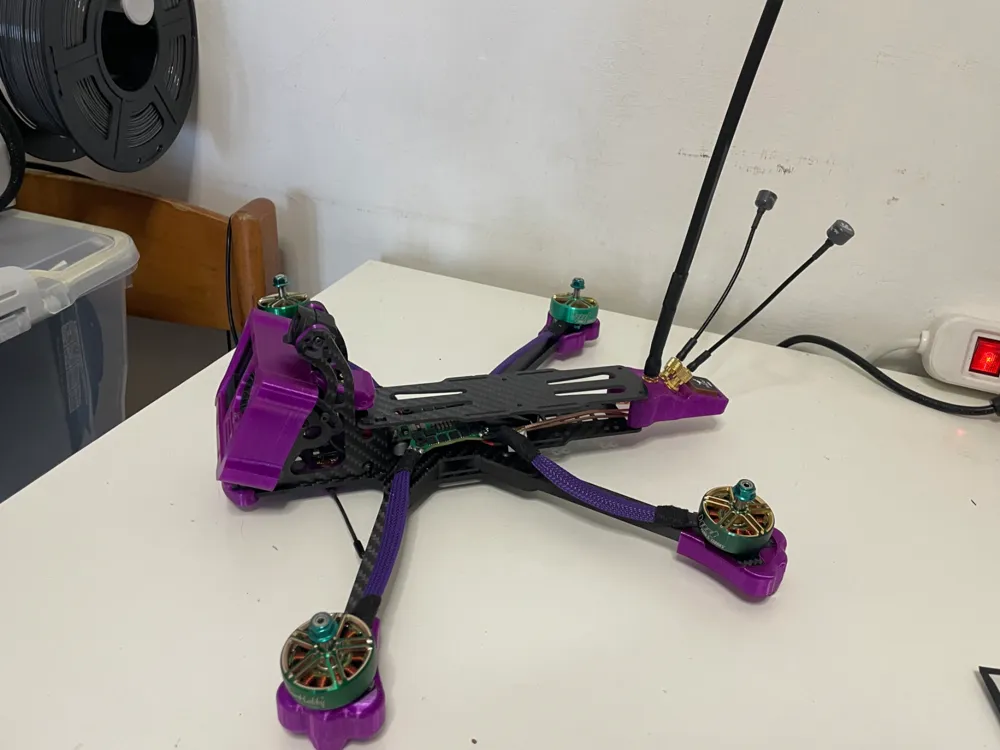

FR7 7mm arm print kit comprising:

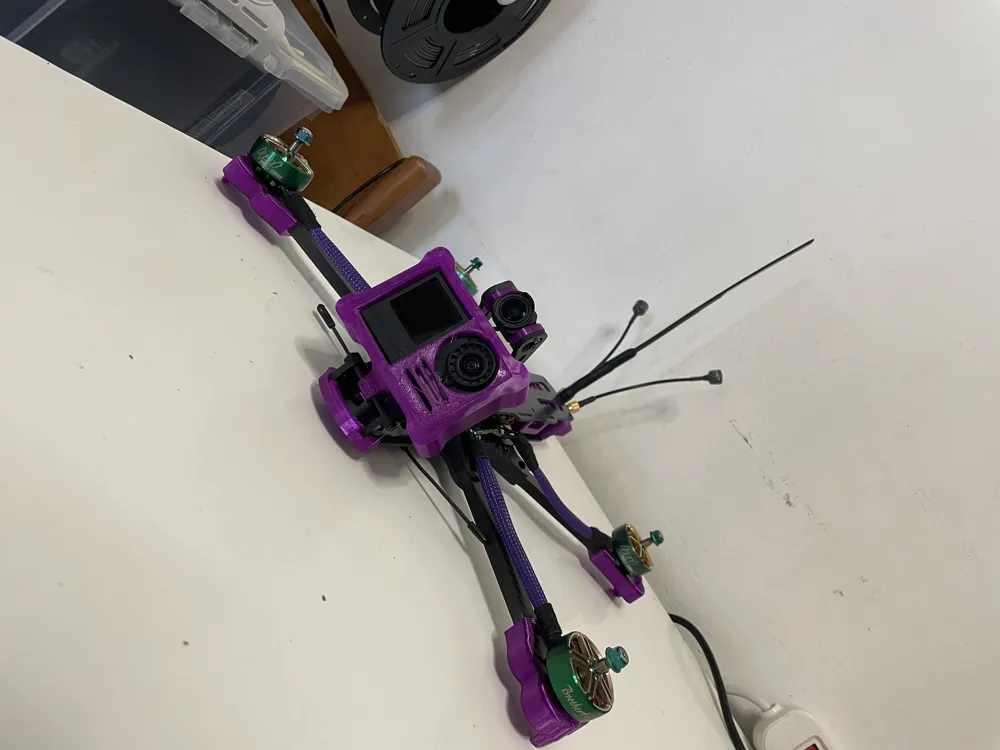

*The images also show a GoPro 10 Naked mount with a Nameless frame, not included in the print files, but I can add it if requested; I also have a very simple skull-shaped mount, less protective, for a Flywoo naked frame.



The design considered the following points:

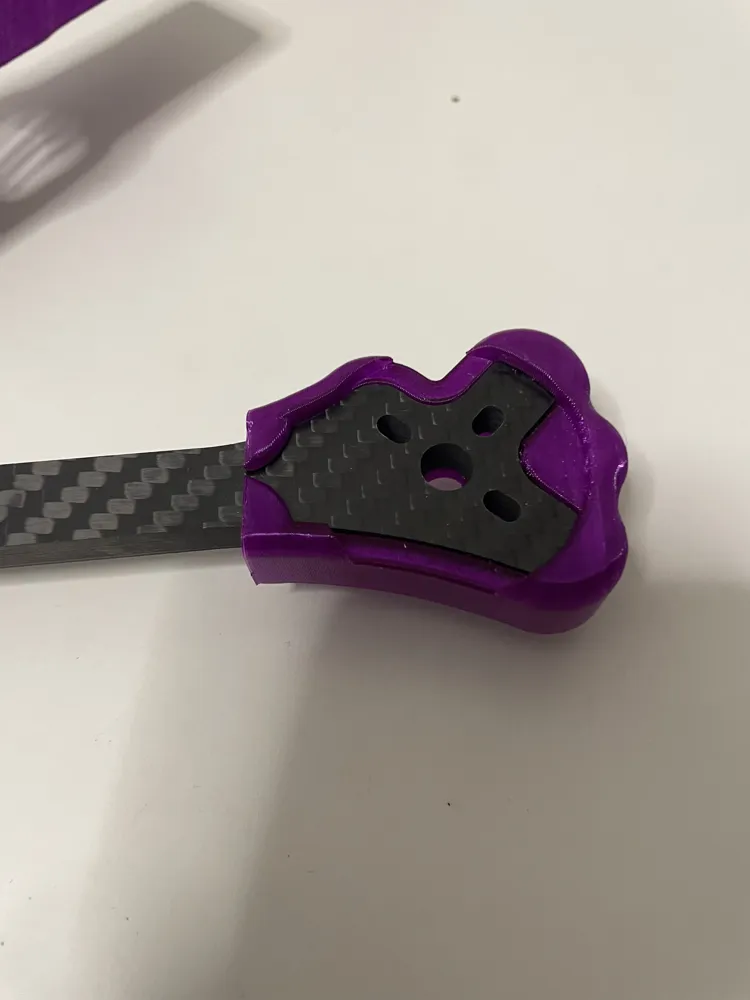

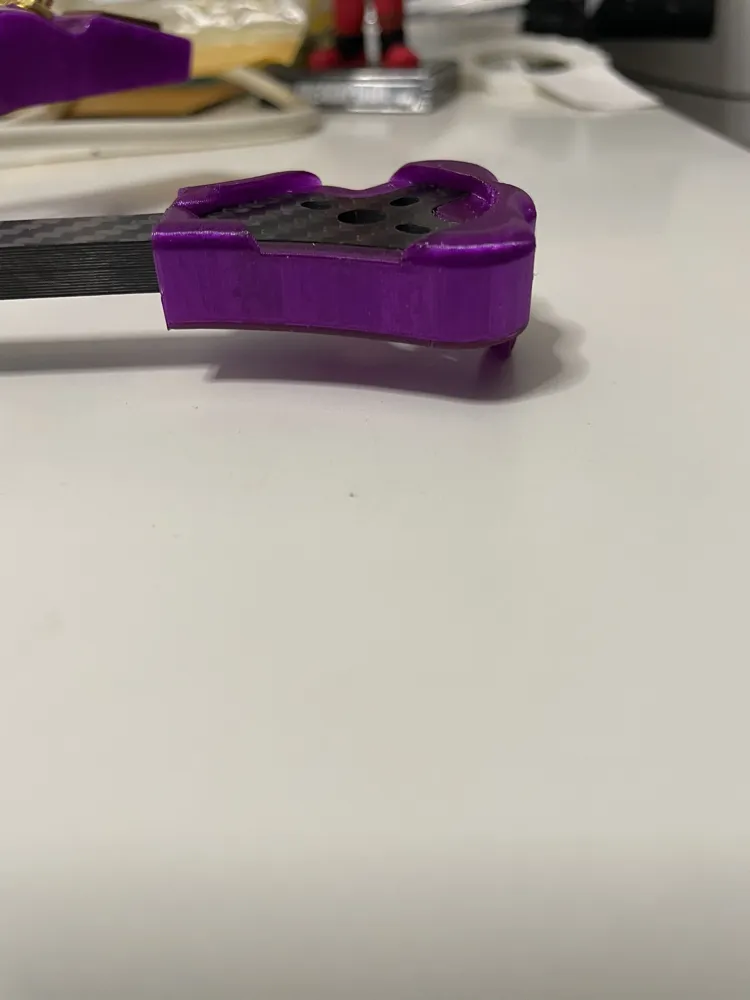

  • Arm guards: with a foot to aid landing and prevent carbon fiber from touching the ground, perfectly interlocking without play, no need for longer screws
  • Front Immortal T mount: also acts as a bumper, perfectly interlocking without play, no screws needed
  • Immortal T mount 2: requires M2 screws (same ones securing the buzzer mount), designed for shorter antennas

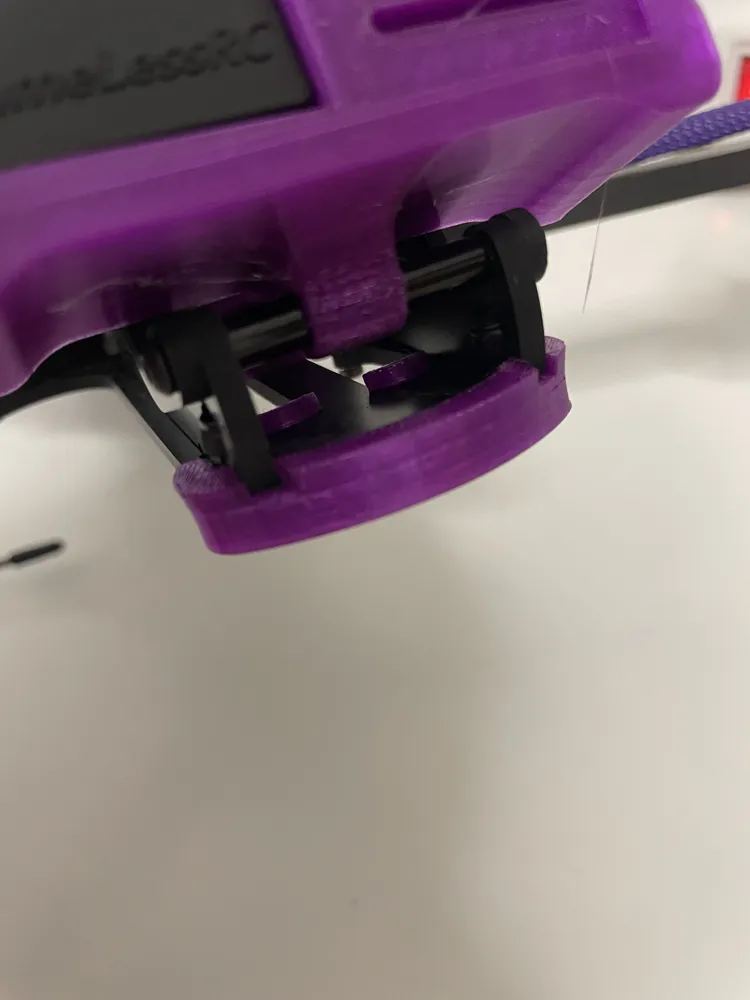

  • Bumper: paired with "Immortal T mount 2"

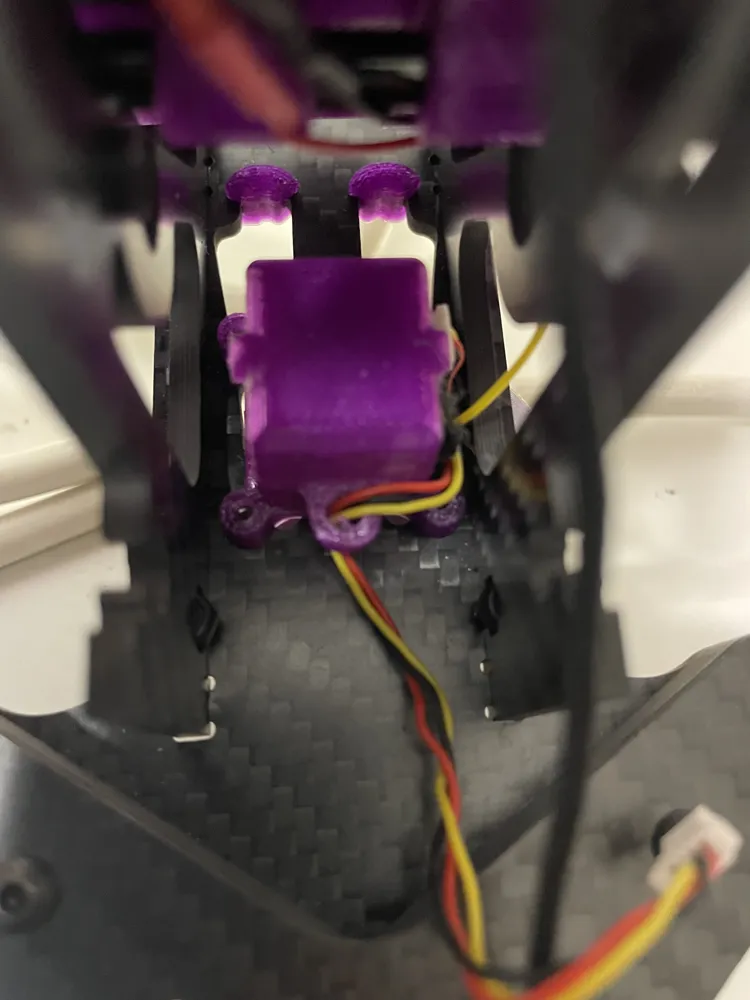

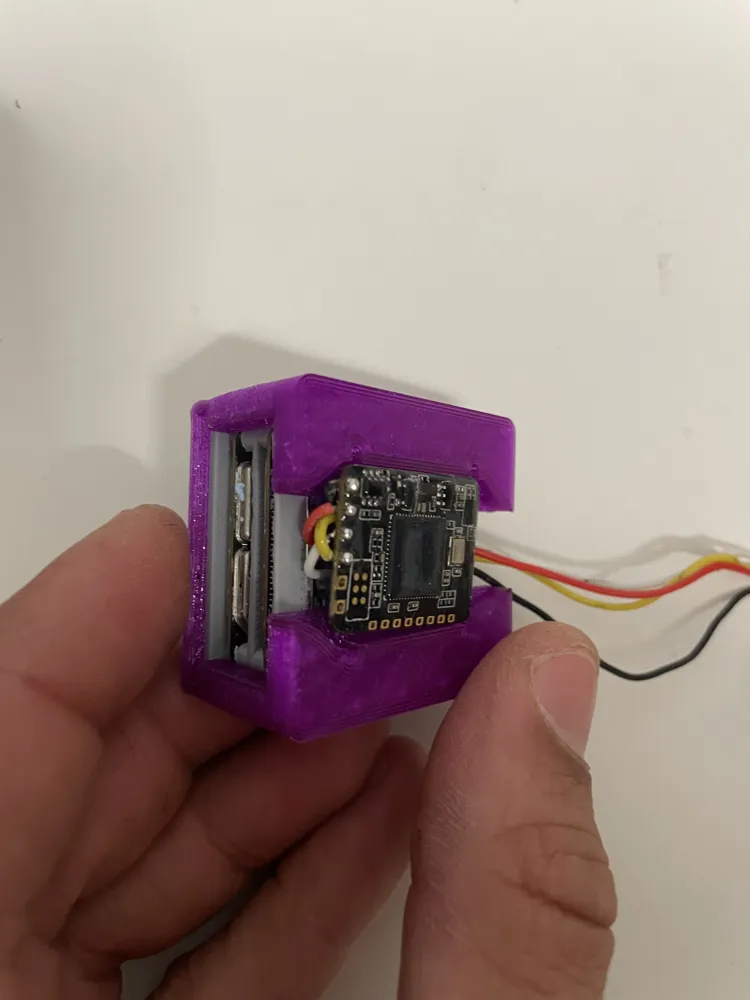

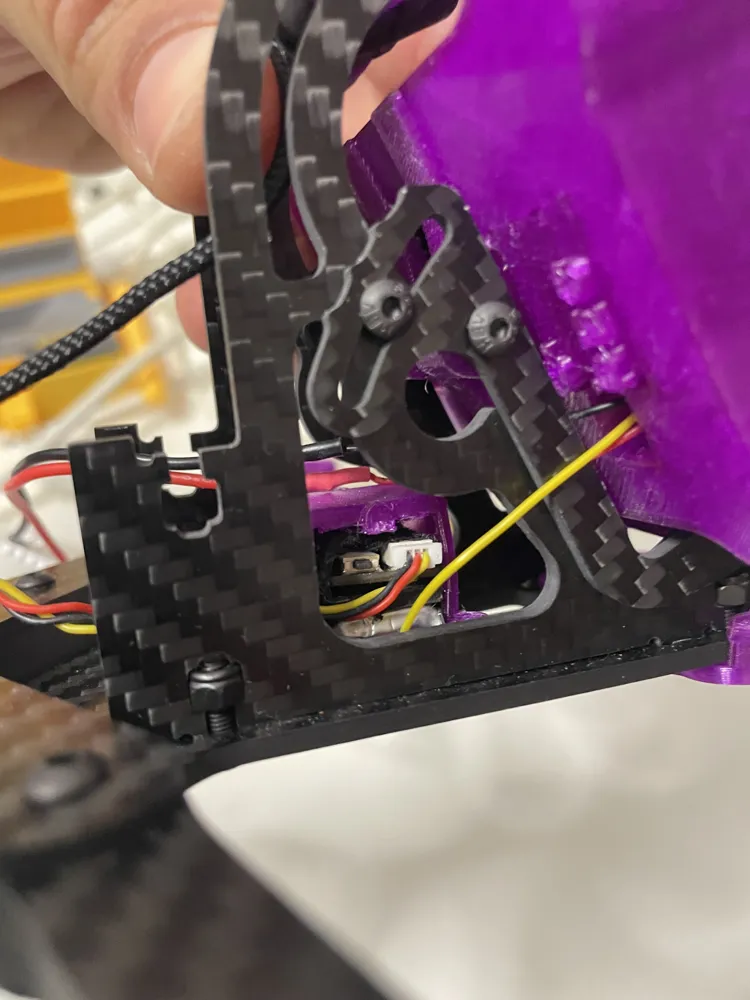

  • Buzzer mount: designed for easy power button access, with grommet supporting cables (coaxial and buzzer cables)

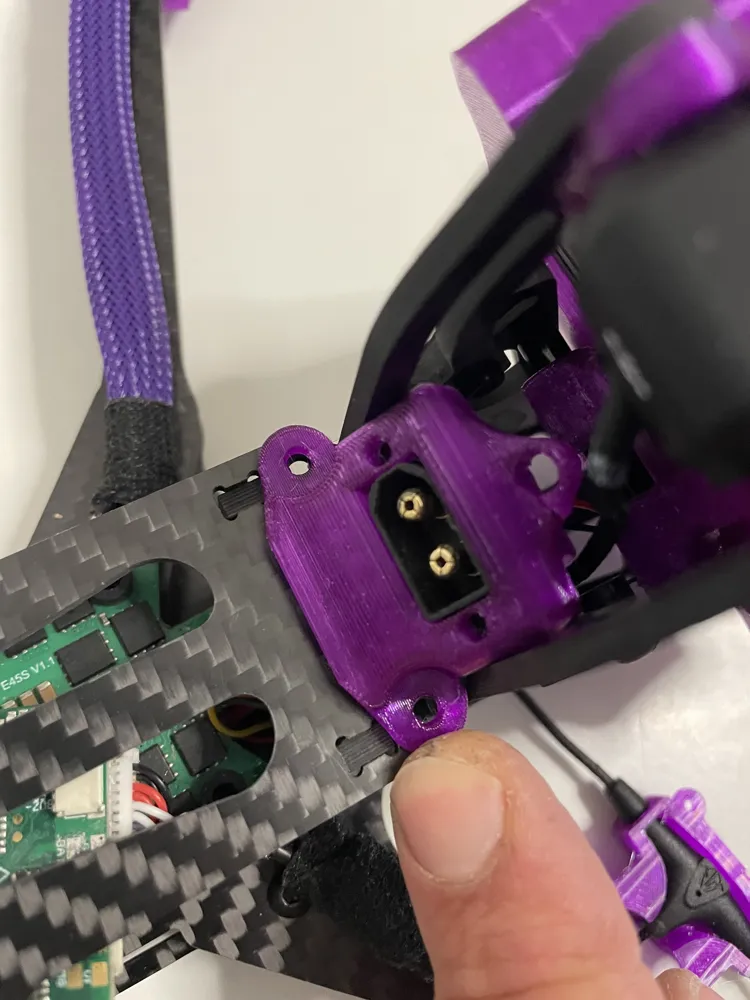

  • XT60 mount: the XT60 interlocks perfectly and requires no screws; the mount is secured to the frame with included screws; with cable grommet

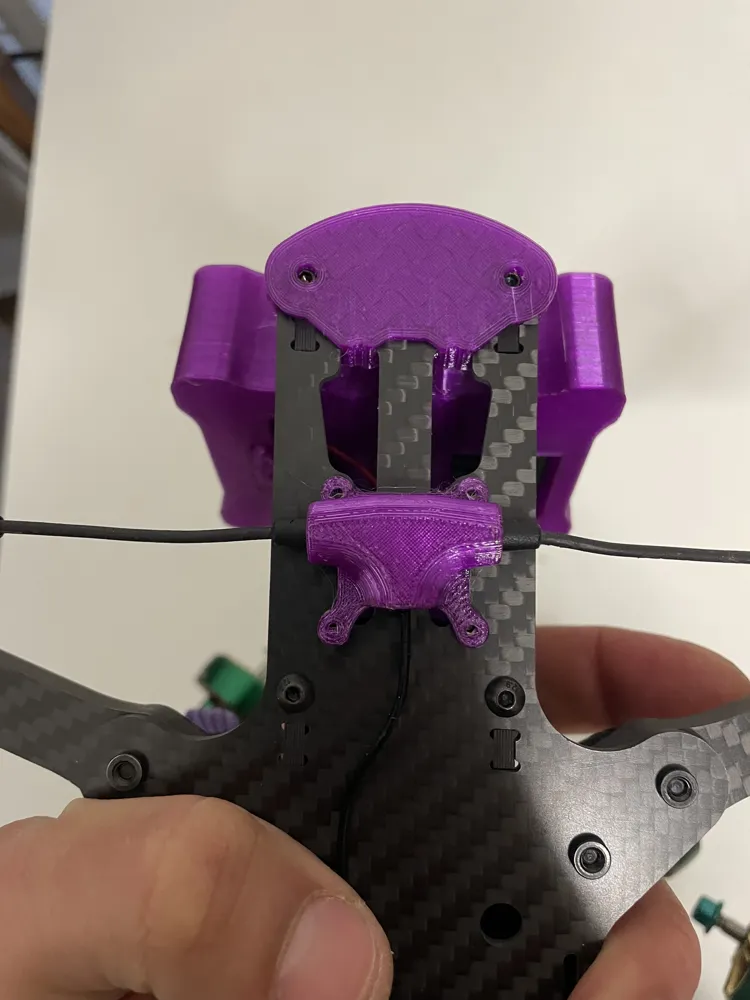

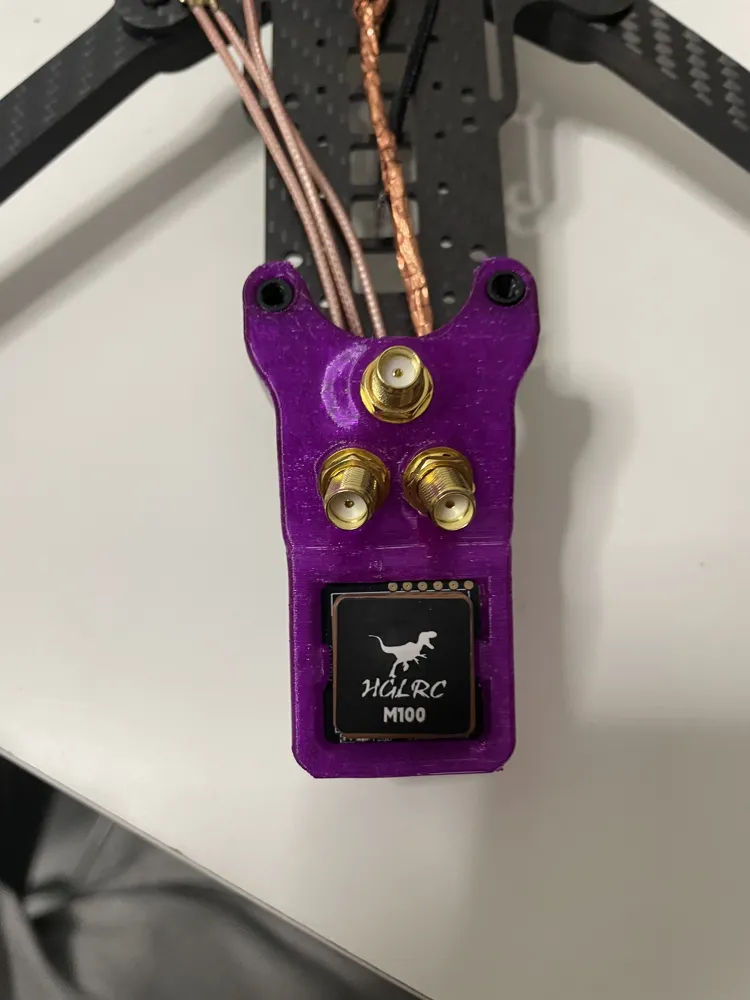

  • Tail: with 3 holes for perfectly inserting 3 hexagonal pigtails for mounting the two VTX antennas and the bardpole; with interlocking Geprc M100 GPS mount
