Angle Finding Jig for Lie-Nielsen Honing Guide
Print Profile(1)
Description

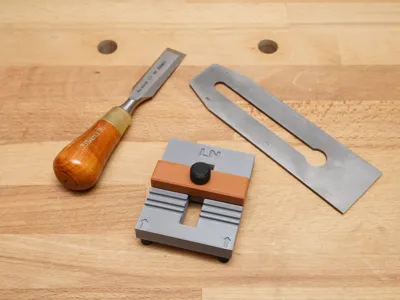

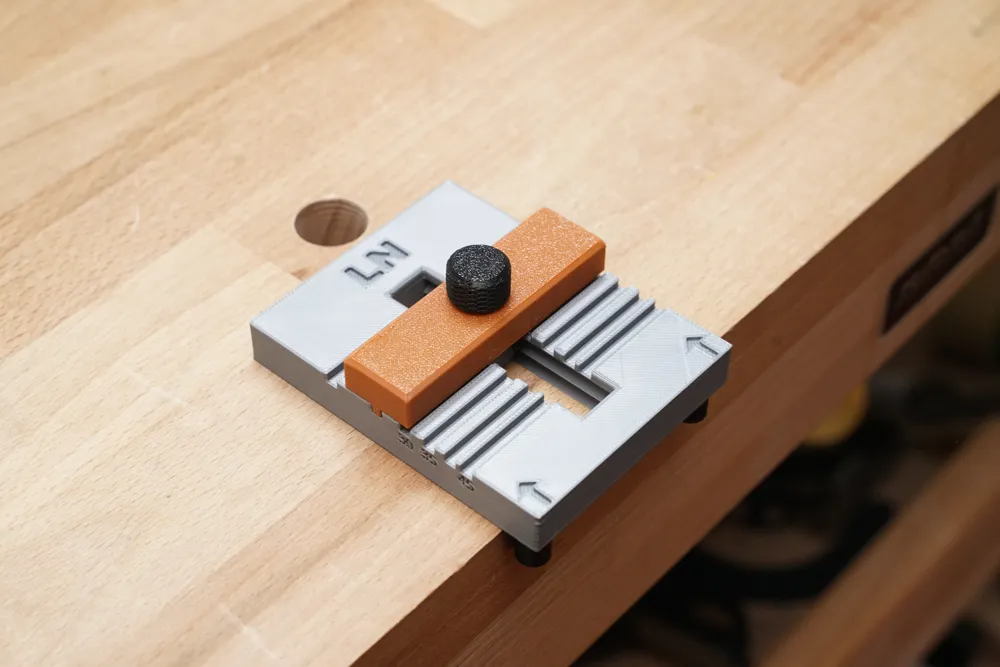

No hardware needed! This Angle Finding Jig is for use with the Lie-Nielsen Honing Guide with chisels and plane irons. Angle projections are set by fixed channels that the stop block can be secured into. This angle finding jig includes bevel angles from 20° to 45°. The angles are labelled across both sides of the jig. Bottom tabs are included to register the jig securely against the edge of your table or workbench.

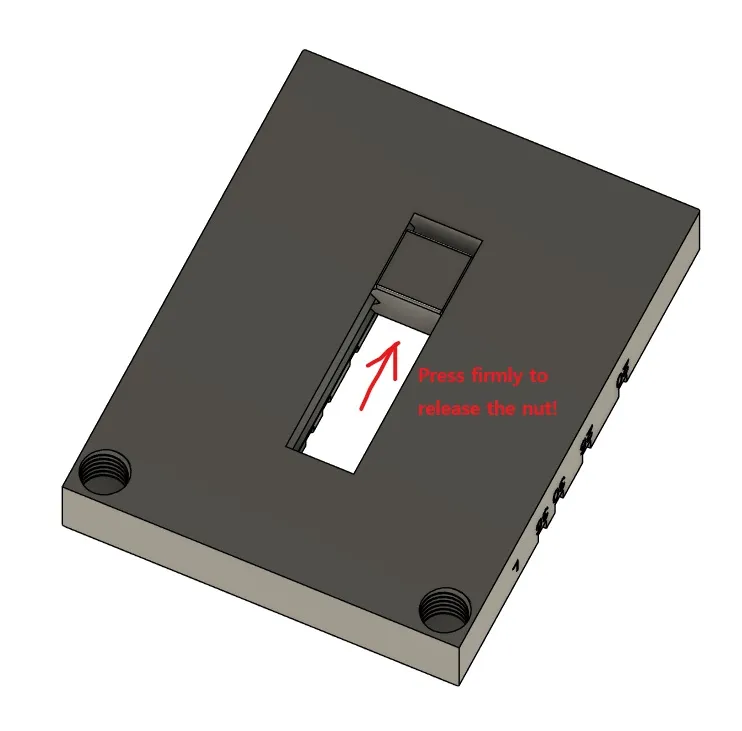

IMPORTANT: The sliding nut is print-in-place! You will need to press FIRMLY towards the top of the jig to release it and allow it to slide smoothly in the rails before assembly. Refer to the diagram below:

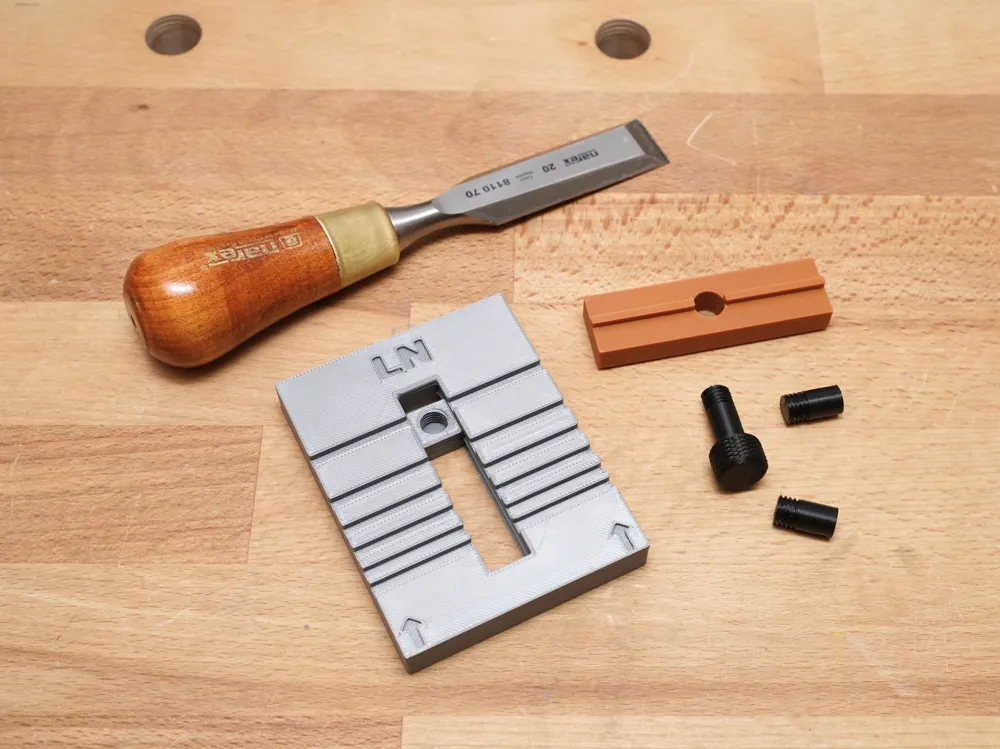

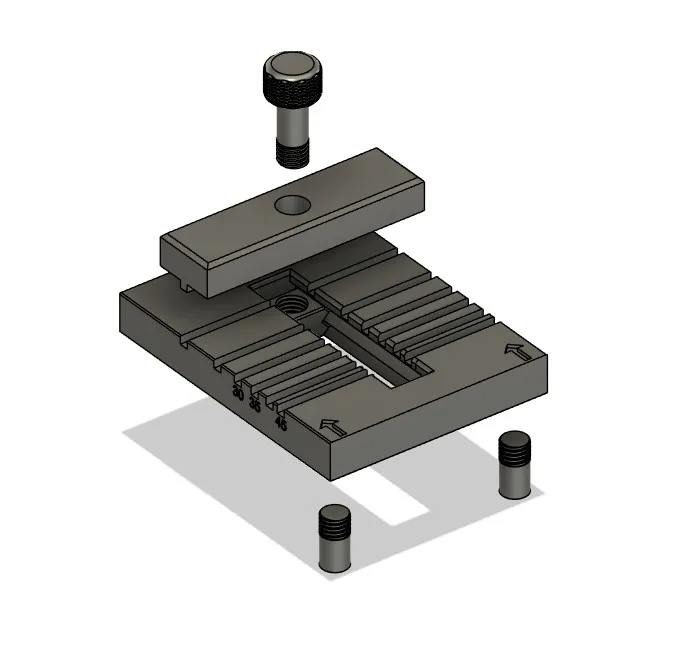

Printed in parts and some minor assembly required. No hardware needed! Simply align the sliding nut with the stop block and fasten the screw. See the diagram below.
Printed in PLA (stop block can be printed in PETG for more durability). Be sure to wash your plate or apply plate glue prior to printing to ensure good adhesion.
