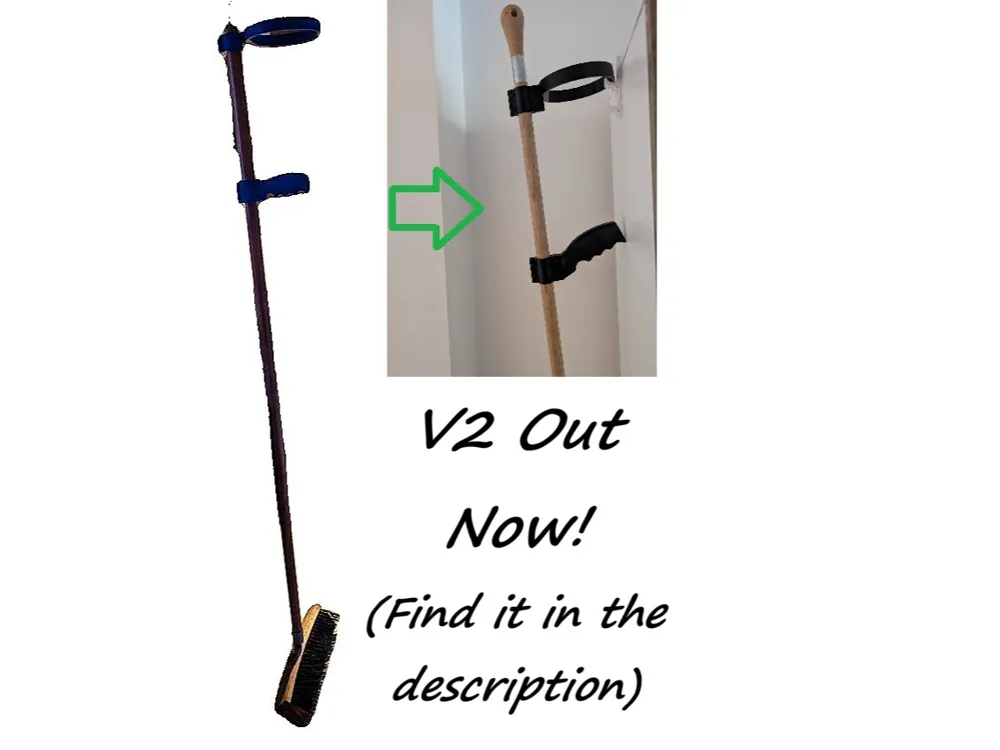

broom handle *[Find V2 in the description!]

THIS is the old (v1) version !!!
Click link for V2 → (V3) !

Find it here

→ (Click Here)

THIS IS THE OLD VERSION!

Check the link in the description for version 2 → 3

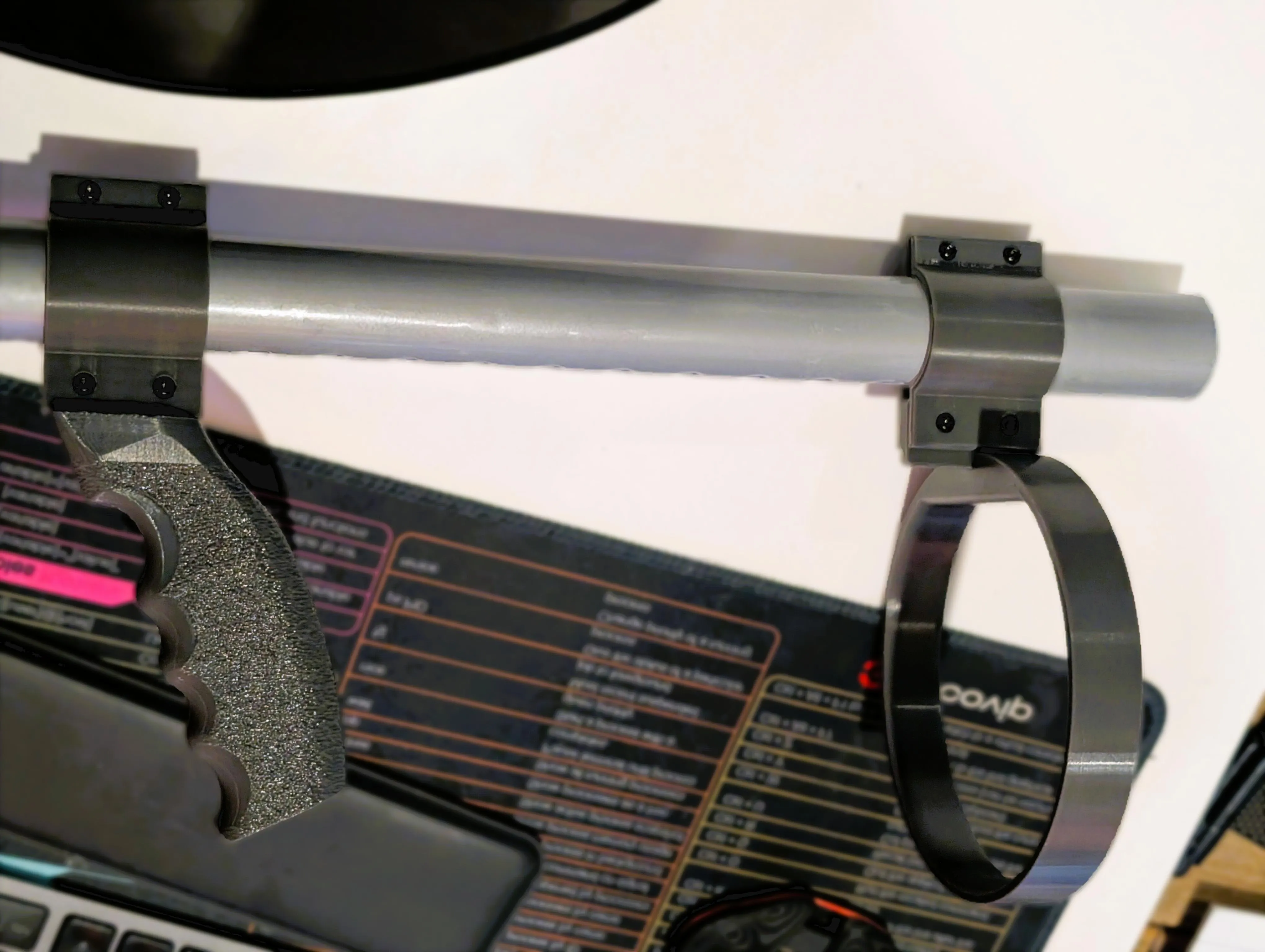

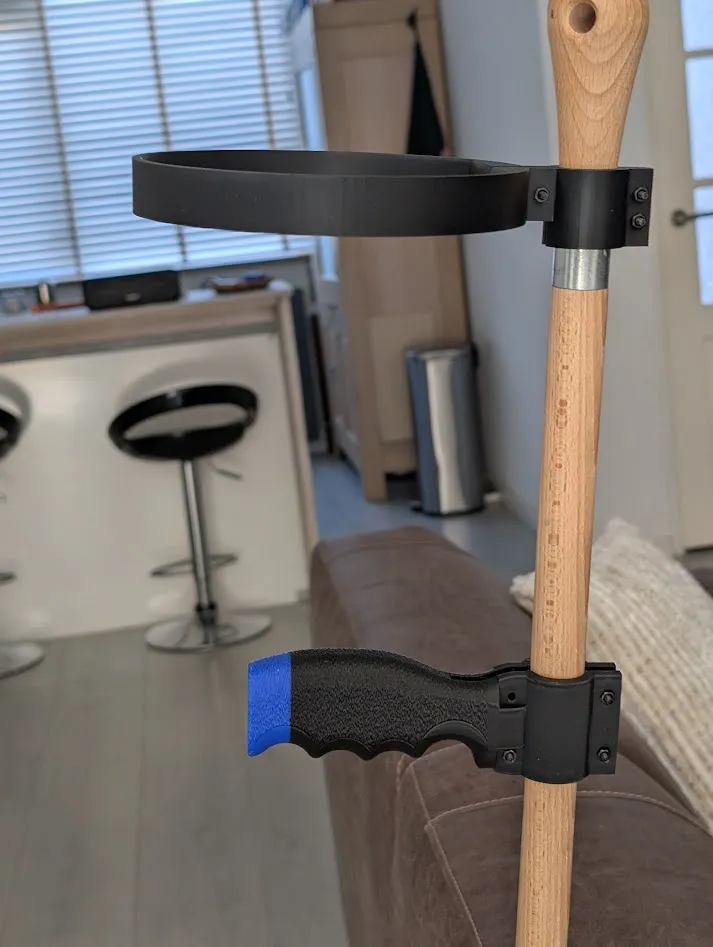

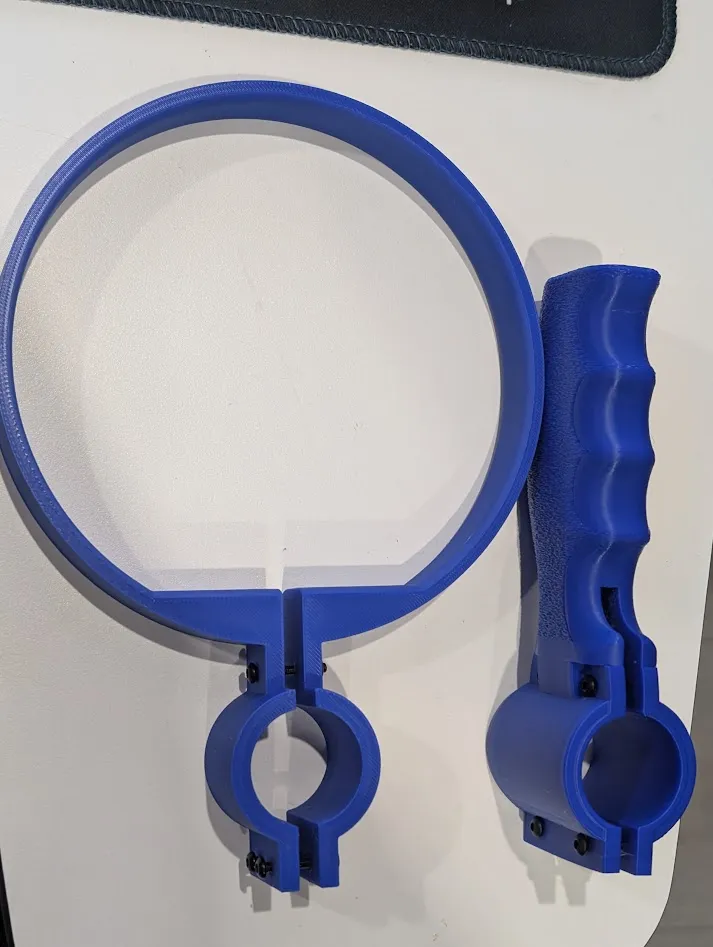

Ergonomic Handle Toolset for any size of pole =D (29-51mm)

• OPTION 1 and 2:

  clamps integrated as one piece for 23mm and 29mm pole size =D (( Most common broom size ))

OR

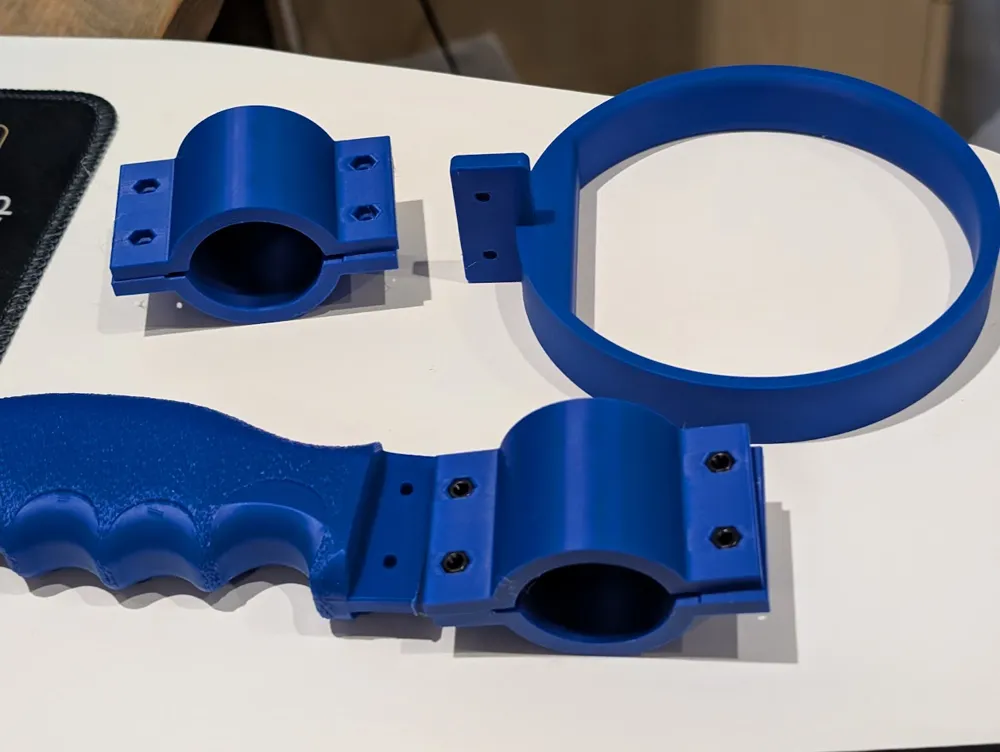

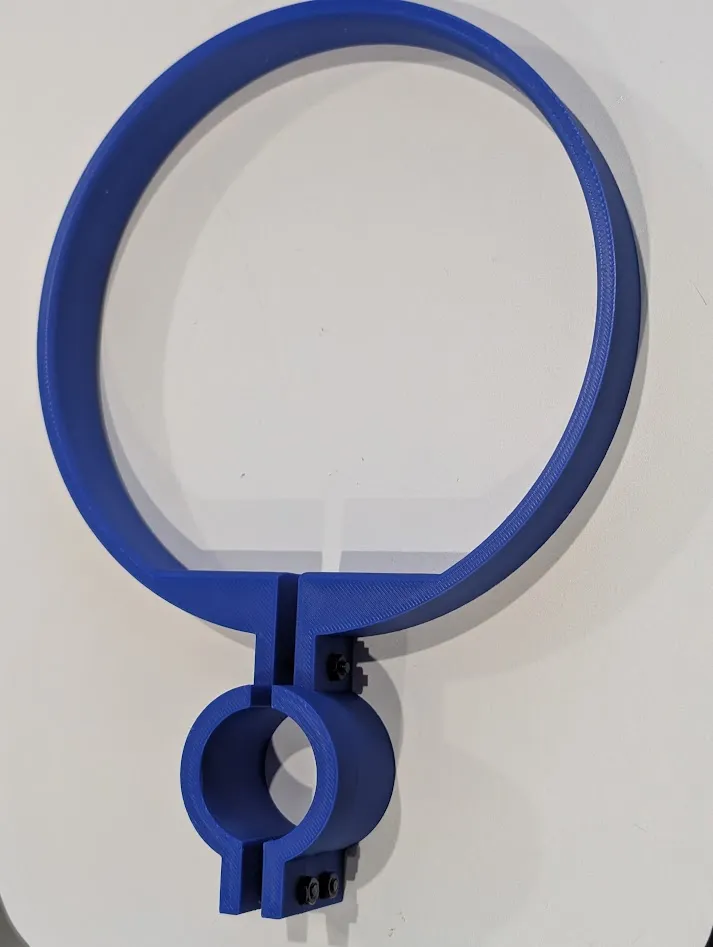

• OPTION 3 clamps in a lot of different sizes:

  Universal pole from [23mm to 51mm] with different sizes of clamps

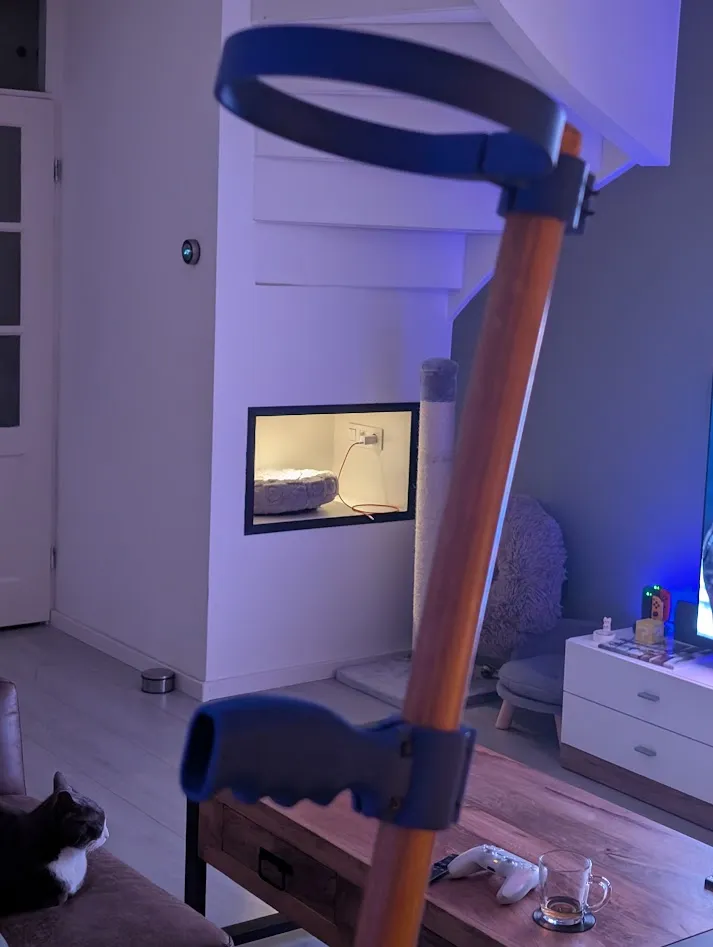

After i lost an arm in a accident, using a broom is heavy on my arm.
This handle makes it a lot better to operate.

________________________________________________________________________________________________________

OPTION 1 and 2:

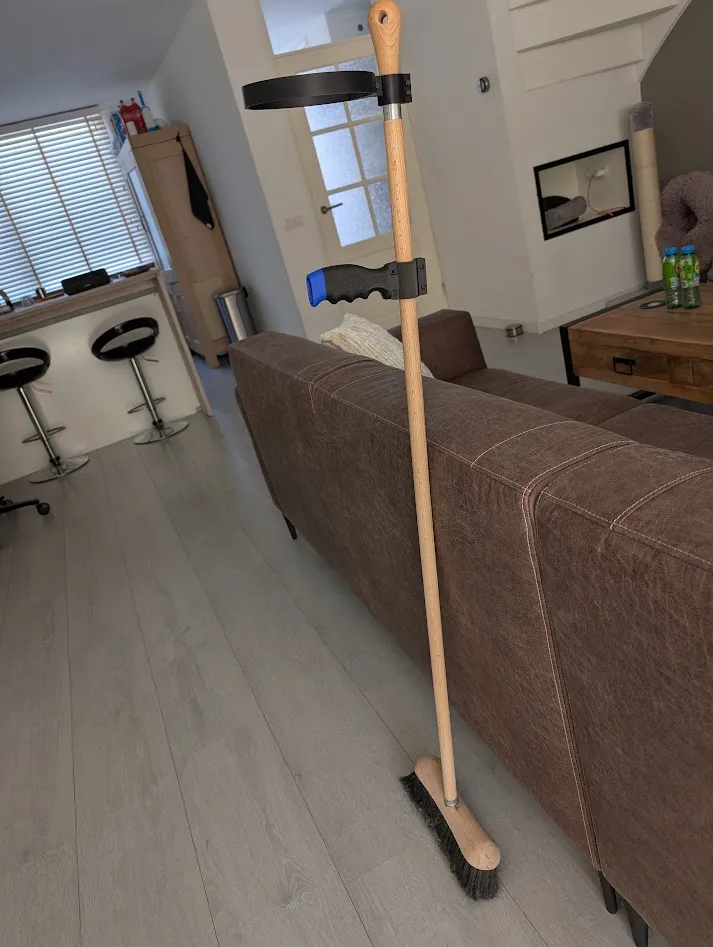

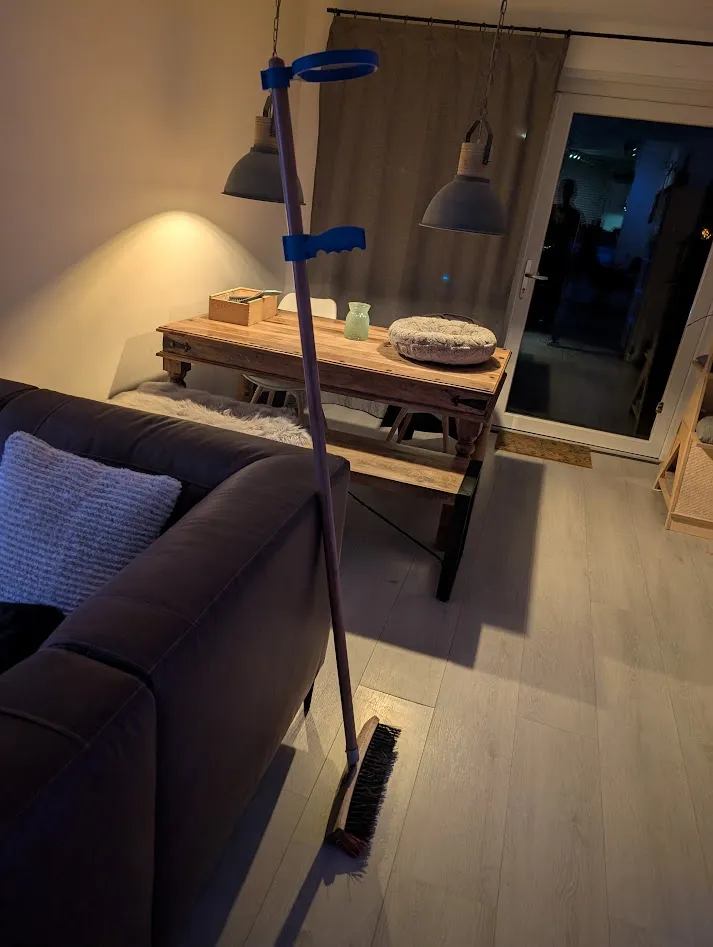

I use this on my inside and outside broomsticks 23mm and 29mm { MOST BROOM POLES ARE THESE SIZE ! }

You could download the " [ one piece (with clamp) ] handle and ring 3mf " for 23mm or 29mm for most sticks

--------------------------------------------------------------------------------------------------------

OPTION 3: different sizes

1. 23mm
2. 25mm
3. 27mm
4. 29mm
5. 31mm
6. 33mm
7. 35mm
8. 37mm
9. 39mm
10. 41mm
11. 43mm
12. 45mm
13. 47mm
14. 49mm
15. 51 mm clamps.

Use OPTION 3 and select the right clamp size for you're pole =D

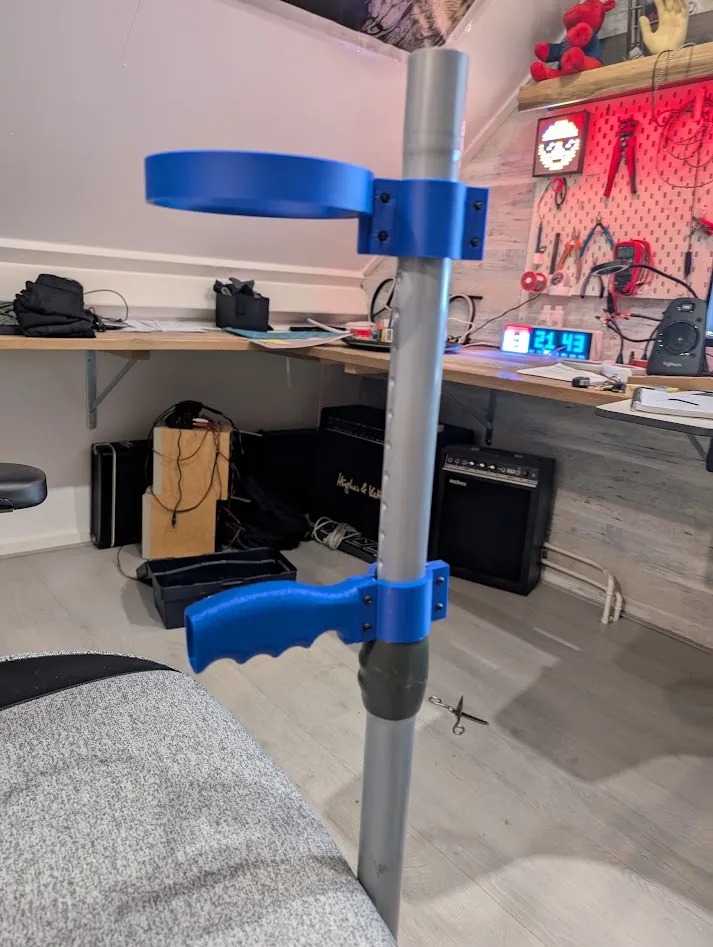

I use it on my vacuum with a 33mm and a 35mm clamp.

___________________________________________________________________________________________________________

 *** Added Hardware

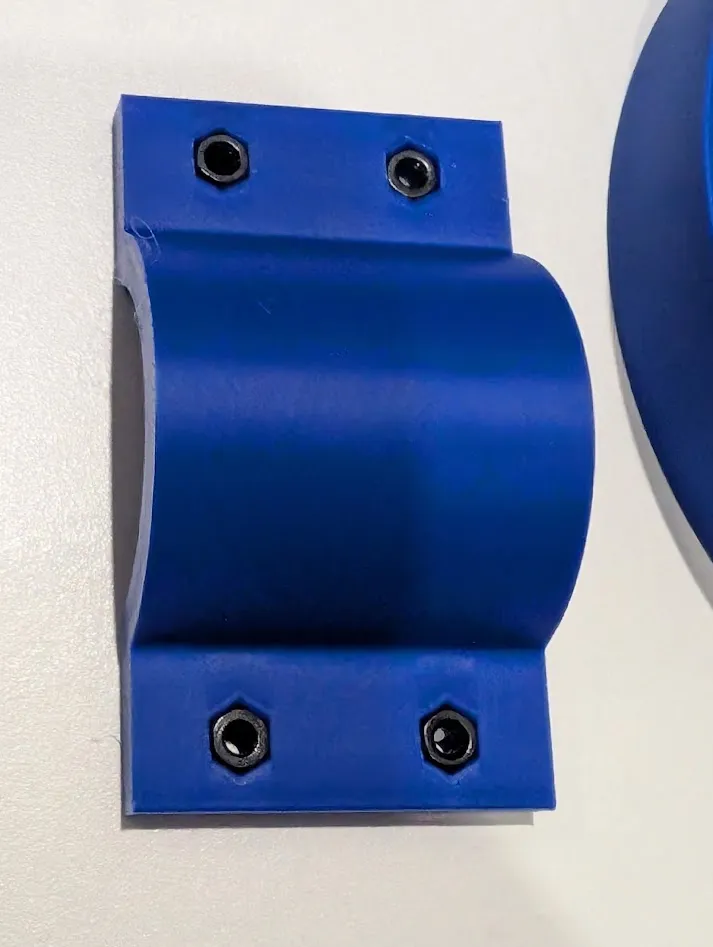

• 8x M3 x 18 / 20 bolts
• 8x M3 Nuts

*** Slicer Settings

( ( for excellent properties ) ) ***
All parts:

 - Strength -

• [Wall loops]: { 4 }
• [Sparse infill density]: { 30% }
• [Sparse infill pattern]: { Rectilinear }

 - Support -

• [Enable Support]: { Check }
• [Type]: { tree(auto) }
• [Remove small overhangs]: { Check }

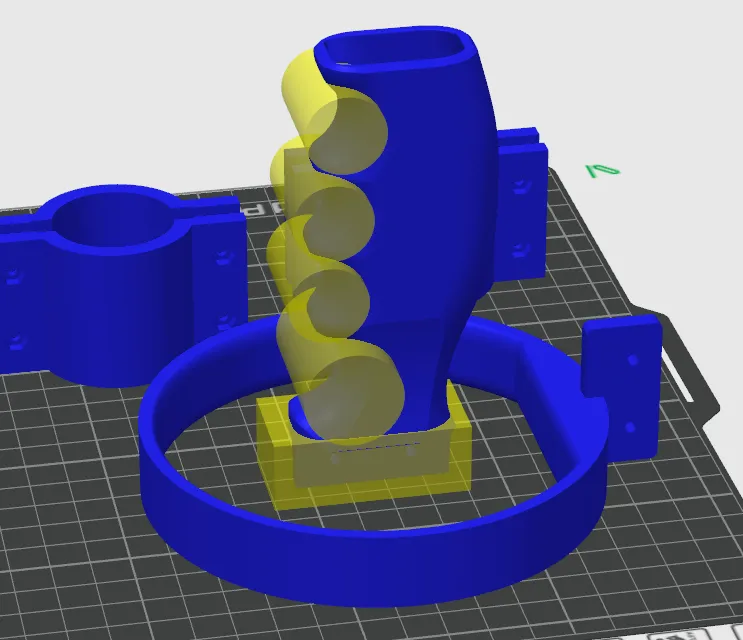

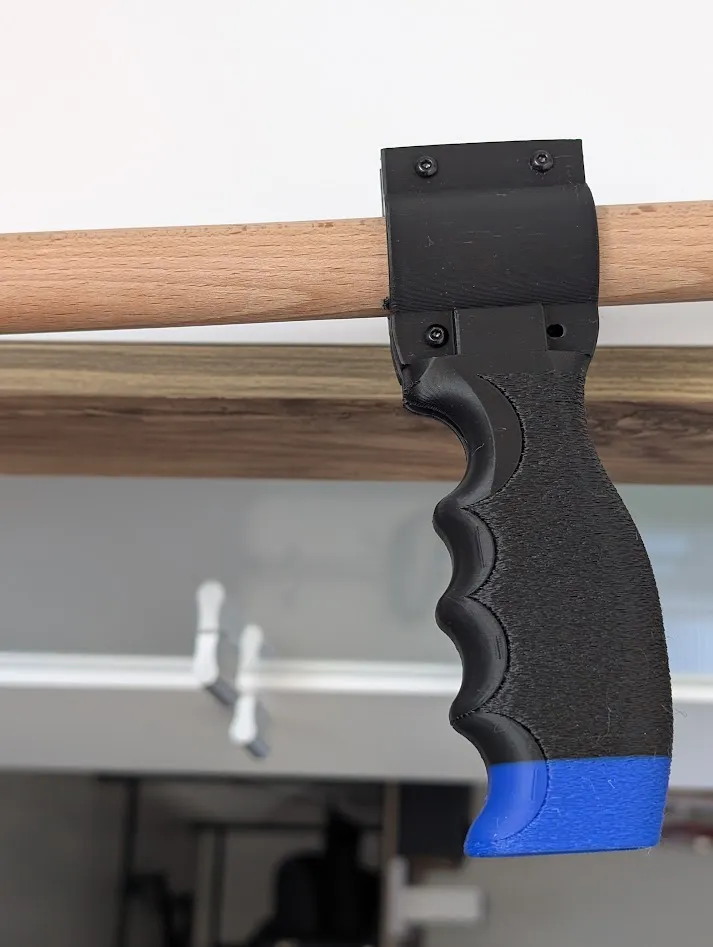

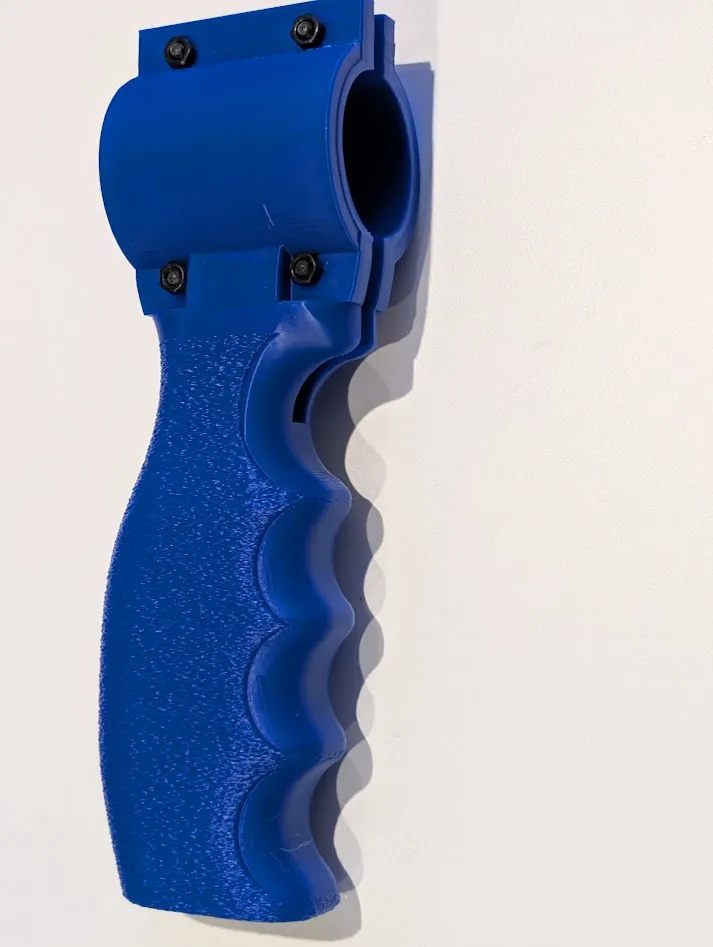

Handle:

 - Other -

• Added ‘Fuzzy Skin’ on Contour for the handle.
  + Added modifiers without 'Fuzzy Skin' for the fingers and mounting part.

Best printed in PETG / ABS etc. for best strength.
