A1 Y-Axis Dust Cover
Print Profile(1)
Description

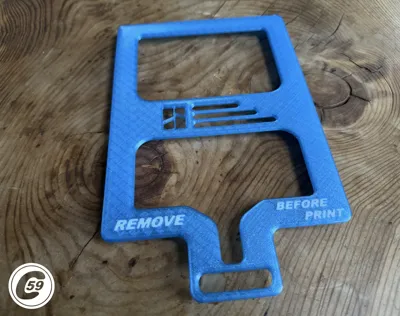

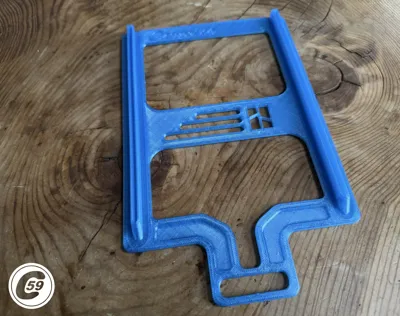

A1 Series Y-Axis Dust Cover (ASYDC)
Linear Rail Protection for Bambu Lab A1 Series
Features:
- Shields the Y-axis linear rail from dust and debris when the printer is not in use.
- Simple to install and remove for regular maintenance.
- Designed specifically for the A1 models.
⚠️ Reminder:
Remove the dust cover before starting a print.
A self-removing version and matching X- and Z-axis covers are currently in development.

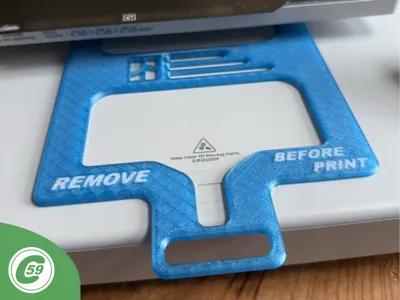

Installation Instructions – ASYDC (Y-Axis)
- Move the bed fully to the back of the printer.
- Align the dust cover slots with the bed.
- Ensure the handle faces the front of the printer.
- Lower the cover gently into place until it sits securely.
Removal Instructions – ASYDC (Y-Axis)
- Pull the removal tab located at the front of the cover to lift and remove it easily.
v1.0 Specifications Y-Axis
Material: PETG (Colored Remove logo)
Printer Settings:
- Clean Build plate: Rinse with dish soap under running water, then dry with a microfiber cloth. !
- Profile: Standard
- Layer Height: 0.20 mm
- Mode: Standard
- Infill: 15%
- Walls: 2
- Bottom Layers: 3
- Top Layers: 5
Printing Details:
- Supports: Not required
- Print Time:
- Standard Mode: 02:00m33s
- Filament Usage: 1.90 oz
- Estimated Cost: ~$1.66 (based on $26 PETG spool)
