Description

Boost Me (for free)

If you like my design(s), please give me a boost to make me aware of it.
Thank you!

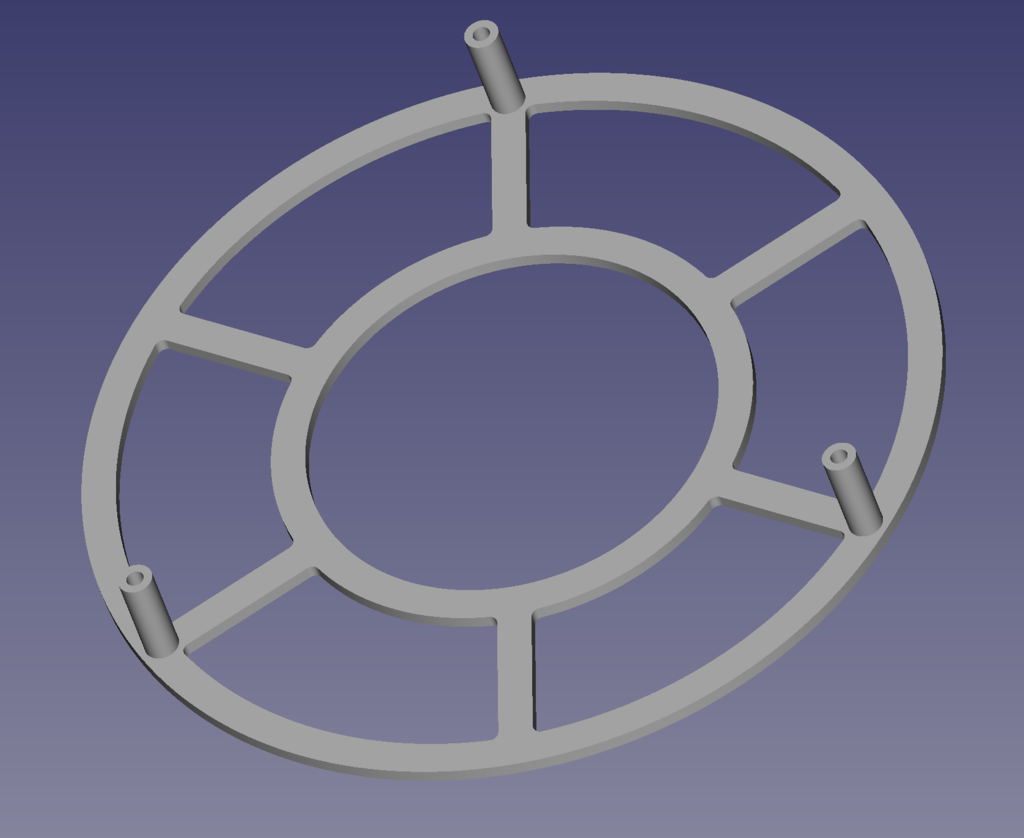

This is a revised version of my expandable tomato support which was uploaded in July 2024 at Thingiverse : https://www.thingiverse.com/thing:6692238

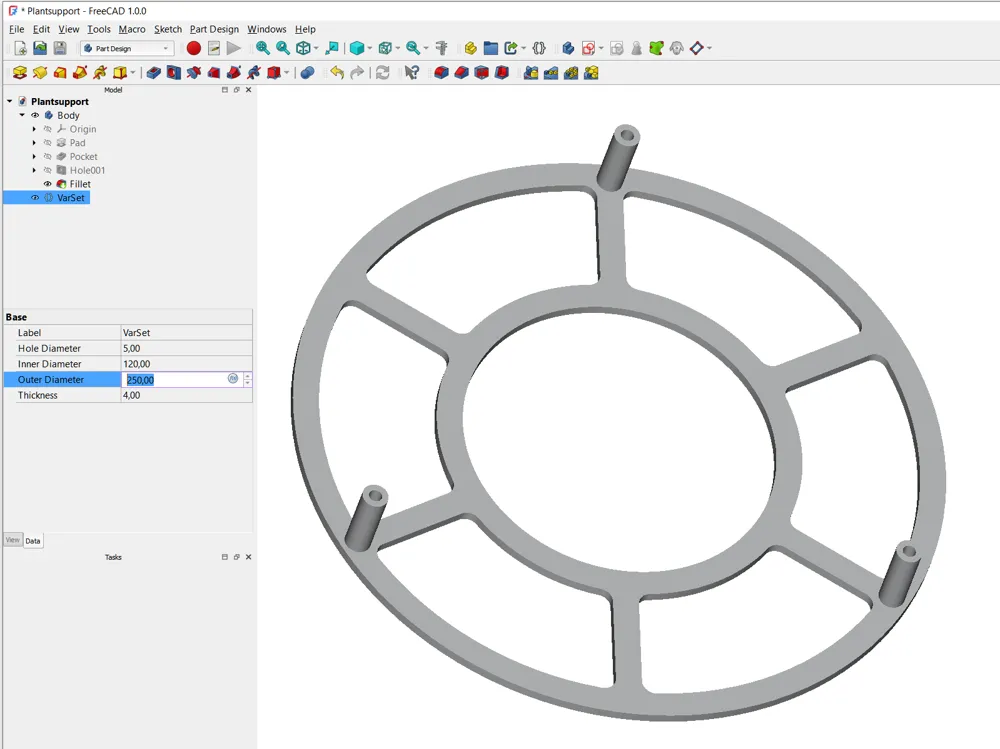

This new version can be automatically adjusted with changing the VarSet variables.
With this it's should be possible to make a support suitable for most situations.



The default dimension of the hole is set to 5,2mm, so any kind of round flower sticks with diameter 5mm should
be suitable (this can be adjusted in the FreeCad variables otherwise)

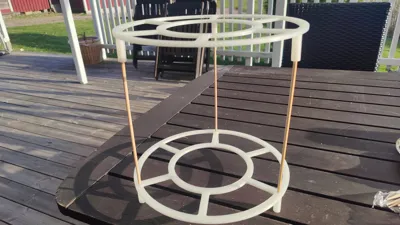

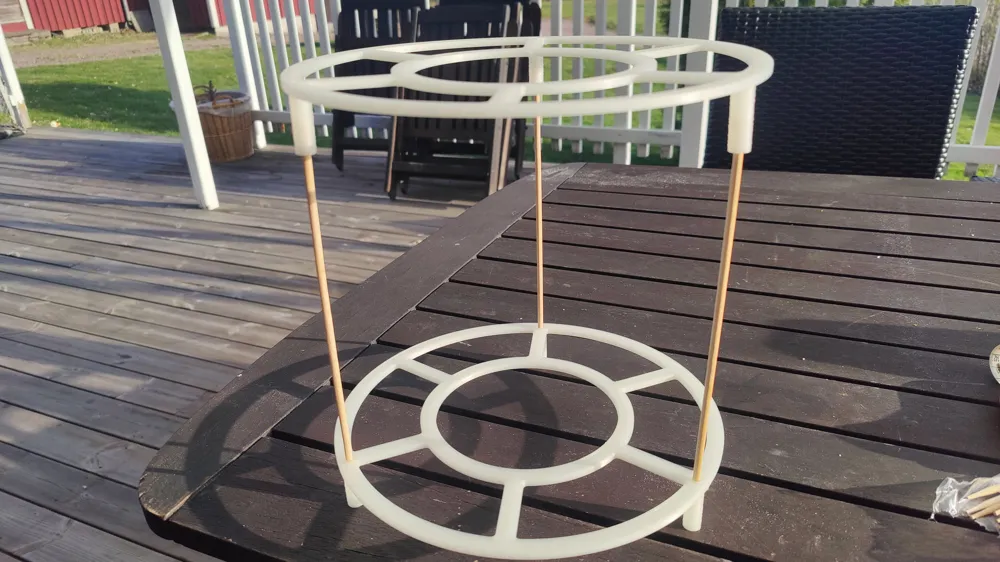

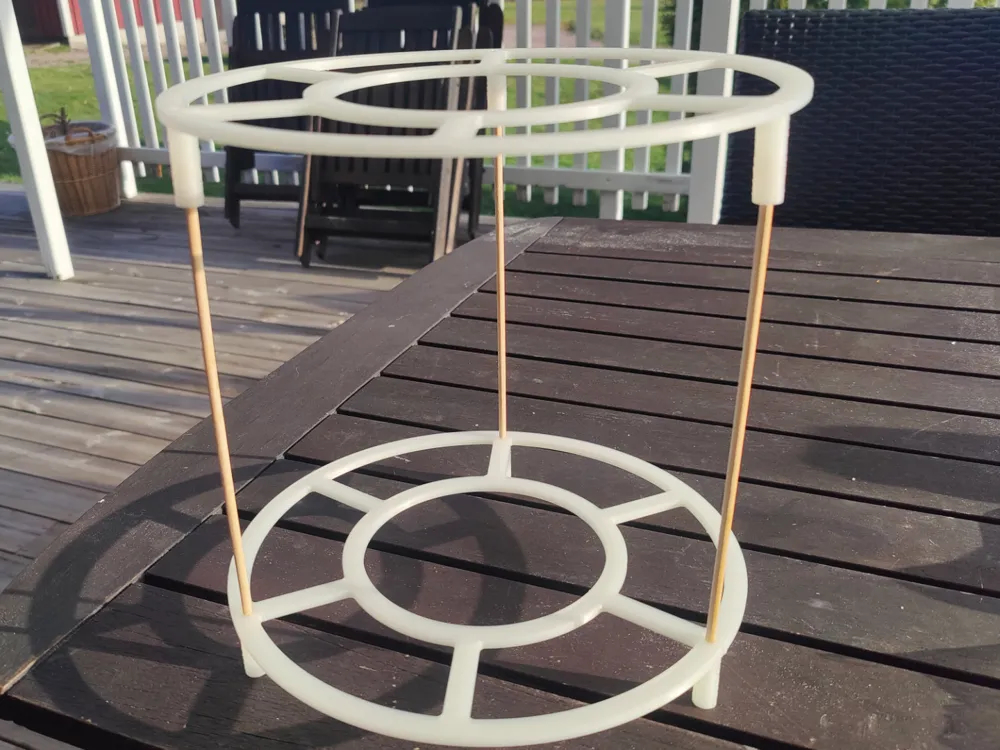

This one is "expandable" in "unlimited" levels during the plants growts, just add 3 flower sticks in the same length to add another support circle.

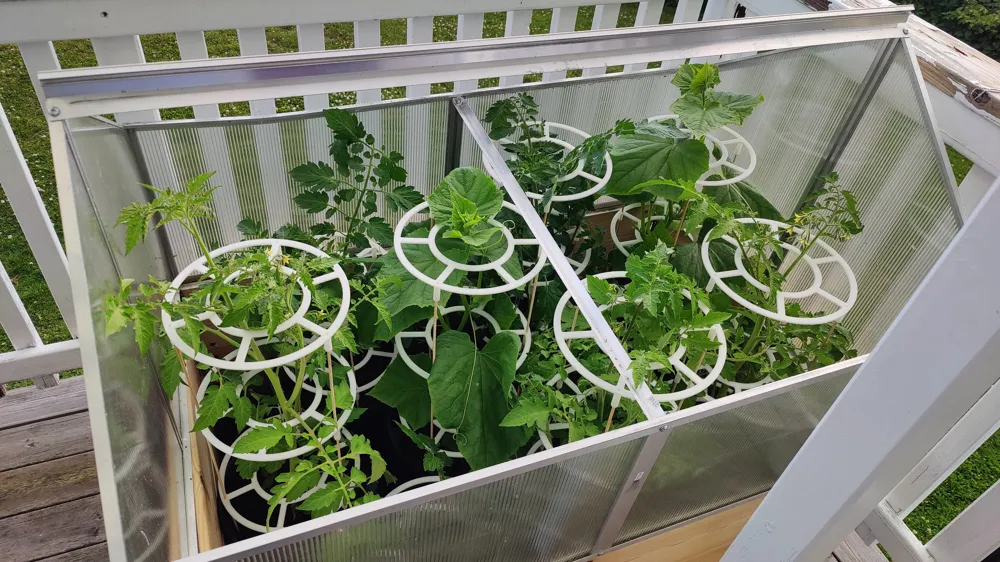

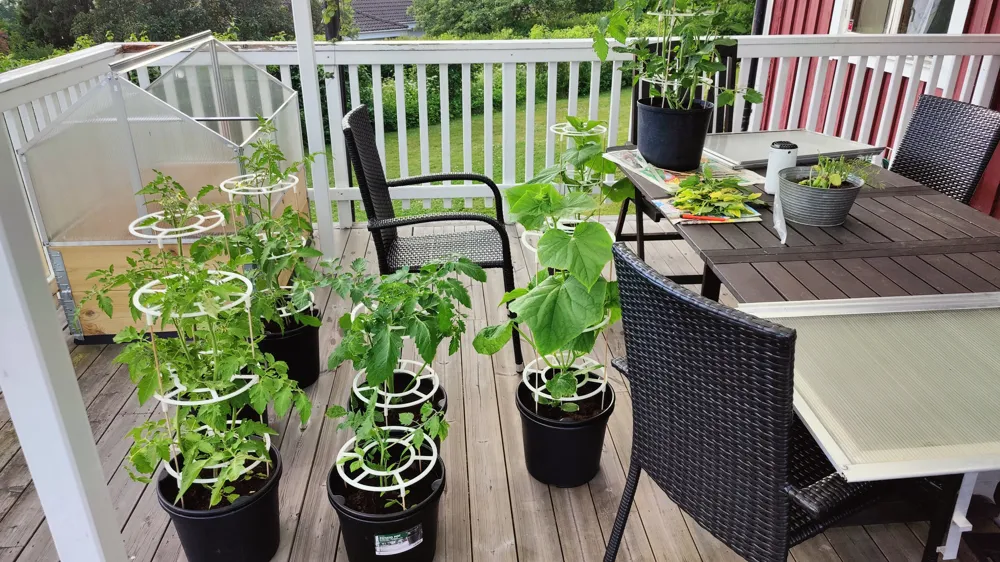

This works well on both tomato and cucumber plants =)



3 dimensions are preconfigured on the project file



* Outer diameter = 250mm (Inner = 120mm)
* Outer diameter = 200mm (Inner = 80mm)
* Outer diameter = 150mm (Inner = 50mm)
