Shampoo holder for 150mm shower mixers

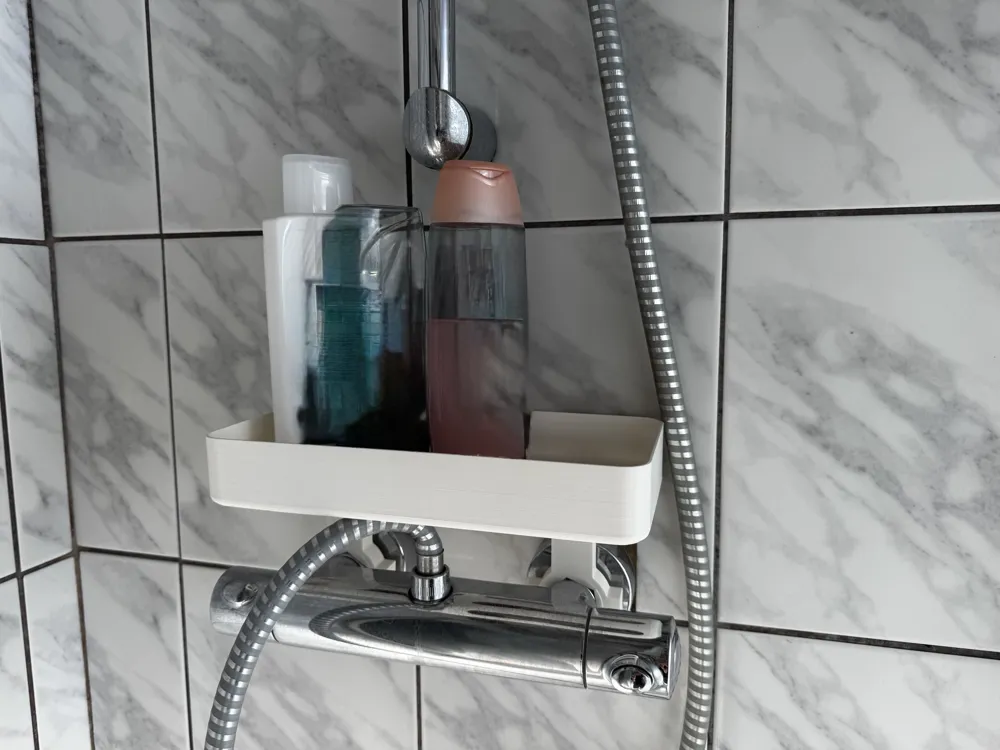

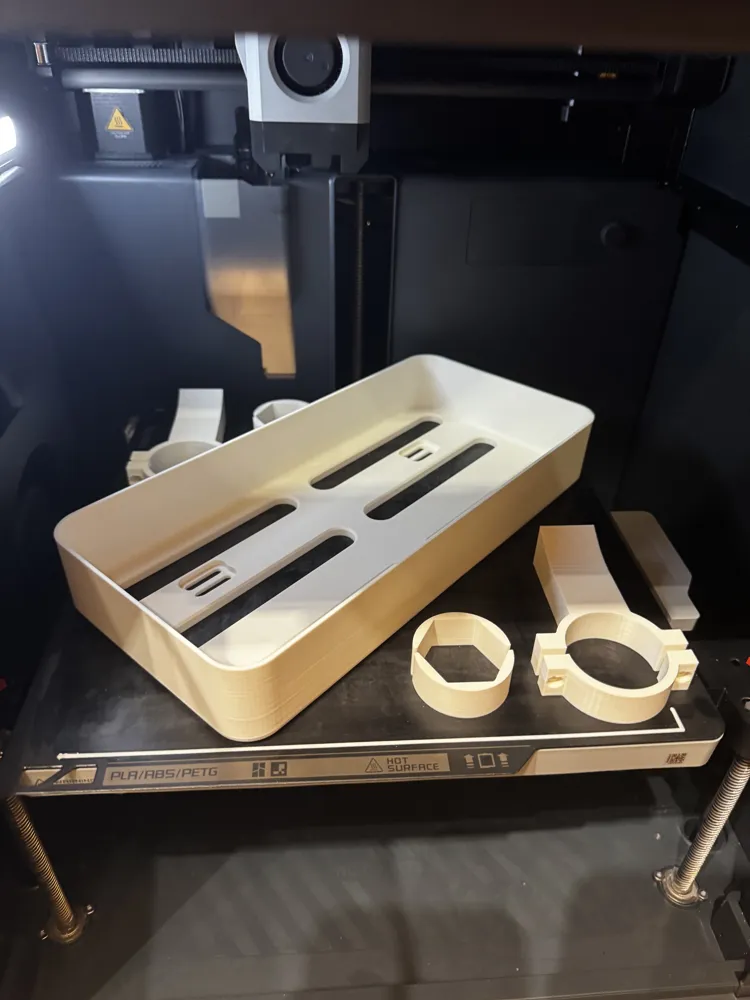

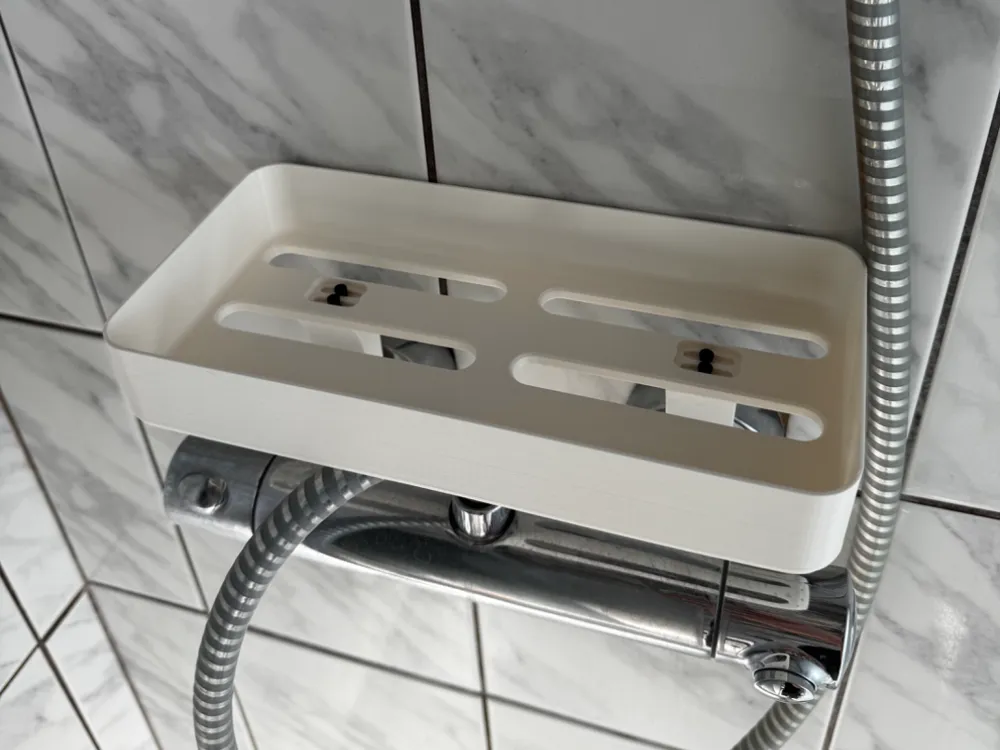

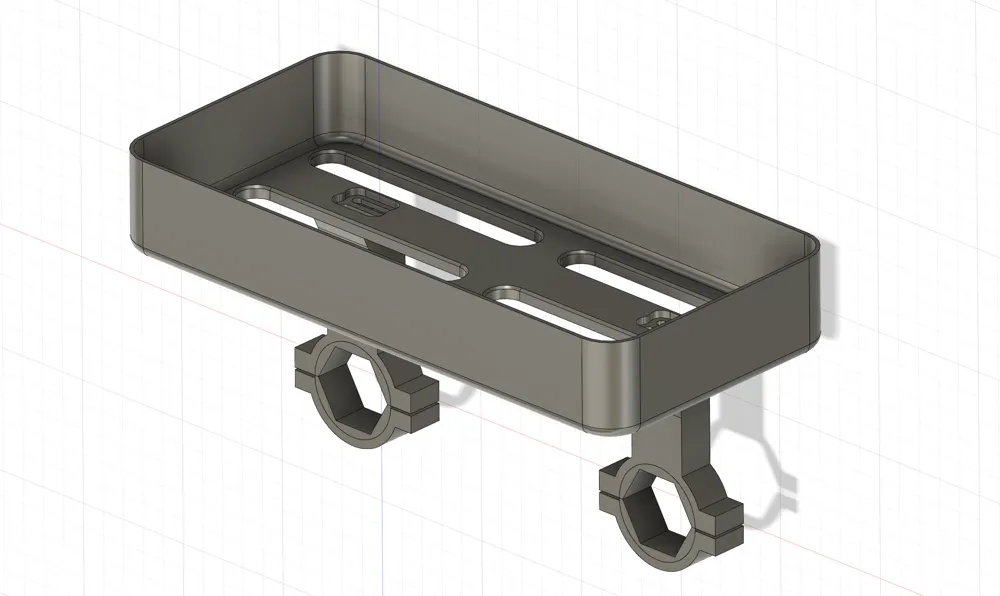

This model is designed to hold shampoo bottles above the shower mixer. So if you don't have a suitable shelf in your shower, you can print this model so that you don't have to drill holes in the tiles, for example, in a rented apartment. This shelf offers space for 4-5 shampoo bottles and other things you might need. In my case, the connection was made using melt inserts and M3 screws. For assembly, always use stainless steel screws so that they do not start to rust. I printed this model in ASA and then smoothed it with acetone. This should prevent water from penetrating the inside of the model. The model is designed to be attached to the locking nuts of the mixer. Since these are not always in a defined direction, the holder was designed to be rotatable, so it is independent of the angle of the nut. See the detailed pictures of the model for this. The hexagon has a wrench size of 30mm. The hexagon is split in the middle.
