Automatic Chicken Waterer with Anti-splash Water Trough for Chicks

Recently started raising chicks at home, the water dispenser I bought was too big, and the chicks kept running into it, making a mess everywhere, so I designed one myself

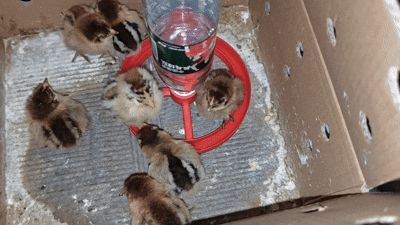

The trough of this water dispenser has been narrowed, preventing chicks from stepping into it, which led to the trough getting dirty and splashing water all around After several revisions, the current design was achieved

In actual use, chicks can drink water normally, and they no longer step into the trough unless it's too crowded, and there have been no more instances of chicks falling into the trough

Regarding dimensions, to facilitate A1 mini printing, the size I designed does not exceed the mini's build plate For the threaded opening, I designed two versions based on common bottle necks And to make it easier for everyone to identify, I also made a set of threaded opening identification blocks (6g) Once printed, you can test it with your bottles, if it screws in normally, it can be used

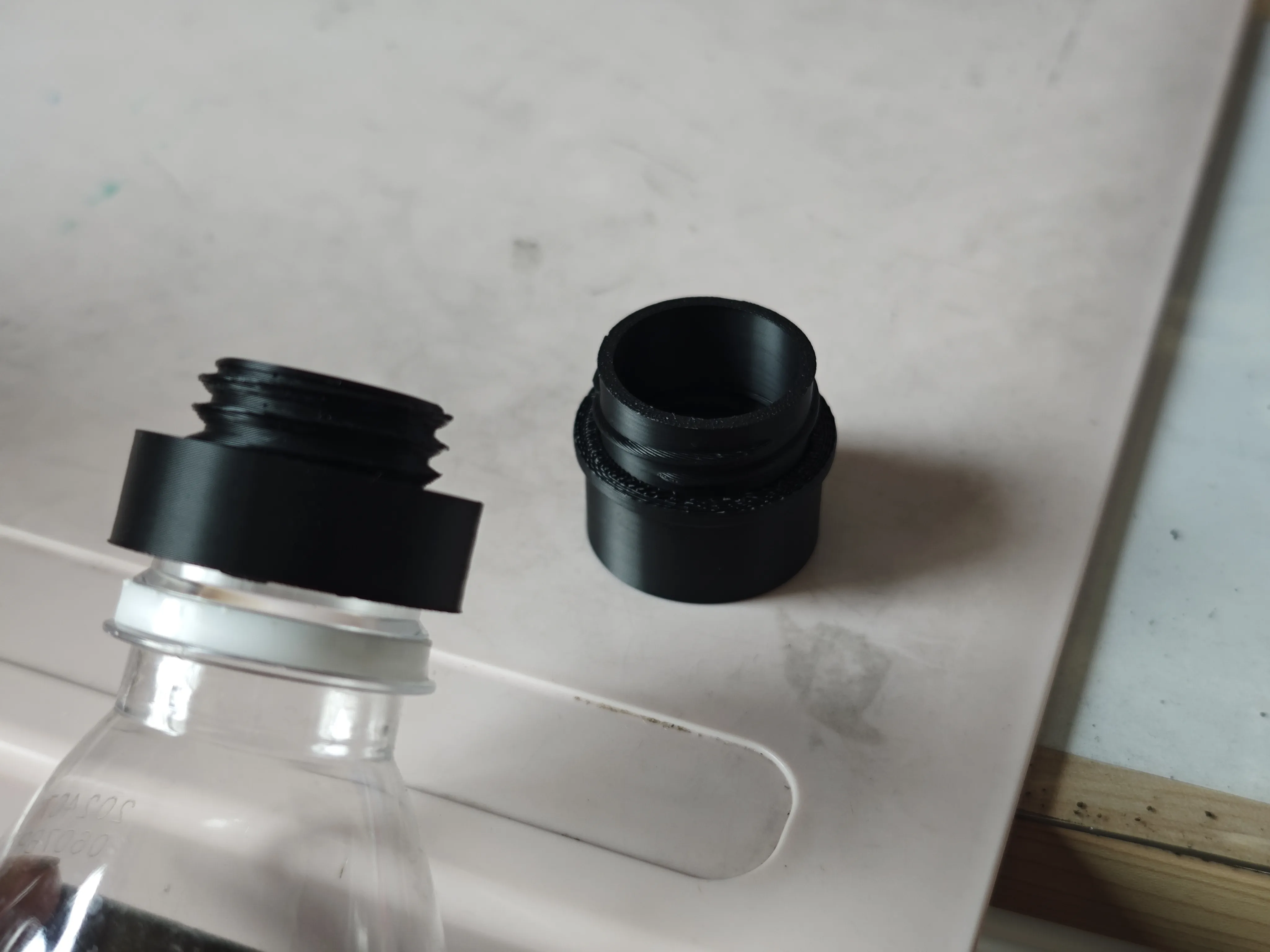

For users who have bottles but printed the wrong model type, I have created a bottle neck adapter, which makes it more convenient to use You can check my homepage models or click the image to jump
