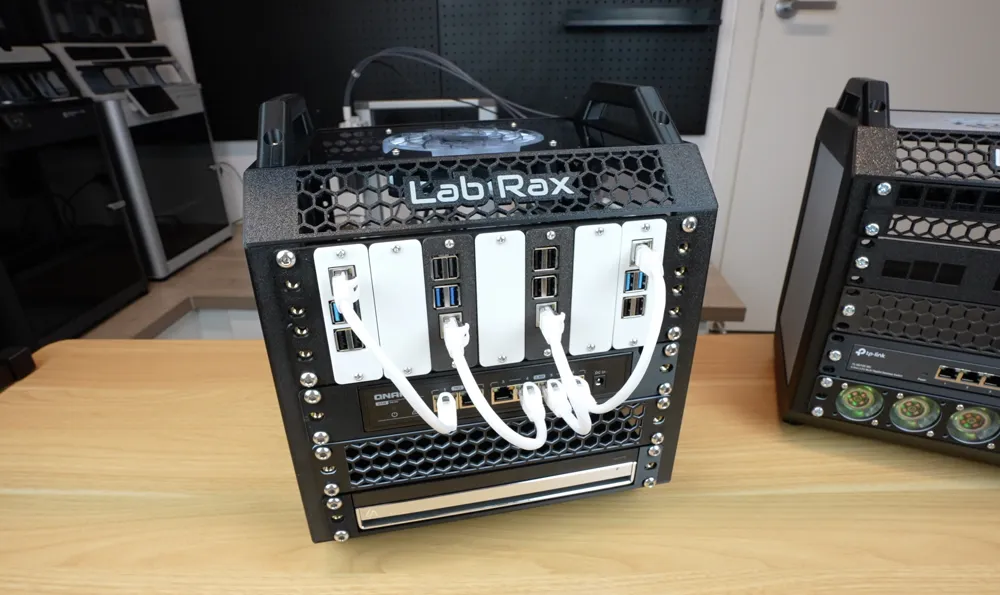

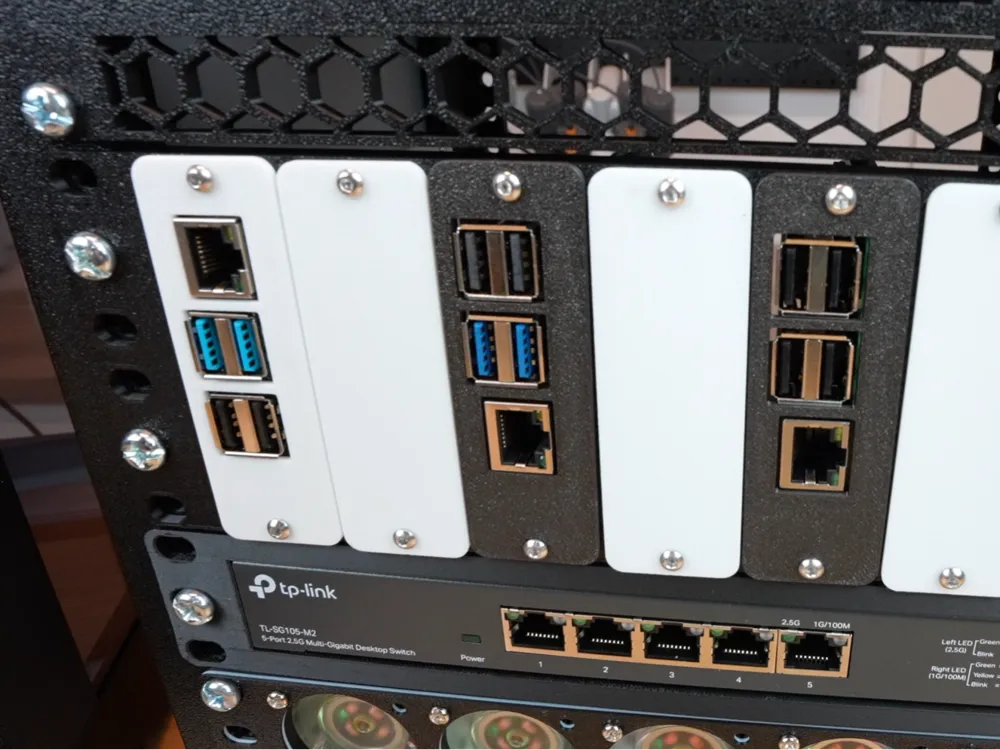

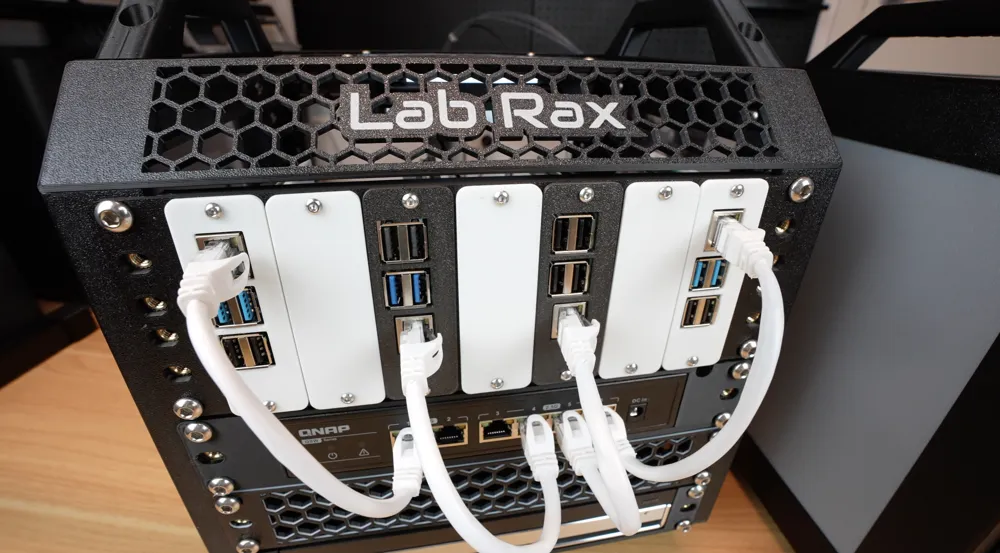

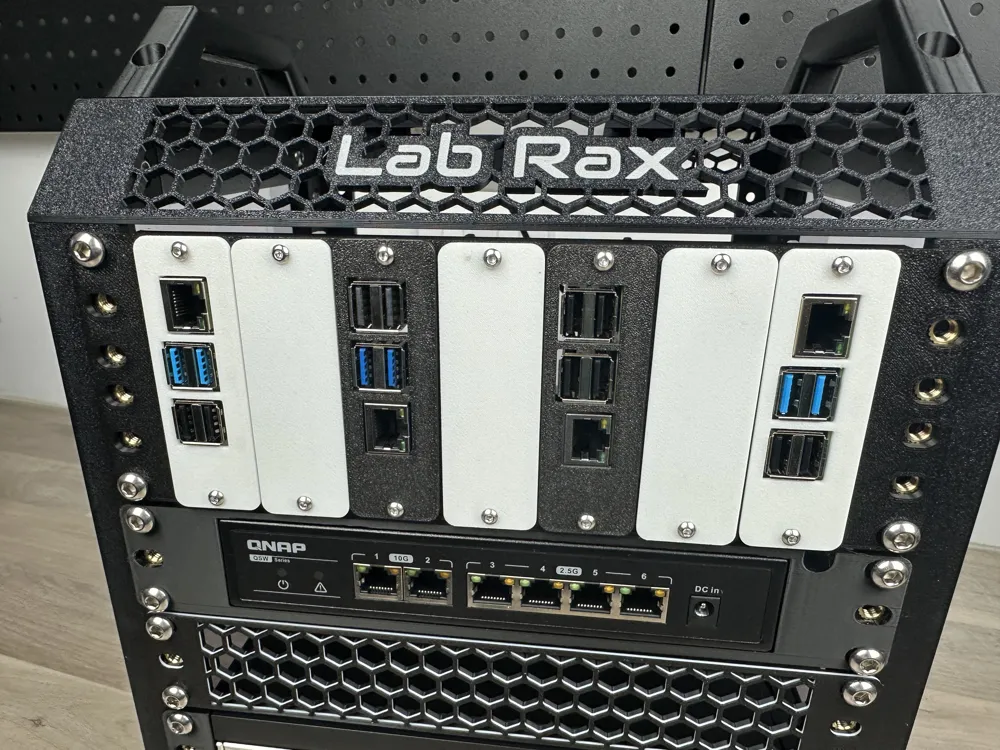

A simple 2U rack panel that holes up to 7 trays for single board computers. I've also included trays for the Rapsberry Pi 4 and Raspberry Pi 5 (also fits Pi 3).
To finish it off, you'll need to install some M2.5 or M3 brass inserts (M2.5 or M3 x D3.8 x L4.5) into the cavities on the holder. Each tray is then secured with two M2.5x6mm or M3x6mm screws.
The SBCs are secure to their trays using M2.5x6mm screws and M2.5 nuts on the back in the recess.
