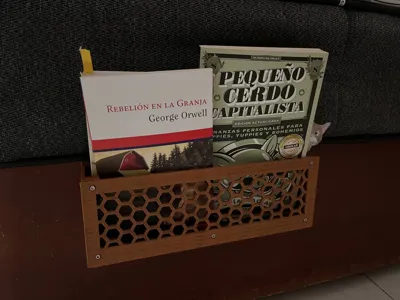

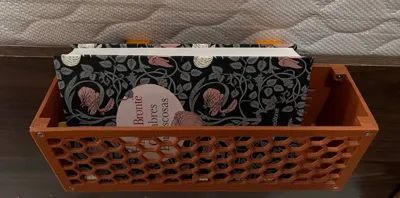

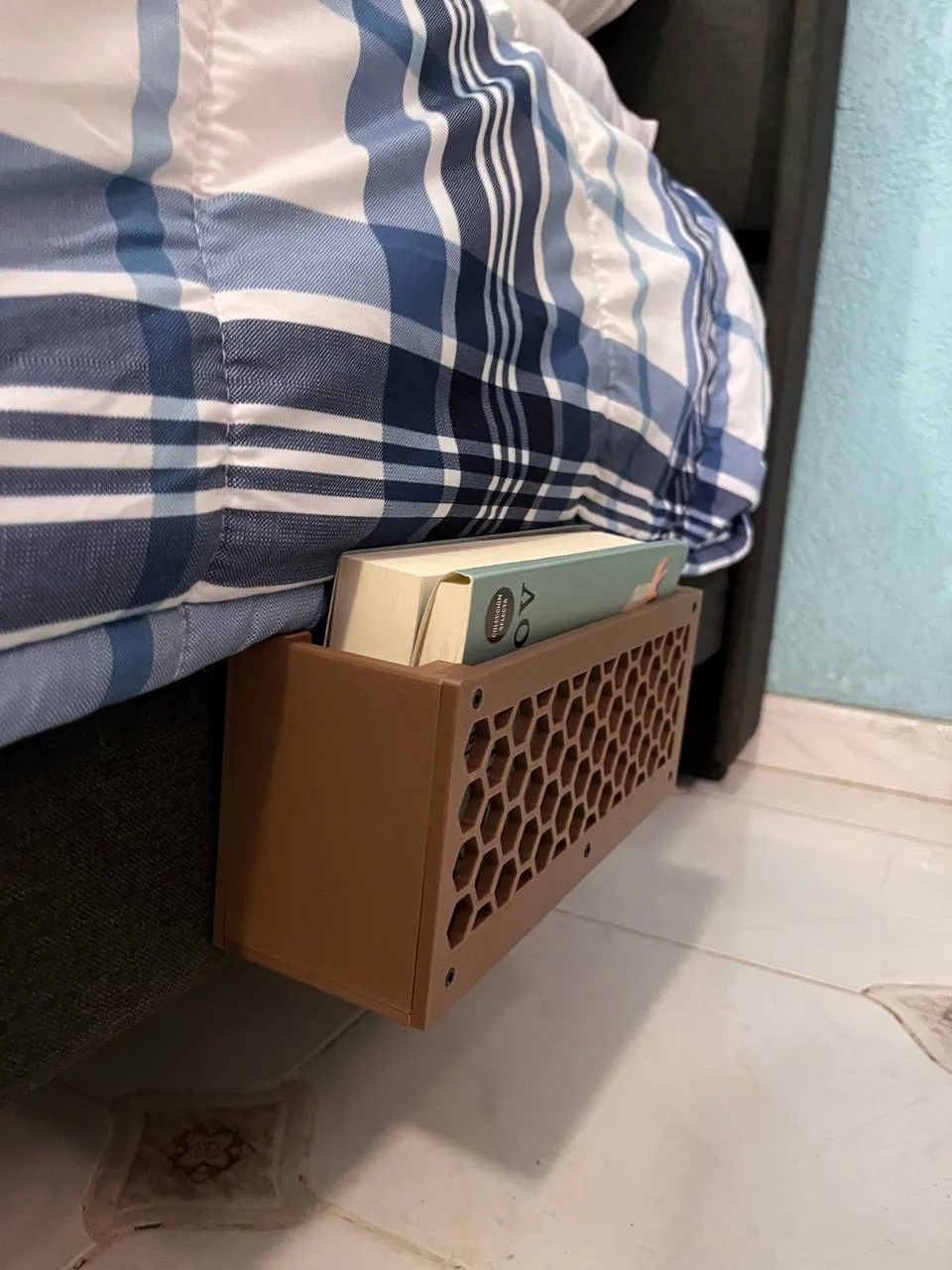

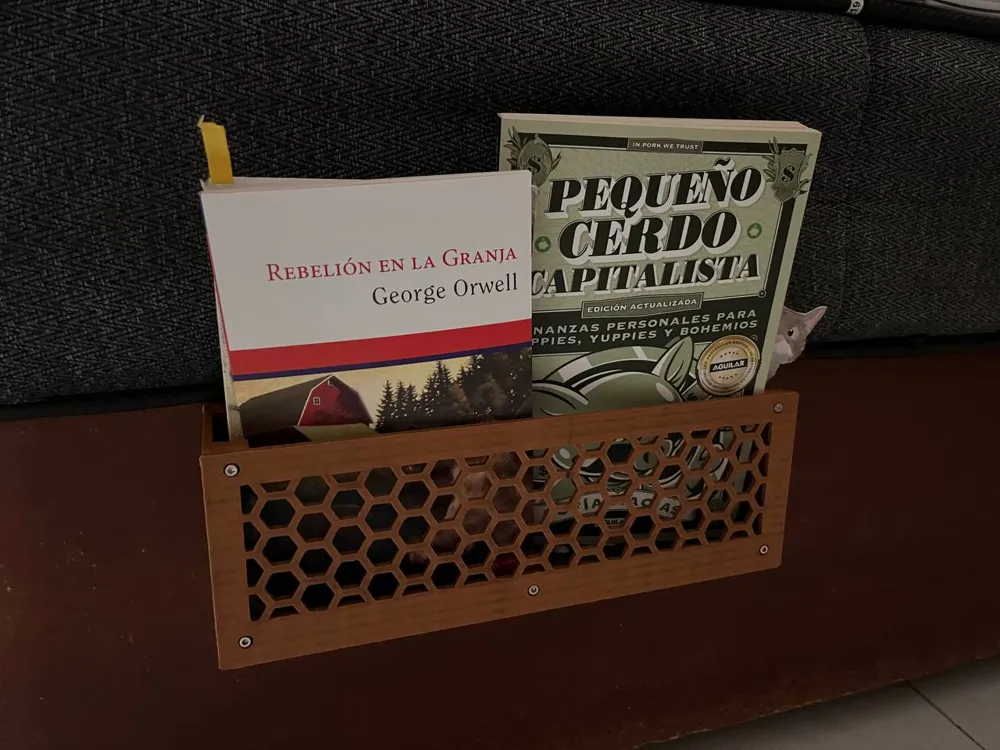

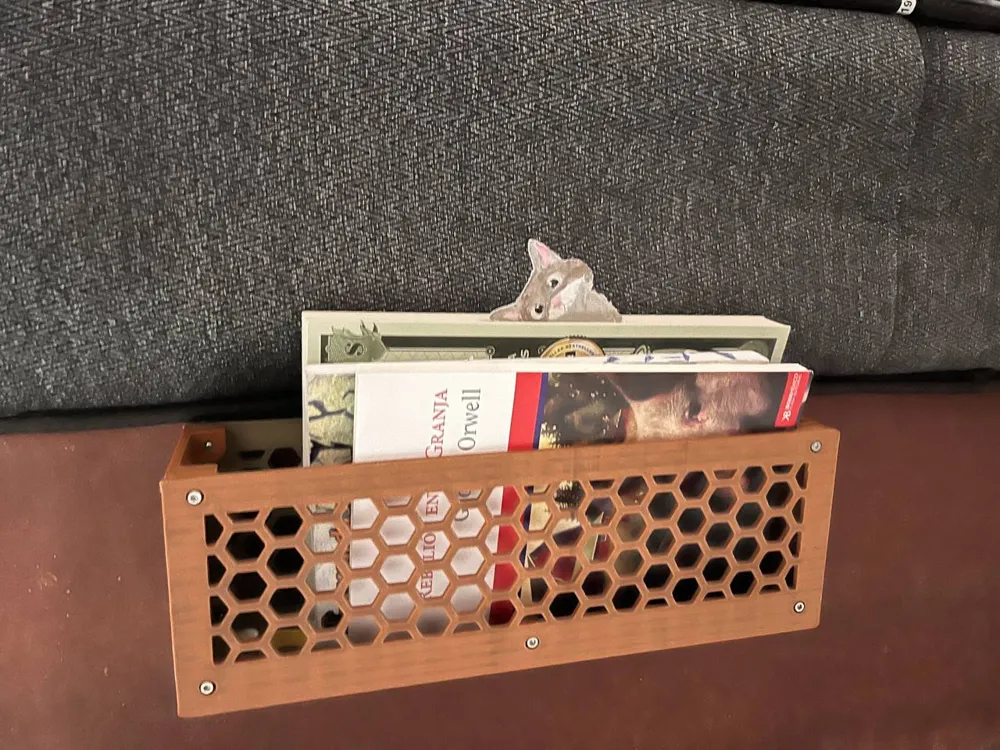

Bedside Pocket

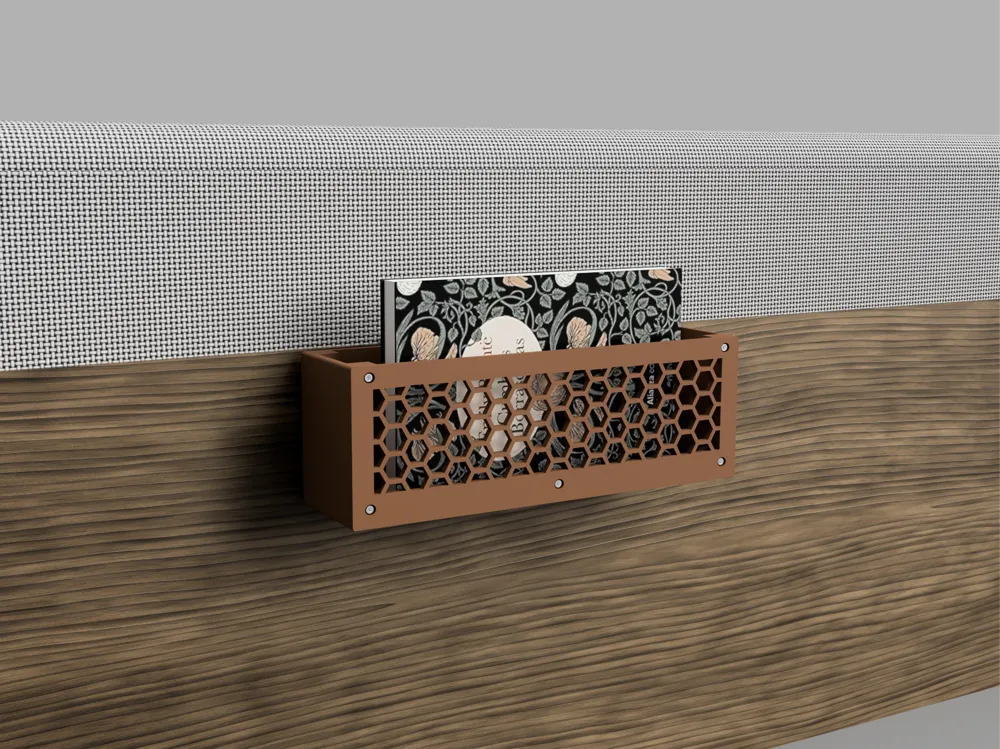

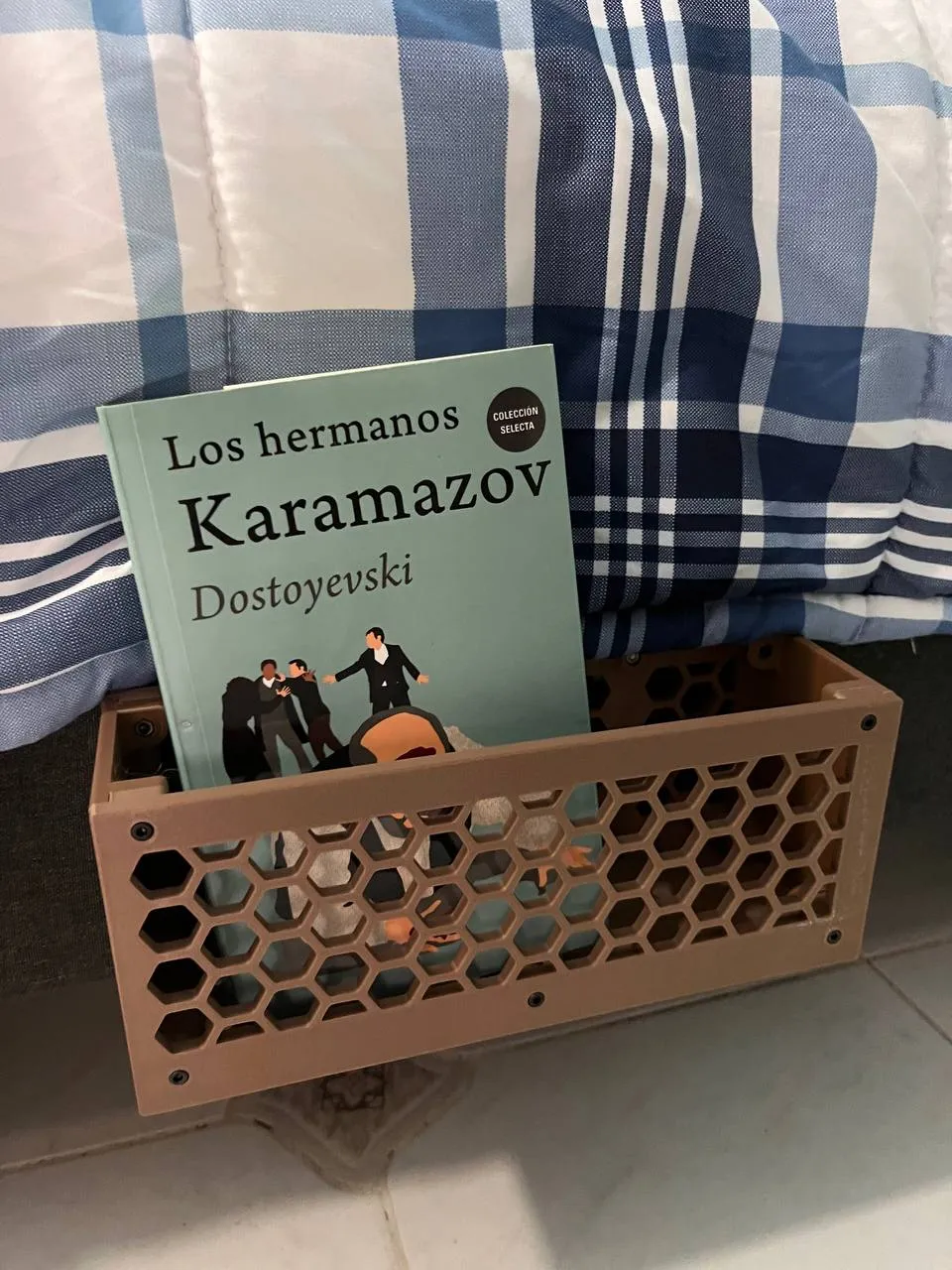

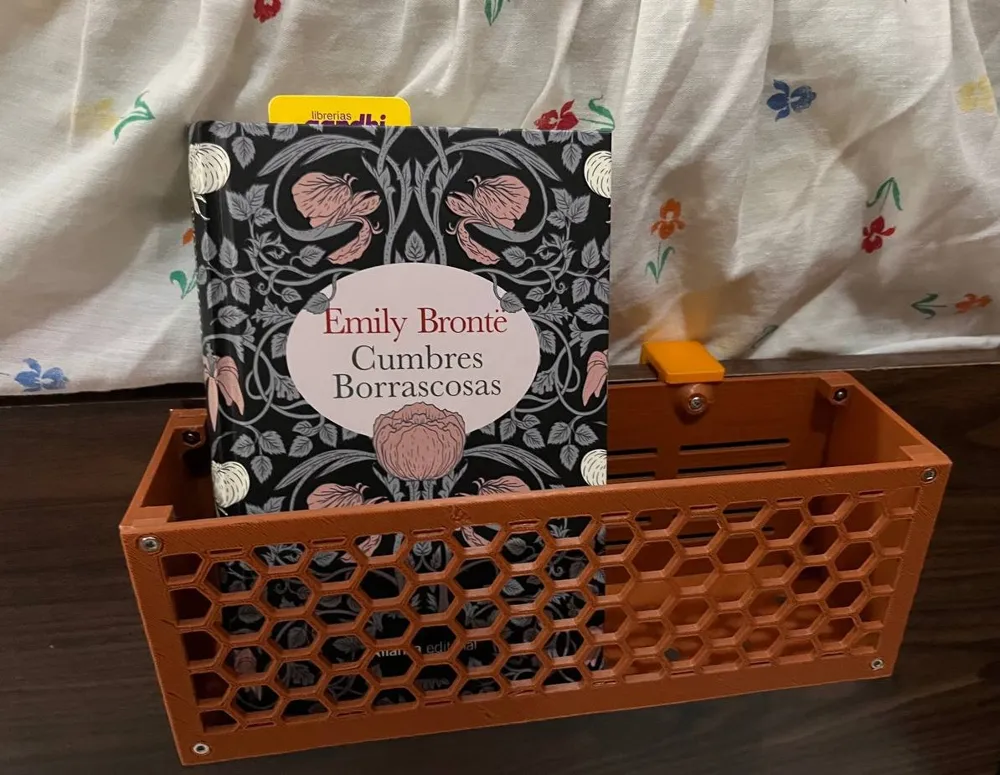

Hi! I designed this bedside pocket.
Check the file here:
CR30 and H2D:  https://a360.co/3GwnyL0
X1C: https://a360.co/3EQOEvF

 Printables did not recognize the idealmaker file but I added the zip files.

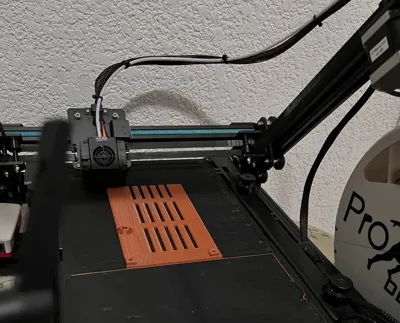

There are different native files for: CR30, Bambu lab XC1 and H2D. The file for CR30 is sliced in idealmaker, they have the same dimensions for H2D. The STL files in that folder (CR30) are designed to be printed with the CR30 due the 45° angle.

Of course, you can print the parts on other printers that fit the print area.

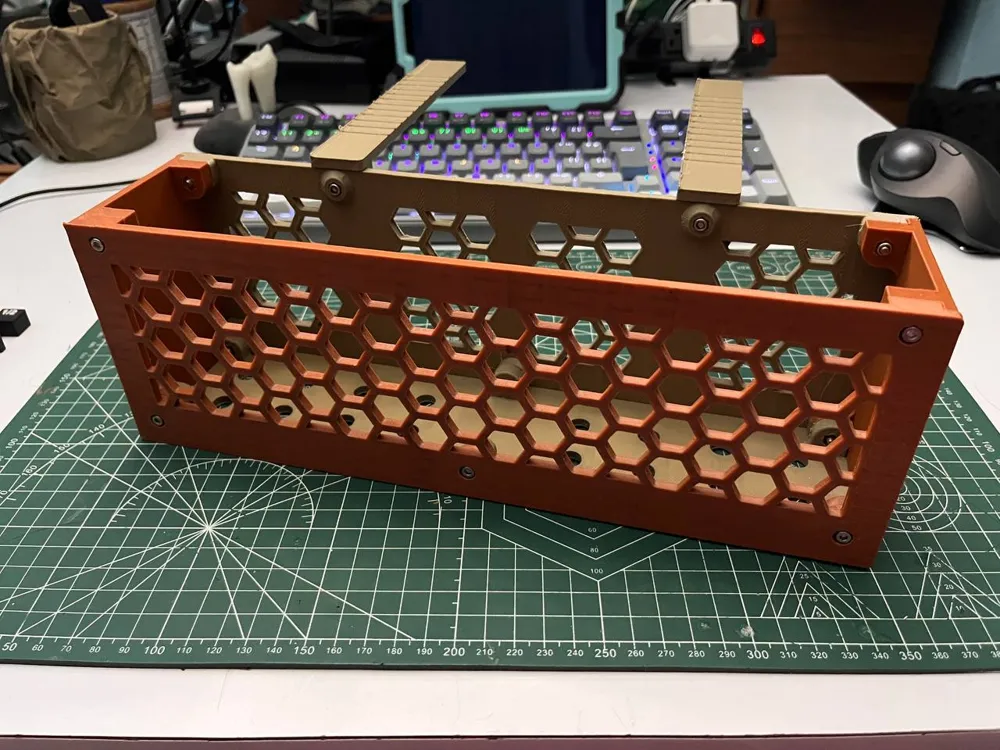

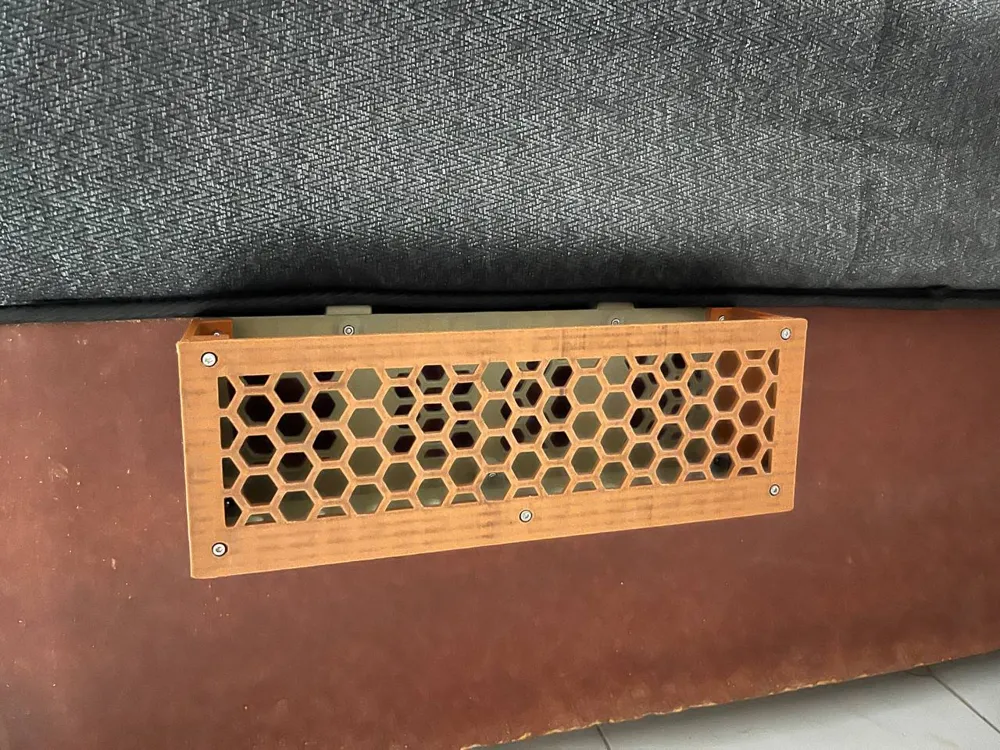

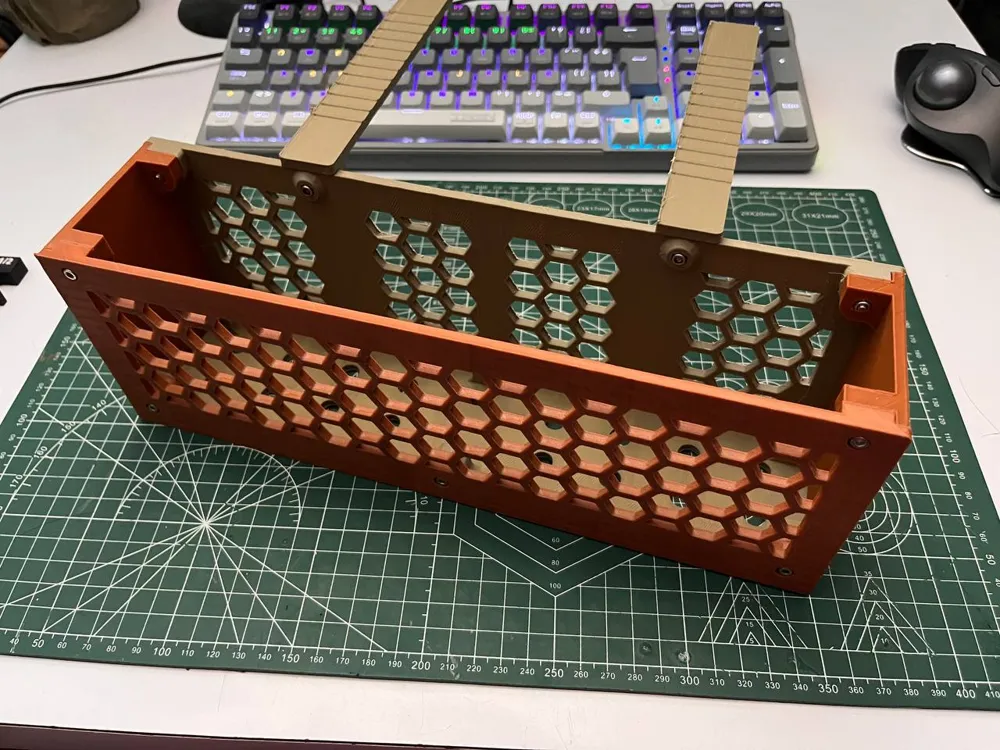

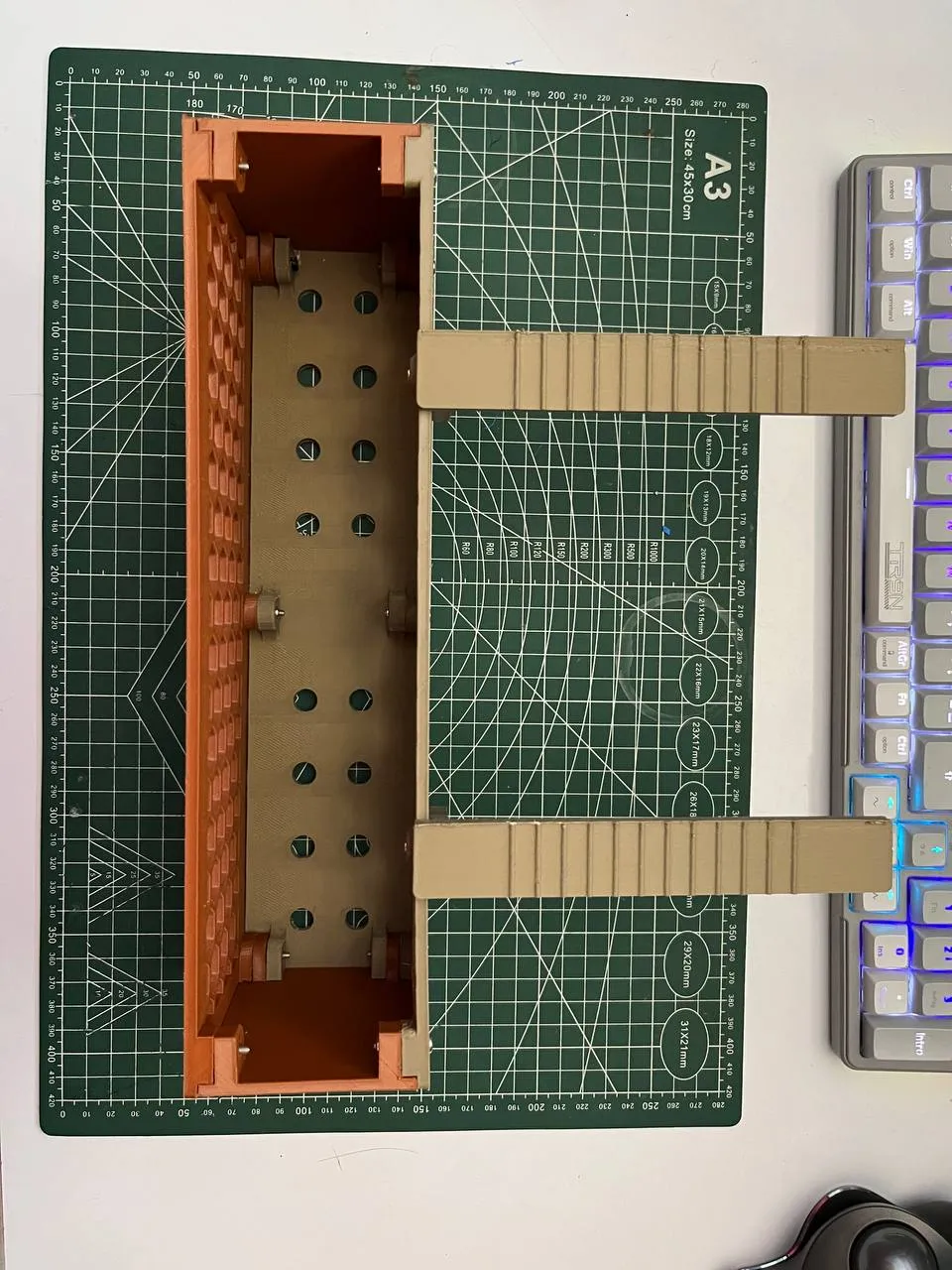

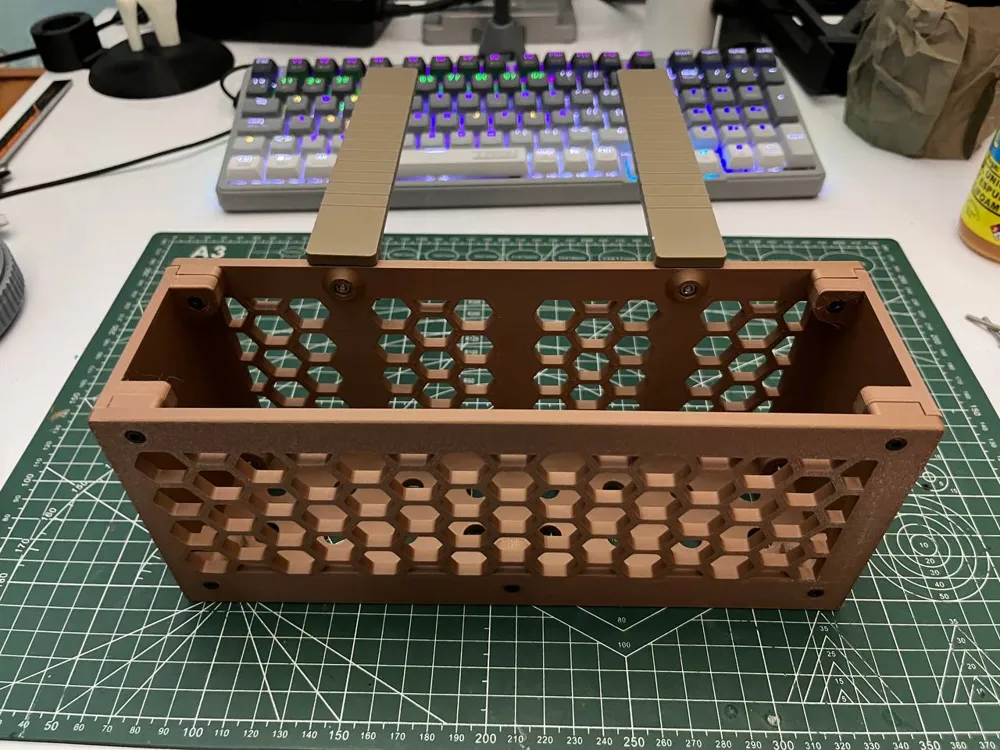

Also, there are two types of arms to hold the bedside pocket. It depends on the base of your bed.

The sizes are:
CR30 AND H2D
Length: 310 mm
Width:  80 mm
Height: 105 mm
Thickness: 5 mm

X1C:
Length: 250 mm
Width:  80 mm
Height: 105 mm
Thickness: 5 mm

BOM:
6 x  Socket Head Screw, M3 x 0.5 mm Thread x 14 mm
4 x  Socket Head Screw, M3 x 0.5 mm Thread M3 x 20 mm
2 x  Socket Head Screw, M3 x 0.5 mm Thread M3 x 10 mm or 12 mm
12 x Hex Nut, M3 x 0.5 mm Thread
