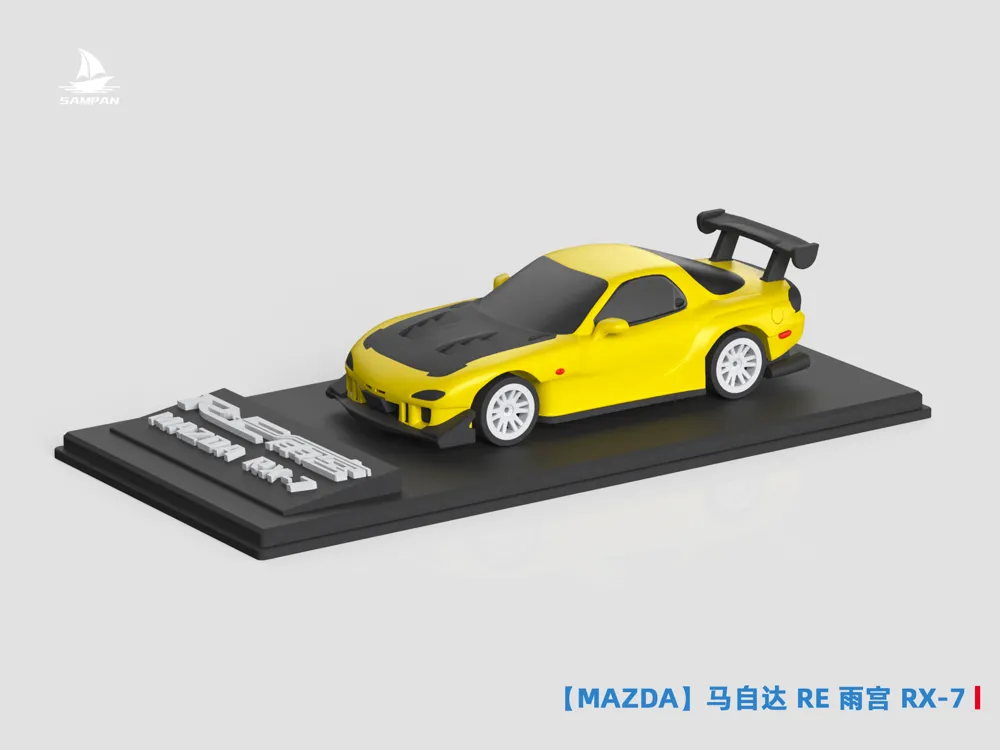

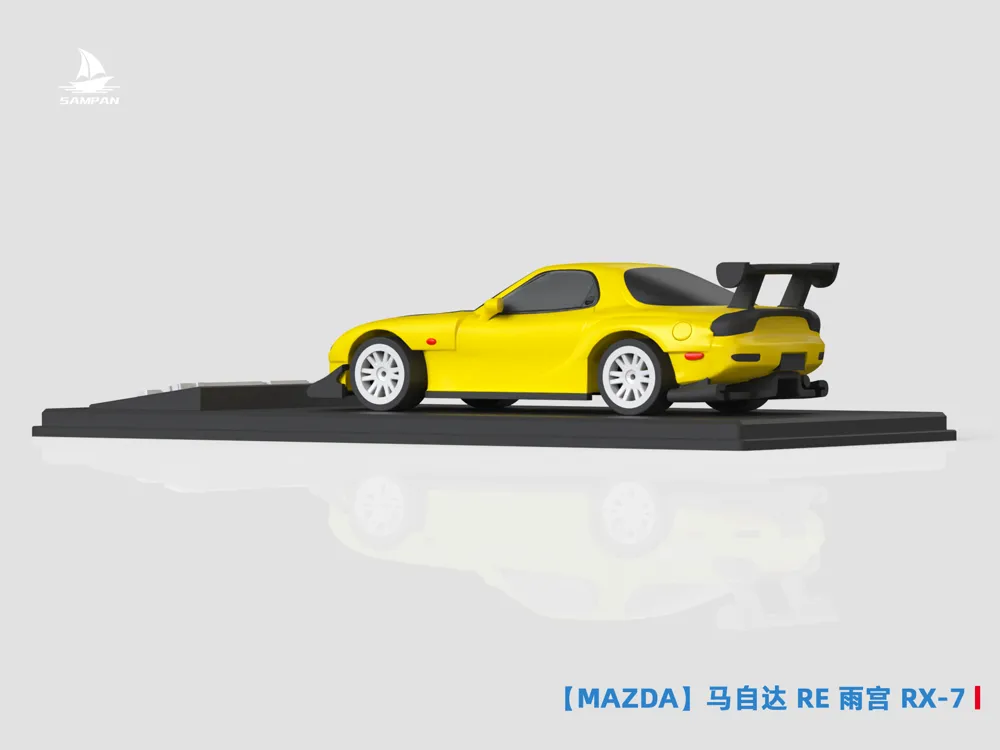

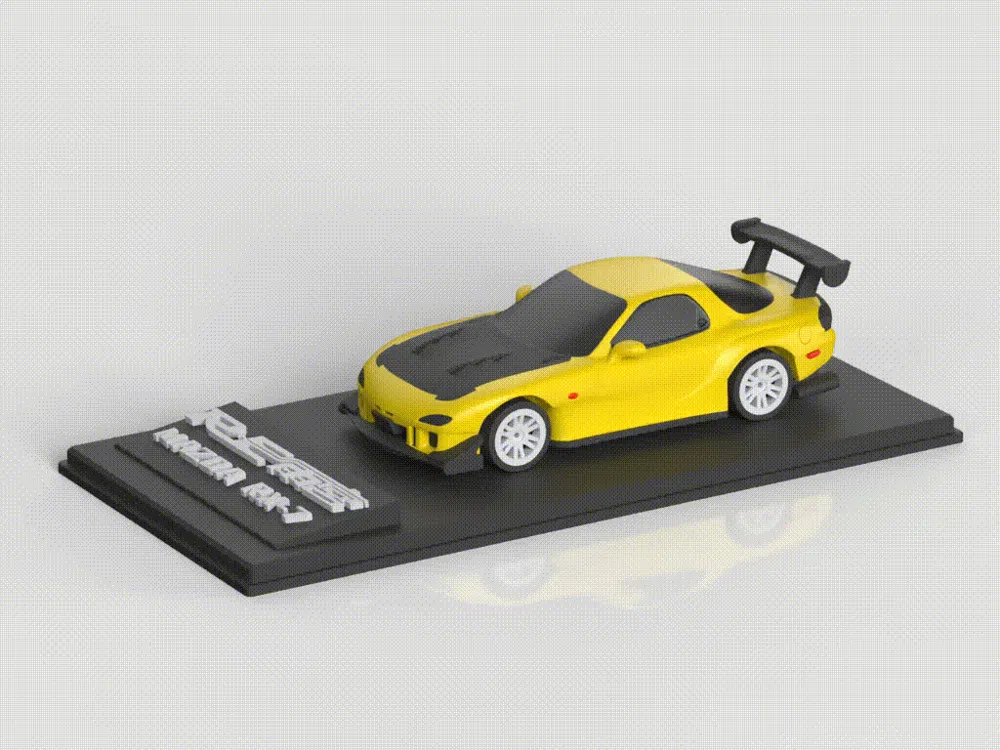

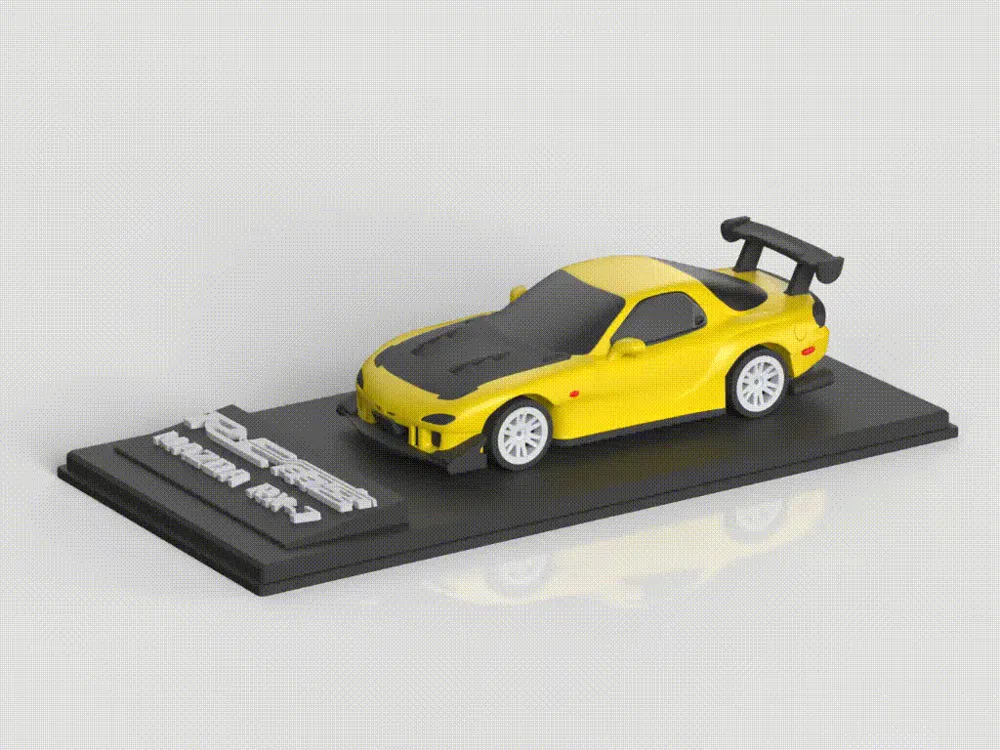

MAZDA RE Amemiya RX-7 Kit Rotary Modified Racing Champion Car with Nameplate Base Display Stand Assembly/Movable Tires

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

Mazda RE Amemiya RX-7 is a track beast crafted by renowned Japanese tuner RE Amemiya, based on the RX-7 FD3S, pushing the rotary engine's potential to its limits.

Equipped with a 13B-REW twin-turbocharged engine, its power output surpasses 280 horsepower after enhancements and tuning, with a characteristic high-pitched 9000rpm engine note and linear acceleration.

The body features the "Amemiya 7 spec" wide-body kit, a combination of carbon fiber canards, Voltex rear wing, and retro pop-up headlights—a blend of aerodynamics and JDM aesthetics. Upgraded with an Aragosta suspension system, and with a 50:50 weight distribution and lightweight design, it achieved a legendary lap time of 54 seconds at Tsukuba Circuit.

This model is also famous for being the car of the Takahashi brothers in the anime Initial D, a pinnacle symbol of JDM culture and the rotary spirit.

Model Specifications

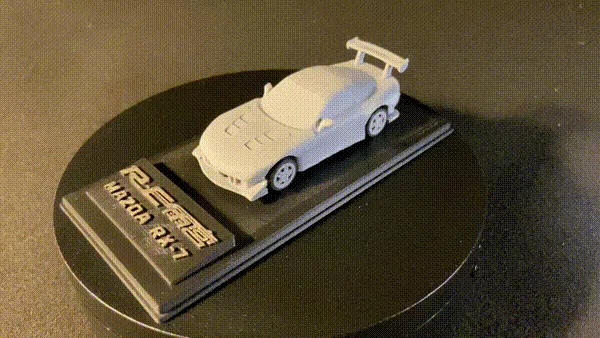

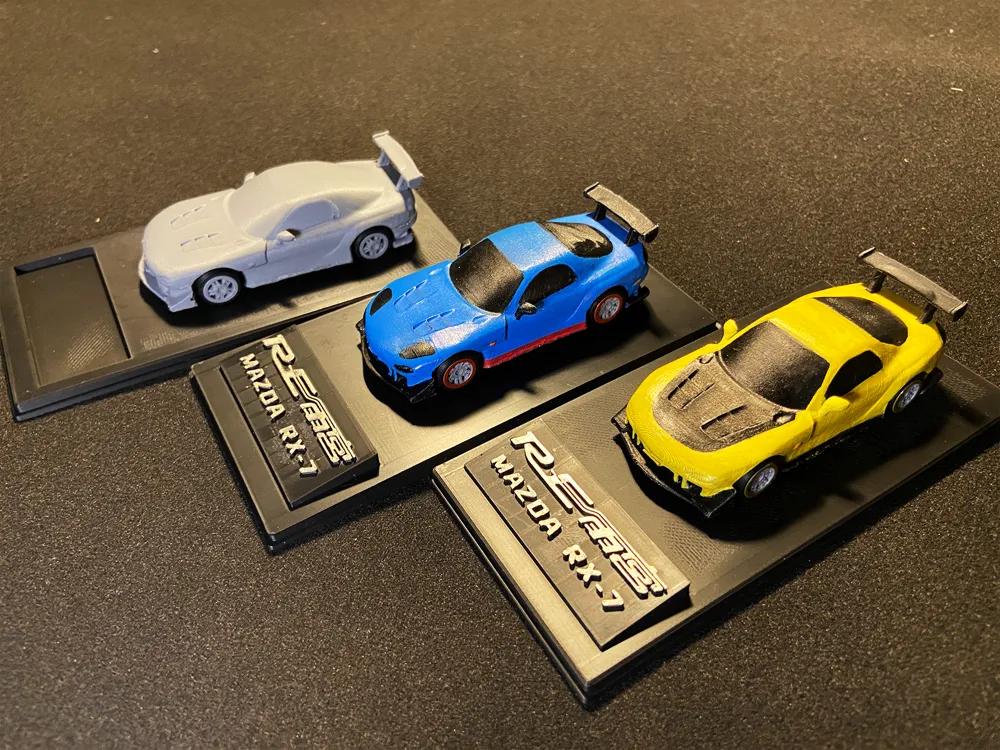

- Includes monochrome and multicolor print configurations: Monochrome allows for painting and decal application. The multicolor configuration can be printed directly (requires more filament and time), and serves as a reference for monochrome painting.

- Movable wheels, glue-free assembly.

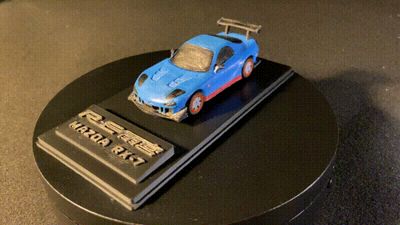

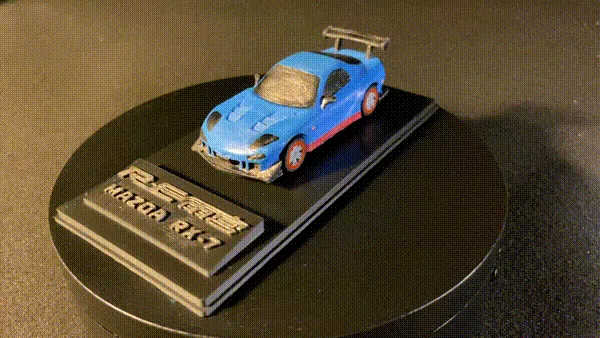

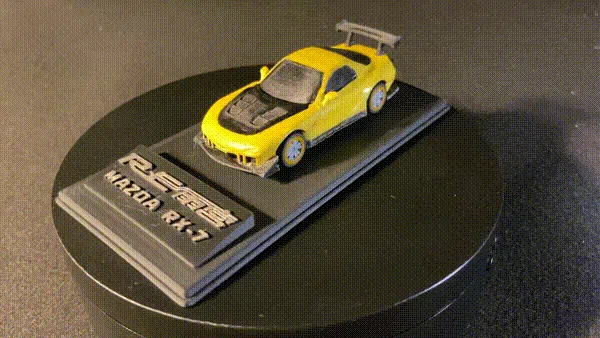

- (Optional) Display stand: More display stand styles will be released later.

- Replaceable with a wide array of rims from this account. Browse the homepage and download your favorite rim styles.

Dimensions
- 1/64 scale
- Sliced files are configured for minimum printer dimensions. Adjust the number of models printed at once to save time and filament based on your printer's dimensions.

FDM Print Settings

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.16mm layer height, and official PLA filament. Higher-end equipment, settings, and filaments will yield superior results (assembly might be too tight or loose; compensate by adjusting the XY outer contour dimensions of the components, or use sanding tools and 409 glue for processing and connection).
- Infill density: 15%. Increasing this enhances the model'sheft, adjust to 100% if desired.
- Supports: A combination of normal and tree supports was used.
- Adjust parameters according to your printing experience.

Monochrome and Multicolor Printing

- The multicolor configuration comprises multiple sliced parts and cannot be directly printed in monochrome; otherwise, many seams will appear on the surface. For monochrome printing and subsequent painting, or for structural confirmation before multicolor printing, download the monochrome sliced file for printing (Monochrome print time: approximately 2 hours, filament consumption: approximately 15g)

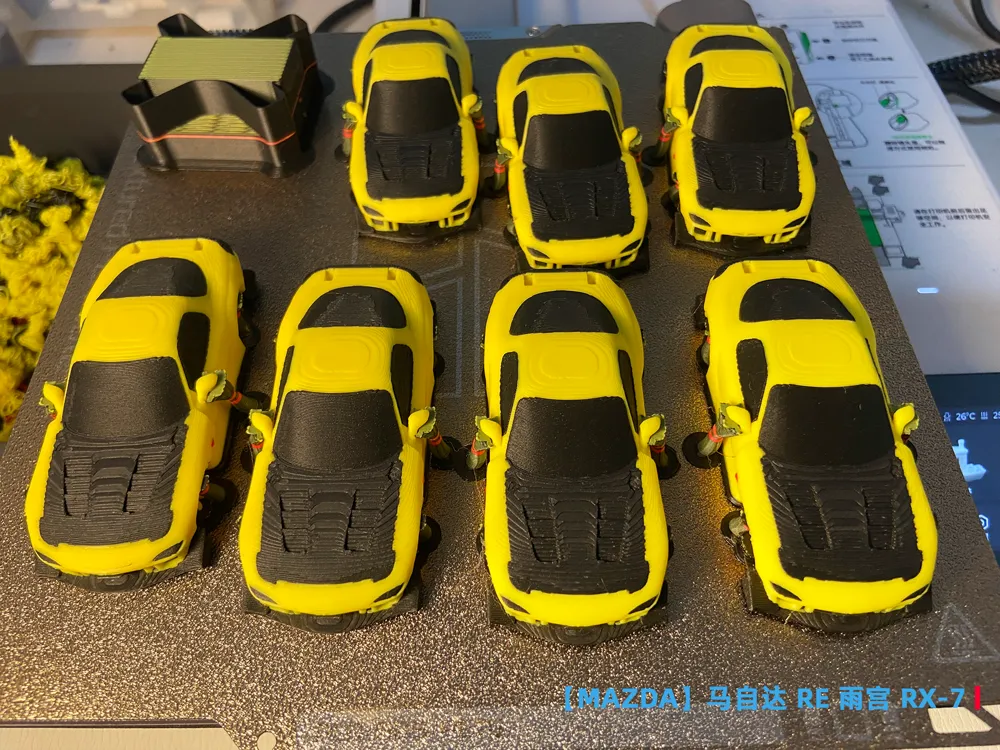

- For multicolor printing, horizontal placement is adopted to reduce the number of color changes (reducing filament wiping and print time). For superior top surface quality, the orientation in the monochrome configuration can be used, but this significantly increases filament consumption and time; adjust as needed.

- Various painted versions will be released later. Follow this account for the latest updates.

Painting Guide

- Sanding: (Optional) Sand in the order of 400-600-800 grit.

- Painting: Use acrylic paints and brushes (for layer line seepage, first apply a large area of the main color, then paint the edges).

- Polishing: Use a velvet cloth to polish; acrylic paints exhibit a gloss finish.

Assembly Instructions
- Refer to the exploded parts diagram for installation.

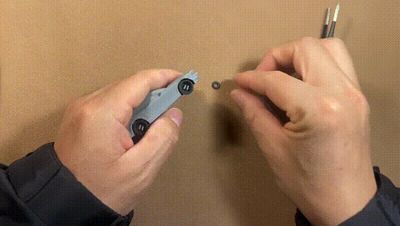

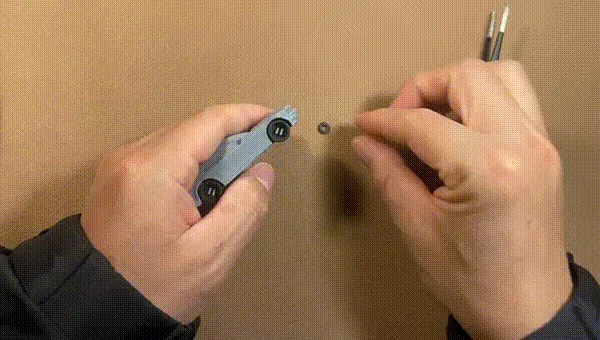

- For long-term stability, wheel installation requires firm pressure; initial rotation will be tight. It will become increasingly smoother with repeated use. See video demonstration for wheel installation.

- For convenient installation of wheel calipers, a specialized wheel caliper installation tool has been designed and manufactured. Link: 64-scale wheel caliper installation tool from SAMPAN棱界复刻 - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
