CR-10S Pro V2 Direct Drive BMG Extruder Mount
Print Profile(1)
Description

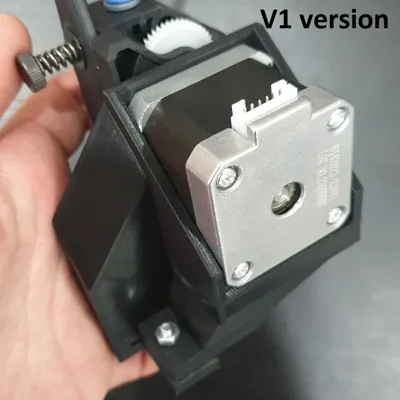

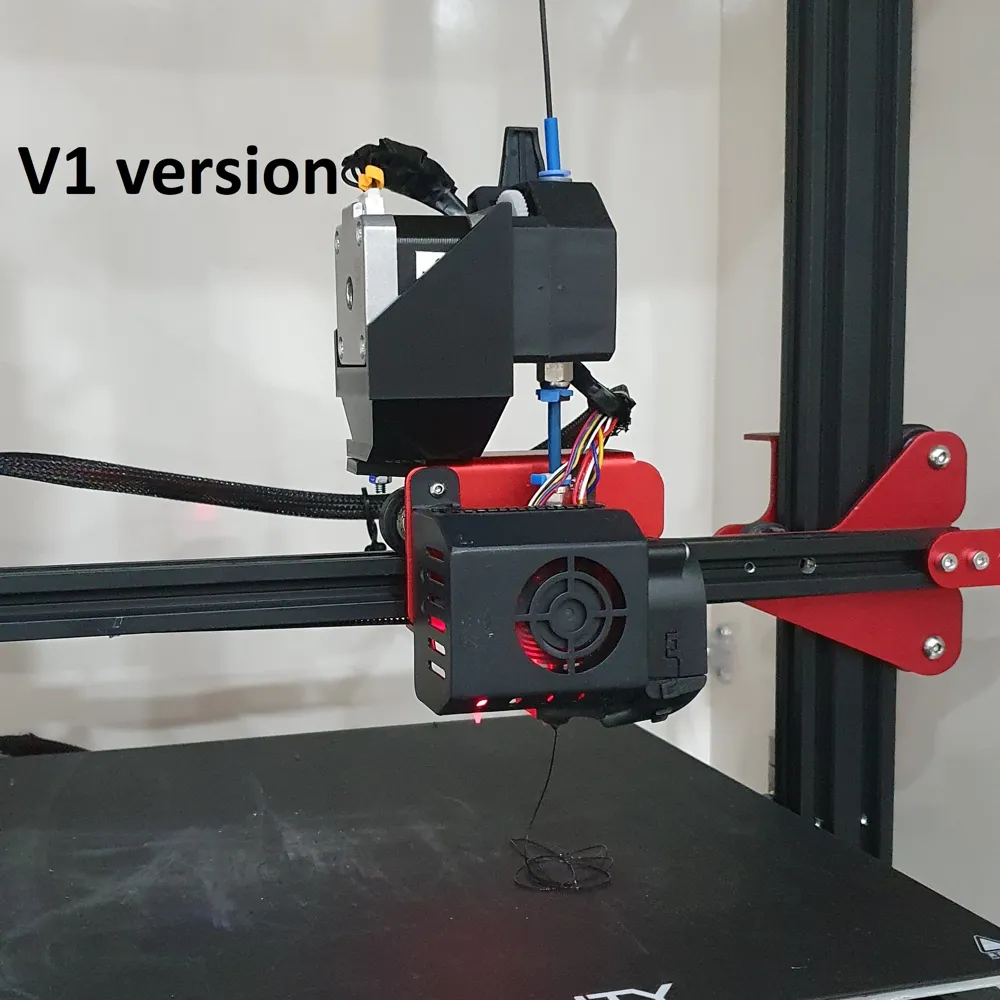

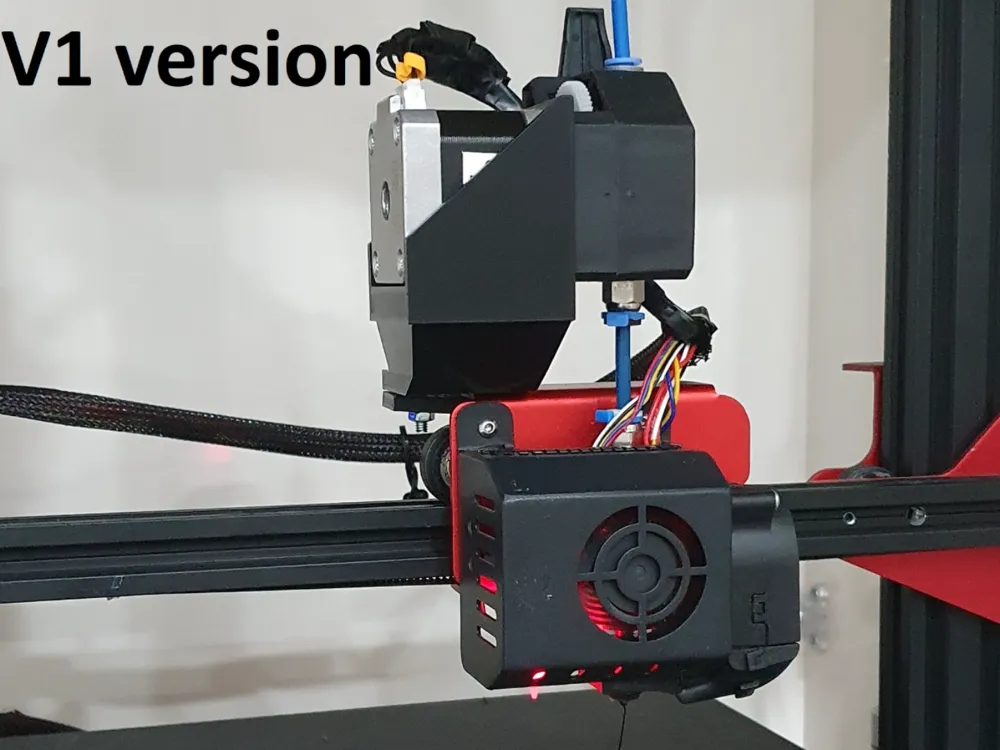

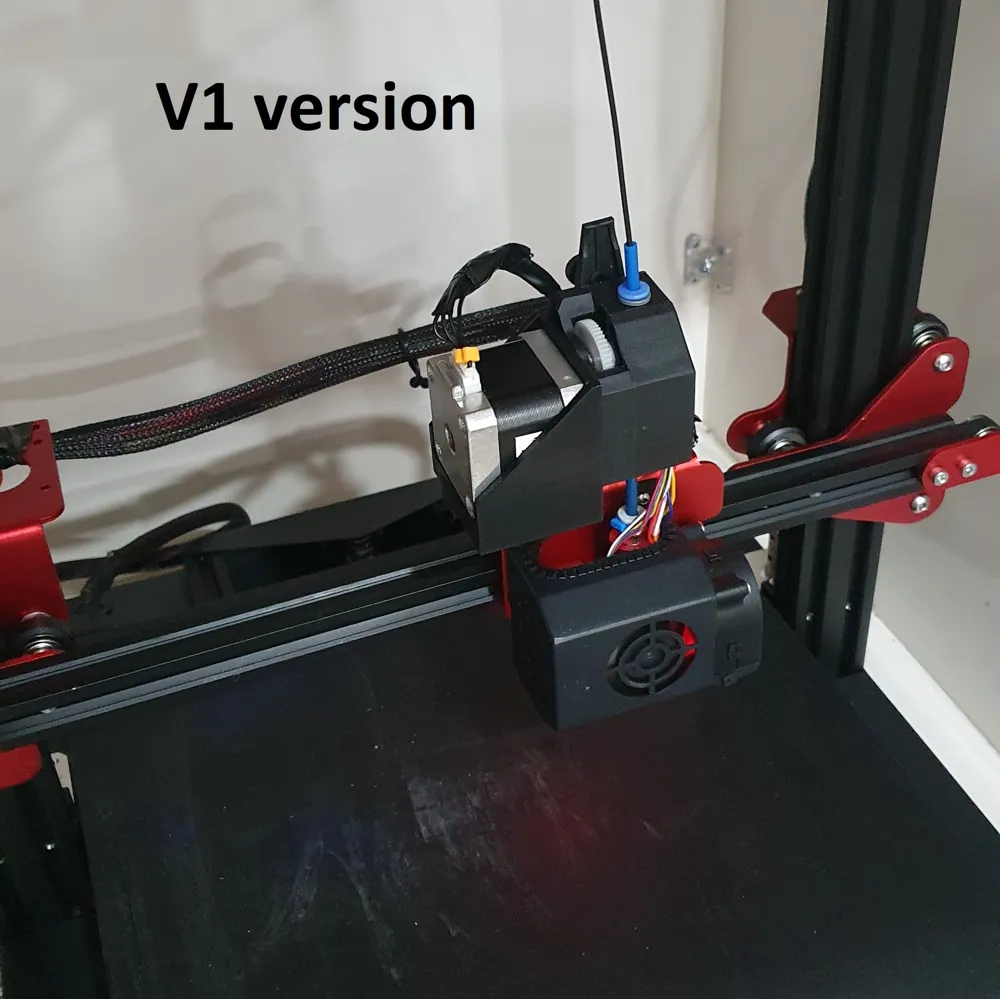

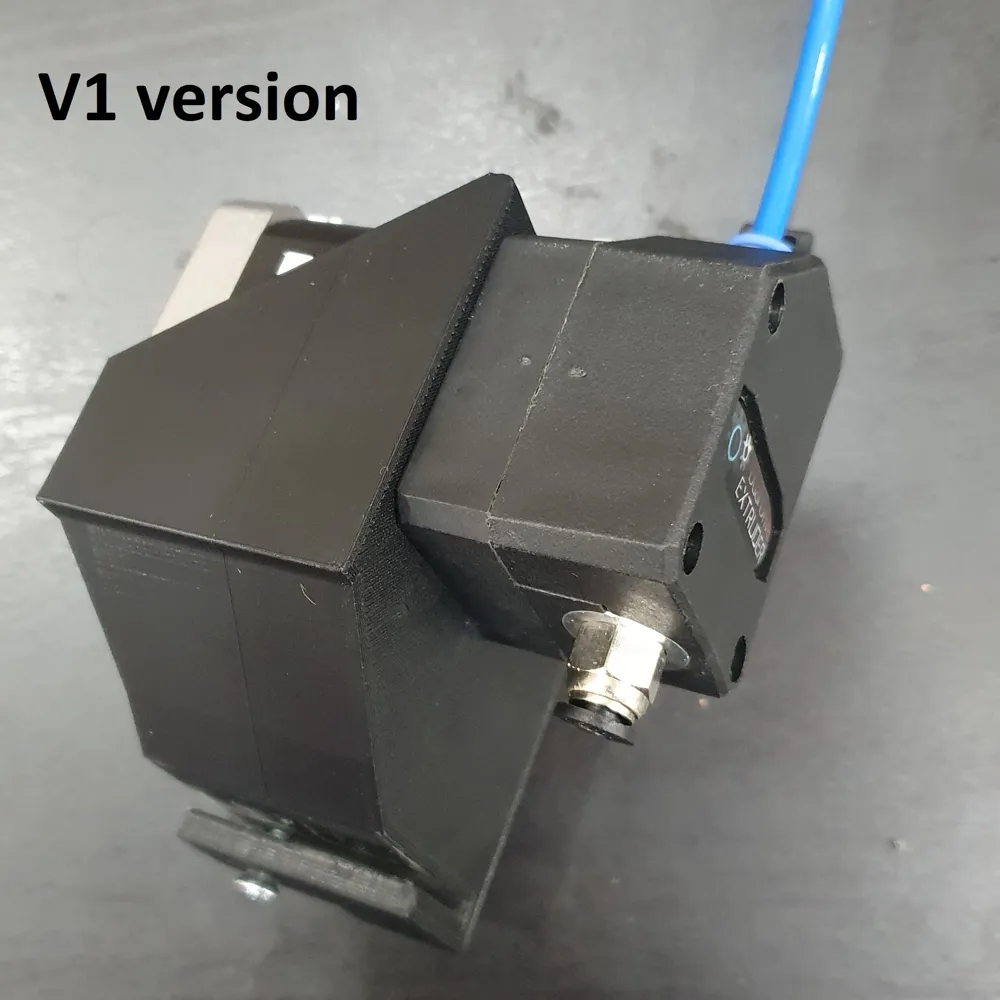

It's a stepper-BMG extruder mount for direct drive upgrade for Creality CR-10s Pro and Pro V2. I used BMG clone extruder. Filament sensor is not included. There is a M3 screw mount for increasing the stability. With 40% infill, it weights 55gr. A teflon tube with 12cm length is enough for the complete system, from hotend to inside of BMG extruder. It ıncreases the resonance and the sound a bit.
Update:

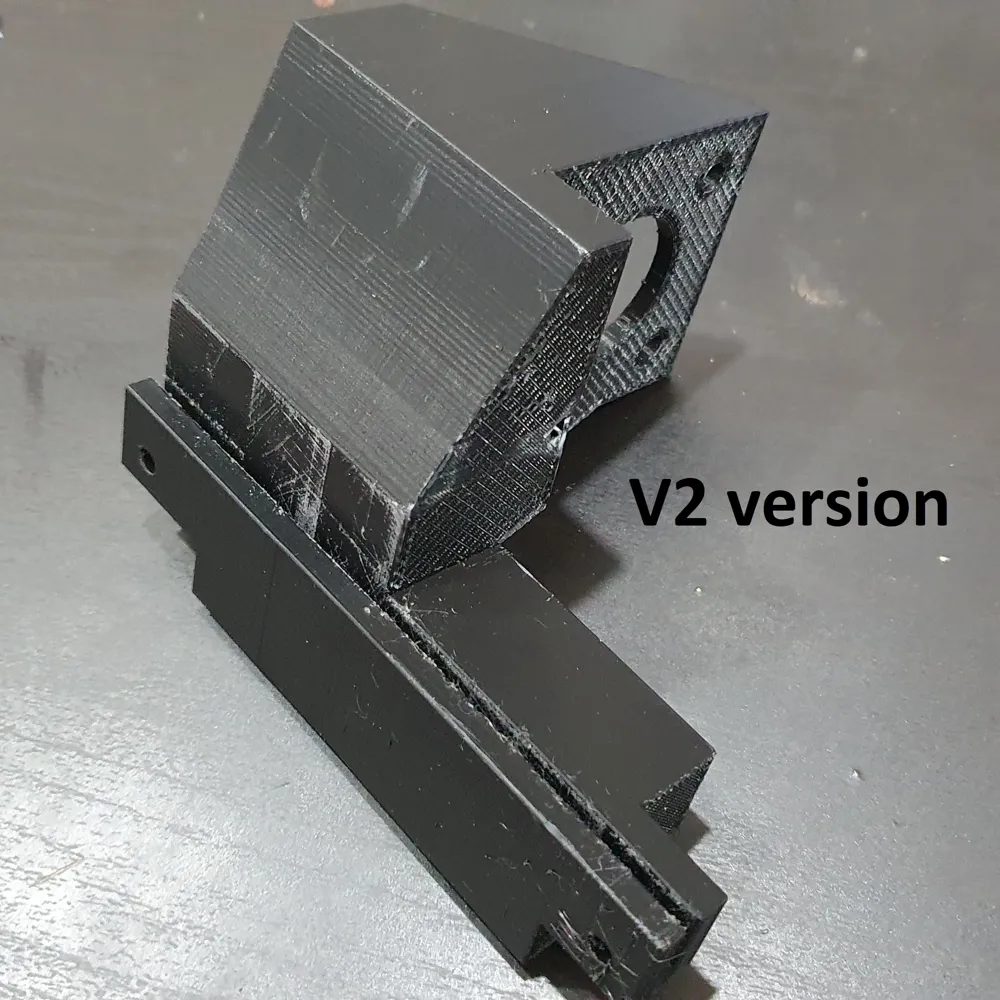

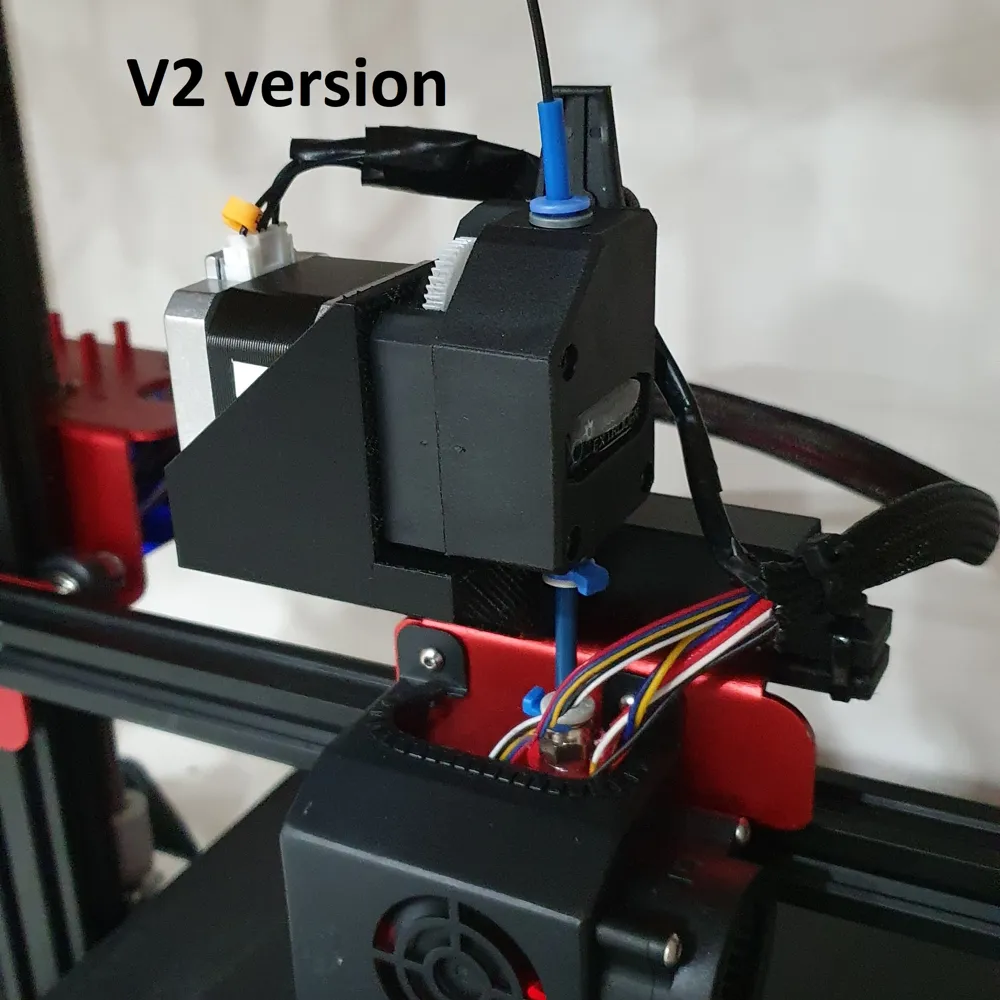

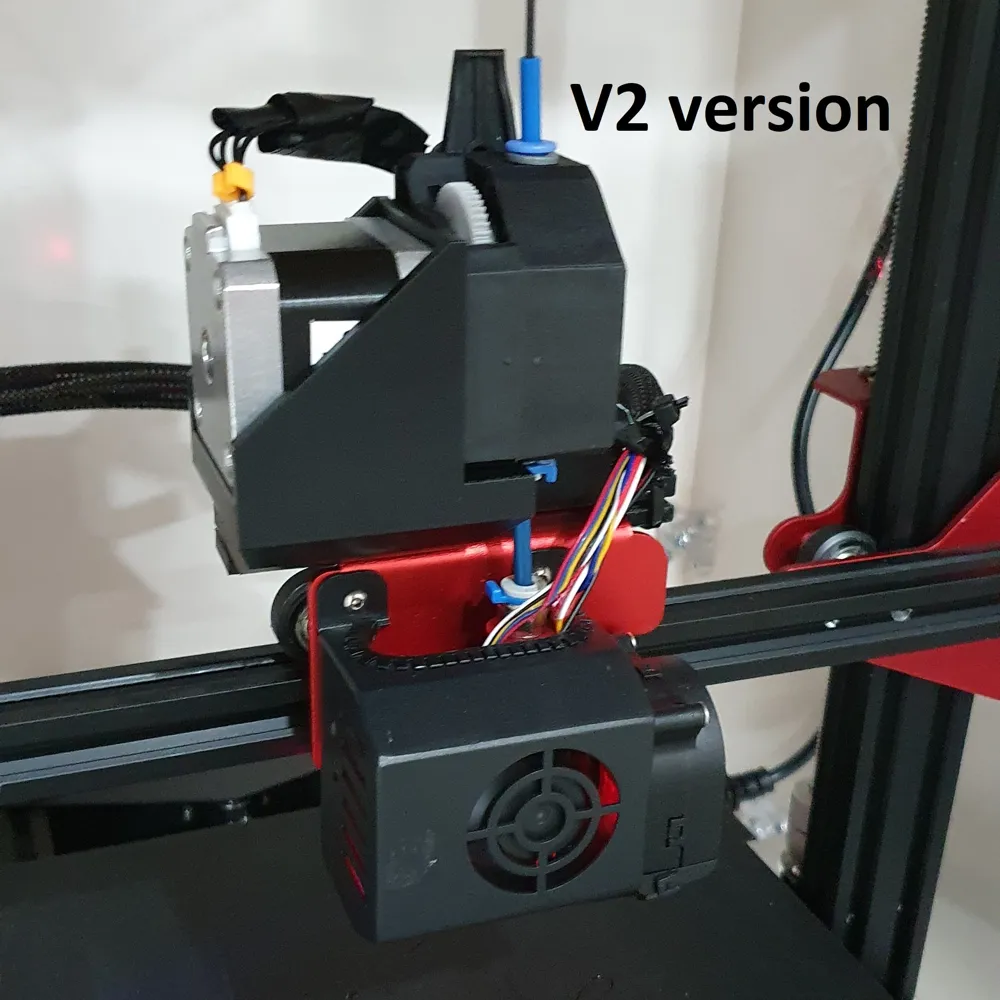

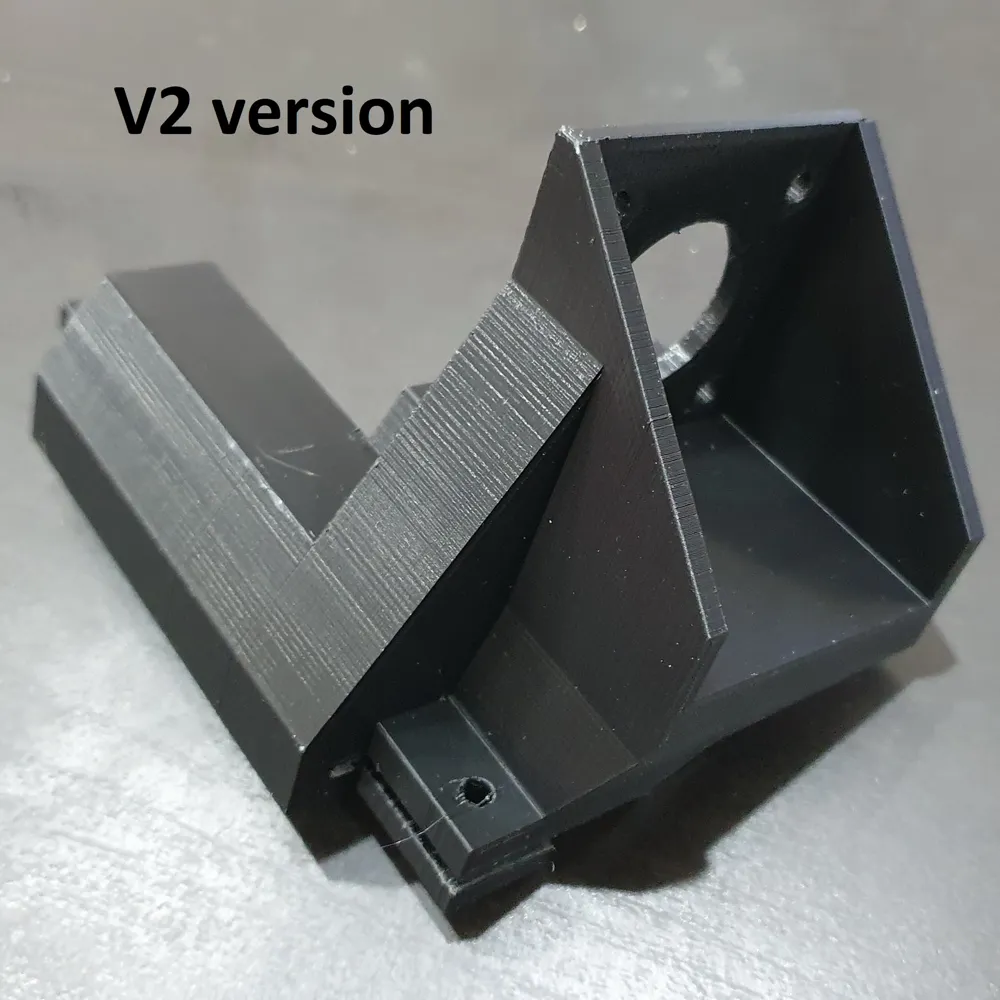

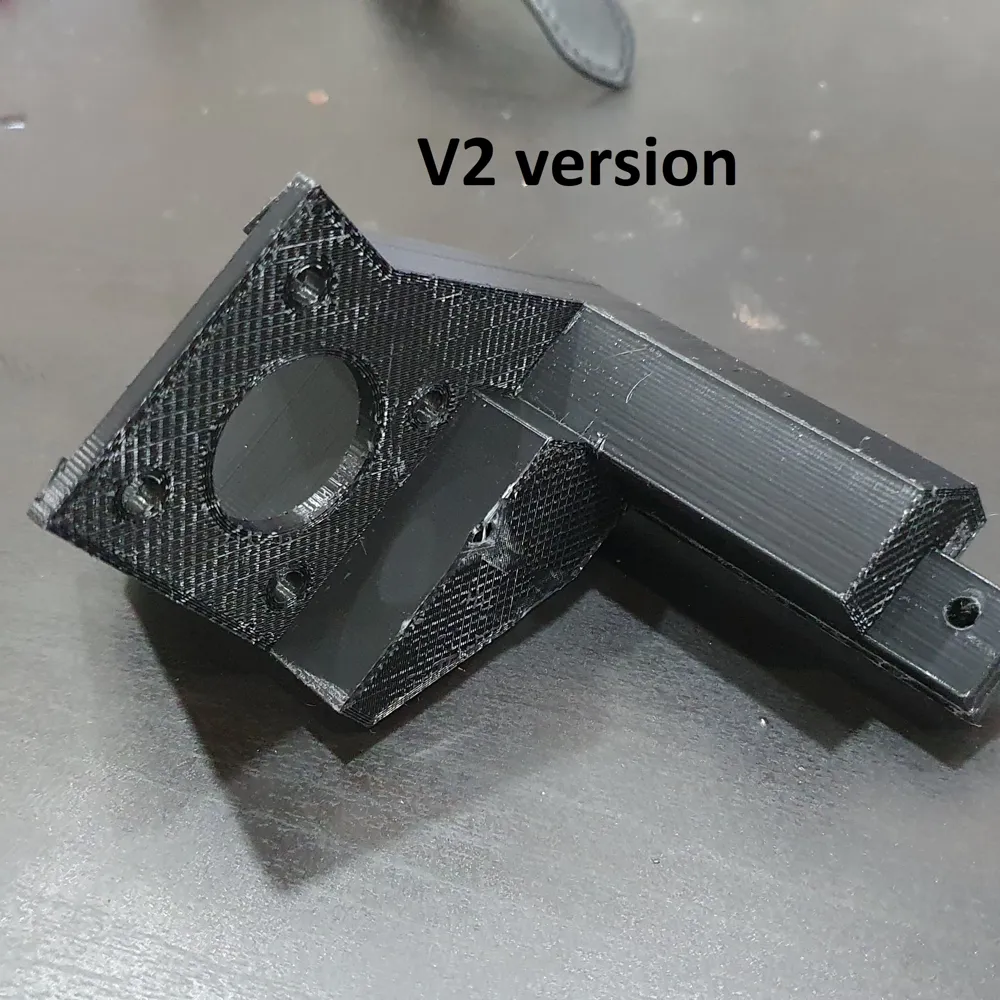

v2 version of mount added. It's bigger and heavier a bit but much more stable and makes less resonance and less noice.
